Golf 7 Display - Your Information Center

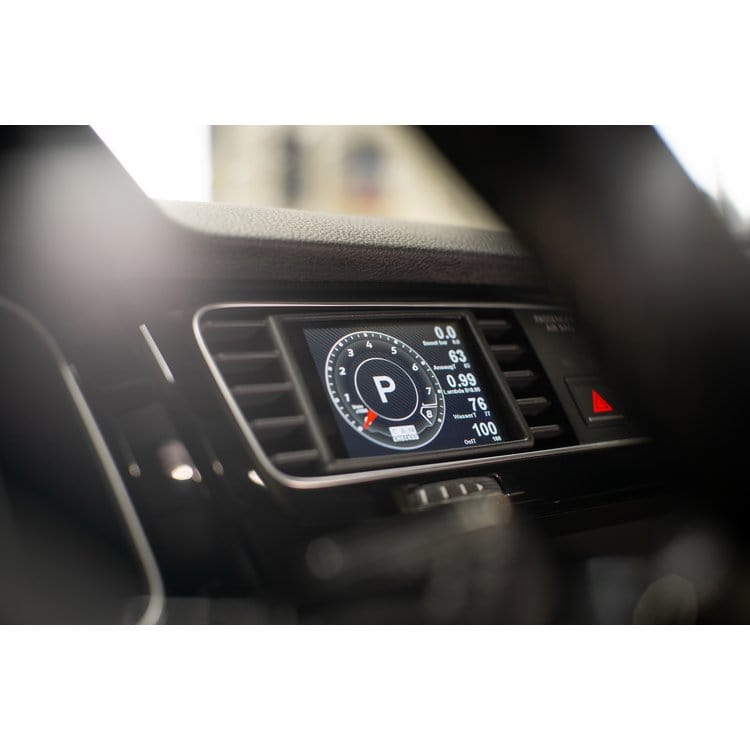

We are excited to introduce our state-of-the-art display for Golf 7 models. This groundbreaking display provides you with comprehensive access to all essential vehicle data. We mean truly all relevant information. Our display reads this data directly via the Can-Bus protocol and presents it on our reliable MFD32 display. The Golf 7 display seamlessly integrates into your vehicle's design and features a custom-made bezel that blends perfectly with the aesthetics.

The specially tailored Can-Bus protocol has been developed with the highest precision to ensure the fastest query speed.

The Highlights:

• Seamless integration into the vehicle design
• Reads up to 128 sensors
• 10 individually customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our cable set - simply plug in and go
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare protection
• Diagnosis-friendly sensor query at eye level
• Data logging - continuous or on demand

Additional Features:

• Performance Tracker: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - whether on request (start with a tap) or continuously. All data from your last drive will be saved.
• Customizable Alerts: Activate and customize pre-installed alerts, e.g., when exceeding an exhaust temperature of 900 degrees.
• 4 Additional Analog Inputs: Connect additional sensors such as temperature or pressure sensors to utilize advanced monitoring functions, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Deletion: Read and clear error messages from the engine control unit clearly and precisely.
• Personalization: Customize the start screen individually or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all left-hand drive Golf 7 models. A version for right-hand drive (RHD) vehicles is also in development.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It lists all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adjustment, long-term lambda adjustment, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Other: RPM, total ignition timing, gear, battery voltage, cylinder-specific ignition timing correction.

Analog Inputs: You can add additional sensors such as oil temperature, fuel pressure, oil pressure, exhaust temperature, and more, as well as an ethanol sensor for flex-fuel applications.

Please note that not every engine provides all of these data points.

Compatibility with Golf 7 Models:

The display frame fits all Golf 7 models. A version for right-hand drive (RHD) vehicles is also available.

Package Includes:

Each package includes:

• Integrated MFD32 Gen2 data display in the ventilation grille
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protection film (to prevent reflections)

Connection and Expansion:

You can connect various sensors via the four analog inputs - both linear 0-5V and NTC sensors are supported.

Our in-house Wagner Tuning Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Type K exhaust temperature probe
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to the analog sensors, you can also connect our external flash module with 8 LEDs directly. It can flash in different colors to indicate rpm limits, and the colors can be easily configured via the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. After that, you can read and log the ethanol content and temperature directly on the display.

Advanced Features:

You can link sensor data with Math Channels. User Tables enable the creation of additional sensors using 2D or 3D maps.

Optional Accessories:

• WT24000 SLM08 - External flash module
• WT22100 CBD08 - Eight-port CAN distribution hub
• WT22902 NTC01 - Temperature sensor for liquids 1/8" NPT
• WT22903 TCC01 - Type K converter 0-1250°C
• WT22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• WT22900 BST01 - Pressure sensor 0-5.5 Bar absolute (80psi)

Installation Guide:

We provide an illustrated installation guide to ensure a smooth installation process.

Unlock the full potential of your Golf 7 with our advanced display. If you have any questions or need further information, please feel free to contact us.
