BMW E8x Display - Your Cockpit of the Future

We are proud to introduce our advanced display for BMW E8x models. This innovative display provides you with access to all relevant vehicle data. Yes, you heard it right, all essential information. Our display reads this data directly through the Can-Bus protocol and presents it on our reliable MFD32 display. The BMW E8x display has been designed to seamlessly integrate into your vehicle's cockpit and features a custom-made bezel that perfectly complements the original design.

The specially adapted Can-Bus protocol was developed to ensure the fastest possible query speed.

The Highlights at a Glance:

• Perfect integration into the cockpit design of your BMW E8x
• Support for up to 128 sensors
• 10 individually customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our cable set - simply connect and go
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare protection
• Diagnosis-friendly sensor query at eye level
• Data logging - continuously or on demand
• Switch display modes with the original cruise control switch

More Exciting Features:

• Performance Meter: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - whether on request (start with a touch) or continuously. All data from your last trip will be saved.
• Customizable Alerts: Activate and customize pre-installed alerts, such as exceeding an exhaust temperature of 900 degrees.
• 4 additional analog inputs: Connect additional sensors such as temperature or pressure sensors to utilize advanced monitoring functions, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Deletion: Read and clear error messages from the engine control unit clearly and easily.
• Personalization: Customize the startup screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all BMW E8x models. We are also working on a version for right-hand drive (RHD) vehicles.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It includes all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual values, short-term lambda adaptation, long-term lambda adaptation, MAF (Mass Air Flow), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/pedal position.
Other: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.

Analog Inputs: You can add additional sensors such as oil temperature, fuel pressure, oil pressure, exhaust temperature, and more, as well as an ethanol sensor for flex-fuel applications.

Please note that not every engine provides all of this data.

Compatibility with BMW E8x Models:

The display frame is suitable for all BMW E8x models - including E81, E82, E87, E88 (including M models). A version for right-hand drive (RHD) is also available.

Detailed Contents of the Package:

Each delivery includes:

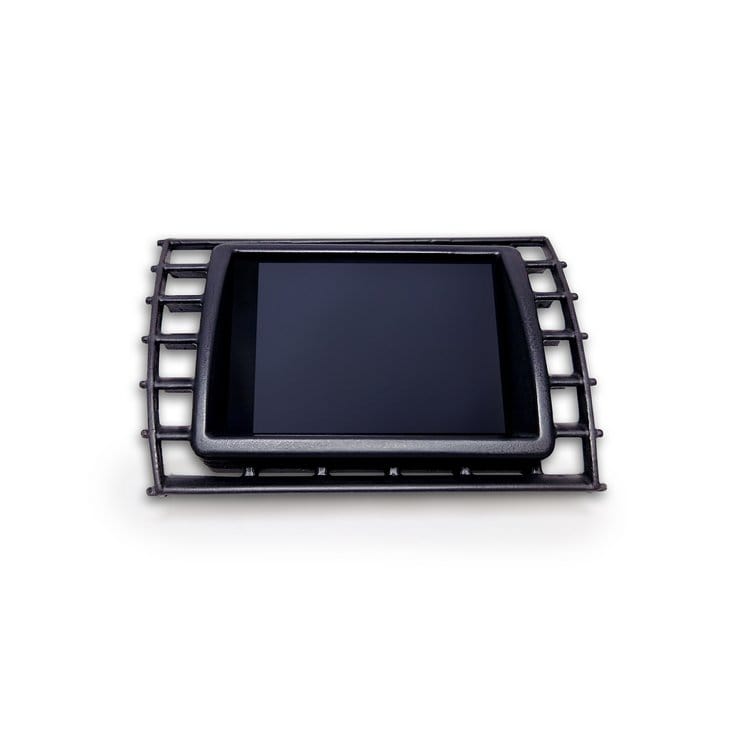

• Integrated MFD32 Gen2 data display on the dashboard
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protective film (to prevent reflections)

Connection and Expansion Options:

You can connect various sensors through the four analog inputs - both linear 0-5V and NTC sensors are supported.

Our in-house Wagner Tuning Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Exhaust gas temperature probe Type K
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to analog sensors, you can also directly connect our external flash module with 8 LEDs. It can flash in different colors to indicate RPM limits, and the colors can be conveniently configured through the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. Then, you can read and log ethanol content and temperature directly from the display.

Advanced Features for Experts:

You can link sensor data with Math Channels. User Tables enable the creation of additional sensors with 2D or 3D maps.

Optional Expansion Accessories:

• WT24000 SLM08 - External Flash Module
• WT22100 CBD08 - 8-port CAN Distributor
• WT22902 NTC01 - Temperature Sensor for Liquids 1/8" NPT
• WT22903 TCC01 - Type K Converter 0-1250°C
• WT22901 FLP01 - Pressure Sensor 0-10 Bar (145psi) M10x1
• WT22900 BST01 - Pressure Sensor 0-5.5 Bar Absolute (80psi)

Installation Guide for a Smooth Setup:

We provide an illustrated installation guide to ensure a trouble-free installation.

Discover the future cockpit of your BMW E8x with our advanced display. If you have any questions or need further information, we are here to assist you.
