Golf 6 Display - Your Data Center

We are pleased to introduce our state-of-the-art display for Golf 6 models. This innovative display provides you with comprehensive access to all the essential data from your vehicle. We mean all the relevant information. Our display reads the data directly through the Can-Bus protocol and presents it on our reliable MFD28 display. The Golf 6 display seamlessly integrates into the aesthetics of your car and comes with a custom-made bezel that matches the original design.

The customized Can-Bus protocol has been meticulously developed to ensure the fastest possible data retrieval.

The Highlights:

• Seamless integration into your vehicle's aesthetics
• Query up to 128 sensors
• 10 individually customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our wiring harness simply plug in and start
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare protection
• Diagnostic tool-friendly sensor query at eye level
• Data logging - permanently or on demand

Additional Features:

• Performance Tracker: Measure your acceleration times with our performance widget 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card whether on demand (start with a fingertip) or continuously. All data from your last drive will be saved.
• Customizable Alerts: Activate and personalize pre-installed alerts, e.g., for exceeding an exhaust temperature of 900 degrees.
• 4 Additional Analog Inputs: Connect additional sensors, such as temperature or pressure sensors, to access advanced monitoring functions, including exhaust temperature or exhaust back pressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Deletion: Clearly read and delete error messages from the engine control unit.
• Personalization: Customize the start screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all left-hand drive Golf 6 models. A version for right-hand drive (RHD) vehicles is also in development.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It includes a comprehensive list of queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adaptation, long-term lambda adaptation, MAF (Mass Air Flow) sensor, engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/pedal position.
Other: Engine RPM, total ignition timing, gear, battery voltage, ignition timing correction per cylinder.

Analog Inputs: You can add additional sensors like oil temperature, fuel pressure, oil pressure, exhaust gas temperature, and more, as well as an ethanol sensor for Flex-Fuel vehicles.

Please note that not all engines provide all of these data points.

Compatibility with Golf 6 Models:

The display frame fits all Golf 6 models. A version for right-hand drive (RHD) vehicles is also available.

What's Included:

Each package includes:

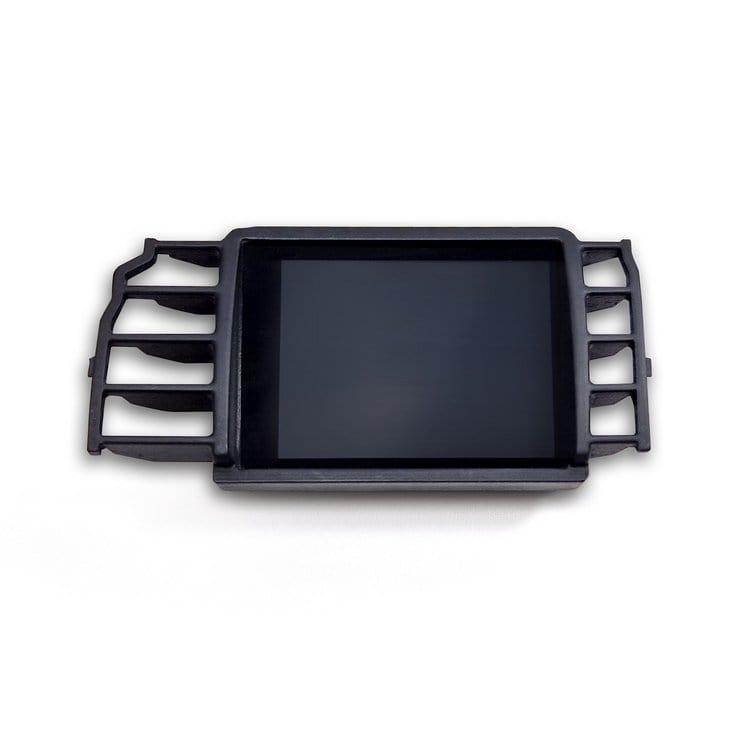

• Integrated MFD28/32 Gen2 data display in the ventilation grille
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protective film (to prevent reflections)

Connection and Expansion:

You can connect various sensors through the four analog inputs both linear 0-5V and NTC sensors are supported.

Our in-house Wagner Tuning Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Exhaust gas temperature probe Type K
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to the analog sensors, you can also directly connect our external flash module with 8 LEDs. It can flash in various colors to indicate rpm limits, and the colors can be conveniently configured through the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and Signal is required. Afterward, you can read and log ethanol content and temperature directly on the display.

Advanced Features:

With the Math Channels, you can combine sensor data. The User Table allows you to create additional sensors using 2D or 3D maps.

Optional Accessories:

• WT24000 SLM08 - External Flash Module
• WT22100 CBD08 - Eightfold Can Distribution Hub
• WT22902 NTC01 - Temperature Sensor for Liquids 1/8" NPT
• WT22903 TCC01 - Type K Converter 0-1250°C
• WT22901 FLP01 - Pressure Sensor 0-10 Bar (145psi) M10x1
• WT22900 BST01 - Pressure Sensor 0-5.5 Bar absolute (80psi)

Installation Guide:

We provide an illustrated installation guide to ensure a hassle-free setup.

Unleash the full potential of your Golf 6 with our advanced display. If you have any questions or need further information, please don't hesitate to contact us.
