Golf 5 Display - Unlock the Data Power

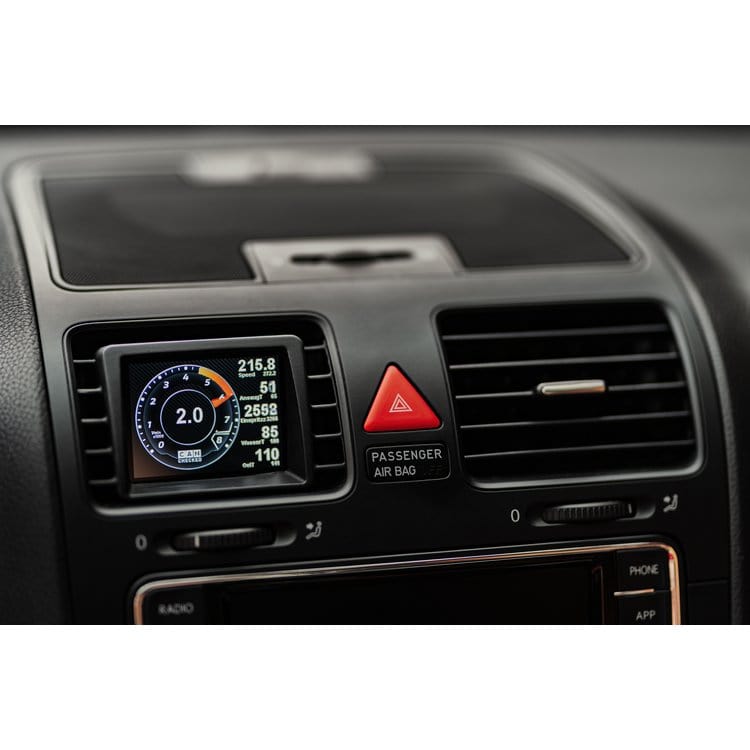

We proudly introduce our cutting-edge display for Golf 5 models. This advanced display grants full access to all your engine control unit (ECU) data, and we mean all of it. Our display directly queries the sensors through the Can-Bus protocol and presents the information on our reliable MFD28 display. The Golf 5 Display seamlessly integrates into your vehicle's interior with a custom-made fascia reminiscent of an original part.

Our manufacturer-specific Can-Bus protocol has been precisely tuned to achieve maximum query speed.

Main Features:

• Seamless integration into your vehicle's interior
• Query up to 128 sensors
• 10 customizable views with our DSS - Display Setup Software
• Pre-configured views for a quick start with our display
• Effortless plug-and-play installation with our cable set - simply plug it in and you're good to go
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Direct integration of an ethanol sensor
• Optimal readability with an optional glare screen
• Sensor queries at eye level with manufacturer-specific diagnostic tools

Additional Features:

• Performance Meter: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - whether it's on-demand (initiated with a touch) or continuous. All data from your last drive is stored.
• Pre-set Alerts: Enable and customize pre-set alerts, such as a notification when the exhaust temperature exceeds 900 degrees.
• 4 additional analog inputs: Connect additional temperature and/or pressure sensors for more monitoring options, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Clearing: Read errors from the engine control unit in plain text and clear them.
• Customizability: Personalize the start screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all left-hand drive Golf 5 vehicles. A version for right-hand drive (RHD) is in development.

Access to All ECU Data: We provide a pre-configured TRI file for your display as standard. This file defines all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adjustment, long-term lambda adjustment, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Others: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.

Analog Inputs: Additional sensors like oil temperature, fuel pressure, oil pressure, exhaust temperature, and more can be added, as well as an ethanol sensor for flex-fuel vehicles.

Please note that not every engine provides all of these values.

Compatibility with Golf 5 Models:

The display frame fits all Golf 5 vehicles - left-hand-drive as well as right-hand-drive.

Package Contents:

With each delivery, you'll receive:

• MFD28/32 Gen2 data display integrated into the ventilation insert
• Vehicle-specific connection cable
• Quickstart Guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display film (to prevent reflections)

Connection and Expansion:

You can connect various sensors through the four analog inputs - we support both linear 0-5V and NTC sensors.

Our in-house Wagner Tuning Dsiplay sensors are pre-configured in the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Converter for Type K exhaust temperature probe
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to analog sensors, you can also connect our external flash module with 8 LEDs. It can flash in various colors, and the RPM limits and colors can be configured directly on the display.

You connect the ethanol sensor directly to the display. You'll need a pull-up resistor (10K) between 5V and the signal. Afterward, you can view and log the ethanol content and temperature directly on the display.

Advanced Features:

You can use Math Channels to calculate sensors against each other. The User Tables allow you to generate additional sensors using 2D or 3D maps.

Optional Accessories:

• WT24000 SLM08 - External Flash Module
• WT22100 CBD08 - Eightfold Can Distribution Hub
• WT22902 NTC01 - Temperature Sensor for Liquids 1/8" NPT
• WT22903 TCC01 - Type K Converter 0-1250°C
• WT22901 FLP01 - Pressure Sensor 0-10 Bar (145psi) M10x1
• WT22900 BST01 - Pressure Sensor 0-5.5 Bar Absolute (80psi)

Installation Guide:

We provide an illustrated installation guide to ensure a smooth installation process.

Unleash the full potential of your Golf 5 with our advanced display. If you have any questions or need further information, we are here to help.
