Ultra Series 21mm Pin Piston Set By JE - 83.5mm +1.0mm Oversized Bore | 9.6:1 CR | Stock Stroke - 92.8mm - VW/Audi 2.0T TSI

SKU: 367862
$1,305.20 CAD $1,370.40 CAD
Shipping calculated at checkout.

Shipping & Returns

How is shipping calculated?

Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!

What is your return policy?

We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.

When will my order ship?

Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.

Do you ship worldwide?

We can ship worldwide. If you are outside of Canada or USA, please contact us.

Price Match

If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:

  • Your phone number:
  • Link to the product:
  • Link to competitor's site:

Local Pick Up

If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX

Description

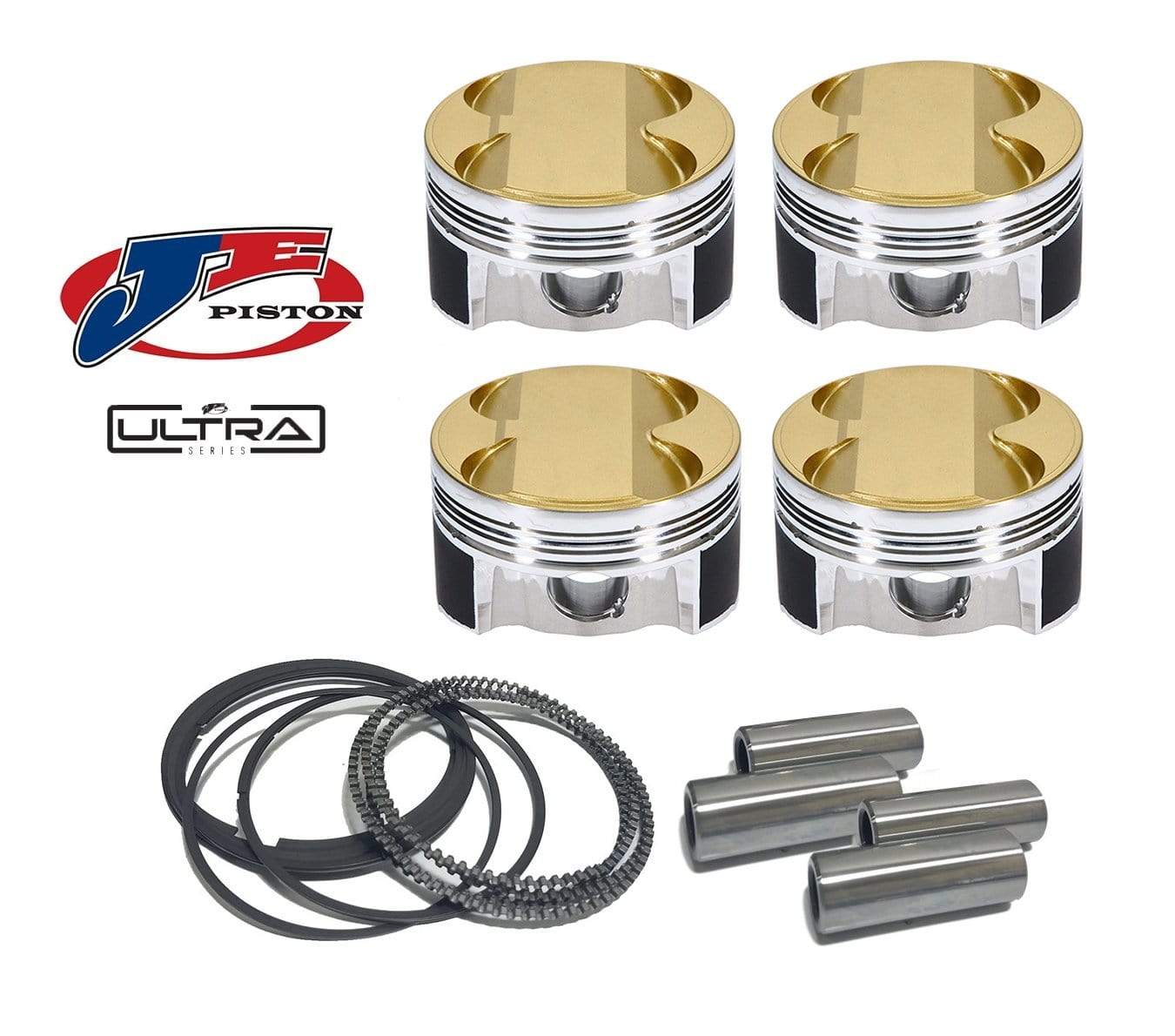

NOTE: Image shown not actual parts.


JE’s Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.


Bore (in) 3.287
Bore (mm) 83.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -7.00
Series JE Ultra Series
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.827
Compression Height 1.155
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.210
Ringset Part Number JG1004-3287
Ring Brand ProSeal
Ringset Included No
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 827-063-MW
Retainer Diameter (IN) 0.827
Replacement Single Piston 367862S
Piston Pin Inside Diameter 0.407
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 301
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 827-2250-21-93C
Pin Included Yes
Pin Diameter (mm) 21.00
Oil Rail Support Included No
Deck Clearance -0.010
Brand JE Pistons


OE Part #'s:

06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM

06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC

06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK

06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL

06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM

06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD

06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG

06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ

6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM
