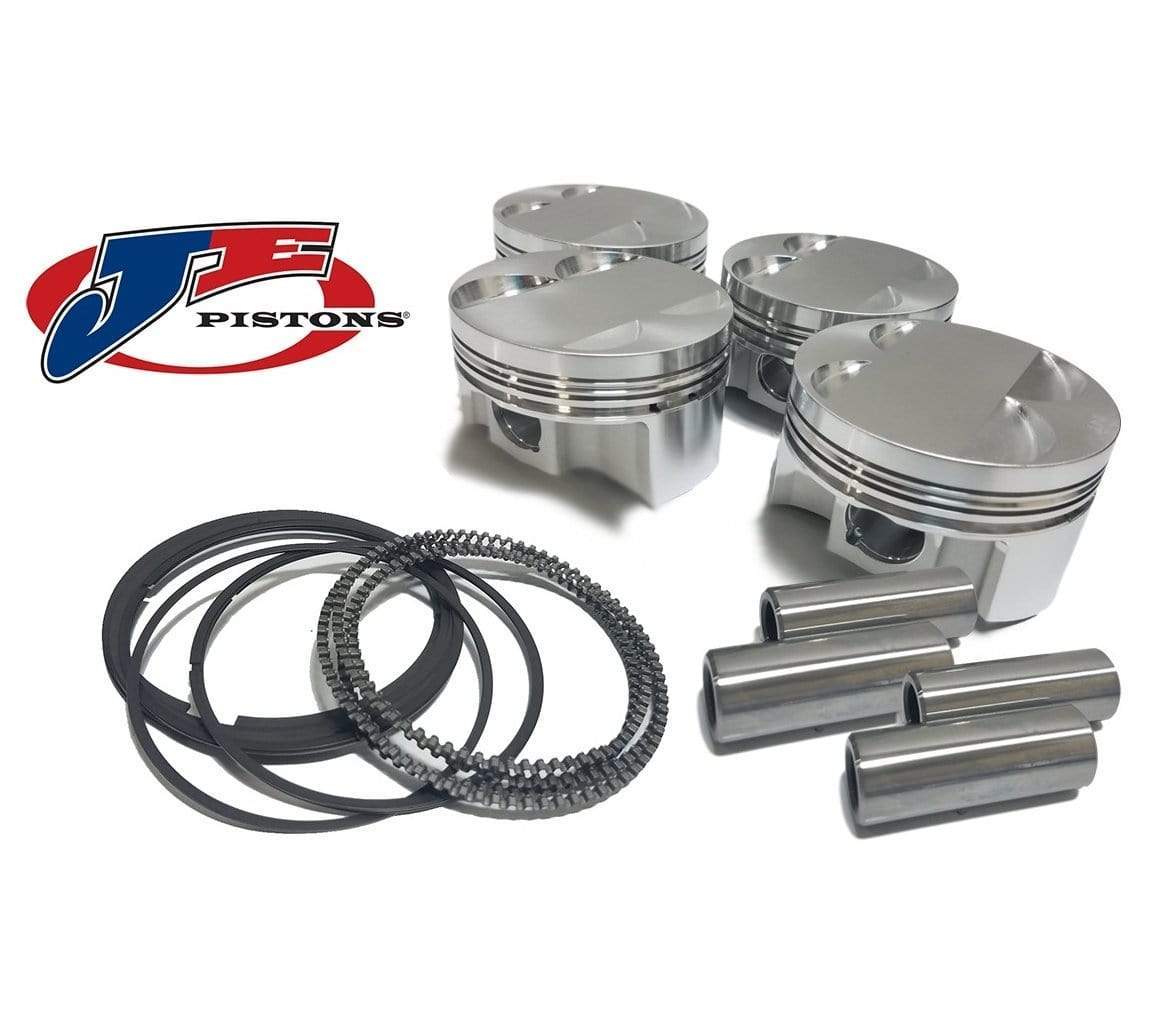

Piston Set by JE - 83MM Bore | Audi/VW | 2.0T TSI ULTRA SERIES
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We can ship worldwide. If you are outside of Canada or USA, please contact us.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Description
Description
|
Bore (in) |
3.268 |
|
Bore (mm) |
83. |
|
Top Compression Ring Thickness |
0.0400 |
|
Second Compression Ring Thickness |
0.0480 |
|
Oil Ring Thickness |
0.111 |
|
Forging Type |
FSR |
|
Volume (cc) |
-6.40 |
|
Series |
JE Ultra Series |
|
Piston Head Type |
Inv Dome/Dish |
|
Pin Diameter (IN) |
0.827 |
|
Compression Height |
1.155 |
|
Make |
AUDI / VOLKSWAGEN |
|
Wrist Pin Style - floating or press fit |
Floating |
|
Wall Type |
CHAMFERED |
|
Wall Thickness (IN) |
0.210 |
|
Ringset Part Number |
JG1004-3268 |
|
Ring Brand |
ProSeal |
|
Ringset Included |
No |
|
Retainer Thickness |
0.063 |
|
Retainer Lock Style |
Wire Lock |
|
Retainer Lock Part Number |
827-063-MW |
|
Retainer Diameter (IN) |
0.827 |
|
Replacement Single Piston |
367861S |
|
Piston Pin Inside Diameter |
0.407 |
|
Piston Pin Material |
9310 NICKEL CARBON STEEL ALLOY |
|
Piston Material |
2618 |
|
Piston Pin Length (IN) |
2.250 |
|
Piston Avg Wt |
299 |
|
Pin Offset |
No |
|
Pin Brand |
JE Pistons |
|
Pin Part Number |
827-2250-21-93C |
|
Pin Included |
Yes |
|
Pin Diameter (mm) |
21.00 |
|
Oil Rail Support Included |
No |
|
Deck Clearance |
-0.010 |
|
Brand |
JE Pistons |
