Description
Description

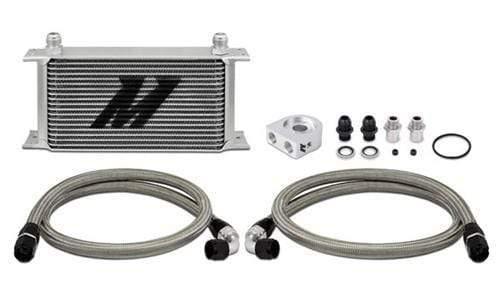

(1) - 19 Row Oil Cooler (1) - 4ft 9in Stainless Steel Braided Hose w/ -10AN fittings -- One straight fitting and one 90 degree swivel fitting (1) - 4ft .75in stainless Steel Braided Hose w/ -10AN fittings -- One straight fitting and one 90 degree swivel fitting (1) - M20 Thermostatic Sandwich Plate (Non-Thermostatic Available) (2) - -10AN Fittings (2) - Dowty Oil Seals (1) - Large O-Ring (2) - 1/8" NPT Allen Key Plugs (2) - Sandwich plate adapters DASHES No dashes = M20 x 1.5 -- M20 x 1.5 2 dashes = 3/4" -16UNF -- 3/4" -16UNF INSTALLATION TORQUE SPECS 15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs. |
19 OVERALL DIMENSIONS 13" x 5.5" x 2" CORE DIMENSIONS 11.25" x 5.5" x 2" BRAIDED HOSES 4ft .75 inch & 4ft 9 inch BRAIDED HOSE FITTINGS -10AN SANDWICH PLATE FITTINGS -10AN CAUTION It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com. |
This kit includes a billet anodized aluminum sandwich plate in either standard or thermostatic form. The optional Mishimoto thermostatic sandwich plate provides additional temperature control and will limit oil flow to the cooler until optimal temperatures are reached, making it ideal for those in cooler climates. The included core is our proven Mishimoto 19 row stacked plate cooler which can withstand high fluid pressures and significantly reduce oil temperatures while exhibiting minimal pressure loss. This kit includes both a -16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models. This kit also includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections. Whether you are piloting a boosted rotary or blown small block the Mishimoto universal oil cooler kit will provide the efficiency you need to stay on the track and out of the shop. As with all our products this kit includes the Mishimoto lifetime warranty.
