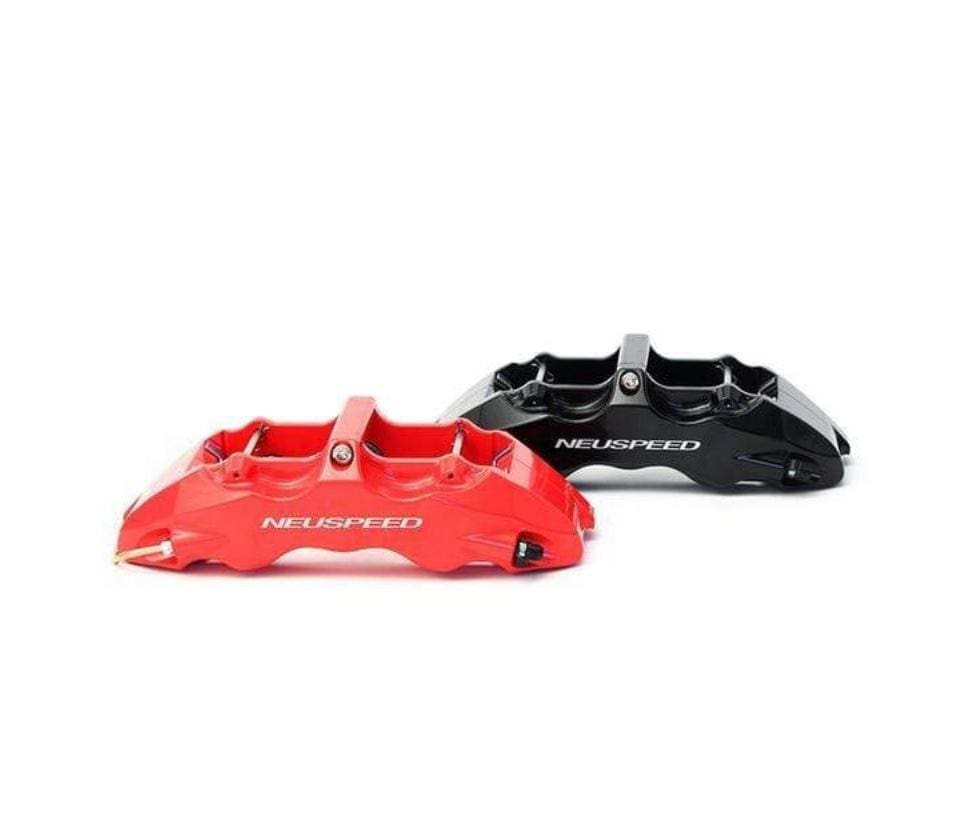

NEUSPEED 6-Piston Big Brake Kit - 370mm

Introducing the all new NEUSPEED 6-Piston Big Brake Kit. This is a complete caliper replacement kit that is designed, engineered, machined and built in the USA specifically for Audi and Volkswagen vehicles.

The issue with factory brakes is always the calipers, they are floating with only ONE large piston. This kit replaces the inferior factory calipers with Forged 6-Piston Caliper kit that will improve pedal modulation and stopping performance significantly.

The NEUSPEED BBK Kit requires the use of Audi TTRS OEM 370mm brake rotor/disc or NEUSPEED 370mm Full-Floating Brake Rotor for BBK.

NEUSPEED Big Brake Kit features:

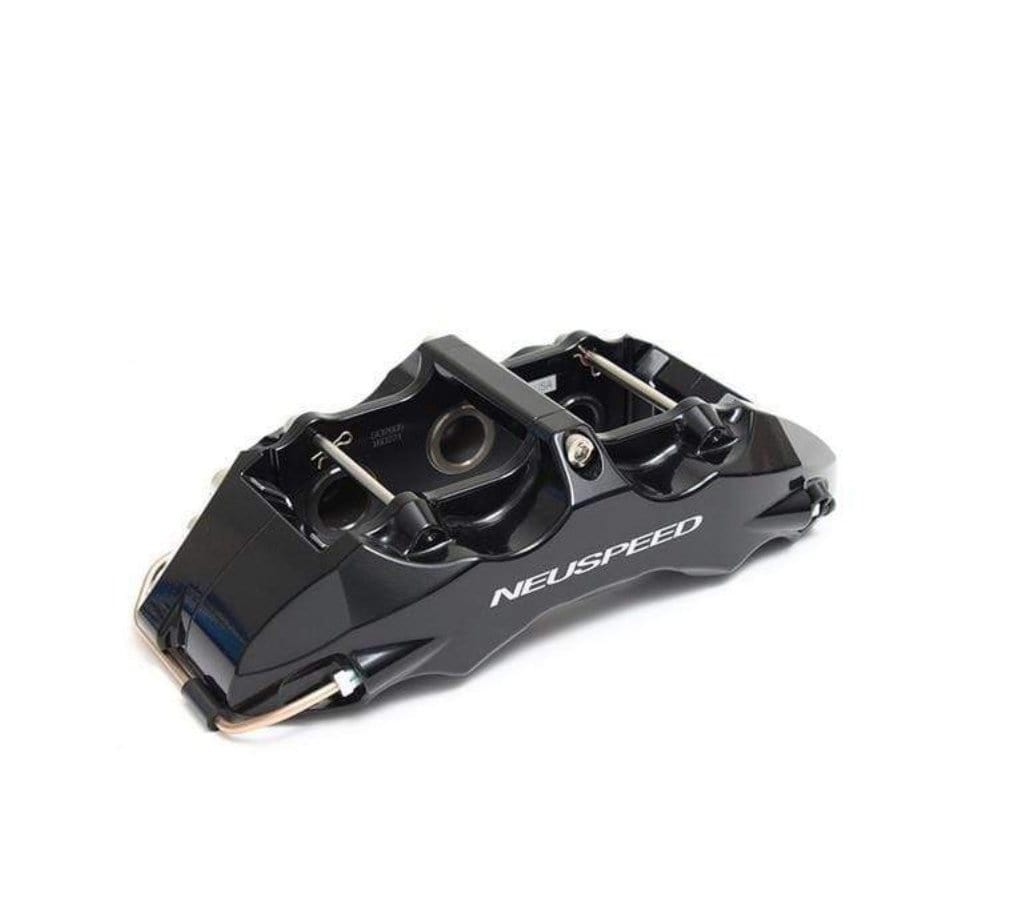

CNC Machined Forged Aluminum Caliper Body

NEUSPEED Caliper is made from CNC machined Forged 6061-T6 aluminum alloy. The forging process realigns the material grain structure which provides phenomenal strength and weight reduction compared to casted as well as billet calipers.

Forged 6061-T6 Aluminum Pistons

Sharing the same manufacturing process, the Forged 6061-T6 Pistons provide better strength and rigidity compared to the ones made from extruded billet material. The Type III hard anodize shields the pistons against oxidation and provides additional Rockwell hardness to the piston surface.

Internal Seals System

NEUSPEED Calipers features dual internal piston seals. The hydraulic seals are made from high temperature resistance composite material that are suitable against fatigue from day-to-day usage as well as high-temp competition abuse. The second seal, made from the same material, protects the hydraulic system from outside contaminants such as dust and moisture. This 'Internal Dust Seal' system is far more superior in durability compared to the dated external shield/boot system.

Matched Caliper

NEUSPEED is a specific VW/Audi tuning company and our caliper's piston surface and volume are engineered SPECIFICALLY to pair with VAG factory master cylinders. Unlike other brake manufacturers, we do not pick whatever 6-piston calipers off the shelves and use them across the board on multiple different car makes and model. Mismatched caliper size can cause spongy feel or overly sensitive pedal feel, which then ruins the pedal modulation and not allowing for precise and responsive braking points.

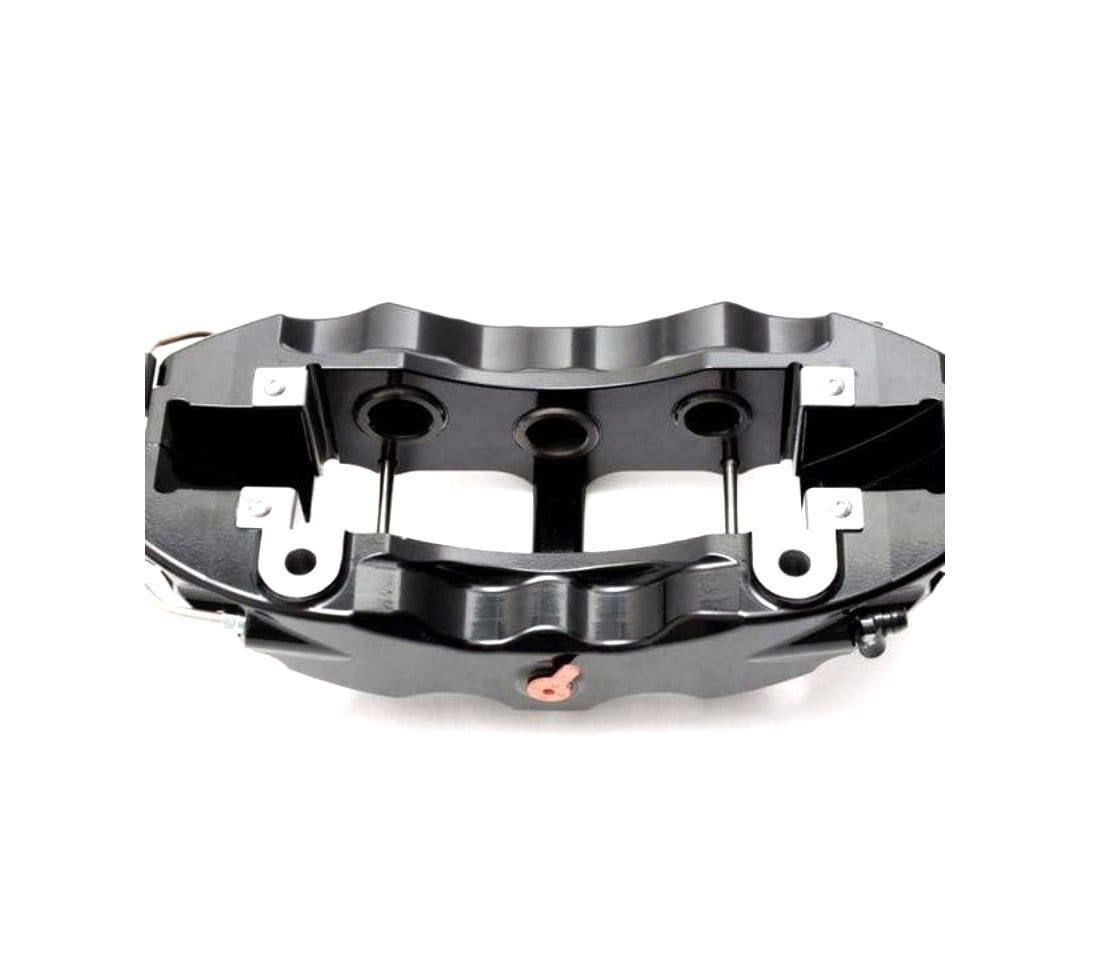

Quick Pad Change System

NEUSPEED caliper is designed by and for enthusiasts. The first item on our engineering design list is to have the ability to quickly and conveniently swap the brake pads. The removable bridge and pins system allows user to swap pads without having to remove the caliper completely. Simply unbolt the top bridge, undo the guide pins, and slide out the pads, a quick 15 minute process!

Pad Wear Sensor Compatible (If Equipped)

NEUSPEED big brake kit utilizes VW/Audi factory sensor kit, while others require user to splice and bridge the sensor connector to avoid error light on the dash. TRUE OEM replacement.

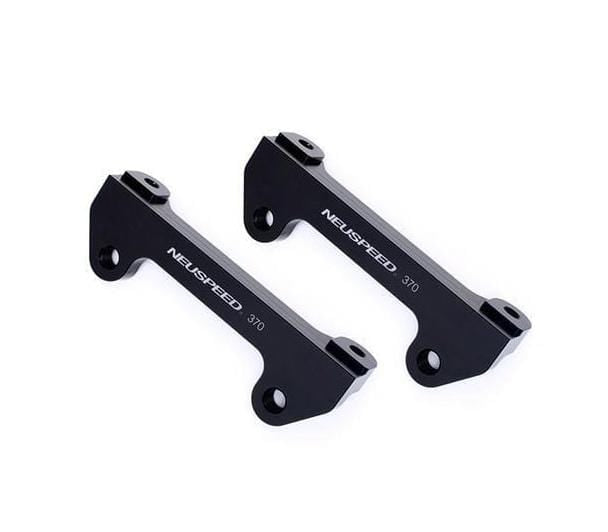

Aerospace Grade Mounting Bracket

6061-T6 billet aluminum bracket, coated with Type III Mil-Spec Hard Anodized.

High Quality Hardware

All NEUSPEED Brake Kits include stainless steel braided PTFE core brake lines with stainless steel fittings. Caliper bolts are genuine PORSCHE part ensuring the proper strength and dimensions to the application.

Notes:

Installation of this Brake Kit require 19" wheels and some 18" may fit depending on individual wheel design, spacers may be required. All NEUSPEED 19" Wheels will fit with NO spacers.

Factory VW wheels may require up to 15mm spacer to clear the caliper.

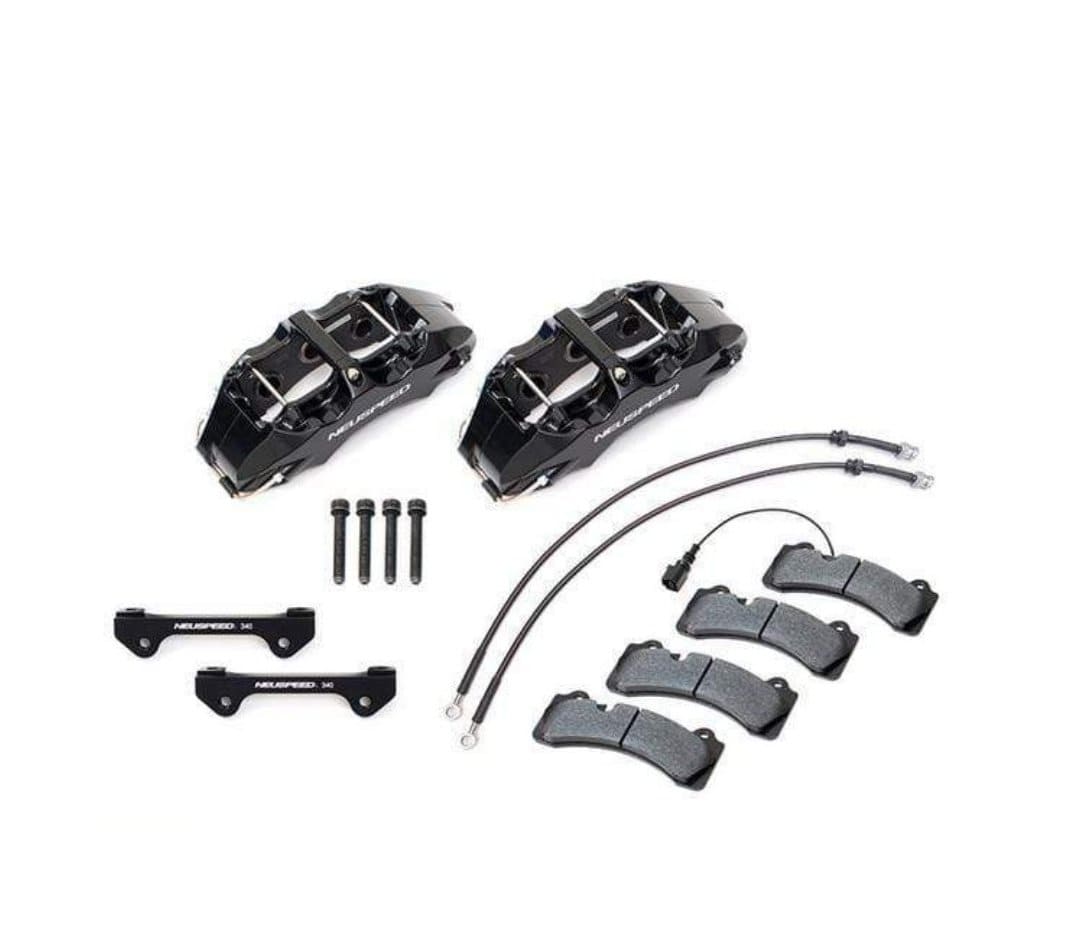

STANDARD KIT INCLUDES:

• 6-Piston Caliper - Left
• 6-Piston Caliper - Right
• 1x Front Set of iSWEEP IS1500
• 4x Caliper Bolt
• 2x Caliper Mounting Bracket
• 2x Front Stainless Steel Brake Lines
• 1x Brake Pad Wear Sensor
• Installation and Break-In Instructions

Audi TTRS OEM Brake Rotor Required Part #:

• 8J0 615 301 F - Old Version
• 8J0 615 301 K - New Version: Solid Pins, Wider Veins

Or NEUSPEED 370mm Full-Floating Brake Rotor

Notes: TTRS Rotor Shield will fit with minor bending to clear lower part of caliper - Part #'s 8V0-615-311-B and 8V0-615-312-B
