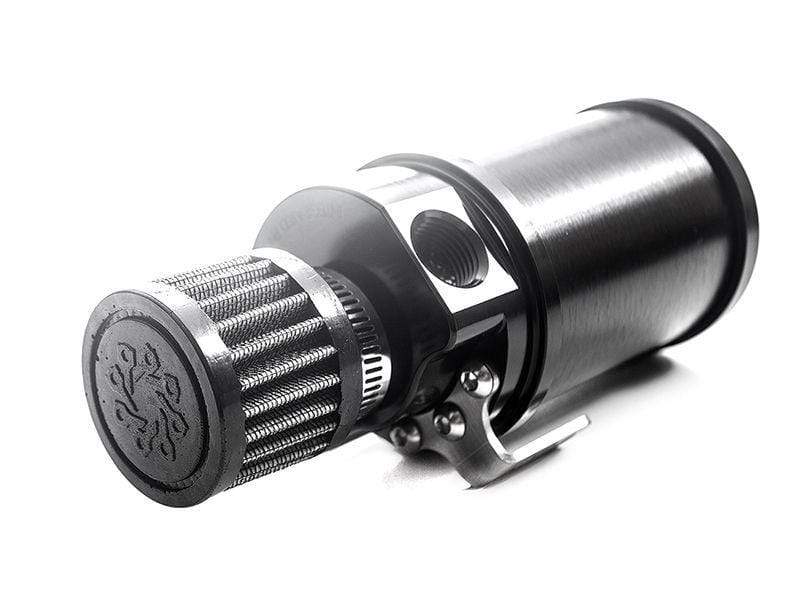

IE Vent To Atmosphere Catch Can Kit / DIY Universal Fitment
KEEP YOUR ENGINE CLEAN
This IE Catch Can is the perfect base for setting up your own vent to atmosphere (VTA) catch can system to prevent crankcase oil fumes from condensing and filling your intake piping, turbo piping, intercooler, intake manifold, and breather system. IE's state-of-the-art Vent To Atmosphere Catch Can is a must for easy performance engine maintenance.
- Keeps your engine running clean
- Baffle system catches all oil blow-by
- Completely universal for any engine
- Helps prevent carbon build-up
- High flow 1/2" NPT thread inlets
- Black anodized for a sleek stealth install
- In-house CNC machined aluminum
- Easy bottom mount drain plug
BENEFITS OF A CATCH CAN
An IE catch can is a must for anyone looking to prevent crankcase oil blow-by and fumes from condensing and filling your turbo piping, intercooler, and intake manifold. The IE vent-to-atmosphere billet catch can is designed to catch all of the oil fumes and gunk omitted from the factory engine breather systems. This not only removes the blow-by oil and build-up, but will greatly help reduce the oil buildup in the intake system, valves, combustion chamber, vacuum system, and PCV hoses which relate to power loss and poor drivability.

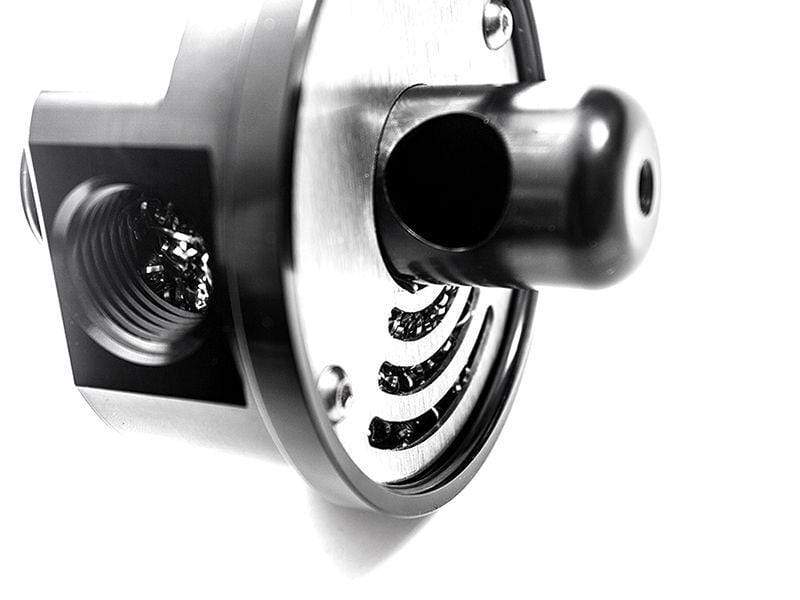

IE VENT TO ATMOSPHERE CATCH CAN DESIGN
The Integrated Engineering billet VTA catch can feature our state-of-the-art baffle system. This baffle allows crankcase pressure to flow through the catch can while oil is separated and stays behind. This design separates more oil than the traditional catch can designs and keeps the liquid in the chamber and out of your engine bay. This sleek catch can is fully serviceable, easily disassembling if needed. Draining the catch can is simple with the use of a bottom-mounted drain plug (no-tool t handle drain sold separately). Included with our catch cans, high-quality IE breather filters will further help to keep large particles from exiting the can, as well as any outside elements flowing back to the PCV system. This beautiful can is finished with a bright black anodize finish, which maintains a stealthy appearance while looking great in your engine bay.
CUSTOM INSTALL REQUIRED
IE catch cans are a universal design and can be adapted to any vehicle with the use of readily available adapters and fittings. The included choice of 90 degree or straight mounting bracket makes installing the can into any engine bay easy. Our catch cans feature two 1/2" NPT thread breather inlets to accept a wide variety of fittings, adapters, or hose ends to custom install into your factory breather system. IE also produces direct-fit catch can kits for many VW and Audi engines.

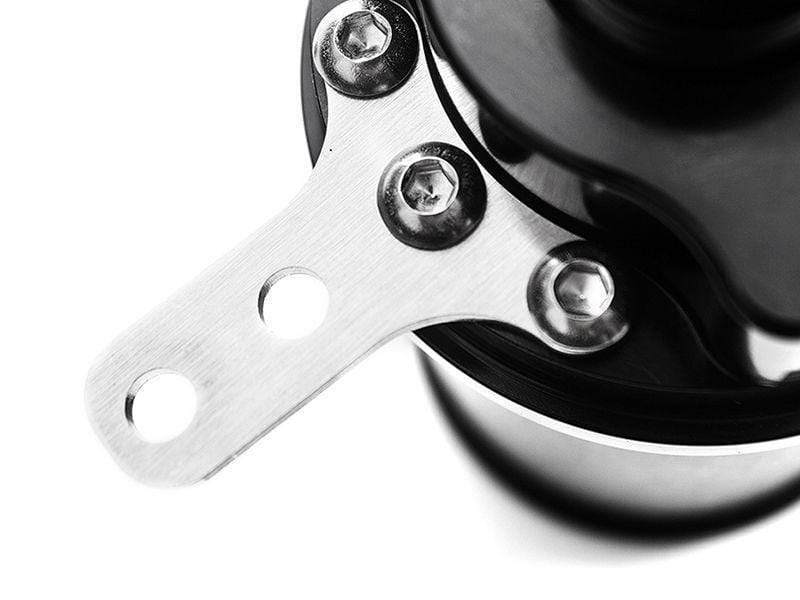

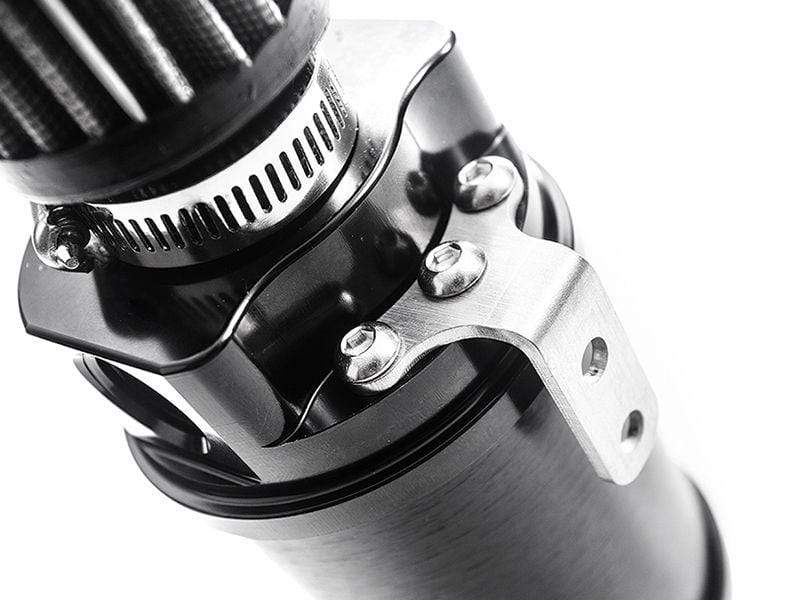

OPTIONAL MOUNT BRACKETS
To make your custom install as easy as possible, you have your choice of either a straight or 90-degree bracket. These stainless steel brackets are a direct-fit to the IE catch can, strong enough to keep it stable in any condition and help to make fabricating or finding your mount location as easy as possible. Add your choice of bracket-style to your order above.
COLD WEATHER CLIMATES
Catch can kits are designed for warm weather climates only. If you live in an area with sub-freezing temperatures in the winter months, extra precaution must be taken as condensation in the catch can and lines can freeze and cause pressure to build up in the crankcase. We recommend checking catch can content frequently or removing the system entirely during cold winter months. Integrated Engineering is not responsible for any damage caused by improper servicing of the catch can.
