- Replaces restrictive pinched plastic stock pipe
- Constant diameter design delivers a 13.44% increase in flow over stock
- Reduces airflow turbulence directly out of the turbocharger
- Mandrel bent and TIG welded aluminum
- CNC machined hose ends with a radius edge and grip-lock ribbing
- CNC-machined thick hose ends with no worry of crushing the pipe
- Retains all factory harness, coolant, and mounting clip locations
- Complete bolt-in replacement performance unit
- Black powder coat finish for a long-lasting attractive look
- Perfect match to IE Turbo Muffler Delete (GTI/A3)
- Removes integrated turbo muffler on R/S3
1
of
8
Loading...

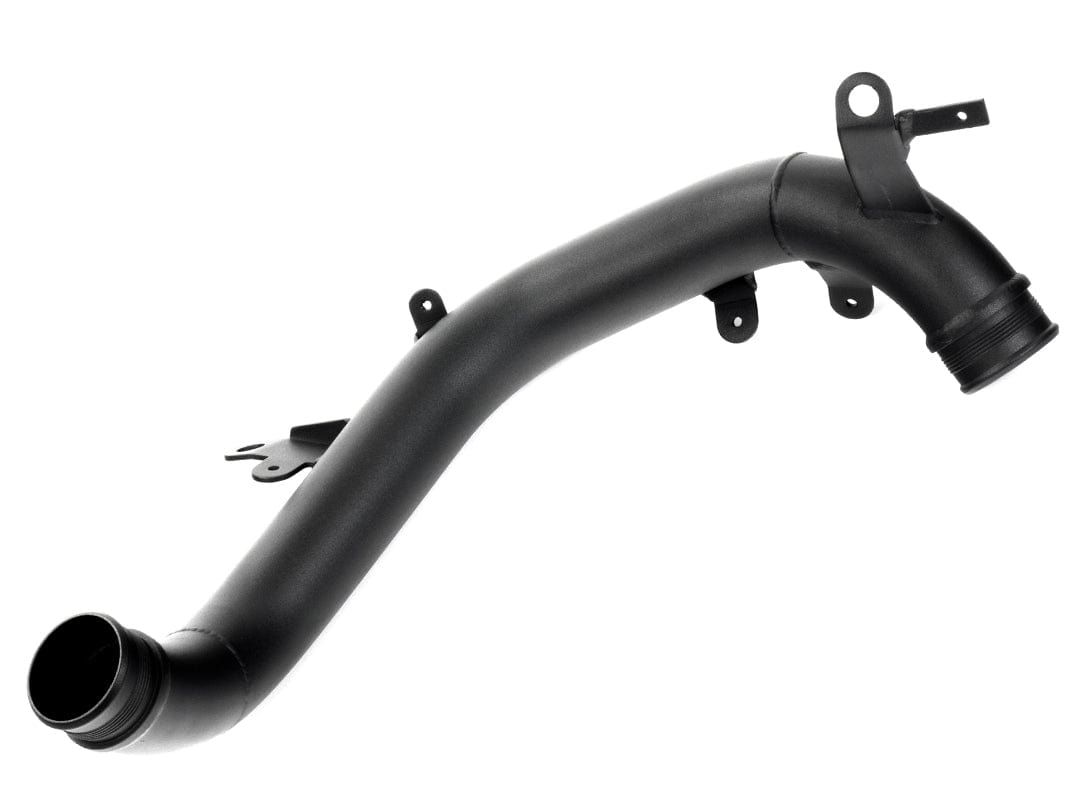

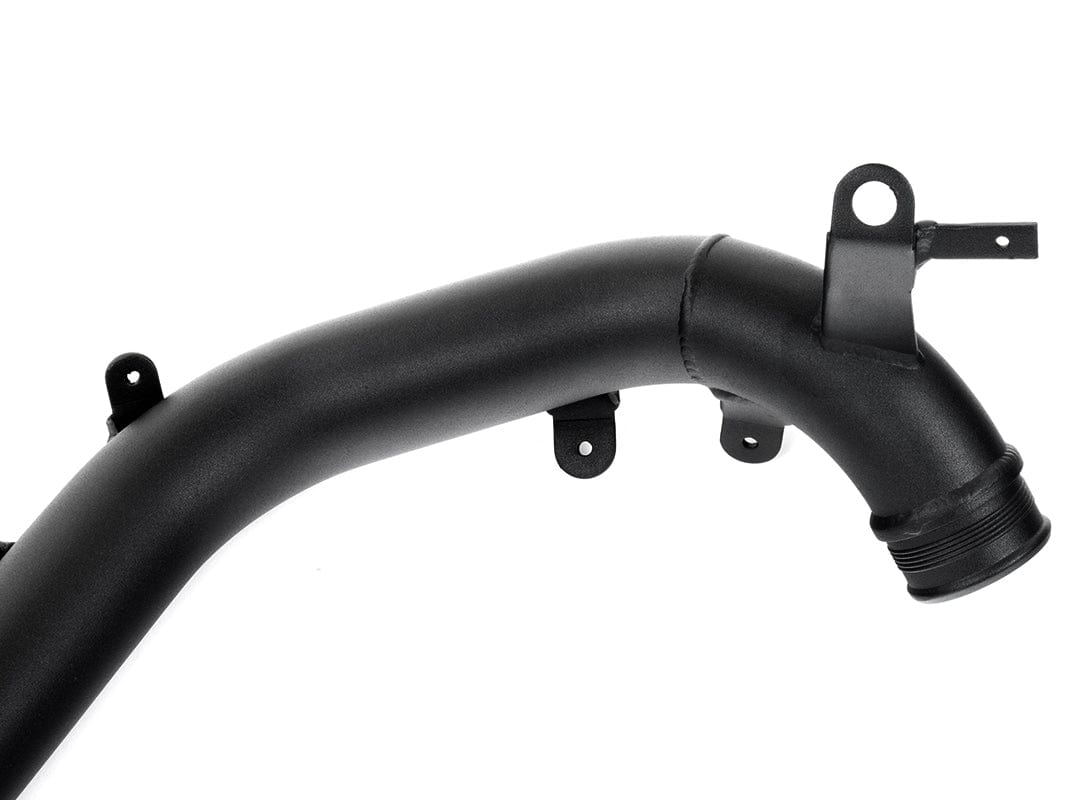

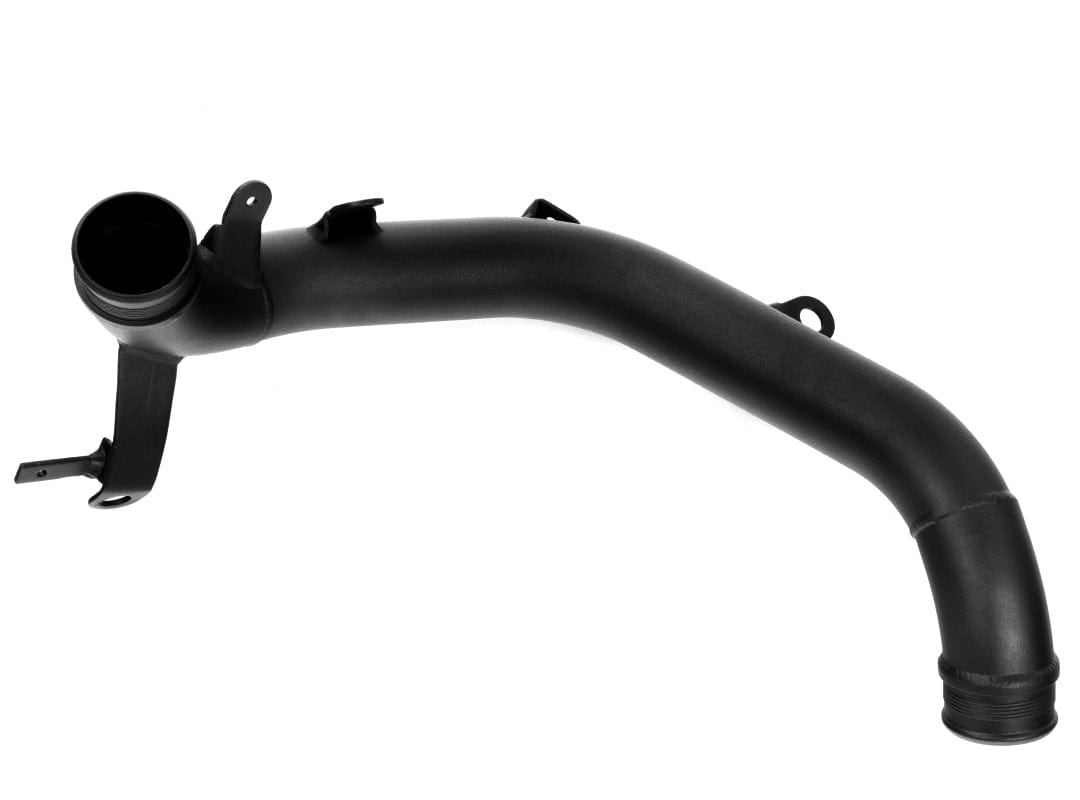

IE Turbo Outlet Pipe - VW/Audi / MK8 / GTI / R / 8Y / A3 / S3
SKU:
IETPDB1
$314.59 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We only ship to Canada & USA.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Ask about inventory:
Description
Description
LEADING FEATURES
CONSTANT DIAMETER
Your stock-equipped turbo outlet pipe comprises flow-killing tight bends and pinched walls that create a severe flow restriction at the most critical part of the charge system directly off the turbo. IE’s turbo outlet pipe replaces the plastic stock pipe with an aluminum performance design mandrel bent to retain a constant diameter for the cleanest airpath possible.
Back-to-back flow bench testing shows consistent airflow gains over the stock turbo outlet pipe.
The chart above details flow gains (CFM) over stock.
FLOW RESULTS
The factory pipe fails to provide optimal flow in a performance build and is manufactured from a hard plastic that can lead to cracks and leaks in heavy boost conditions. IE's Turbo Outlet Pipe takes full advantage of all available space with a unique shape to maximize airflow. This optimized design results in a much improved 13.44% increase in flow over stock!

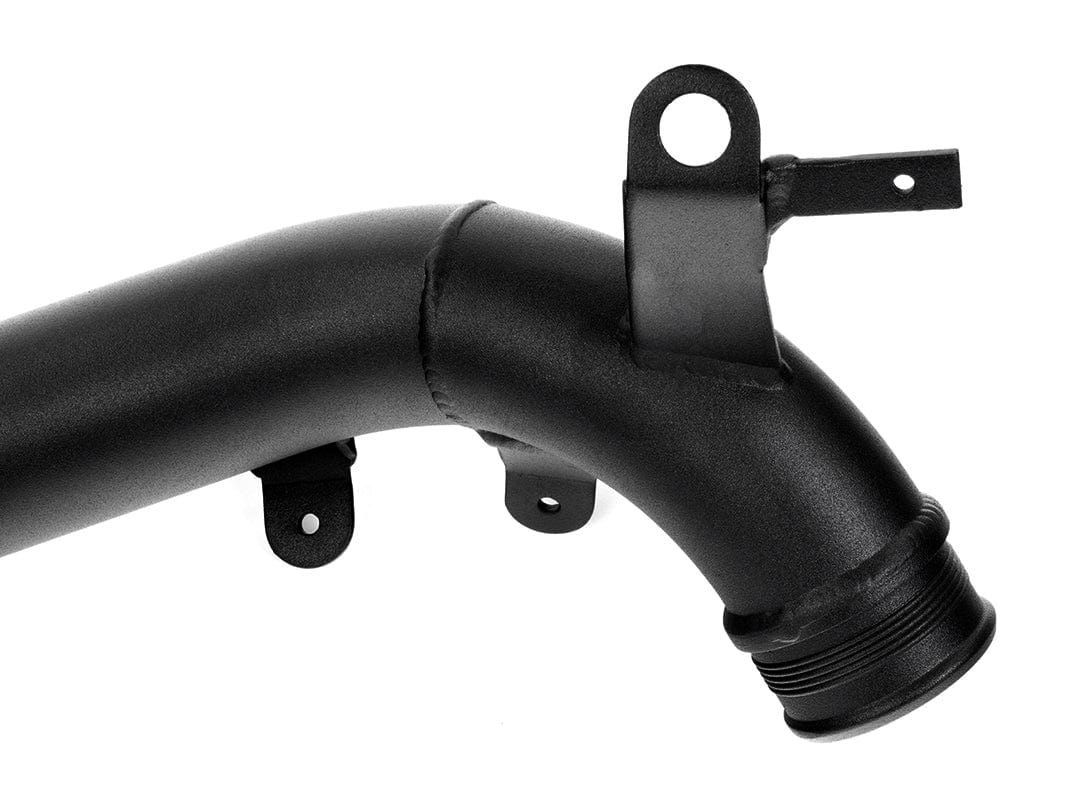

CNC HOSE ENDS
Most aftermarket charge pipe designs bead-roll the end of the thin-walled aluminum tube for the hose connection creating an easily crushed tube when tightening clamps leading to boost leaks. Our turbo outlet pipe features thick-wall CNC machined aluminum ends TIG welded onto the pipe with grip-lock ribbing and a true radius end. This seemingly small detail provides a crush-proof and leak-free connection for your boost hoses.

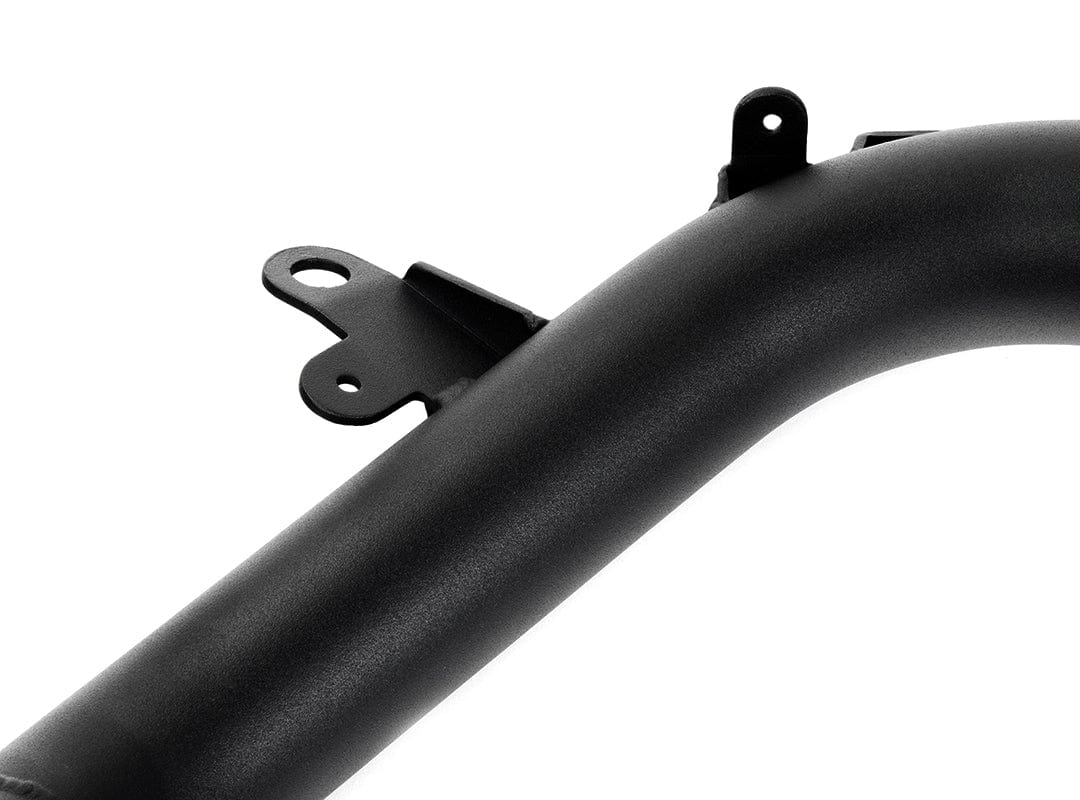

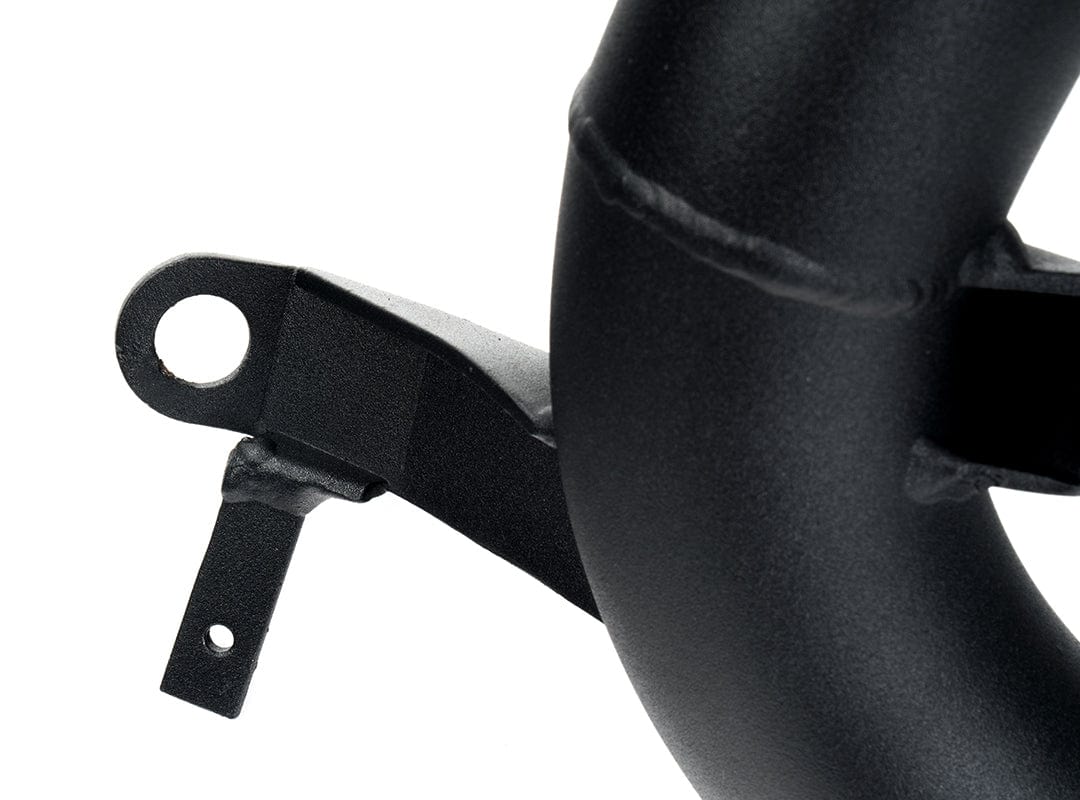

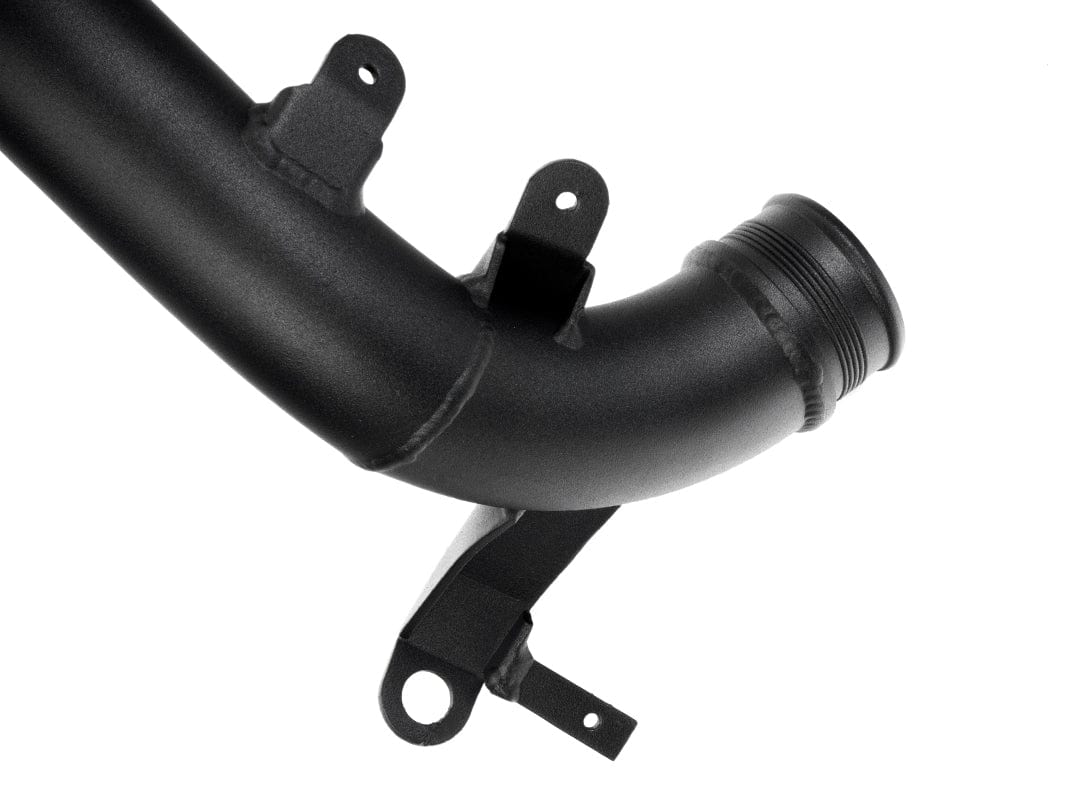

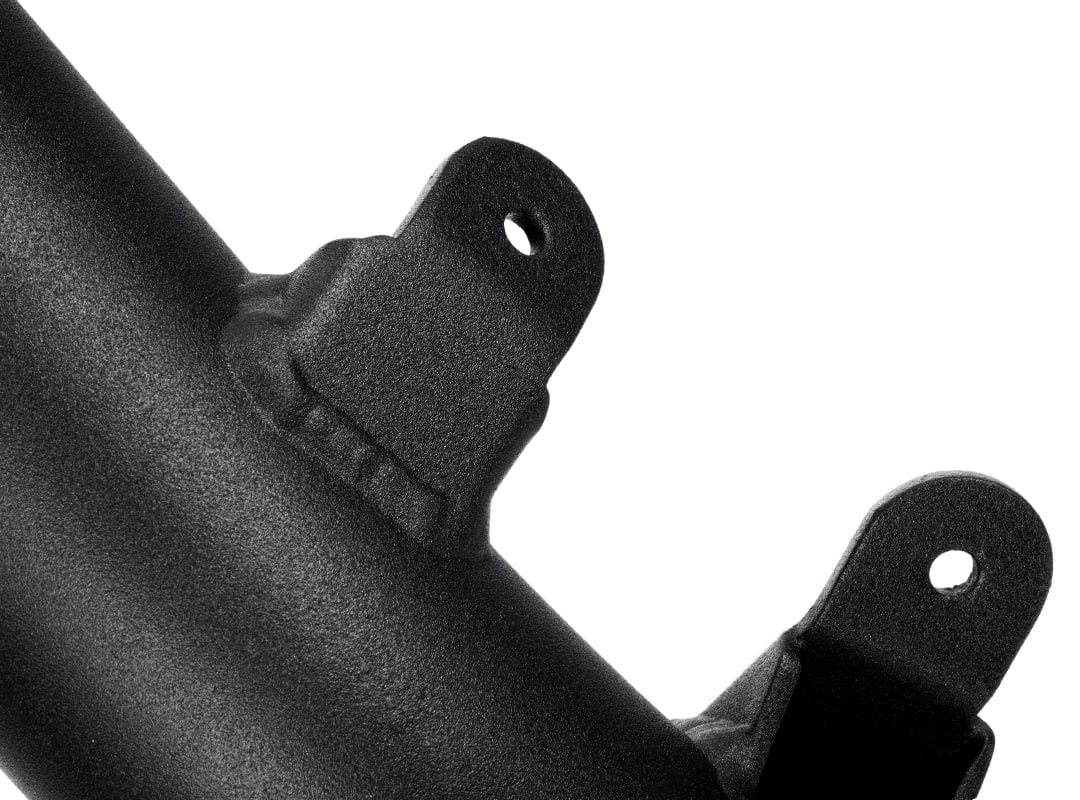

INTEGRATED MOUNT POINTS
Using advanced 3D scanning and modeling software, IE engineers made sure to include all factory mount points on our turbo outlet design to ensure no parts are left hanging or rubbing. These TIG-welded brackets retain all the factory harness, hose, and clip mounts for a proper factory-like quality install.
OPTIONAL TURBO MUFFLER DELETE
For GTI & A3 engines, installing the new turbo outlet pipe will gain you easy access to the factory-installed restrictive turbo muffler. This is the perfect time to upgrade this part with the IE Turbo Muffler Delete and provide an additional uninterrupted and smooth path for compressed airflow to exit your turbocharger and release that enthusiast-loving boost sound. (sold separately)
Golf R and S3 turbo mufflers are built into the factory turbo outlet pipe and are not compatible with this part.
INSTALLATION
IE turbo outlet pipe installs without any permanent modifications. The installation process can be done with basic tools but does require removing the belly pan, plastic mount clips, and the radiator fan. Installing our IE turbo muffler delete on GTI & A3 engines involves the same process, so upgrading both simultaneously is highly suggested.
Install time around 2 hours
