- High-gloss true carbon fiber construction
- Integrated carbon velocity stack
- 5.5" engine specific pleated cotton filter
- Full carbon twin inlet pipe
- Factory-style mounting
- Stainless hardware
- Powder-coated aluminum bottom plate
- Multi-ply silicone with stop-flat edges
- Stainless laser-etched logo plate

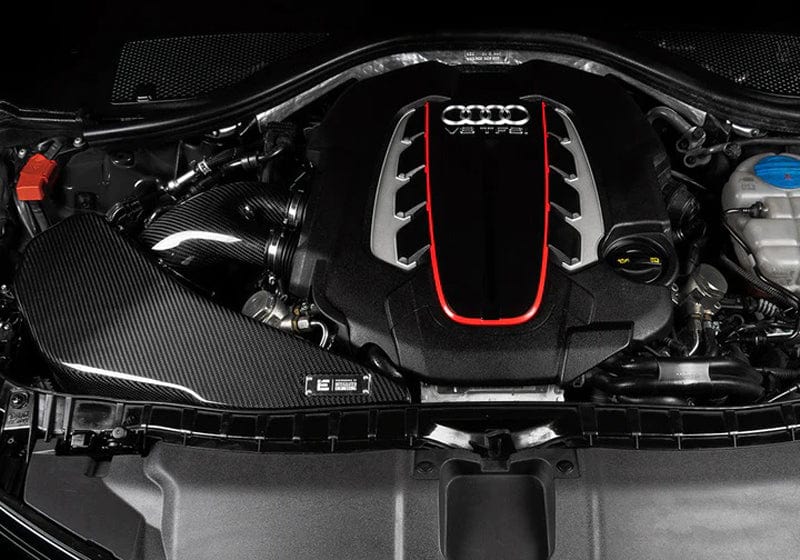

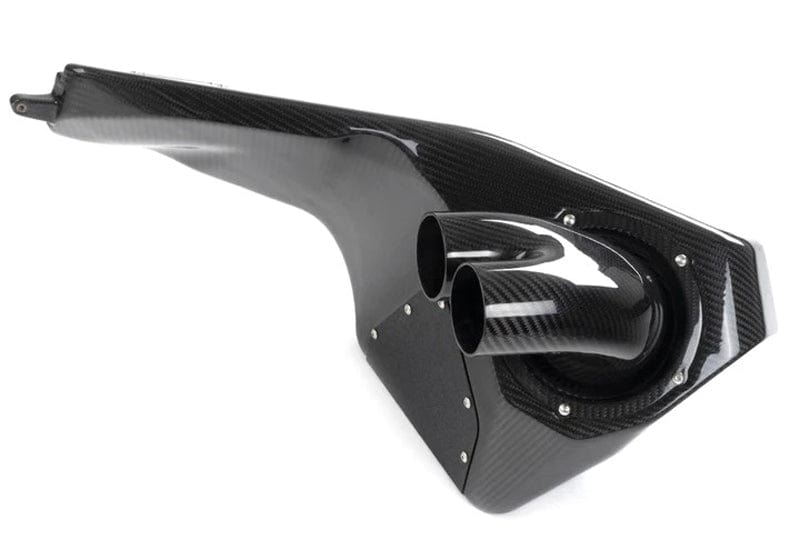

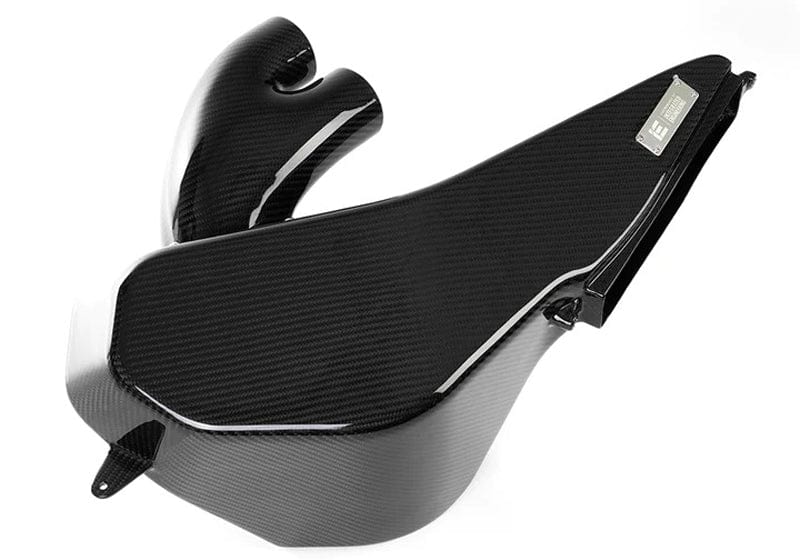

IE Carbon Fiber Intake System - Audi / C7 / C7.5 / RS7
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We only ship to Canada & USA.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Ask about inventory:
Description
Description
DESIGN

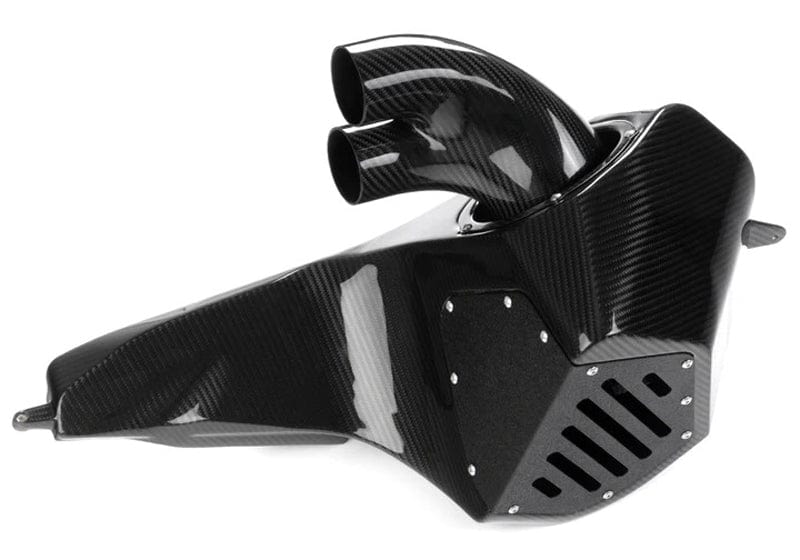

COMPLETE ASSEMBLY

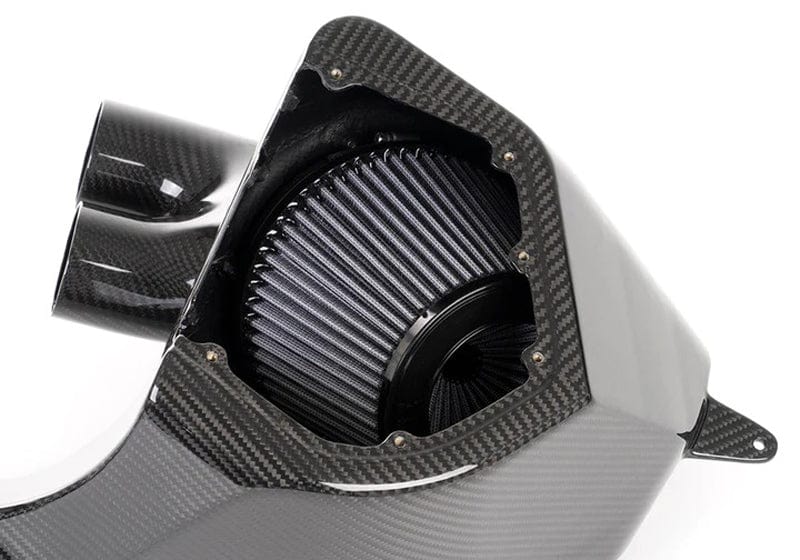

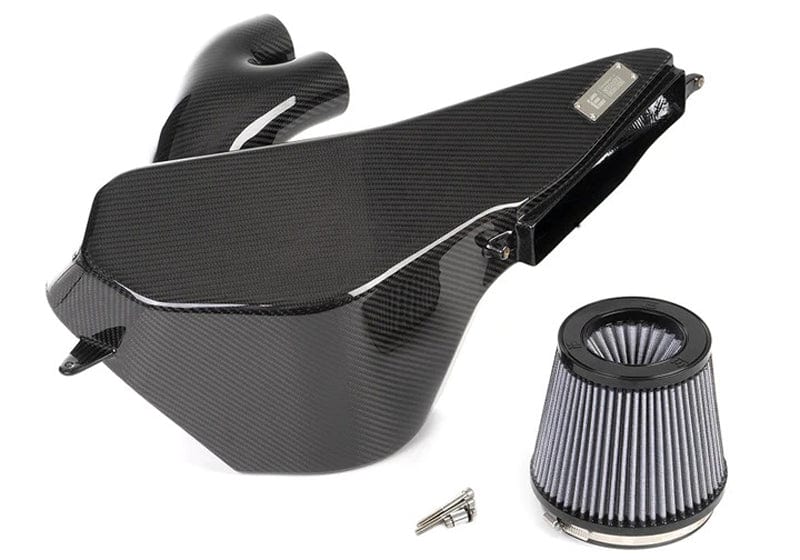

The complete airbox assembly houses our 5.5" high-flow filter, aluminum bottom plate, carbon velocity stack/inlet pipe, stainless hardware, and mounting provisions for a complete bolt-in solution.

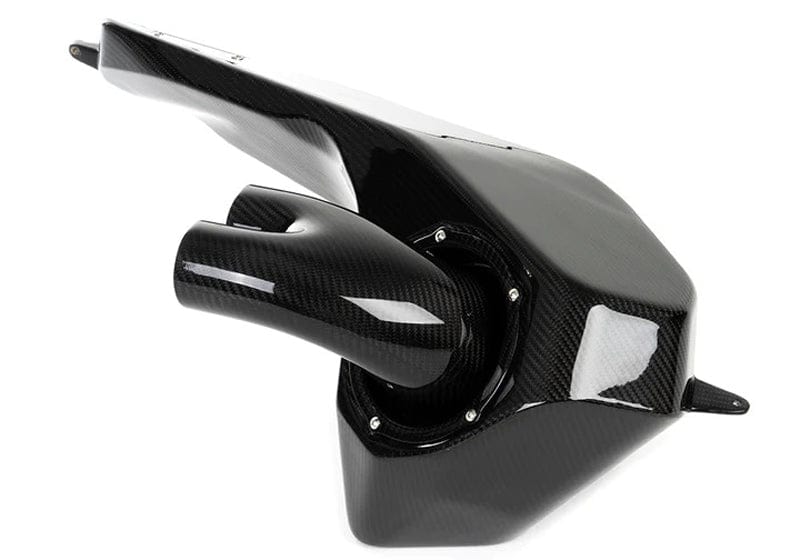

CARBON EXCELLENCE
Carbon fiber can be manipulated into almost limitless shapes allowing our engineers to utilize every millimeter of space within the tight factory engine bay. The unique architecture and contours allow for a larger internal volume and smoothed airflow while simultaneously shielding it from radiant engine bay heat.

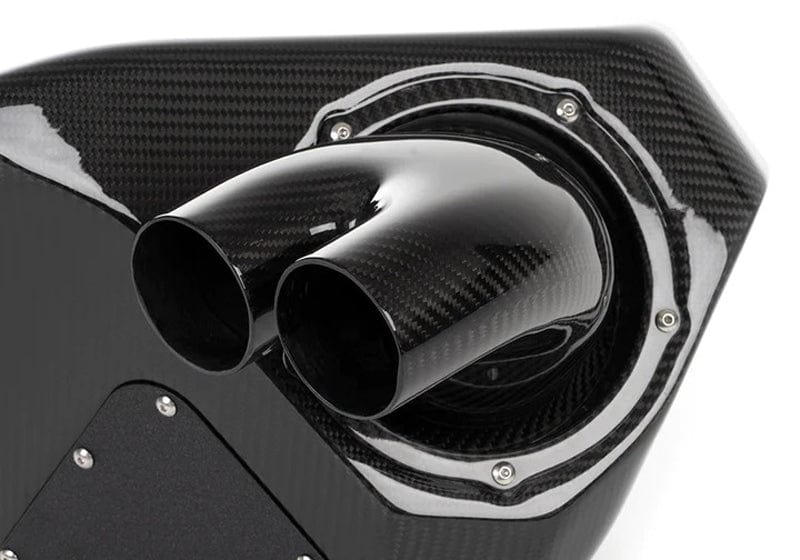

HIGH-FLOW VELOCITY STACK
In order to gain the highest flow possible, the velocity stack transitions airflow from the large surface area of the air filter and smooths its travel to the inlet pipes. This clean reduction accelerates the airflow into very high inertia while reducing power-robbing drag and turbulence.
UNIQUE SOUND
Upgrading to IE's performance intake system will unleash a symphony of eight-cylinder engine and turbo sound that will make the throttle more addictive than ever. You own a twin turbocharged 4.0L V8 powerhouse -LET IT ROAR!
FLOW TESTING
Flow rate testing is performed to validate the design against the restrictive stock airbox. Using our in-house Superflow bench, the maximum possible flow rate in CFM (cubic feet per minute) is measured in gains over stock at a variety of test pressures (-in. H20). A higher flow reading means the intake system can support increased demands from ECU tunes and turbocharger upgrades.
Flow bench results show the massive flow improvements from our intake system.
| IN/H20 | STOCK CFM | IE CFM | INCREASE |
|
-5 |
213 |
263 |
23.5% |
|
-10 |
313 |
375 |
19.8% |
|
-15 |
388 |
462 |
19.1% |
|
-20 |
452 |
534 |
18.1% |
|
-25 |
506 |
601 |
18.8% |
|
-30 |
562 |
658 |
17.1% |

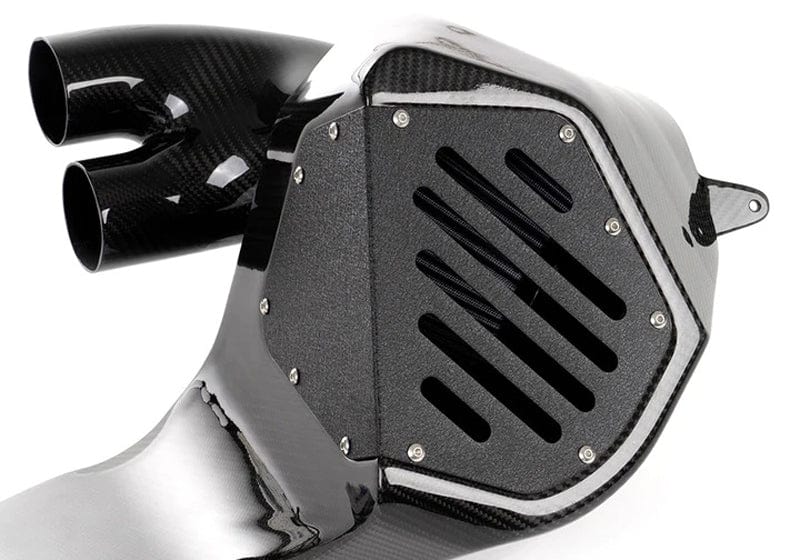

MULTIPLE PRESSURE ZONES
The front inlet connects to the grill and receives a constant supply of ram air. Additionally, the aluminum bottom plate allows for an endless supply of low-pressure air pulled from beneath the intake. These two avenues ensure the air filter has a complete and unrestricted supply of low-temperature airflow for any power goal.

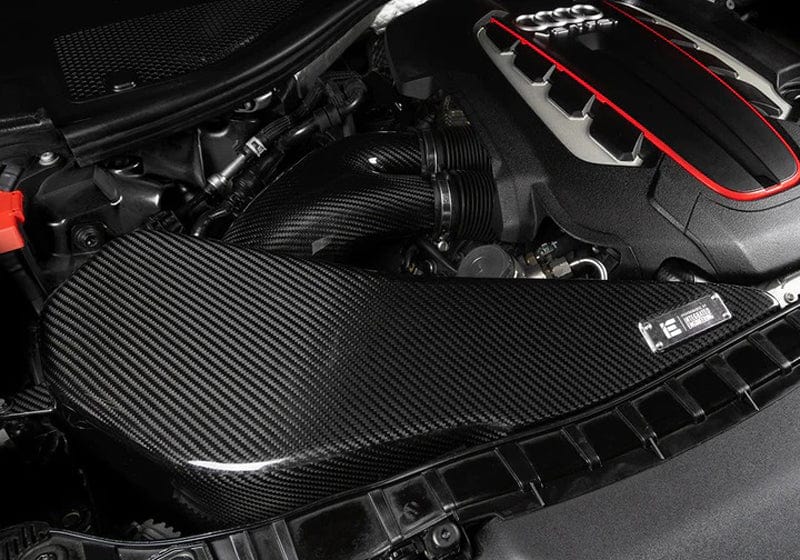

PRECISION FIT

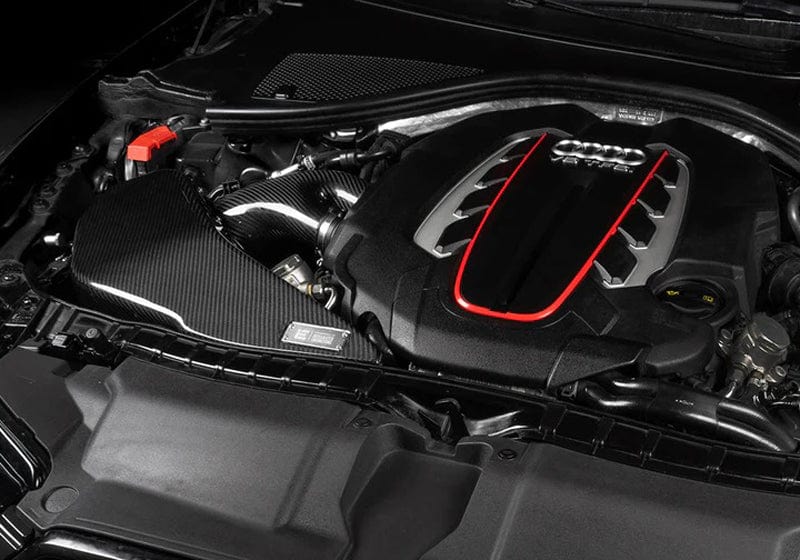

To ensure a perfect fit, 3D scanning tools are used to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. This provides an incredibly high-resolution environment to reverse engineer and prototype the intake design. This not only allows engineers to take advantage of all available space but also results in a perfect and extremely high-end install.
