Description
Description
PRODUCT OVERVIEW
The IE 4 Bolt Style Supercharger Pulley is designed for many late-model Audi 3.0T Supercharged engines that use the non-press-fit updated bolt-on style of supercharger pulley found on many 2016+ B8/B8.5 S4, S5, Q5, SQ5, C7/C7.5 A6, A7, and Q7 models. The pulley functions by increasing the supercharger RPM throughout the full powerband. The IE pulley is 58.8mm in diameter, making it one of most aggressive and powerful on the market.
Does not fit early press-fit style S4, S5, A6 Q5/SQ5, and Q7. These engines are easily identified because the supercharger pulley has no bolts to attach it to the supercharger.
PULLEY SPECIFICATIONS
| PULLEY TYPE | SUPERCHARGER PULLEY DIAMETER | CRANK PULLEY DIAMETER | SUPERCHARGER RATIO |
| Stock 4 Bolt Pulley | 62.9 | 162.25 | 2.5794 |
| IE Stage 2 4 Bolt Pulley | 58.8 | 162.25 | 2.7593 |
| IE Dual Pulleys (SC & crank pulleys) | 58.8 | 188 | 3.1972 |
WHAT'S INCLUDED & WHAT'S SOLD SEPARATELY
The following items are included:

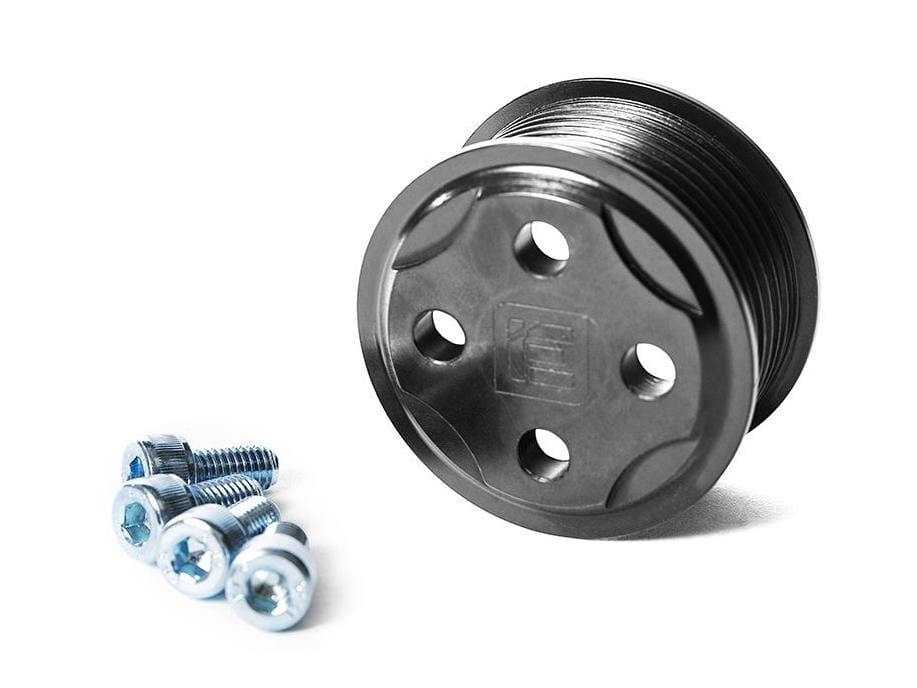

- 1X IE Overdrive Supercharger Pulley
- 4X Allen head pulley bolts
The following items are not included but required:
- Stage 2 tune
Recommended, but not required items:
- Cold Air intake (IEINCG2 S4 intake or similar)
- Heat exchanger upgrade
INSTALLATION

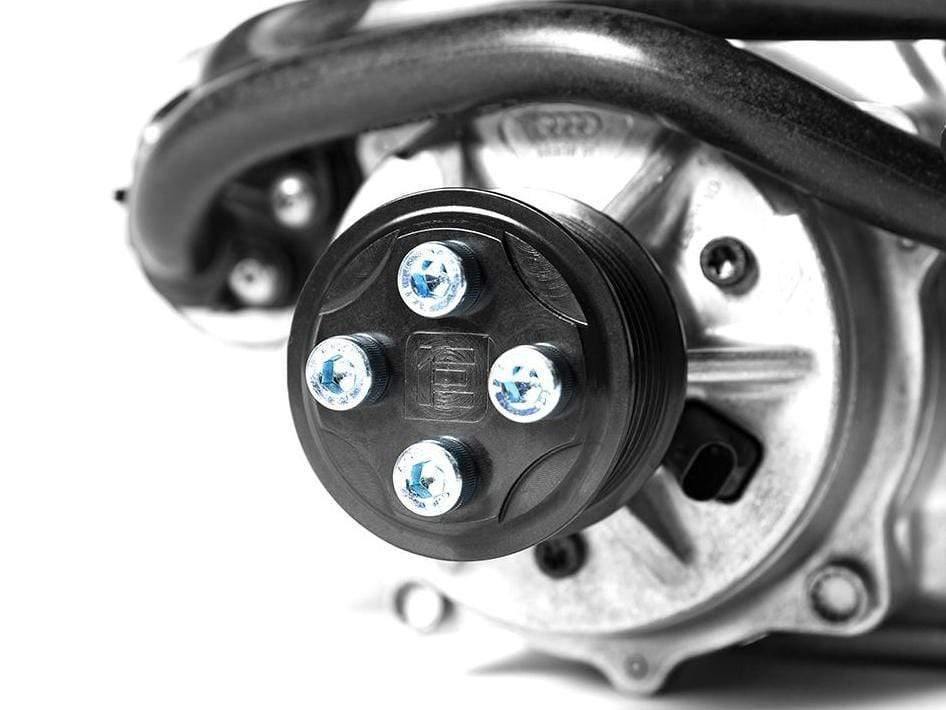

Installing the 4 bolt style supercharger pulley is rather easy for the casual enthusiast and only requires basic tools and can be completed in a matter of hours in most cases. IE's full install guide is located HERE.
About Integrated Engineering: Merging decades of experience with hundreds of hours of prototyping, engineering, dyno testing and daily usage evaluation has output exhaust systems that are the ultimate compliment to your performance car. IE products are proudly engineered, designed, and manufactured in-house, in Salt Lake City USA.
