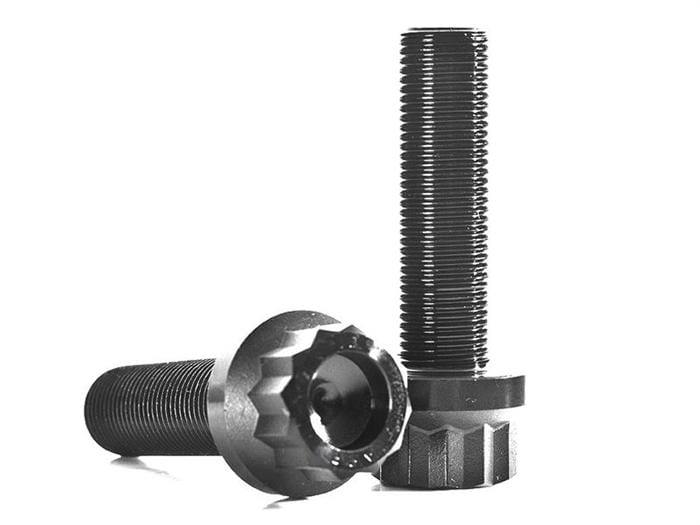

IE ARP Crank Damper Bolt | Late 06A 1.8T/2.0T FSI
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We only ship to Canada & USA.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Ask about inventory:
Description
Description
The crank damper and timing belt driver gear interface is one of the most sensitive issues with the 1.8T/FSI engine in performance applications. This interface does not have a high safety factor from the factory, and when combined with higher RPM, it can often fail. The loss of timing often causes massive destruction, either bending valves or worse, breaking them off and destroying the valve / head / pistons. Recently, Integrated Engineering has spent significant time working to improve this interface. We have launched dowel pin kits which allow the installation of a high strength alloy steel dowel pin to prevent rotation of the joint in the event that friction is overcome. Also, we have collaborated with ARP to produce this aerospace grade fastener which allows a higher clamping load on the timing belt pulley to be used. This ensures that the joint will not slip and shear the keyway. In addition, these high quality fasteners are far more consistent then the factory pieces. The factory bolts are frequently quite beat up because they are shipped loosely without thread protection- this can lead to erratic clamping loads.
Features:
- Increases clamping force on the gear by 10%
- Totally reusable
- Made to the highest quality standards
- Extremely consistent clamping
- Threads rolled after heat treat
- This is an Integrated Engineering Exclusive part!
Note: Will fit ALL late 06A 1.8T/2.0T FSI Engines!
- All Audi/VW Transverse/longitudinal 20V
About Integrated Engineering: Merging decades of experience with hundreds of hours of prototyping, engineering, dyno testing and daily usage evaluation has output exhaust systems that are the ultimate compliment to your performance car. IE products are proudly engineered, designed, and manufactured in-house, in Salt Lake City USA.
