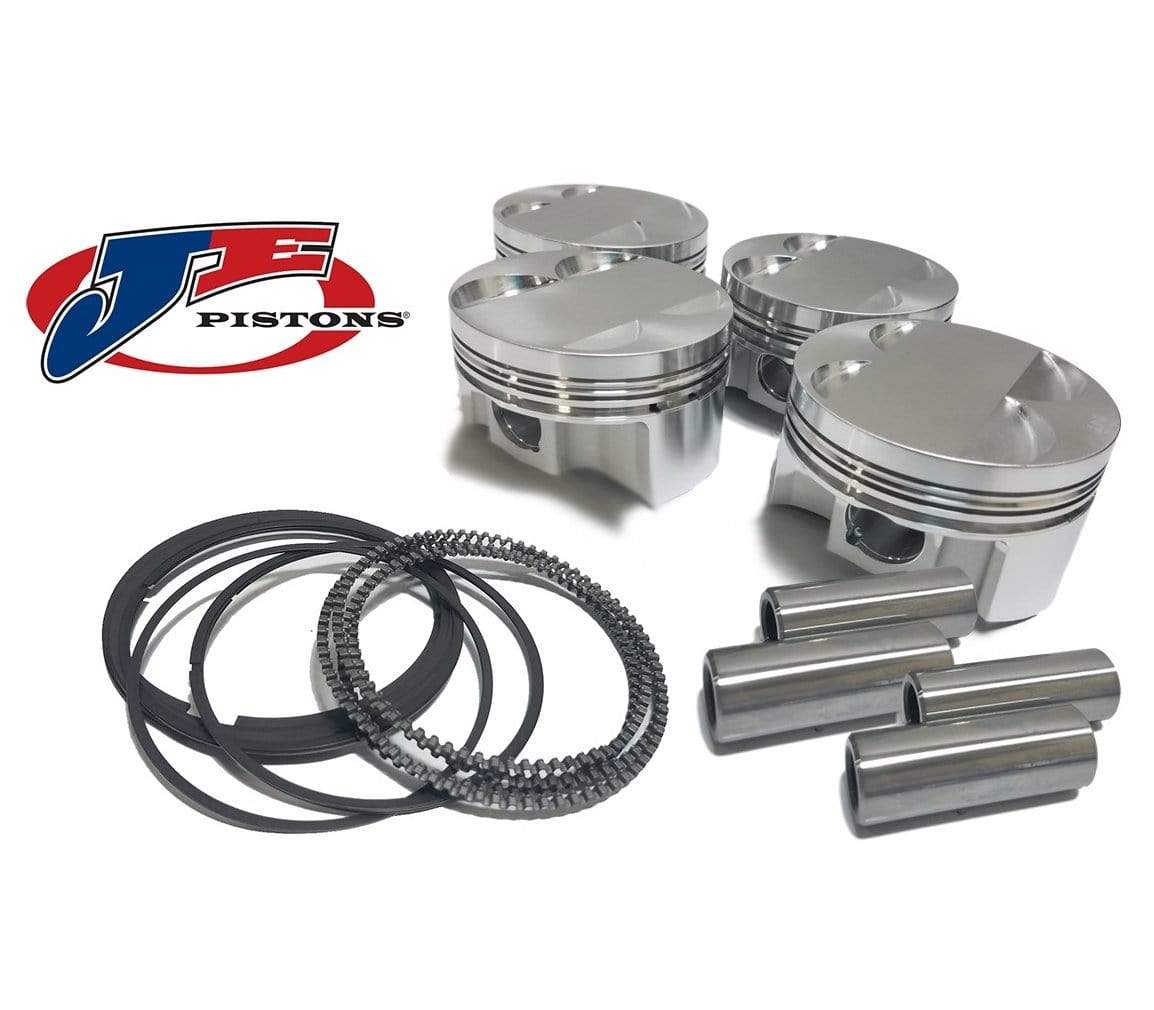

FSR Piston Set By JE - 81mm Standard Bore | 8.5:1 CR | Stock Stroke - 86.4mm - VW/Audi 1.8T

SKU: 302020
$1,056.60 CAD $1,109.40 CAD
Shipping calculated at checkout.

Shipping & Returns

How is shipping calculated?

Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!

What is your return policy?

We do accept returns. Please email us at to submit your request. Items sent to us without submitting a request will not be accepted.

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.

When will my order ship?

Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at

Do you ship worldwide?

We can ship worldwide. If you are outside of Canada or USA, please contact us.

Price Match

If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at with the required info below:

  • Your phone number:
  • Link to the product:
  • Link to competitor's site:

Local Pick Up

If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at or call us at (416) 798-BROX


NOTE: Image shown not actual parts.

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

FSR (Forged Side Relief) forging designs feature a reduced skirt width and shorter wrist pin when compared to traditional "full round" style forgings. The narrow skirt helps minimize piston contact with the cylinder wall that can cause friction and power loss while the shortened wrist pins reduces the overall weight. Some FSR forgings feature internal and external bracing to provide a more rigid construction while minimizing overall weight With thousands of race miles logged in the most demanding applications like NASCAR, NHRA Pro Stock and Indy Car, these pistons provide the ultimate combination of low-friction, lightweight design with increased stability and strength.

Bore (in) 3.189
Bore (mm) 81.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -10.60
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.787
Compression Height 1.291
Wrist Pin Style - floating or press fit Floating
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3189
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.050
Retainer Lock Style Wire Lock
Retainer Lock Part Number 787-050-MW
Retainer Diameter (IN) 0.787
Replacement Single Piston 302020S
Piston Pin Inside Diameter 0.427
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 279
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 787-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 20.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons

OE Part #'s:

06B-107-065-N / 06B107065 N / 06B 107 065 N / 06B107065N

06B-107-065-F / 06B107065 F / 06B 107 065 F / 06B107065F

6B1-070-65N / 6B1 070 65N / 6B107065N
