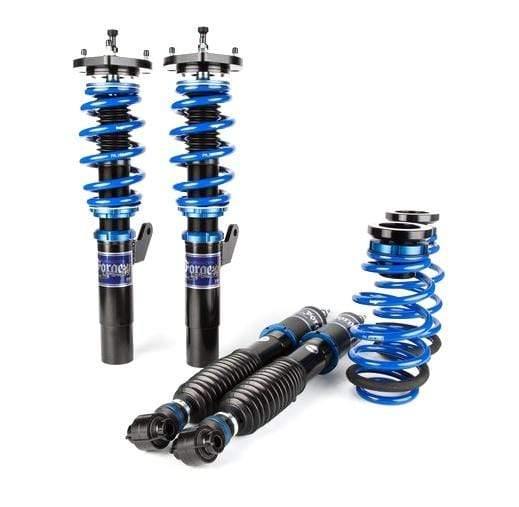

Forge Motorsport Coilover Kit for MINI R5X
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We only ship to Canada & USA.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Ask about inventory:
Description
Description

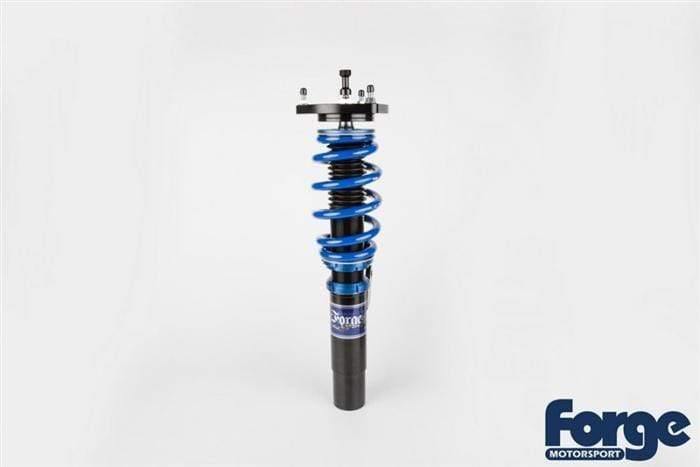

The Forge Motorsport suspension gives you the best balance between performance & comfort.

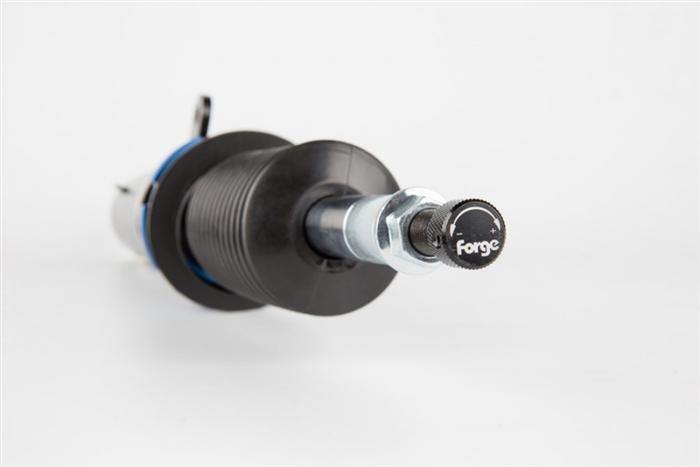

- With 32 levels of damping adjustability the suspension kit can be set to any preference, for track or street driving, and adjust both bump and rebound at the same time

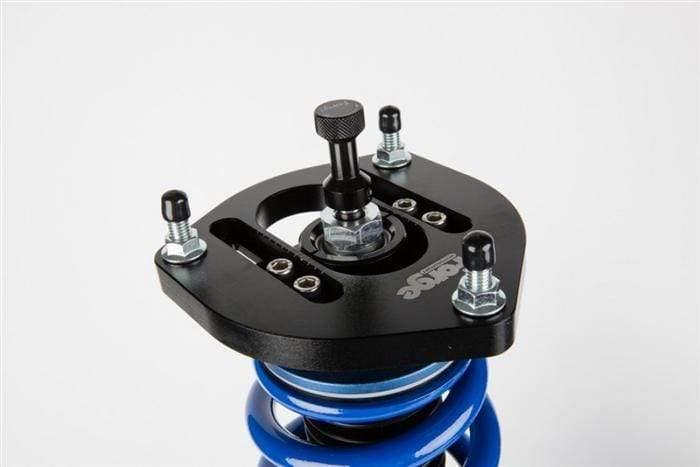

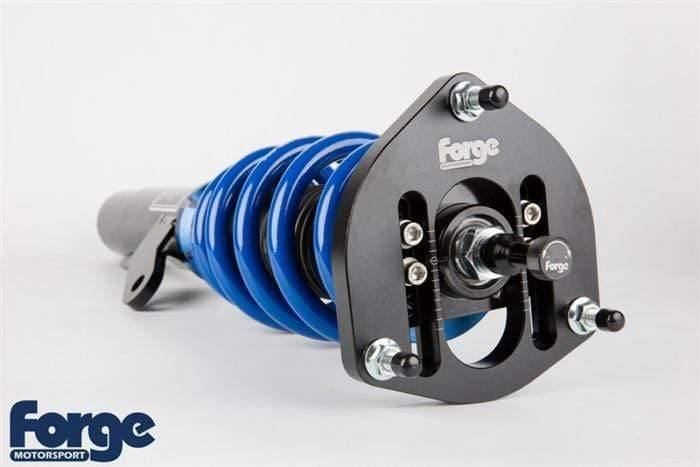

- Pillow ball top mounts on the front shocks in order to dial out excessive camber
- Manufactured from carbon steel 52mm diameter seamless tube (to JIS G3445 and DIN2393).
- A 44mm linear characteristic internal piston provides the best damping response for the tube diameter.

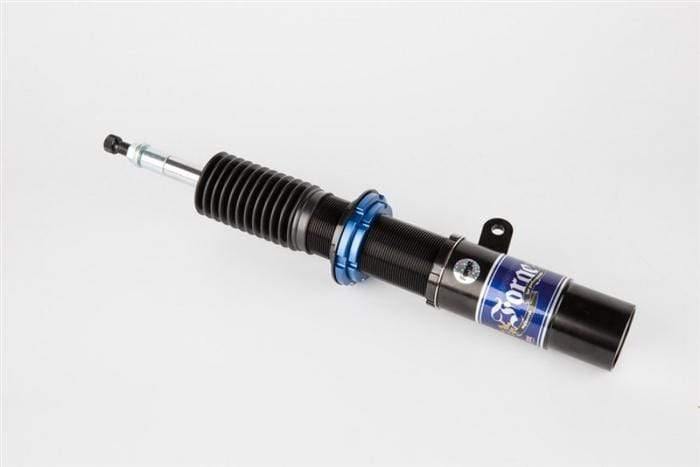

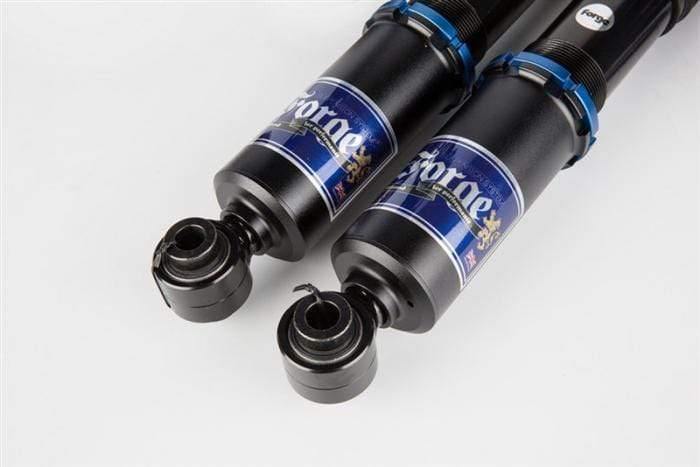

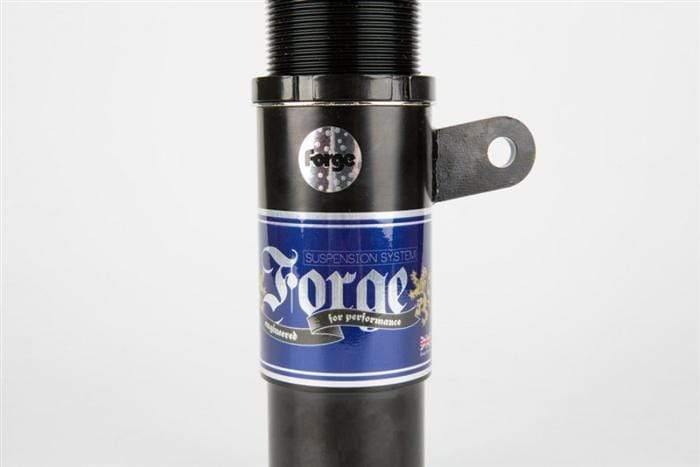

- High quality mono tube shock design
- The high viscosity oil used in the damper ensures the very best and most efficient shock-absorbing action.

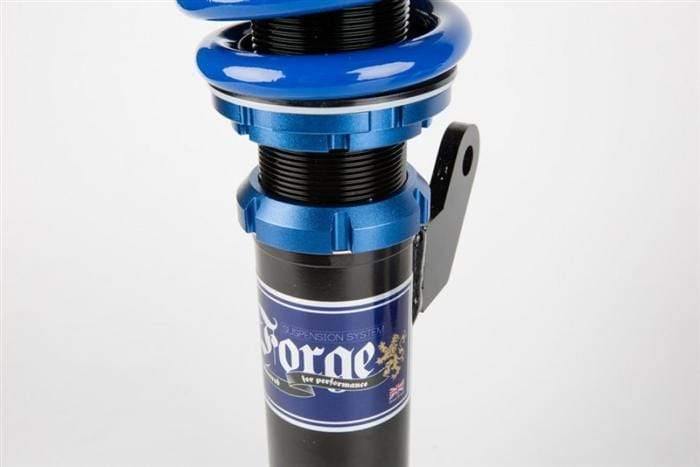

- The length of the shock can be adjusted, preventing the need to adjust the spring perch like on a normal coil-over, and so offering the maximum shock-absorbing travel.

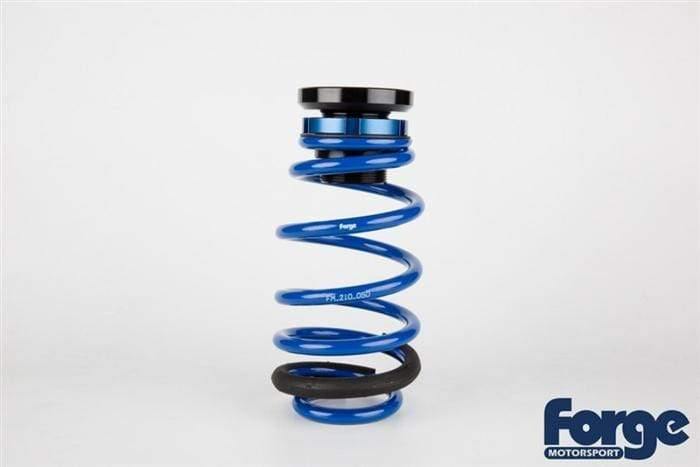

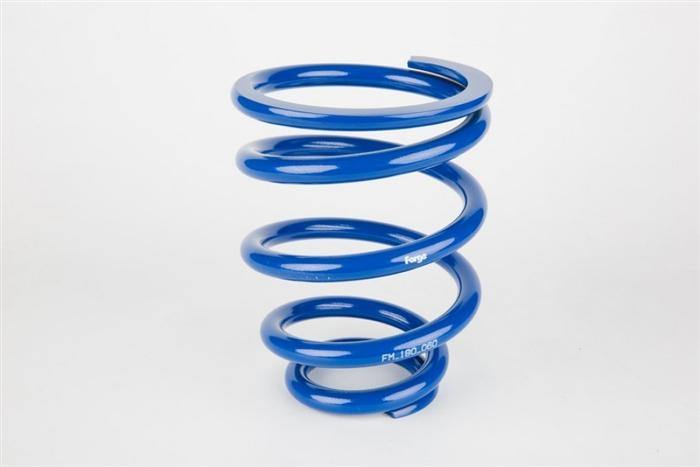

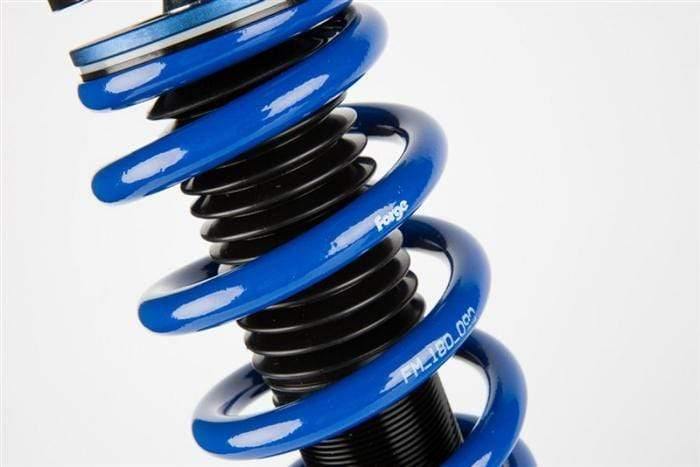

- Cold drawn springs are manufactured from high strength steel (to SAE9252).
- Spring rates of 6kg/mm (front) and 4kg/mm (rear) for Mini R5X
The Forge Suspension System has been developed with fast road and track driving in mind, but for those that prefer more show than go, it also offers a two stage lowering system that takes your car from low to really low !
Firstly the shock body itself is adjustable in length which means that you don’t have to make the spring shorter in order to lower the car. This means that ride quality can be maintained as the spring stays at its optimum length and the travel of the shock (i.e. its ability to absorb bumps) isn’t affected. On the Mini R5X we suggest lowering up to 55mm front and 55mm rear, This makes it perfect for track use where a lower centre of gravity is desirable, but also doesn’t make the ride overly hard.
Secondly the length of the spring can be adjusted, just like a normal coilover, so as the spring gets shorter the car gets lower.
This does also mean that if the shock is adjusted AND the spring platform adjusted at the same time, you can obtain huge drops over stock but you will need supporting modifications in order to run a regular road car this low, along the lines of fully adjustable control arms, and possibly chassis modifications, so that your camber, caster and toe settings can stay as close to factory settings as possible. This is really only recommended for show purposes.
Fits the following models:
- 03/2002-2006 R50 Cooper and R53 Cooper S Hardtop
- 2005-2008 R52 Cooper and Cooper S Convertibles
- 2007-2013 R56 MINI Cooper and Cooper S Hardtop
- 2009-2015 R57 MINI Cooper and Cooper S Convertible
- 2012-2015 R58 Cooper and Cooper S Coupe
- 2012-2015 R59 Cooper and Cooper S Roadster
Founded in 1996, Forge Motorsport is a performance parts manufacturer that prides itself on the ideals of innovation, clever design, customer care, and making products of only the highest build quality.
