Dinan Valved Axle-Back Exhaust - BMW / G80 / G82 / M3 / M4

SKU: D660-0093

$3,348.77 CAD $3,500.99 CAD
Shipping calculated at checkout.

Shipping & Returns

How is shipping calculated?

Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!

What is your return policy?

We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.

When will my order ship?

Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.

Do you ship worldwide?

We only ship to Canada & USA.

Price Match

If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:

  • Link to competitor's site:

Local Pick Up

If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX


Description




The G8x M3/M4 is arguably superior in every category to its predecessor but in most, if not all, circles the biggest downfall of the platform is in the sound department. Like the F8x before it with the S55, the S58 in the current generation leaves a lot to be desired. While a step in the right direction from its forerunner the stock vocals still carry far too much rasp that do not fully articulate the refined aggressiveness typical of the brands signature performance models. Dinan corrects this weakness with a valved axle back exhaust system that elevates the tone to a deeper, more meaningful note while also delivering an extra level of amplification above and beyond its stock counterpart. Coupled with the optional middle exhaust / x-pipe for the platform an even louder, smoother, and fuller soundtrack is possible.

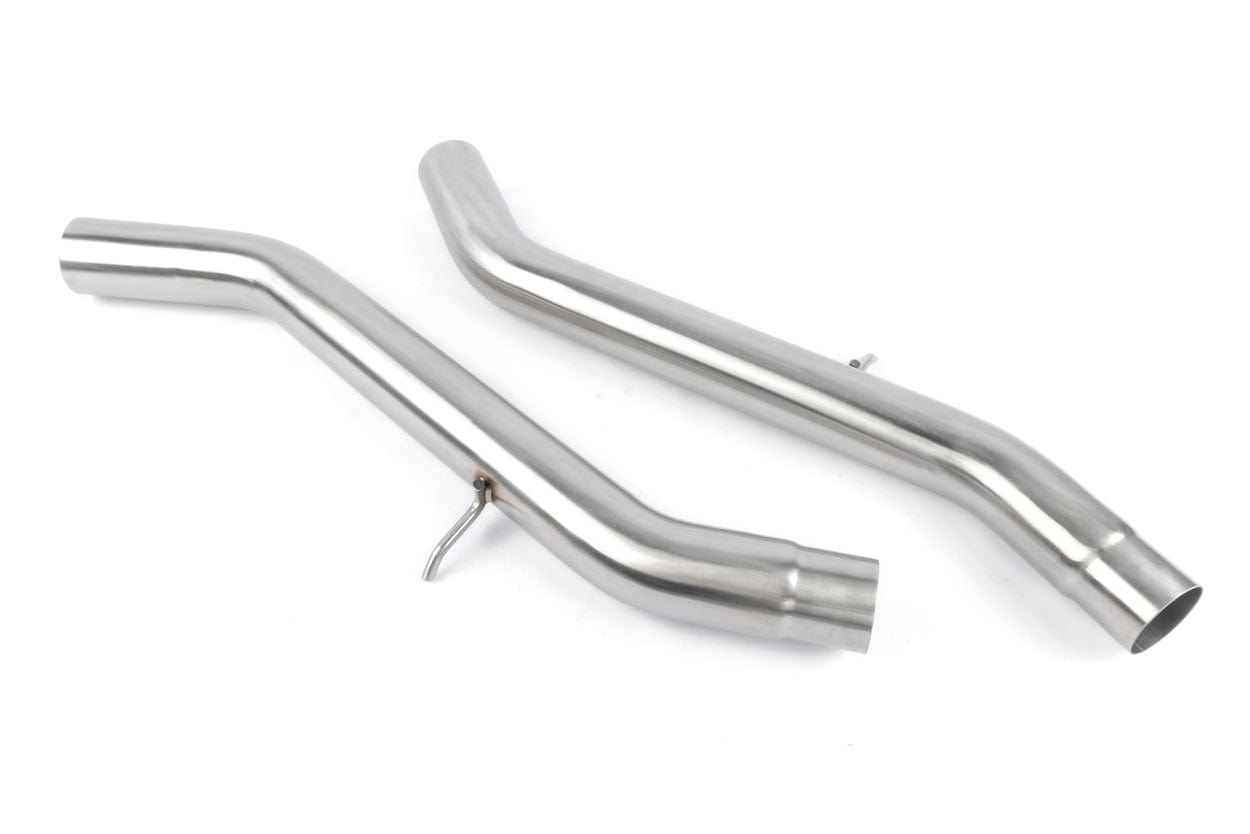

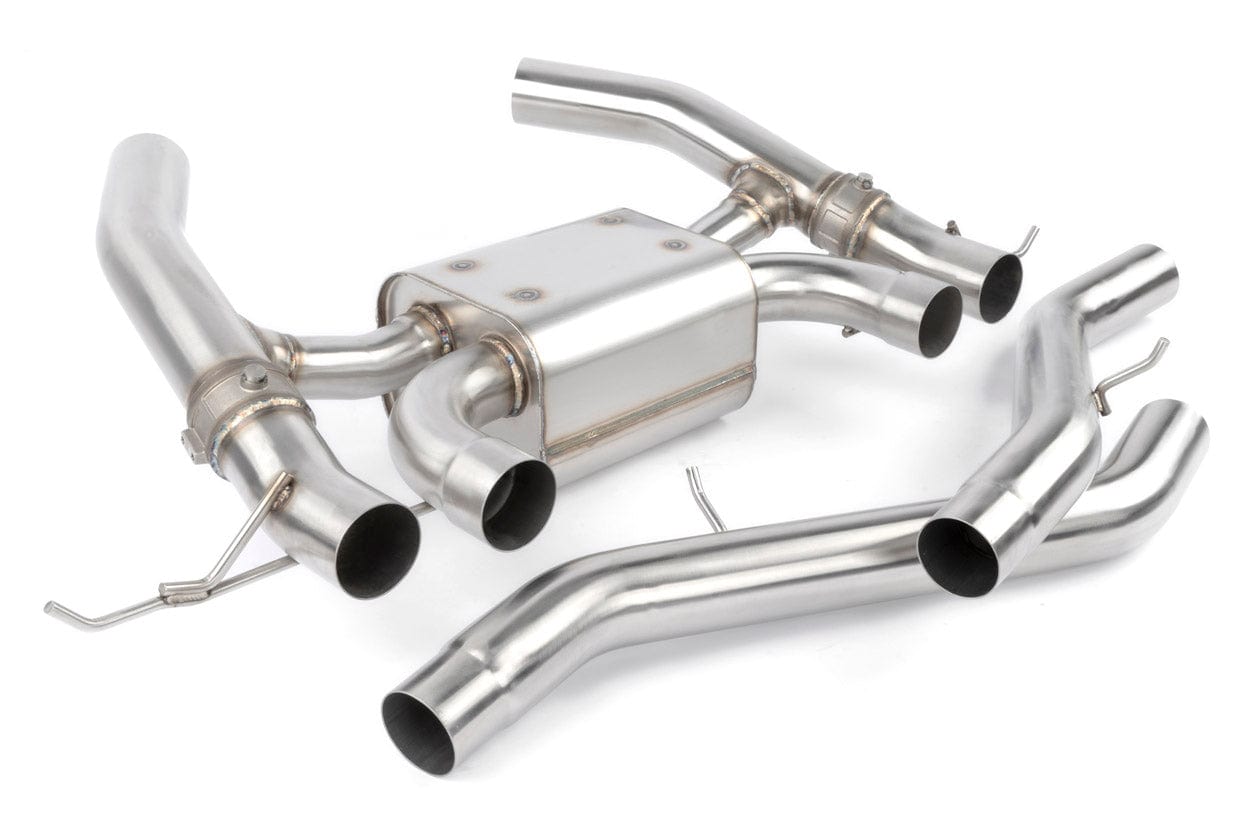

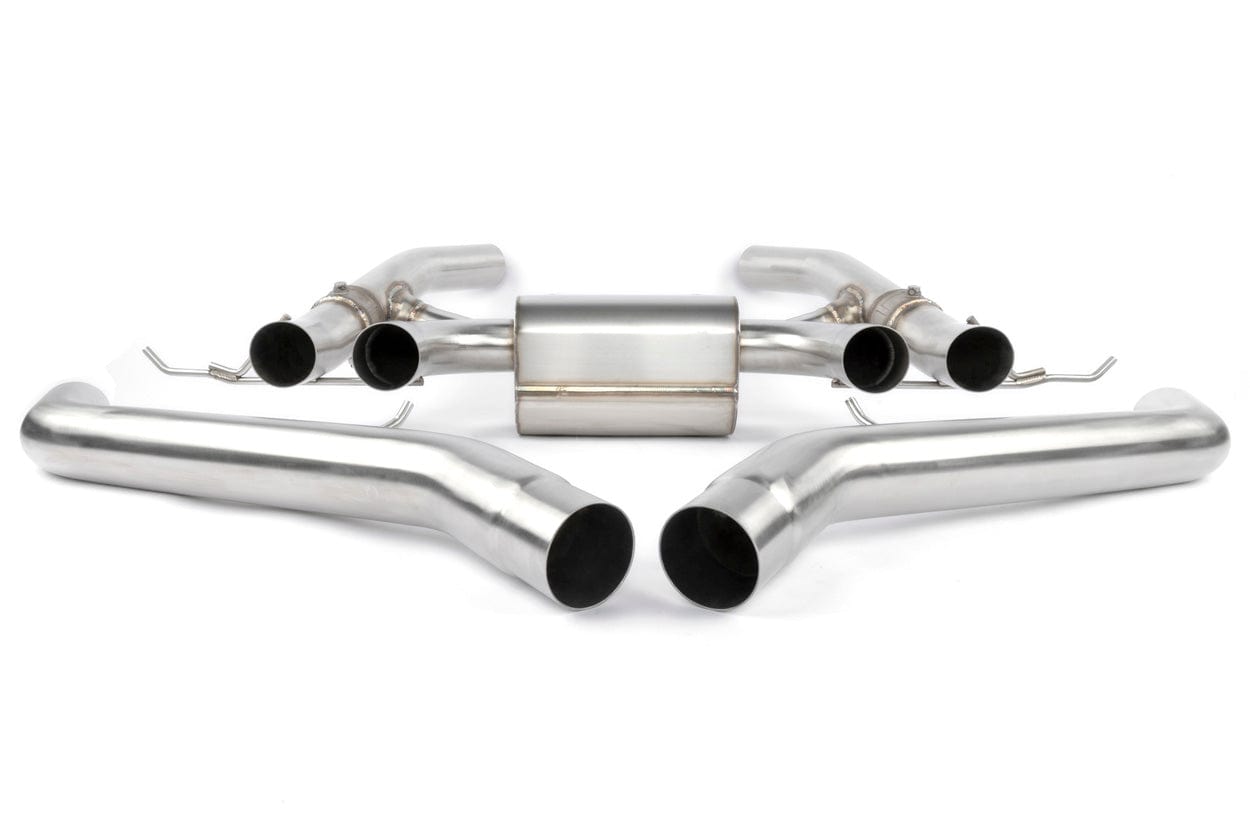

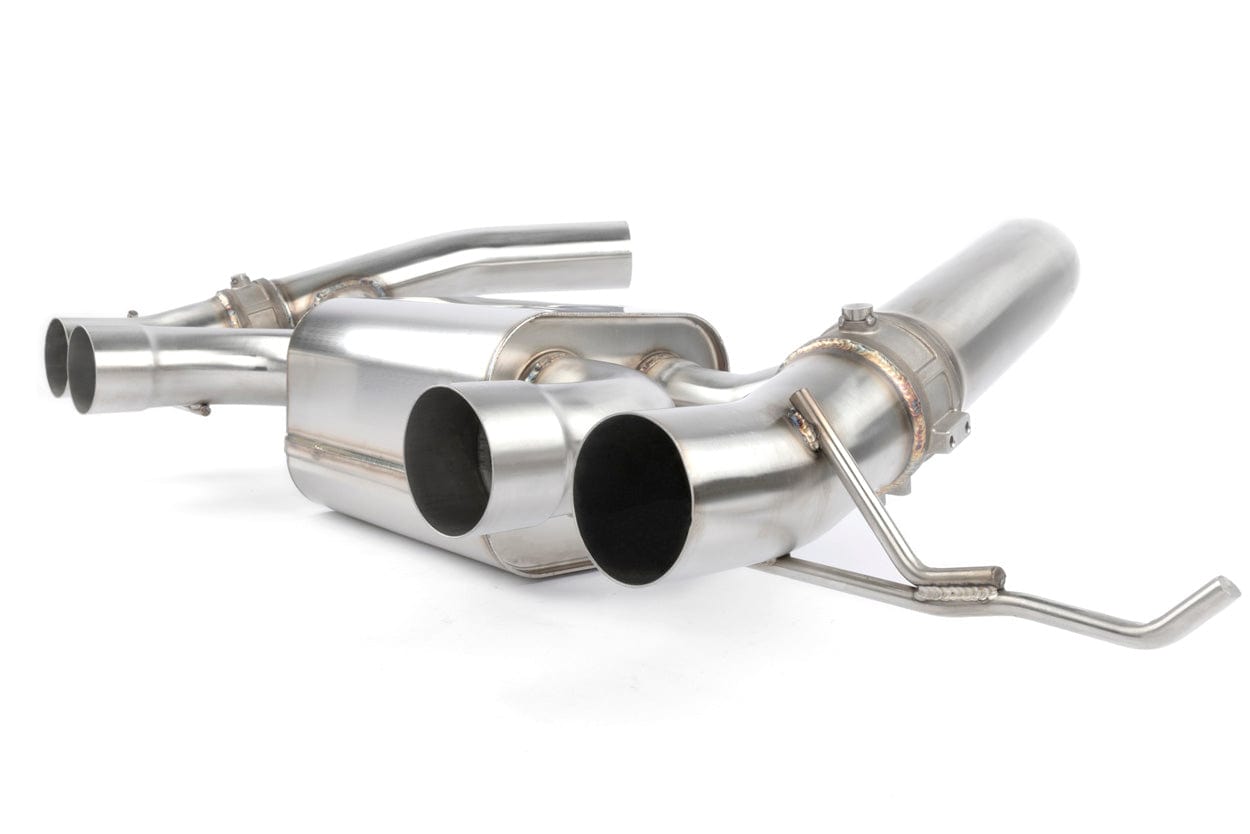

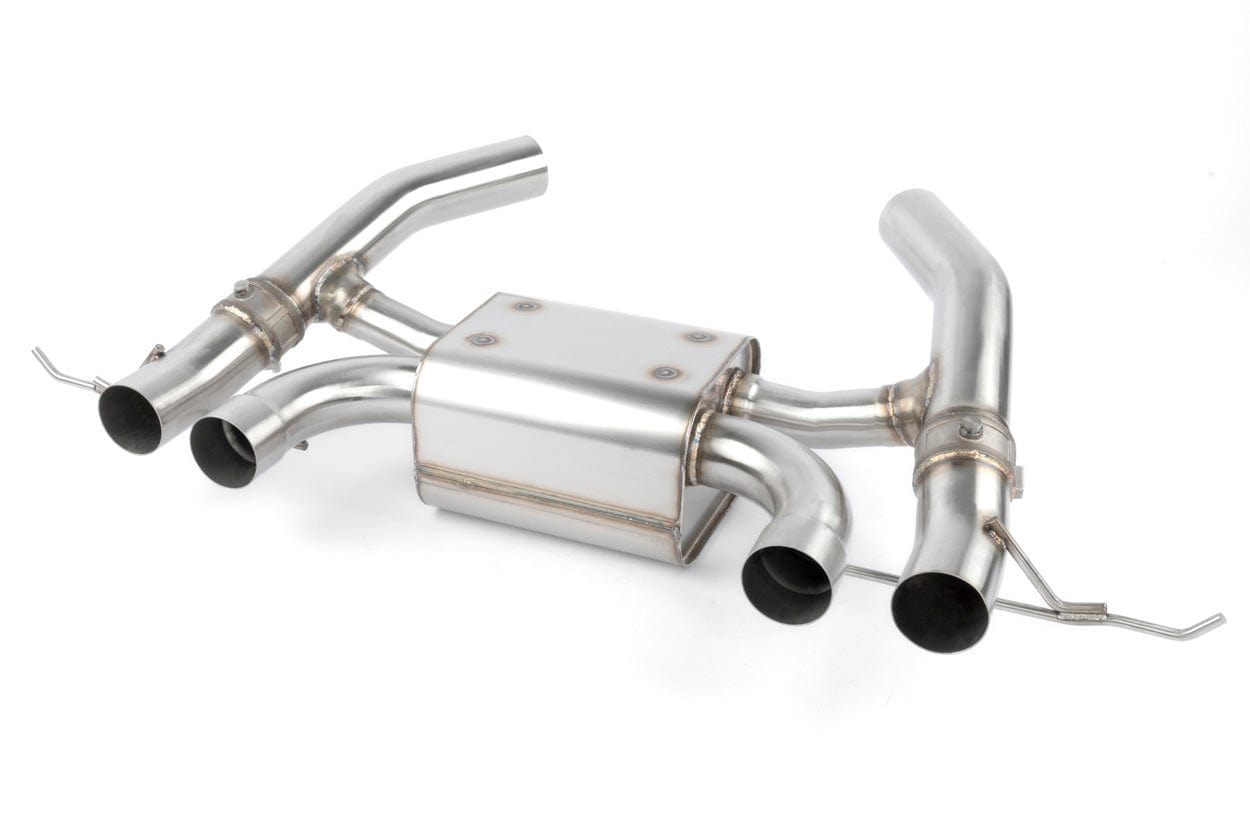

Through extensive development and testing nearly every possible permutation of the exhaust was attempted. Unlike the previous generation where cabin sound/drone was largely unchanged between the sedan and the coupe, that was not the case with the G8x chassis'. This caused countless iterations to be attempted in the quest for a common system that not only sounded superb externally but one that also didn't introduce an overbearing internal cabin drone on either body type. The result is a system we are confident will be coveted by all for years to come. To achieve desired sound volume and tone worthy of the G8x M3/M4 the tubing was enlarged to 76mm (vs 70mm stock) to allow freer flow, and reduce backpressure, throughout the entirety of the system. The larger piping gives way to multiple pathways as it nears the rear of the vehicle -- the choice of which is utilized determined by the factory exhaust valves which are retained. When valves are closed, flow is directed into the Dinan muffler, where absorption and reactive technologies are used, and exit out the two inner tips. This limits noise during low-speed driving and produces a more subdued, albeit deeper, and agreeable note. However, when the valves are open during high-load conditions the bulk of the gases bypass the muffler altogether for a near straight pipe design and maximum aural enjoyment to be achieved. It's the perfect marriage for all tastes and allows civility or impassioned aggression depending on what the situation demands. The combination is one Dinan has deemed fitting for the marques signature performance models that cater to the tasteful enthusiast who demand the best for all situations.

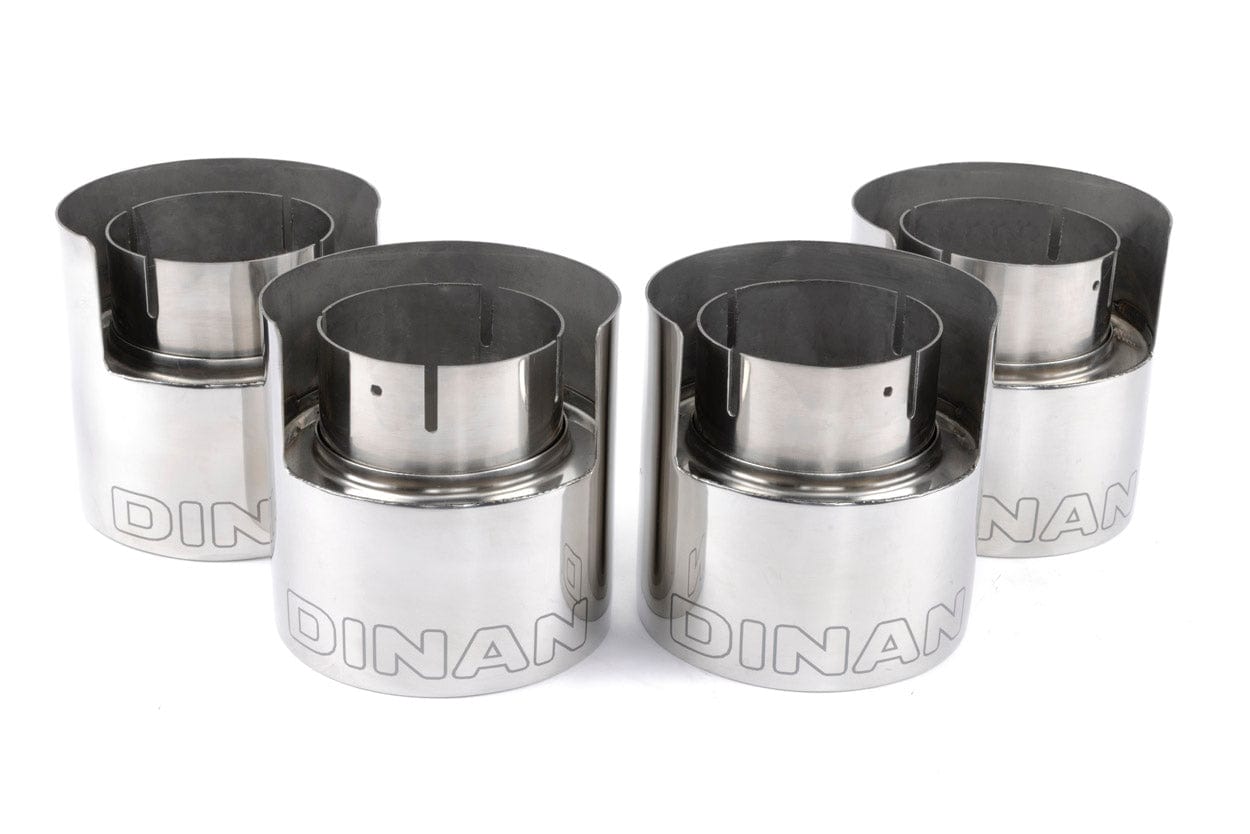

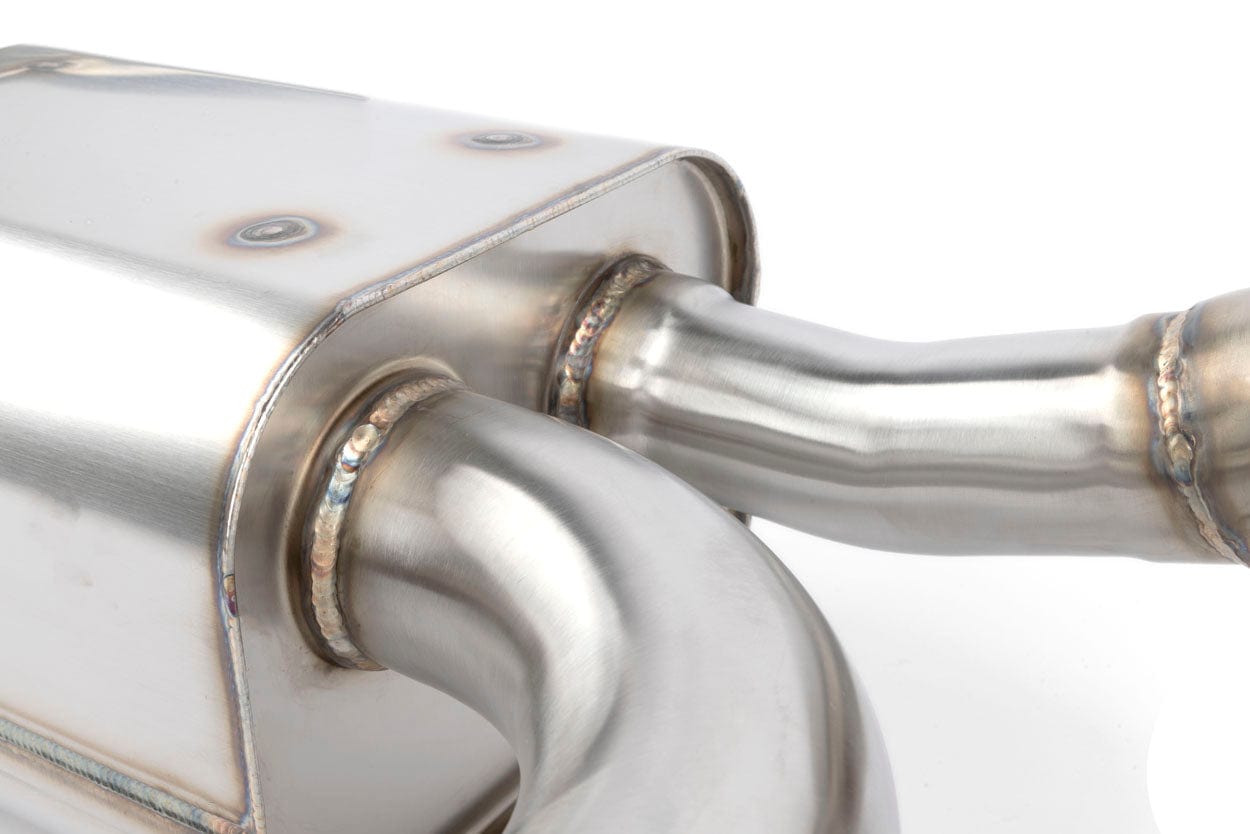

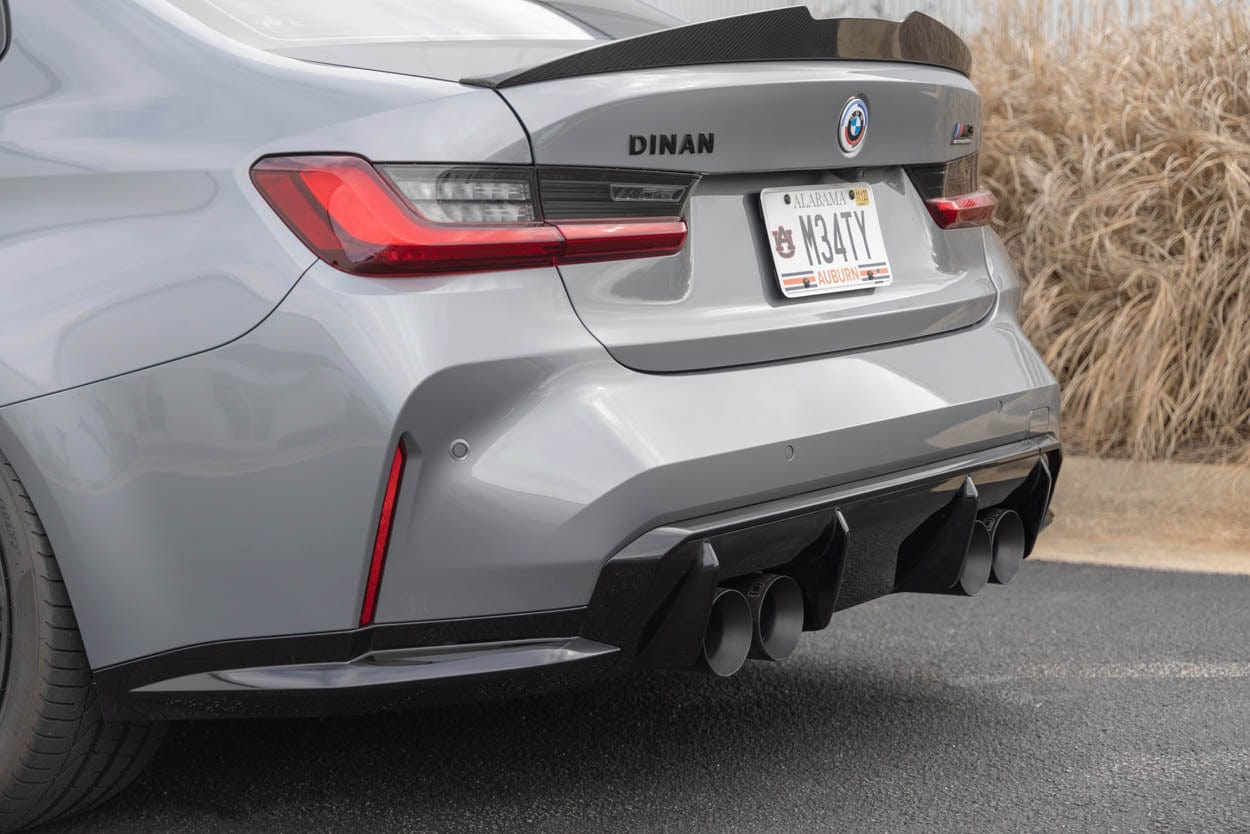

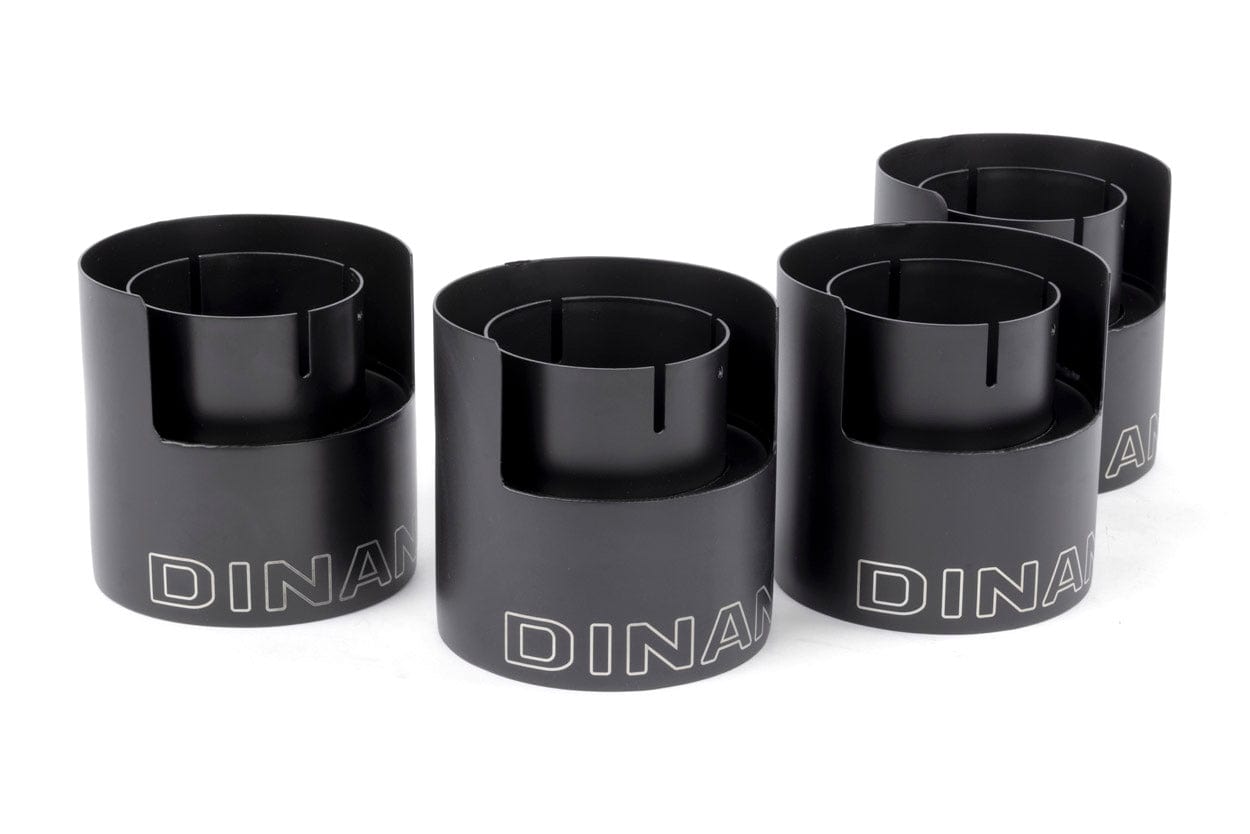

Visually, the Dinan G8x M3/M4 exhaust has been skillfully crafted entirely out of T304 stainless steel and TIG welded for the best visual appearance and color. The entire system is then brush finished to further guarantee an immaculate looking system out of the box. The attention to detail is not limited to parts of the system you can't see once the exhaust is installed but is also extended to the exhaust tips themselves. The Dinan exhaust includes massive, quad 4.5-inch (114mm) clamp-on, double-walled, polished stainless steel and laser engraved exhaust tips. Despite the seemingly cartoonish size on paper, the tips mesh seamlessly and fill the factory cut-outs to complete the OEM+ look with a healthy dose of audible attitude.

Features:

  • Maximum gains of +6 HP and +5 lb-ft of torque
  • Enjoyably louder, sportier sound
  • Drone abatement technologies used to reduce cabin resonance
  • Four, diffuser filling, 4.5-inch (114mm) double-walled, polished stainless steel clamp-on tips with laser engraved Dinan logo
  • Larger diameter piping for increased flow (76mm vs. 70mm)
  • 6-pounds lighter than the stock axle back (Stock: 44-pounds vs. Dinan: 38-pounds)
  • Stock exhaust valve actuators reused, and operation of exhaust valve is unchanged so exhaust tone can be adjusted via the M-drive settings

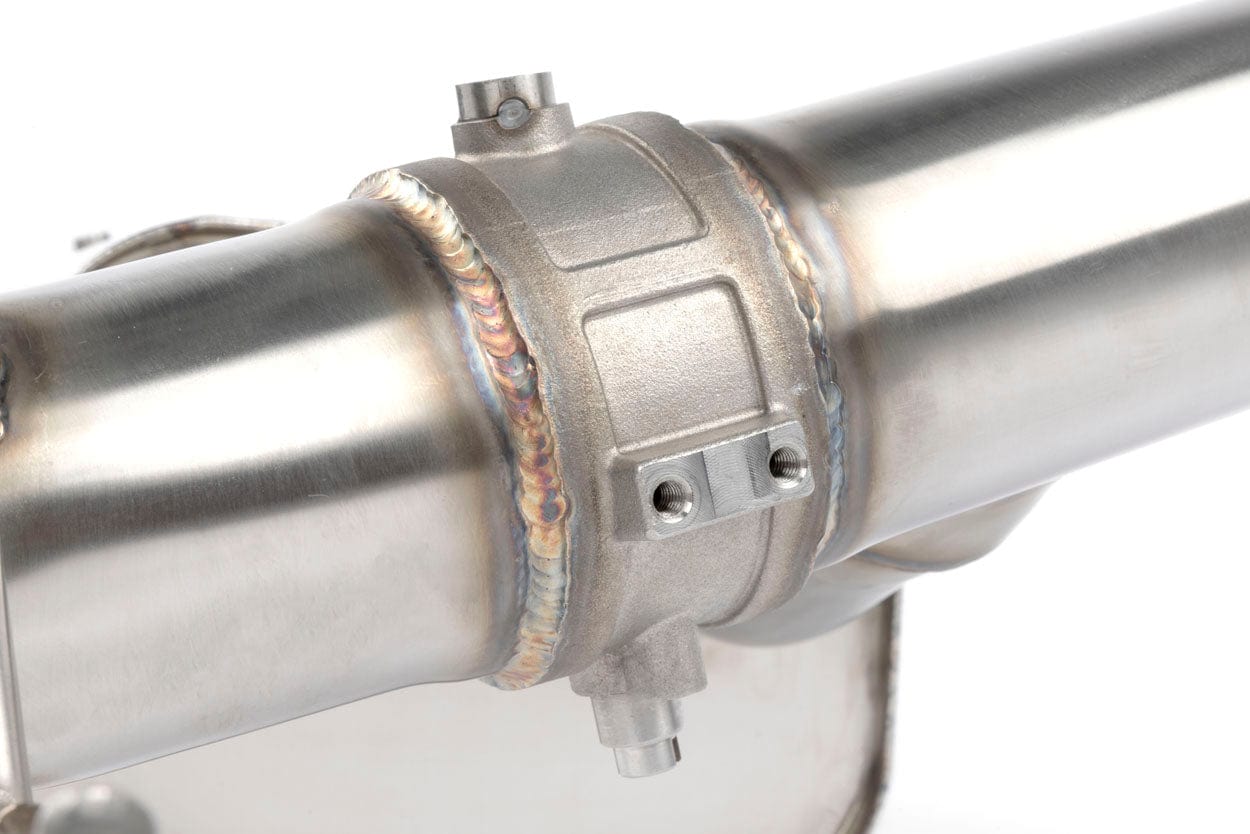

  • Computer controlled exhaust valves are retained and limit noise during low-speed driving and open fully during high-load conditions
  • 100% 304 Stainless Steel construction

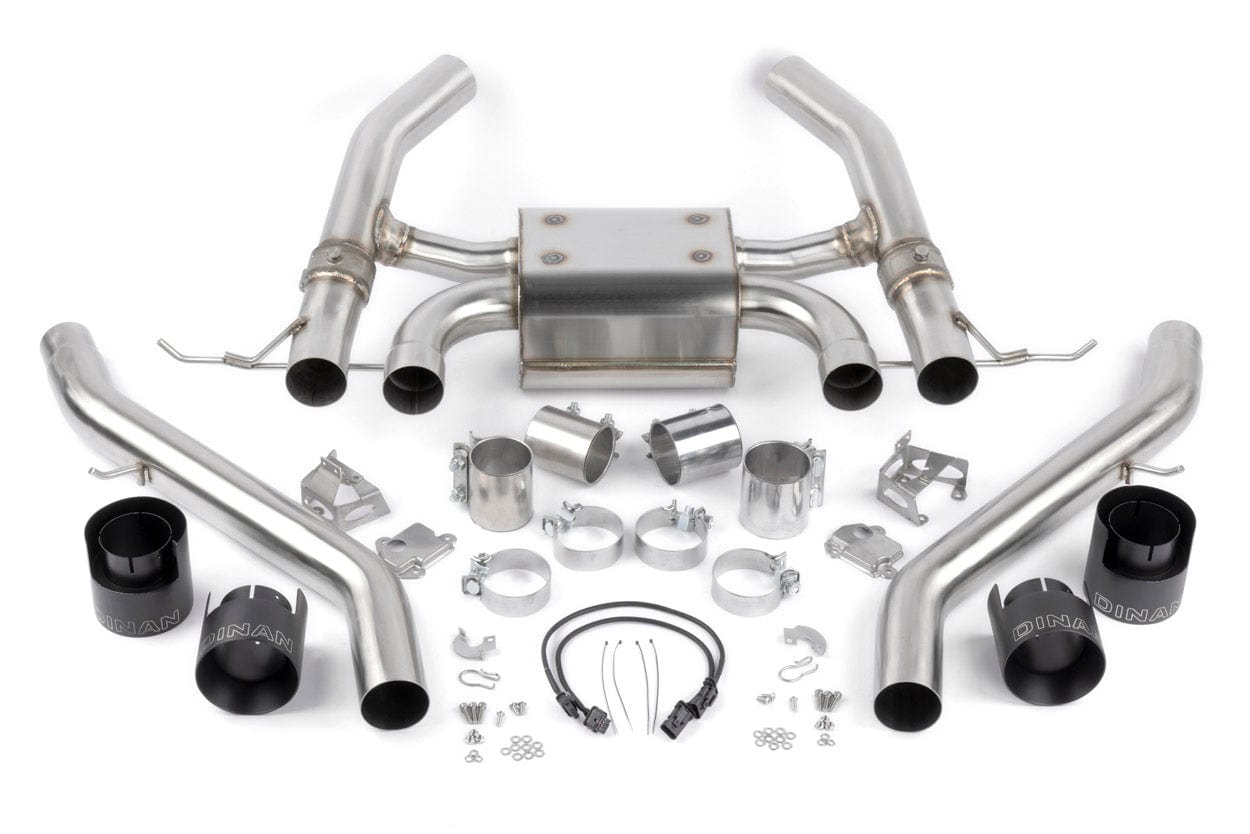

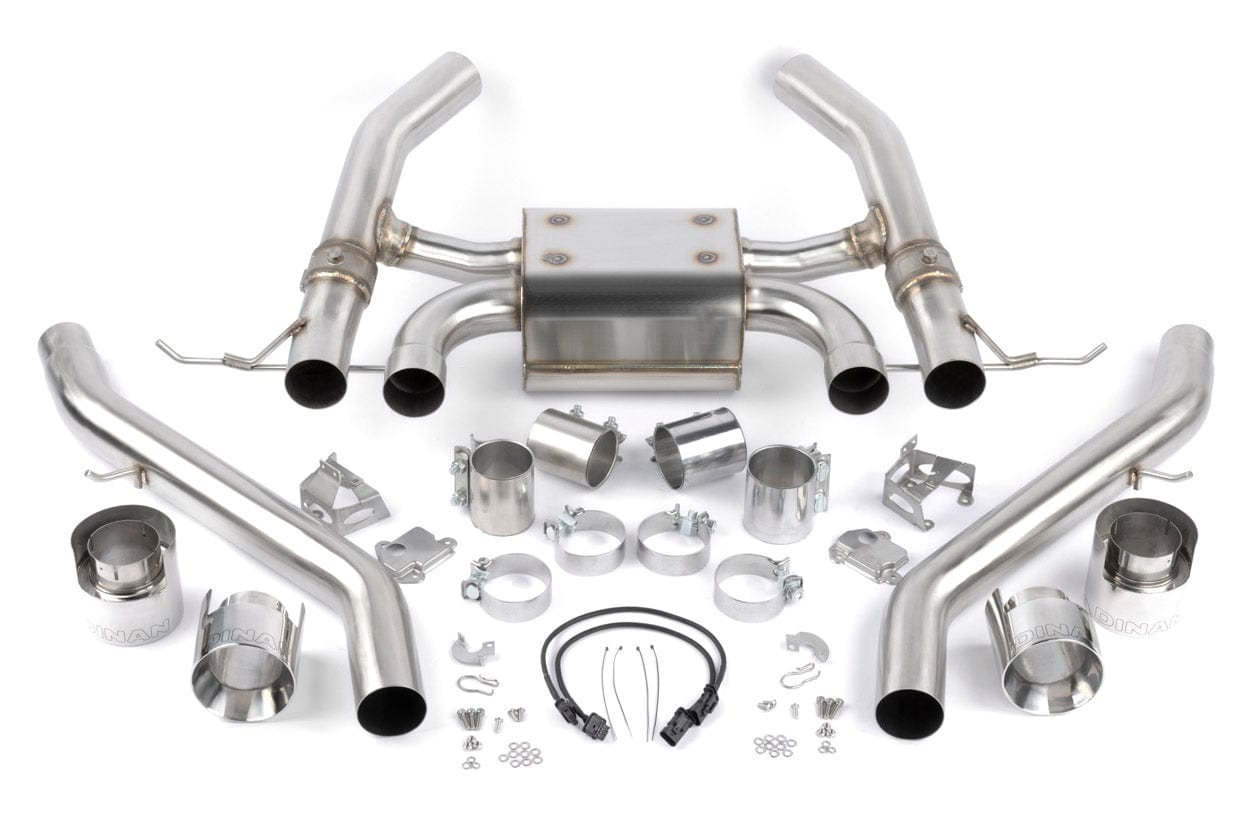

  • Factory-like fitment with included mounting hardware
