Description
Description
Water/Methanol/Alcohol injection commonly referred to as WMI allow you to make tremendous amounts of power on pump gas. The effect is similar to running 100 octane race gas or E85 fuel all the time with the additional cooling benefits allowing for more power than you can make on race gas or E85 alone.
The key to a safe and effective WMI setup is tuning integration. The N54 WMI kit integrates to the JB4 tuning system allowing for precise mapping based on boost, throttle position, engine speed, intake temperature, advance, gear, and other data elements available to the JB4 through its CANbus system. In addition a pump flow signal is fed back to the JB4 allowing for a safe and smooth progressive boost mapping. If the tank runs empty or flow drops for any reason the JB4 will safely back down performance to avoid detonation. Boost is held low until WMI is properly flowing to avoid tip in knock common with non-integrated WMI setups. In addition WMI can be activated or disabled right from the JB4 Mobile app , will automatically disengage during traction control or safety map situations, and WMI flow data can be displayed via your JB4 Mobile logging device.

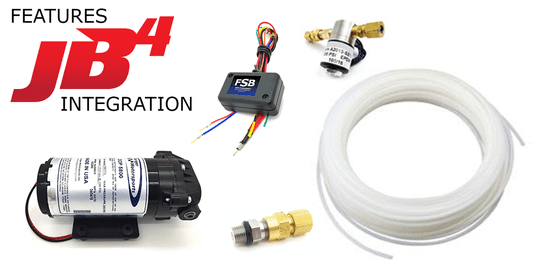

The BMS WMI kit includes a high quality Aquatec WMI pump made to our specifications, high speed solenoid with leak-free compression fittings, a WMI filter, and all required wiring and mounting hardware.
You can select from the lower cost 1 gallon clear tank for a custom mount, or opt for our 2G integrated tank which includes a mount for the pump simplifying the install process.
For stock turbo N55 applications we suggest a single BM10 nozzle or dual BM5 nozzles, while for hybrid and larger turbos a single CM12 nozzle or dual CM7 nozzles is recommended.
WMI TANKS
1 gallon universal tank: The least expensive option this tank is compact and flexible allowing for a wide range of mounting on any flat vertical surface in the trunk. The tank is clear to allow visually checking the fluid level.
Comes with standard 2 way vented black plastic cap/lid.
Upgraded billet cap/lid with 1-way check valve available in the drop-down menu when ordering.
Tank dimensions: L 11" x W 9" x H 4.5"
For trunk mount applications.
2 GALLON UNIVERSAL LOW PROFILE TANK: With our 2 gallon universal tank the WMI pump mounts directly to the tank for the ultimate easy to install tank. This tank is compact allowing for a wide range of mounting on any horizontal surface in the trunk. Offered in black and in clear to allow visually checking the fluid level. Works with all DDP 5800 pumps. Made in USA.
Comes with standard 2 way vented black plastic cap/lid.
Upgraded billet cap/lid with 1-way check valve available in the drop-down menu when ordering.
Tank dimensions: L 15.5" x W 8" x H 8.25"
For trunk mount applications.
UPGRADED BILLET TANK CAP
Upgraded Billet WMI tank cap w/safety check valve
This high quality custom billet WMI cap includes an integrated check valve to let air in and prevent dangerous WMI vapor/fumes from getting out! Made in USA.
Applications
• 1 gallon tank
• 2 gallon universal tank
• 2 & 3 gallon stealth tank
INSTALL GUIDE
