APR Throttle Body Inlet System - 2.5T EA855 EVO

SKU: MS100198
$1,168.41 CAD $1,308.99 CAD
Shipping calculated at checkout.

Shipping & Returns

How is shipping calculated?

Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!

What is your return policy?

We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.

When will my order ship?

Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.

Do you ship worldwide?

We can ship worldwide. If you are outside of Canada or USA, please contact us.

Price Match

If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:

  • Your phone number:
  • Link to the product:
  • Link to competitor's site:

Local Pick Up

If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX

Description


***Only compatible with the OE style manifold***

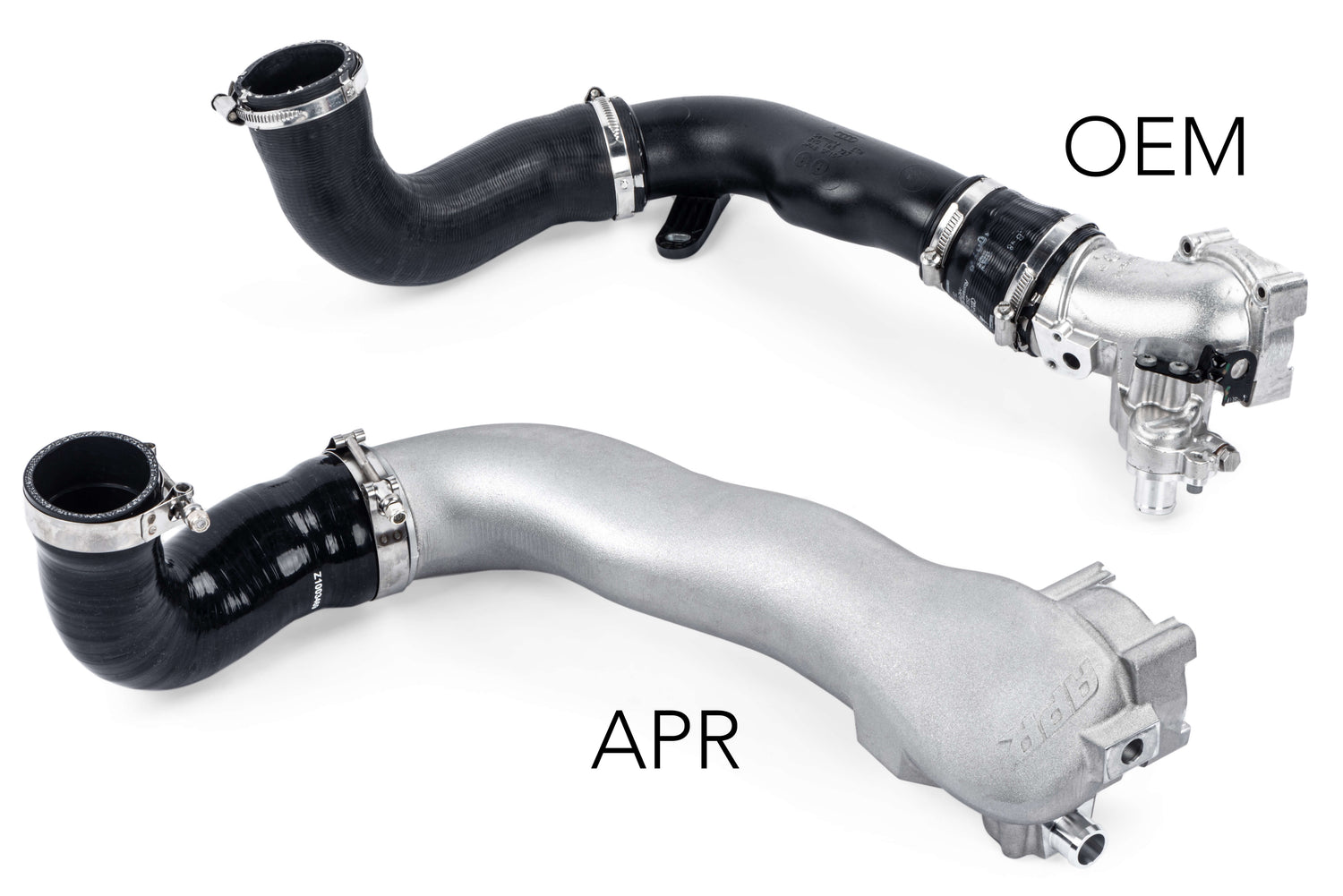

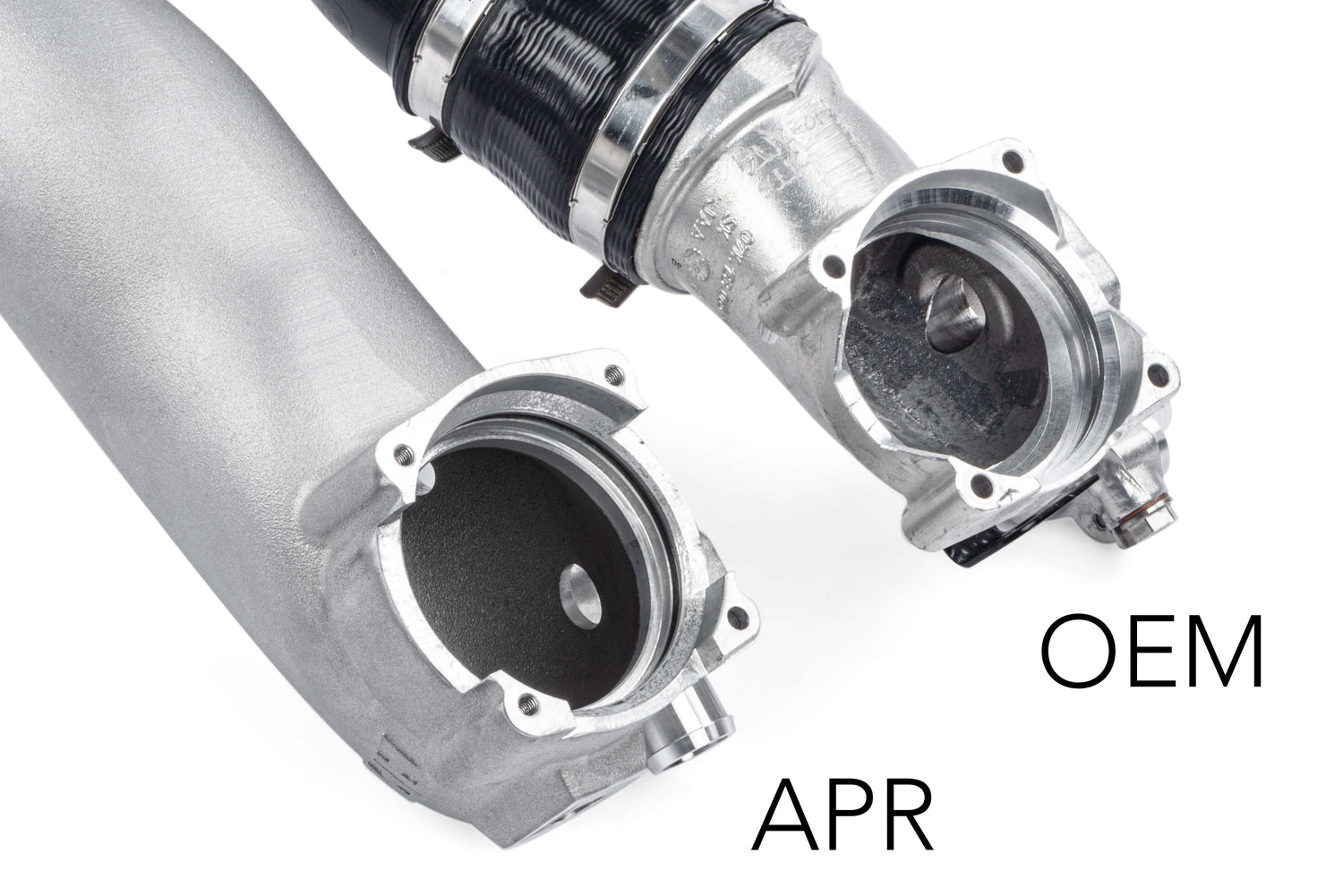

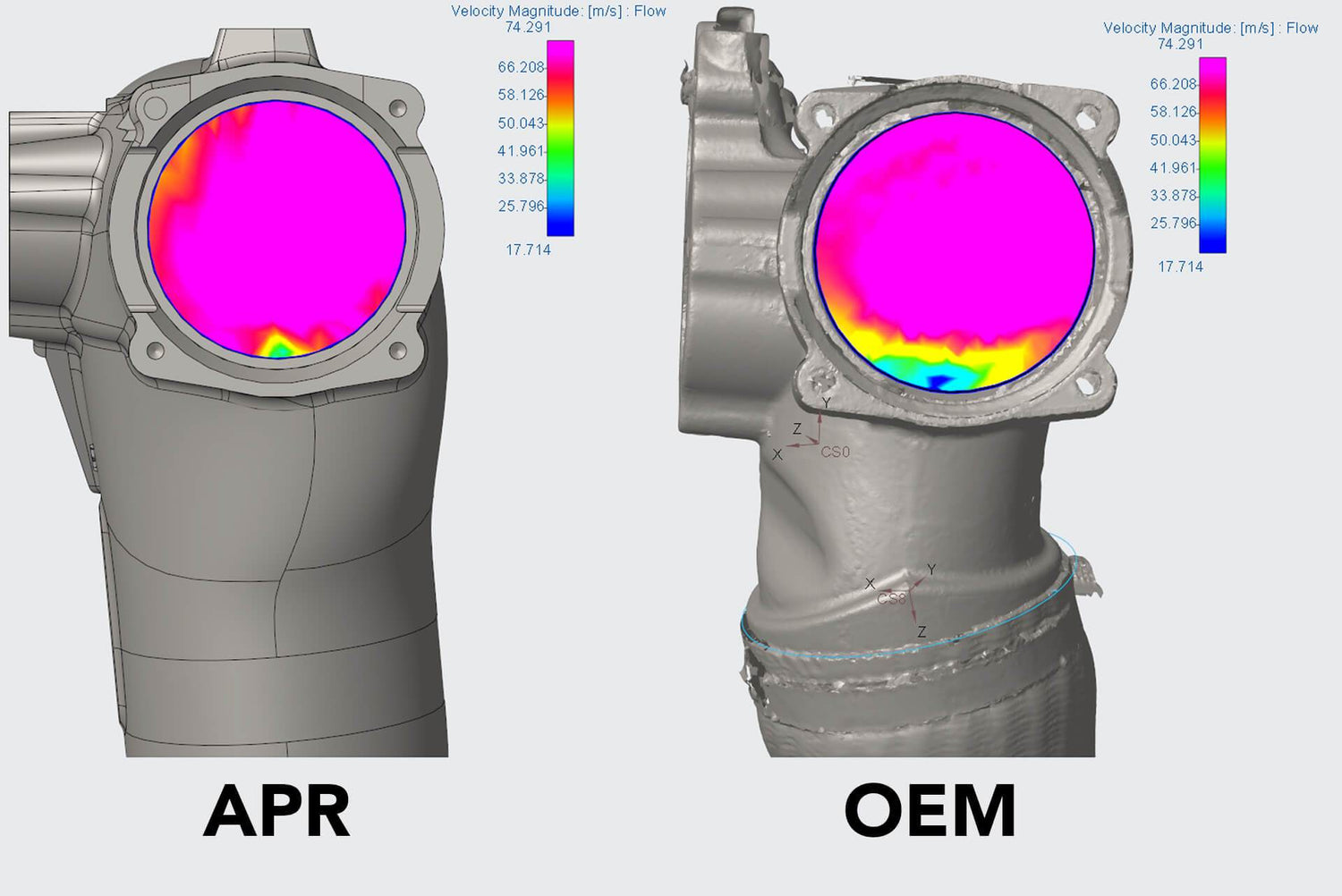

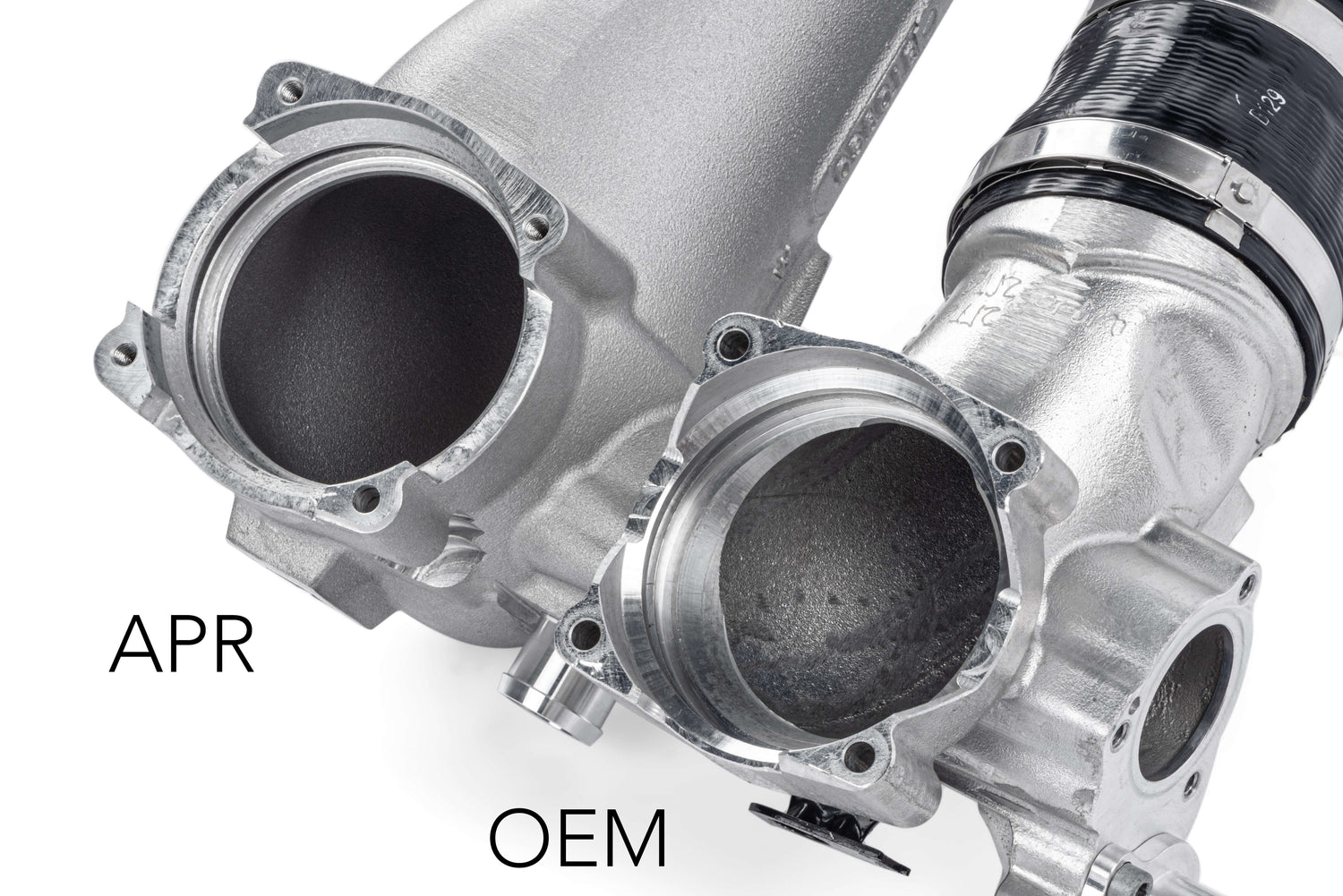

The APR Throttle Body Inlet System is a comprehensive upgrade to the factory charge pipe system from the intercooler outlet to the throttle body. We replace all components and provide a new, larger, free-flowing system that flows roughly 34% more than stock! This was achieved by increasing the cross-sectional area of the system and by reducing the tight radius bend directly in front of the throttle body. Our system does away with two potential boost leak points thanks to our single cast design. We've upgraded the factory rubber intercooler outlet hose to a multi-ply wire-reinforced silicone design with strong t-bolt clamps that resist boost leaks better than their stock counterparts. Our new billet throttle body to manifold adapter provides a convenient boost and vacuum reference point which can be used for a gauge, or anything else that suits your build. Lastly, the system comes complete with a new throttle body and intake manifold gaskets, which are common problematic leak points many never know to address. This comprehensive system is much larger than stock thanks to the sweeping design of the cast inlet pipe and oversized silicone hose. However, despite being dramatically larger than stock, the complete system is a negligible 2.4 lbs over stock! Simply put, the APR system is a complete upgrade from start to finish, flows better than stock and our competition, and is the only throttle body inlet system you'll ever need!

Features:

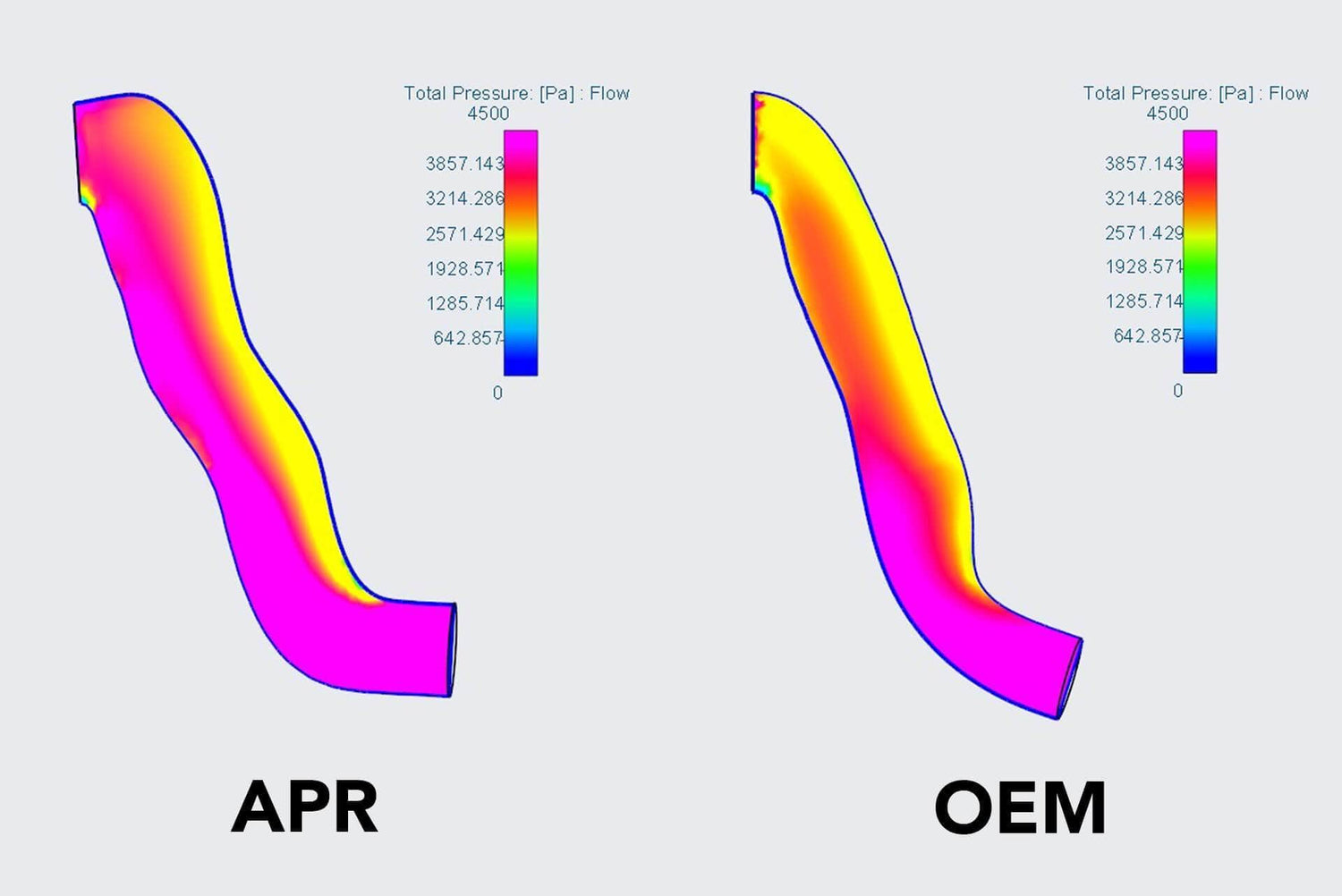

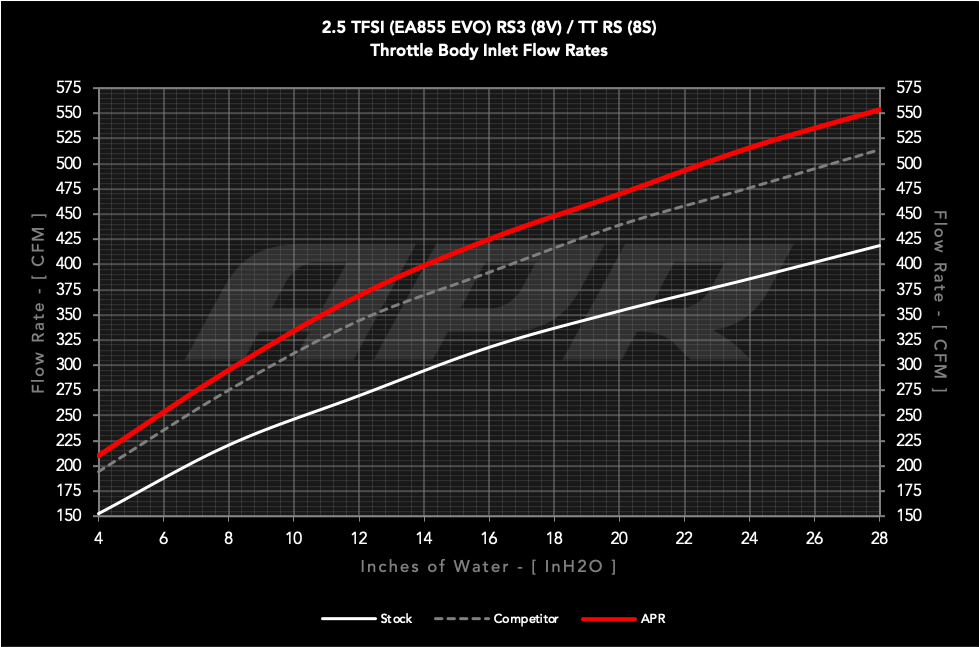

  • Flows 34% more than stock
  • Full system from the intercooler to throttle body

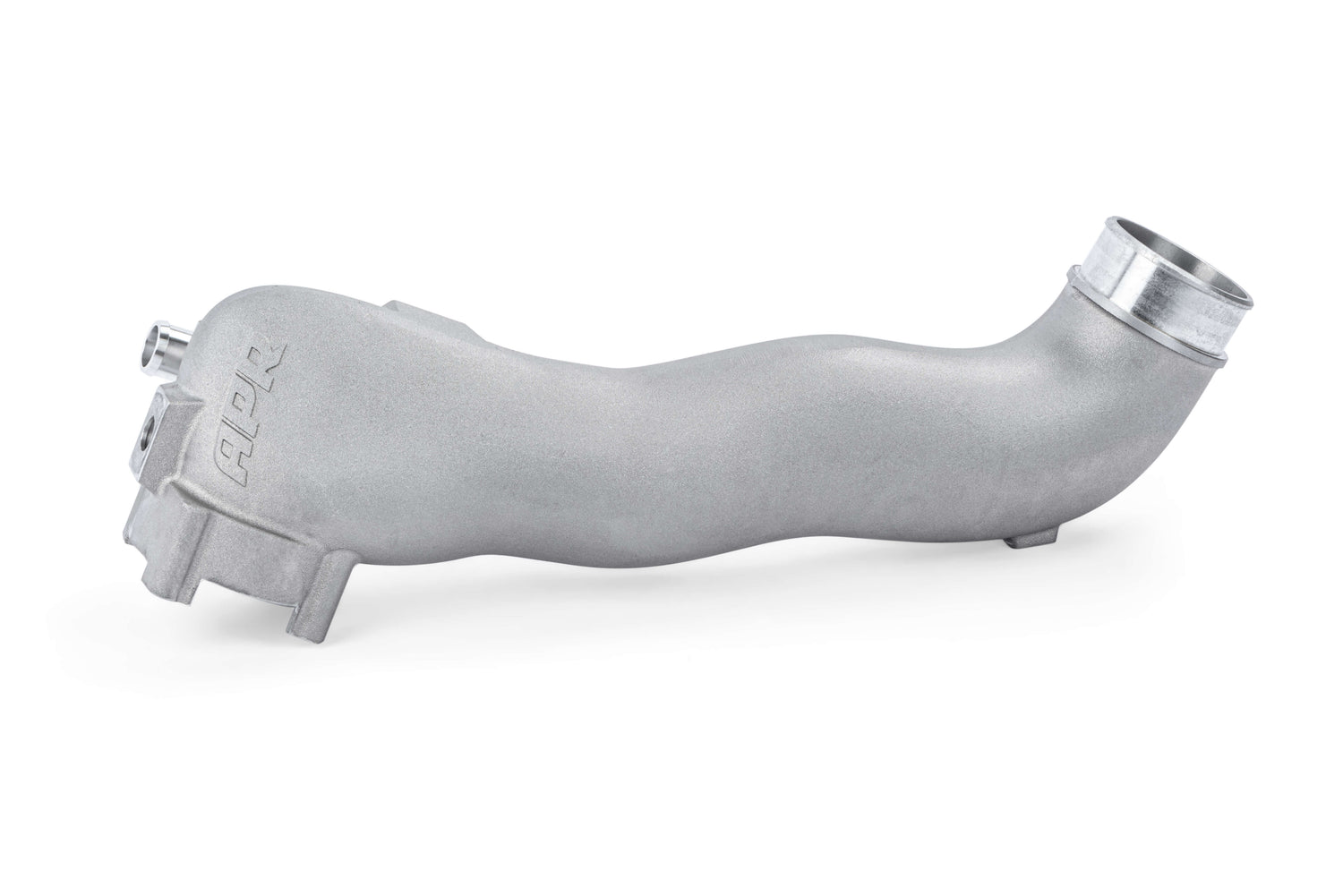

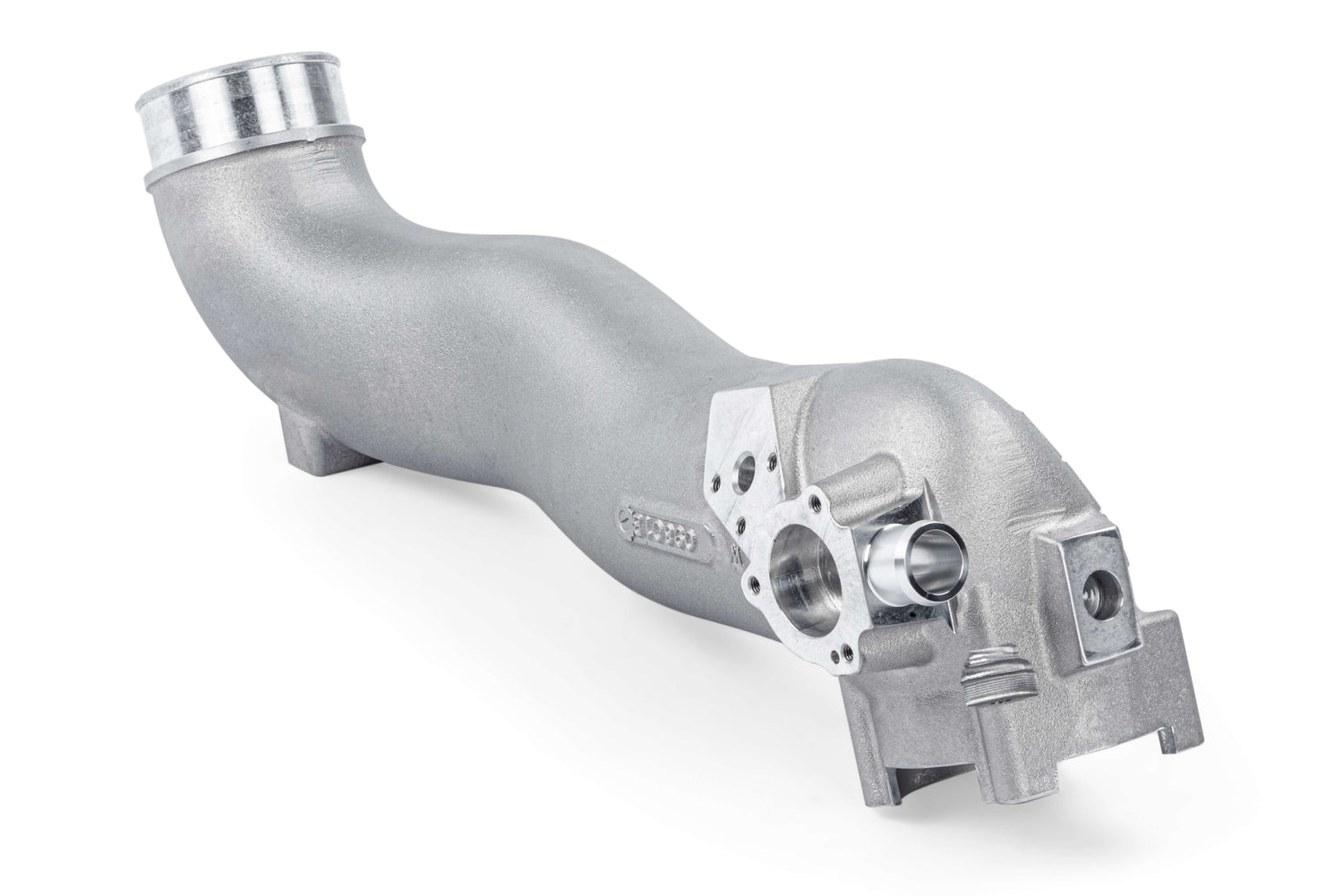

  • Full-length oversized cast aluminum throttle body pipe with sweeping transitions
  • Eliminates 2 boost leak points
  • Multi-ply wire-reinforced fluorosilicone-lined intercooler outlet hose with EZ-flow stepped lips
  • Oversized setup starting at the intercooler outlet hose at approximately 72mm vs 64mm

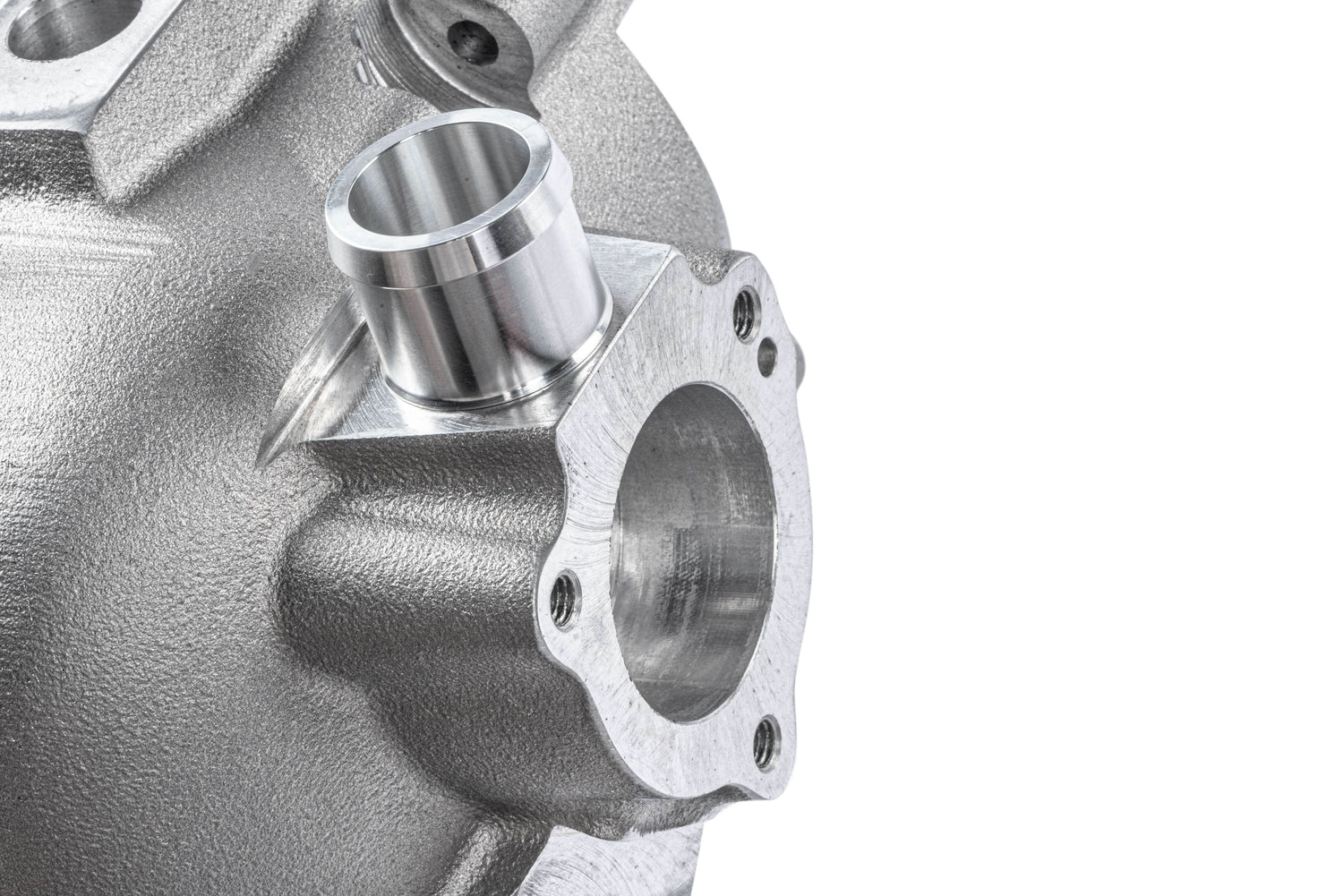

  • Billet aluminum throttle body adapter with boost and vacuum reference point
  • High strength t-bolt clamps

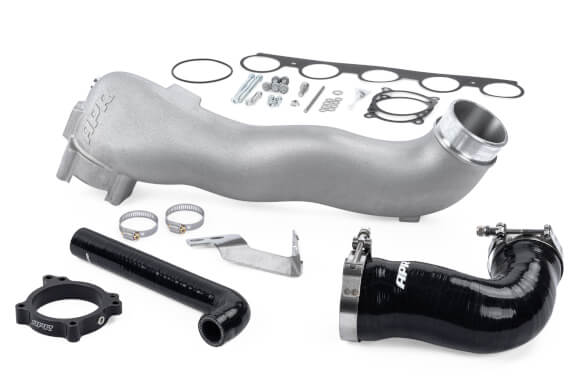

  • New intake manifold gasket, throttle body gaskets, o-rings, and one-time use bolts

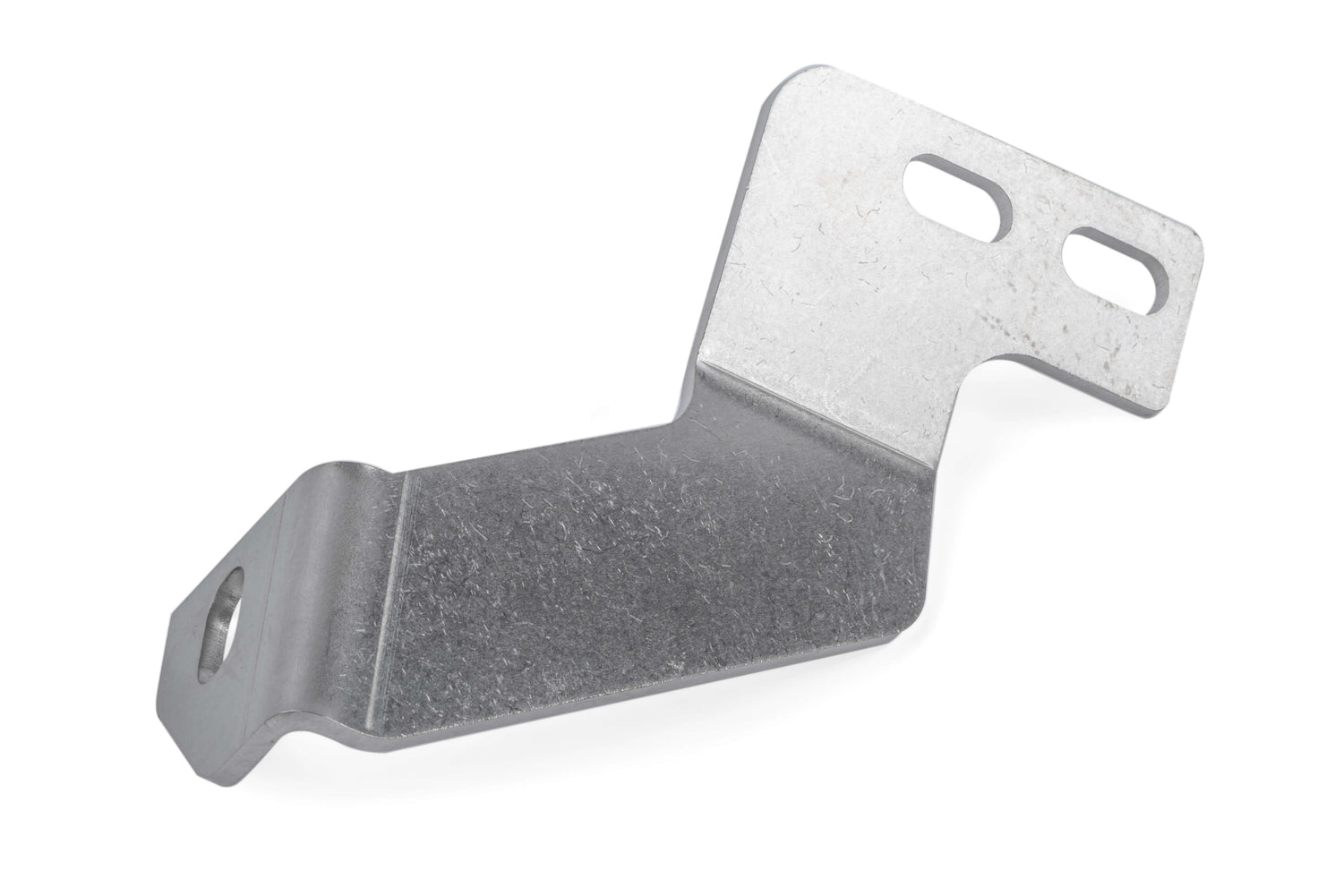

  • CNC-bent and laser cut mounting bracket
  • Silicone diverter valve reroute the hose
  • Full instructions and APR support included
  • Compatible with 2019+ vehicles with optional adapter
