23mm Pin FSR Piston Set By JE - 83mm +.50mm Oversize Bore | 9.6:1 CR | Stock Stroke - 92.8mm - VW/Audi 2.0T TSI

SKU: 353860
$1,056.60 CAD $1,109.40 CAD
Shipping calculated at checkout.

Shipping & Returns

How is shipping calculated?

Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!

What is your return policy?

We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.

When will my order ship?

Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.

Do you ship worldwide?

We can ship worldwide. If you are outside of Canada or USA, please contact us.

Price Match

If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:

  • Your phone number:
  • Link to the product:
  • Link to competitor's site:

Local Pick Up

If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX

Description

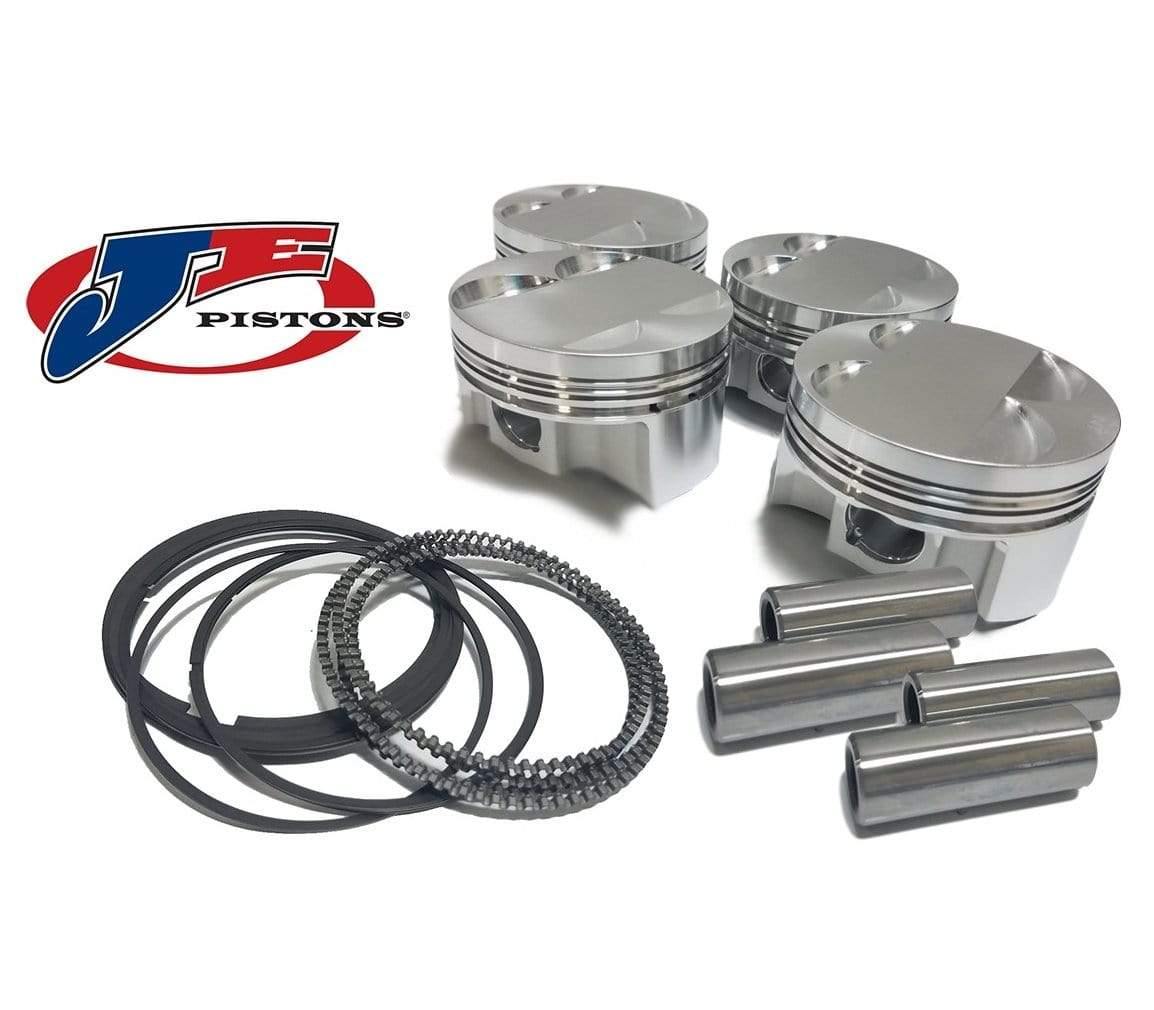

NOTE: Image shown not actual parts.


For use with connecting rods that accept 23mm wrist pins.


JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

FSR (Forged Side Relief) forging designs feature a reduced skirt width and shorter wrist pin when compared to traditional "full round" style forgings. The narrow skirt helps minimize piston contact with the cylinder wall that can cause friction and power loss while the shortened wrist pins reduces the overall weight. Some FSR forgings feature internal and external bracing to provide a more rigid construction while minimizing overall weight With thousands of race miles logged in the most demanding applications like NASCAR, NHRA Pro Stock and Indy Car, these pistons provide the ultimate combination of low-friction, lightweight design with increased stability and strength.


Bore (in) 3.268
Bore (mm) 83.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -7.80
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.905
Compression Height 1.165
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.180
Ringset Part Number JG1001-3268
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replacement Single Piston 353860S
Piston Pin Inside Diameter 0.545
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 905-2250-18-51C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons


OE Part #'s:

06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM

06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC

06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK

06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL

06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM

06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD

06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG

06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ

6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM
