034Motorsport Dynamic+ Sway Bar Kit - Audi / B9 / B9.5 / Q5 / SQ5

The 034Motorsport Dynamic+ Sway Bar Kit is available for B9/B9.5 Audi Q5/SQ5. The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.

Designed to reduce body roll, improve turn in, reduce understeer and enhance steering feel, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track. The 034Motorsport Sway Bar Bundle Package is available with perfectly-matched front and rear sway bars. During 034Motorsport's extensive testing, we found the B9 Q5/SQ5 Audi Platform benefitted heavily from the increased roll stiffness of the front suspension. With significant improvements to the paired rear sway bar, a rearward-balance-focused handling characteristic with this sway bar package.

Why Not Just Run The Rear Sway Bar?

It's a common misconception that when upgrading the suspension on an Audi or VW, one should only upgrade the Rear Sway Bar while leaving the front stock, as some believe that upgrading the Front Sway Bar only increases understeer. This can be true in some applications, but in many instances, this is incorrect.

034Motorsport Engineers tested a Rear Sway Bar only upgrade for the B9/B9.5 Audi Q5/SQ5 and found that only upgrading the Rear Sway Bar led to an unstable handling dynamic that made the handling of the vehicle feel disjointed from front to rear, and our Engineers found that there was excessive body roll and weight transfer to the outside tire on the front axle when cornering, resulting in significant turn-in understeer which would quickly turn into unstable mid-corner oversteer. This drove our team to develop a Front and Rear Sway Bar combination that aimed to stabilize the front end of the vehicle for better turn-in while still allowing for a rear-bias combination that promotes significantly less understeer, all while remaining comfortable and usable for day-to-day driving.

Upgrading the Front Sway Bar when paired with a bespoke Rear Sway Bar designed to be used with the upgraded Front Sway Bar will improve weight balance across the front wheels upon corner entry, reduce body roll and dive on the outside tire, and will allow for better front end traction throughout the corner. The Dynamic+ Rear Sway Bar Upgrade is specifically sized to work in conjunction with the Dynamic+ Front Sway Bar Upgrade, increasing Front Bar Stiffness by 21-39%, and Rear Bar Stiffness by 130-158% to promote a rear-bias handling dynamic that allows the car to have significantly reduced understeer, reduced body roll resulting in great mid-corner balance, and promotes an even application of force across all 4 tires for maximum lateral grip.

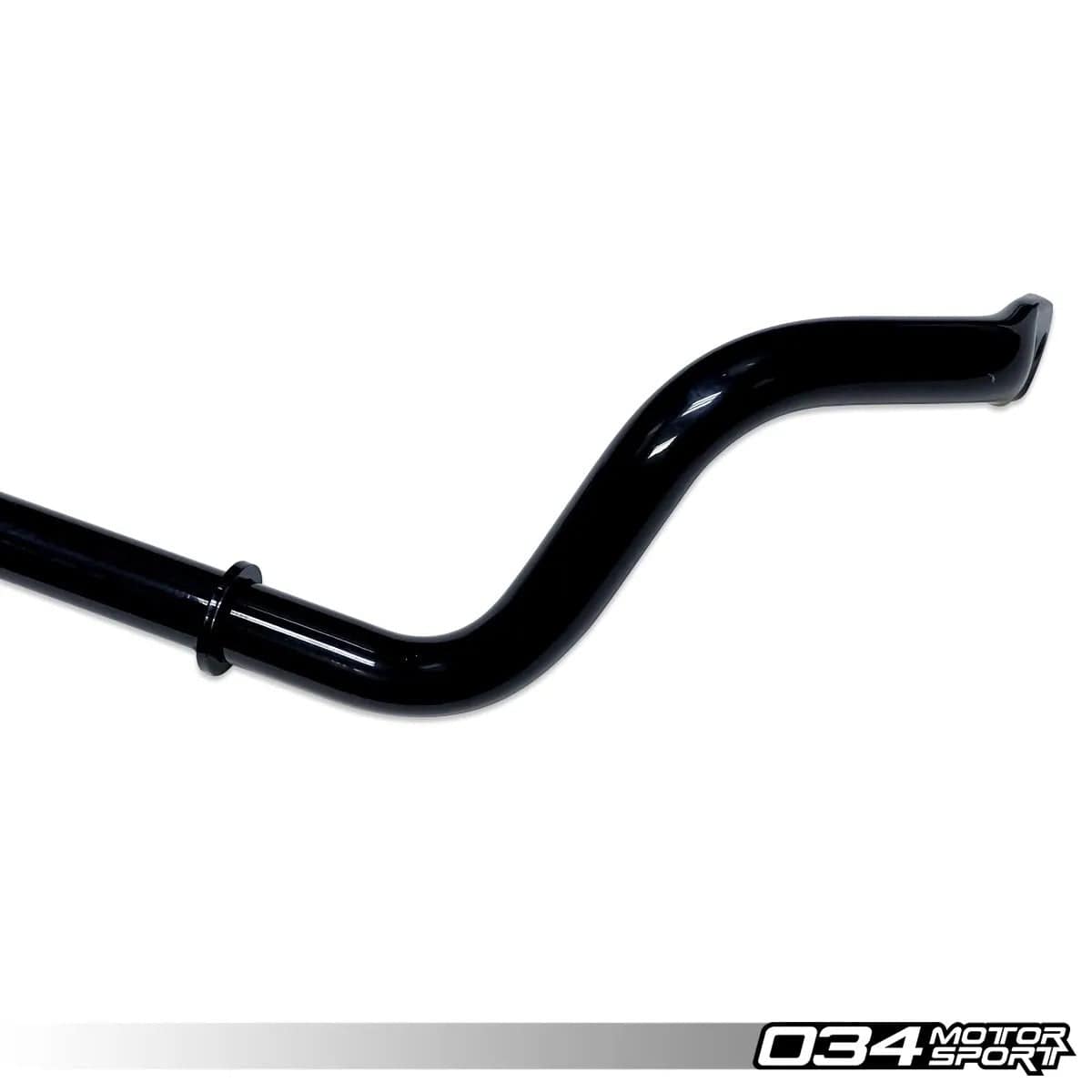

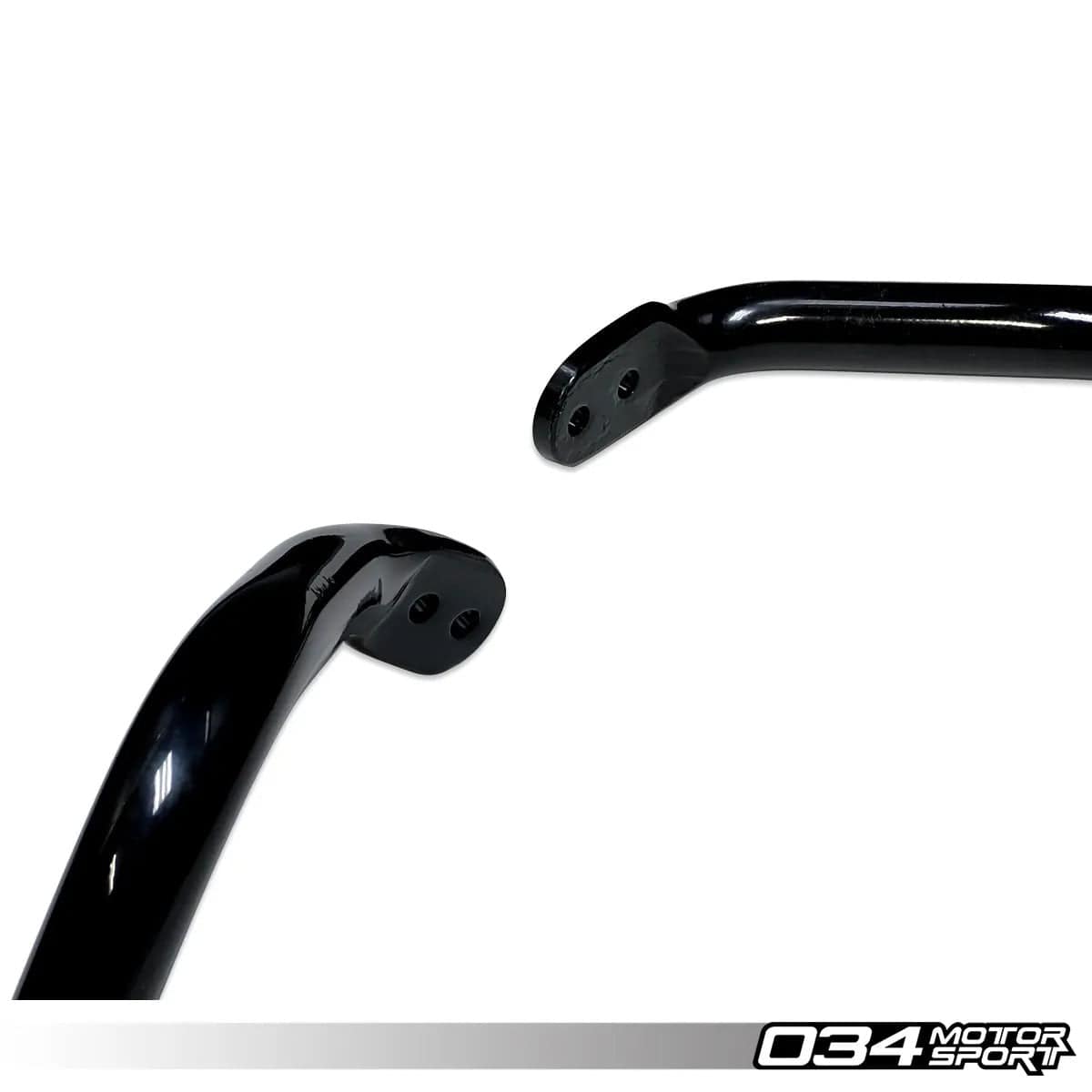

Front Sway Bar Features:

• 2-Way Adjustable
  • Soft Setting - 21.3% Increased Sway Bar Rate
  • Firm Setting - 39% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 32mm Hollow Front Sway Bar, 3.7mm Wall Thickness)
• 32mm Diameter
• Hollow Design with Thicker Walls Compared to Factory Bar
• Black Powder Coating for Durability and Stealthy Appearance

Rear Sway Bar Features:

• 2-Way Adjustable
  • Soft Setting - 130% Increased Sway Bar Rate
  • Firm Setting - 158% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 24.6mm Hollow Rear Sway Bar, 3.8mm Wall Thickness)
• 30mm Diameter
• One-Piece Design with Solid Spring Steel Construction
• Black Powder Coating for Durability and Stealthy Appearance

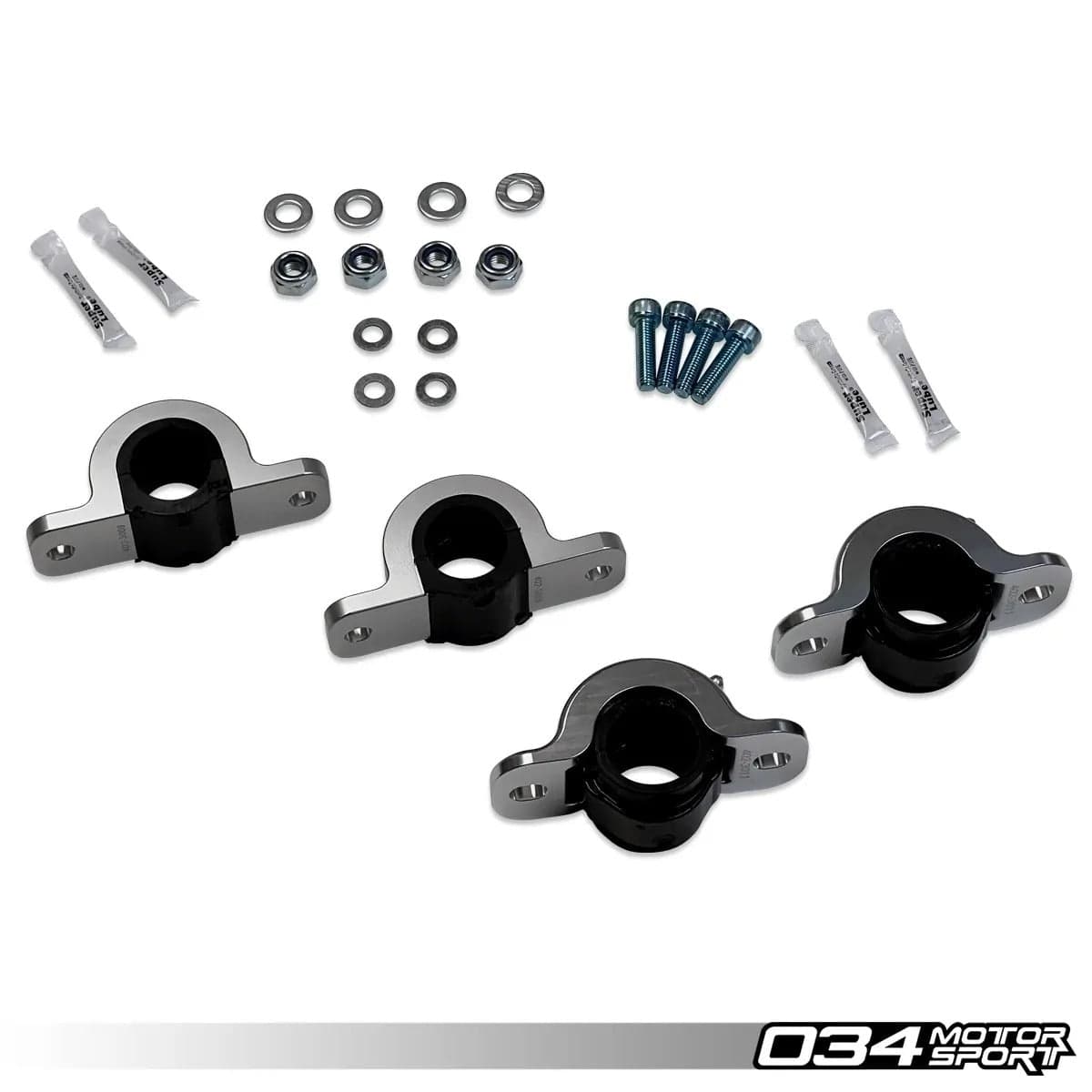

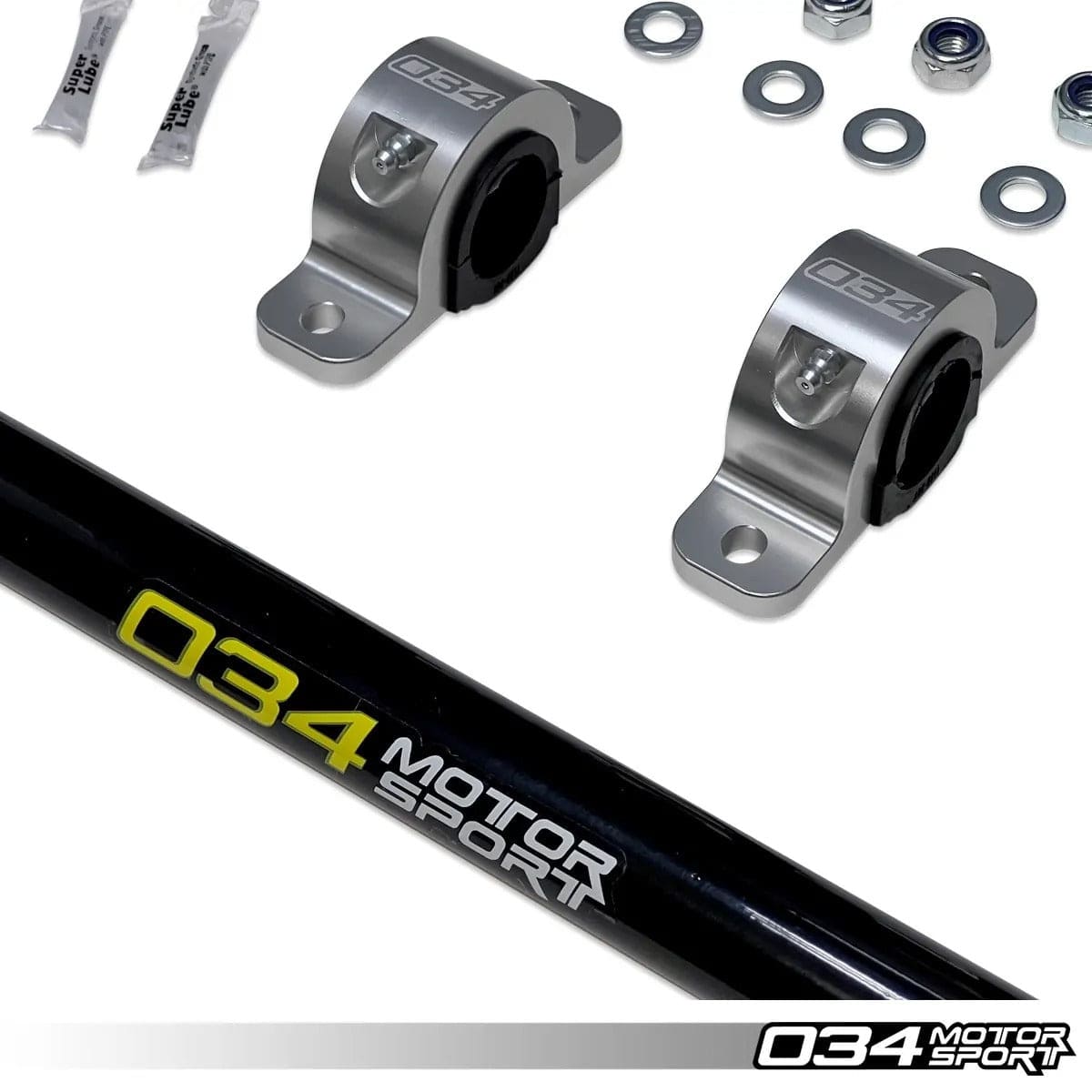

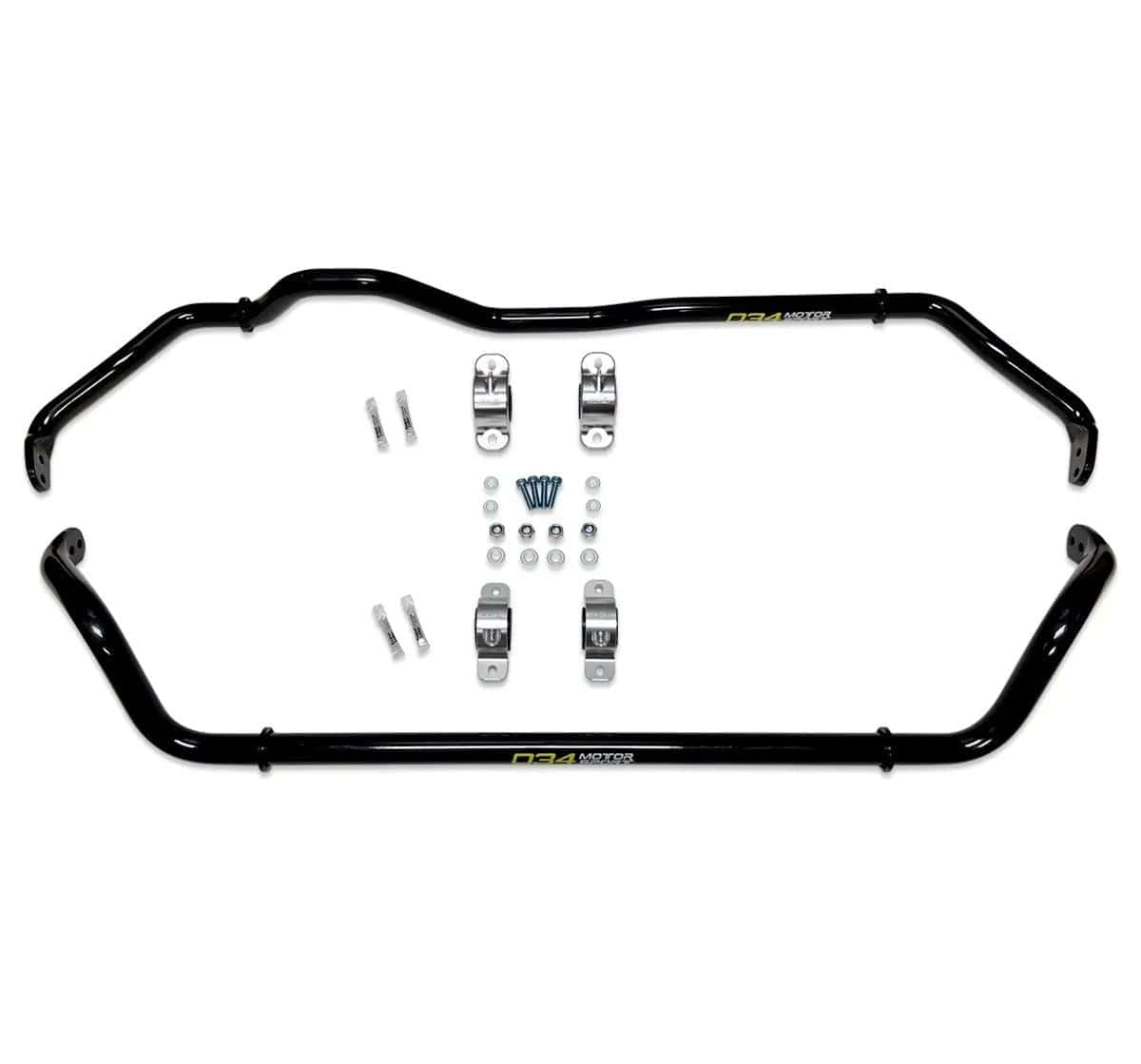

What's Included:

• 034Motorsport 32mm Adjustable Front Sway Bar Upgrade
• 034Motorsport 30mm Solid Adjustable Rear Sway Bar Upgrade
• Polyurethane Sway Bar Bushings

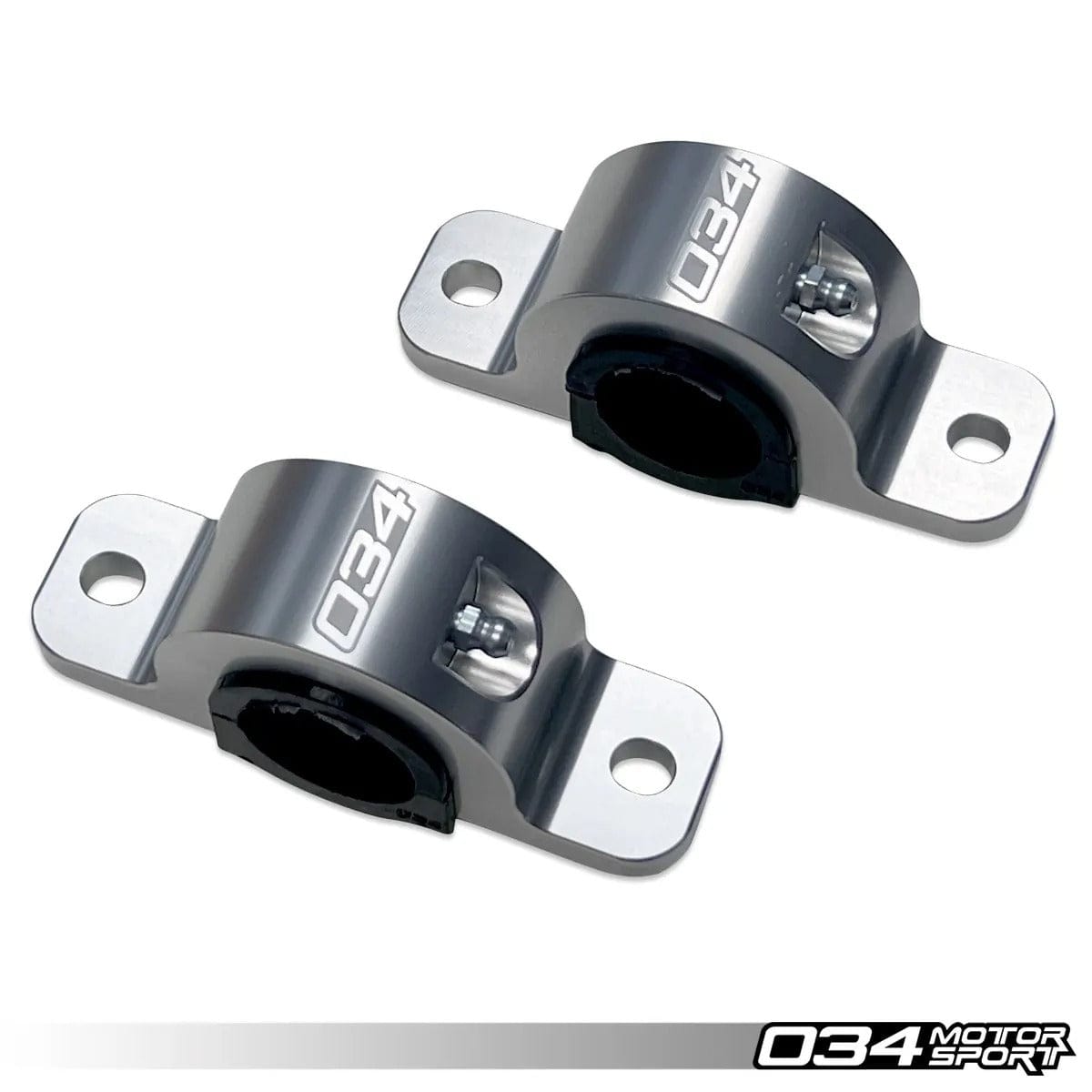

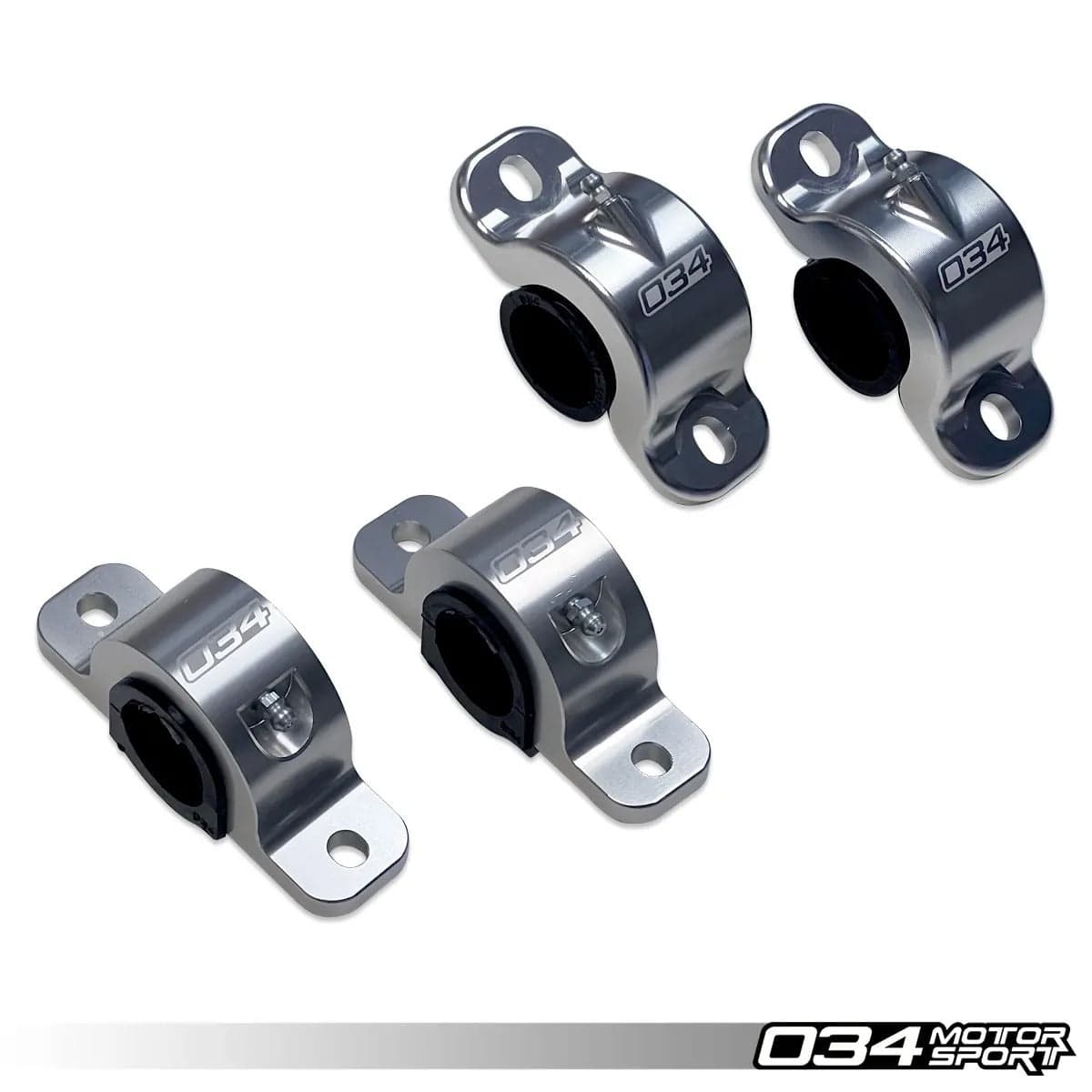

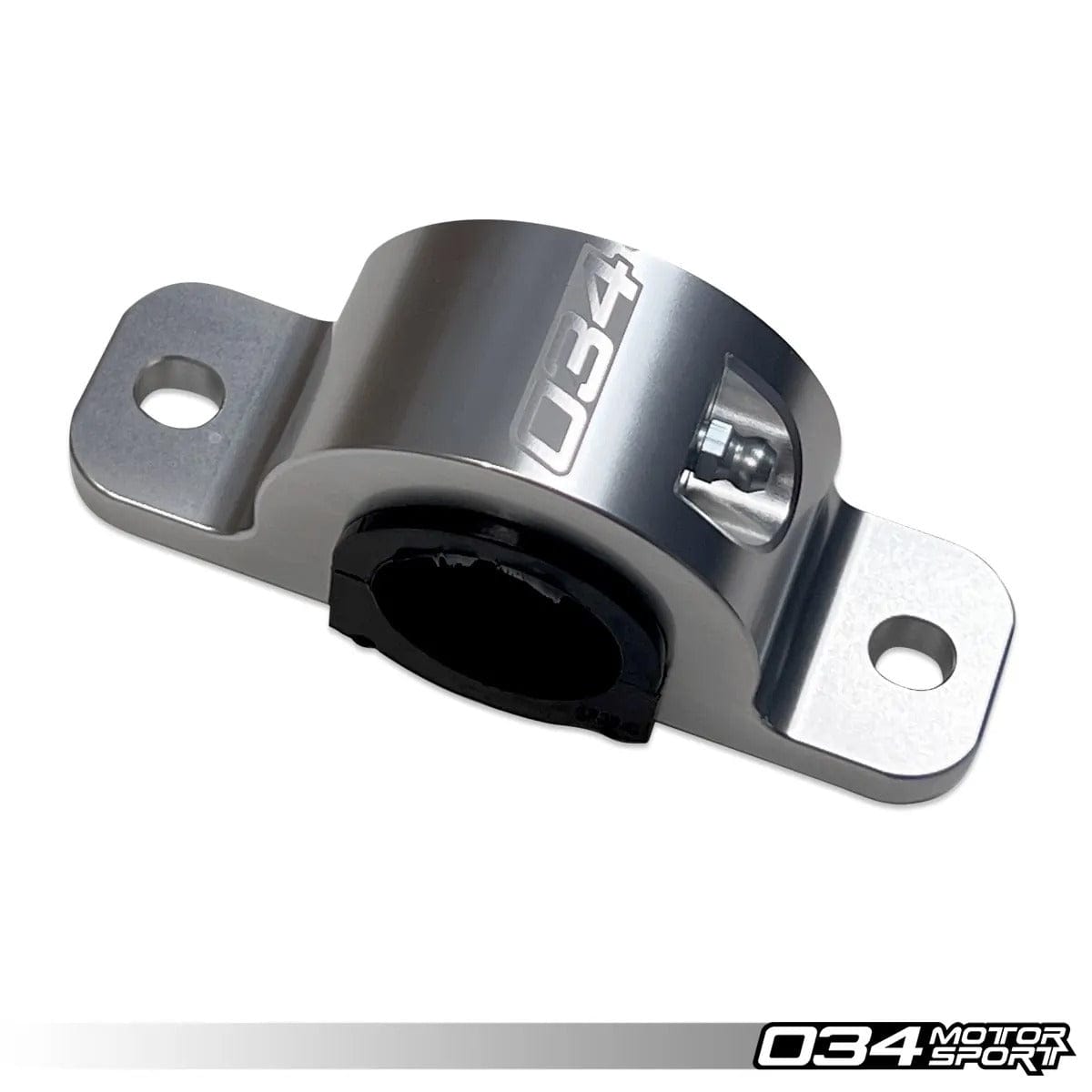

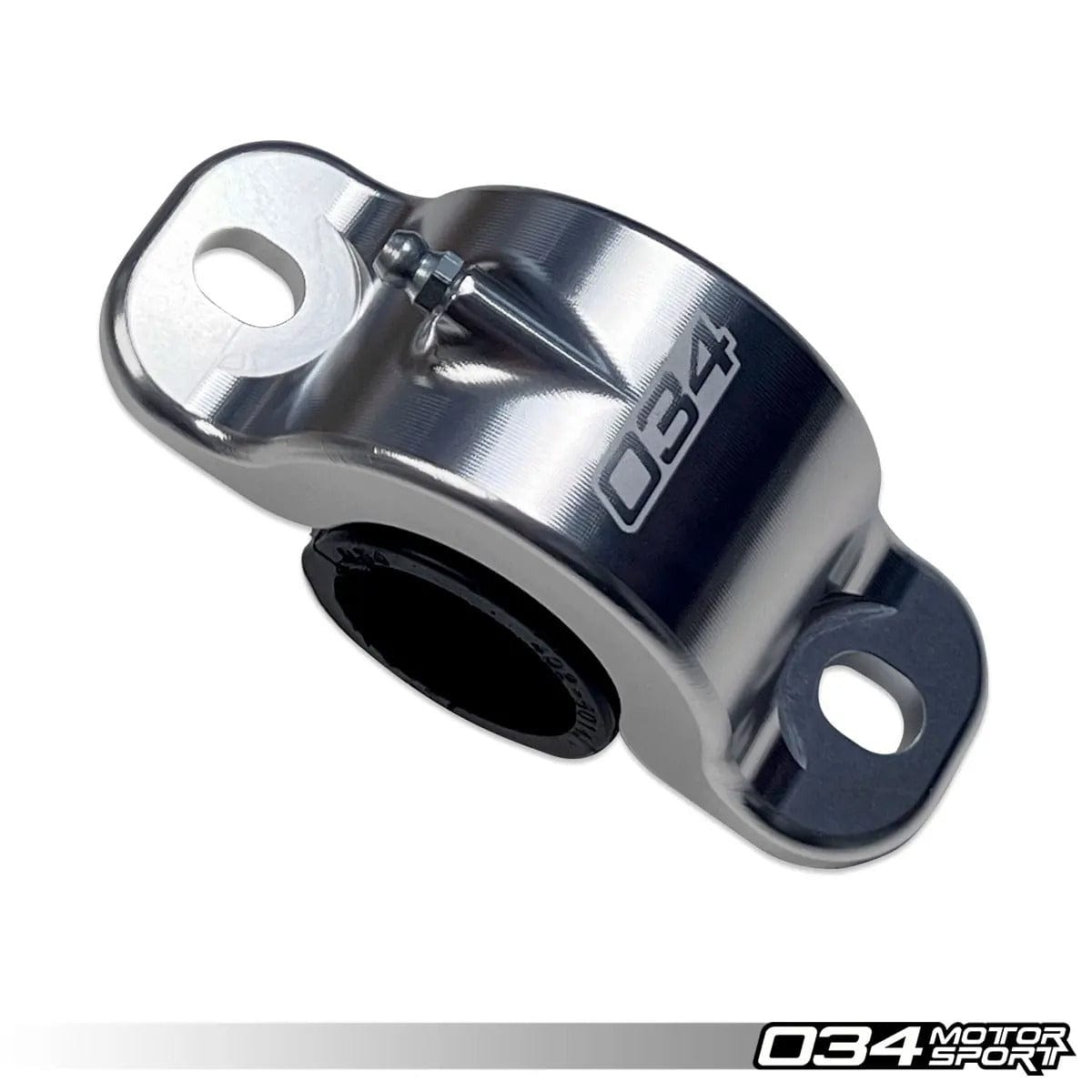

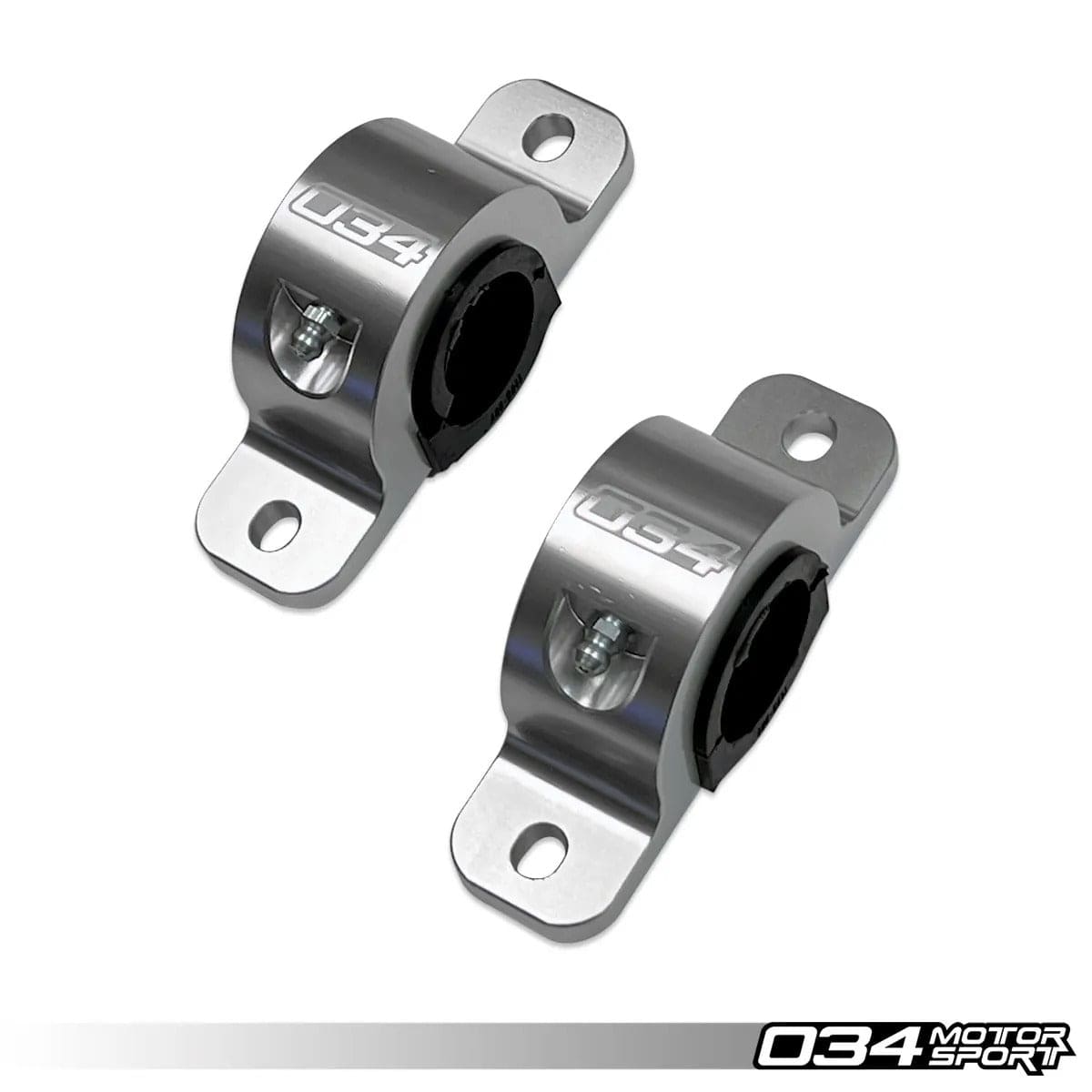

• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
• Installation Hardware Kit

Fitment:

• 2018+ Audi SQ5 3.0T
• 2018+ Audi Q5 2.0T

OE Part Interchange:

• OE front bar: 80A 411 305 B (32mm)
• OE rear bar: 80A 511 305 S
