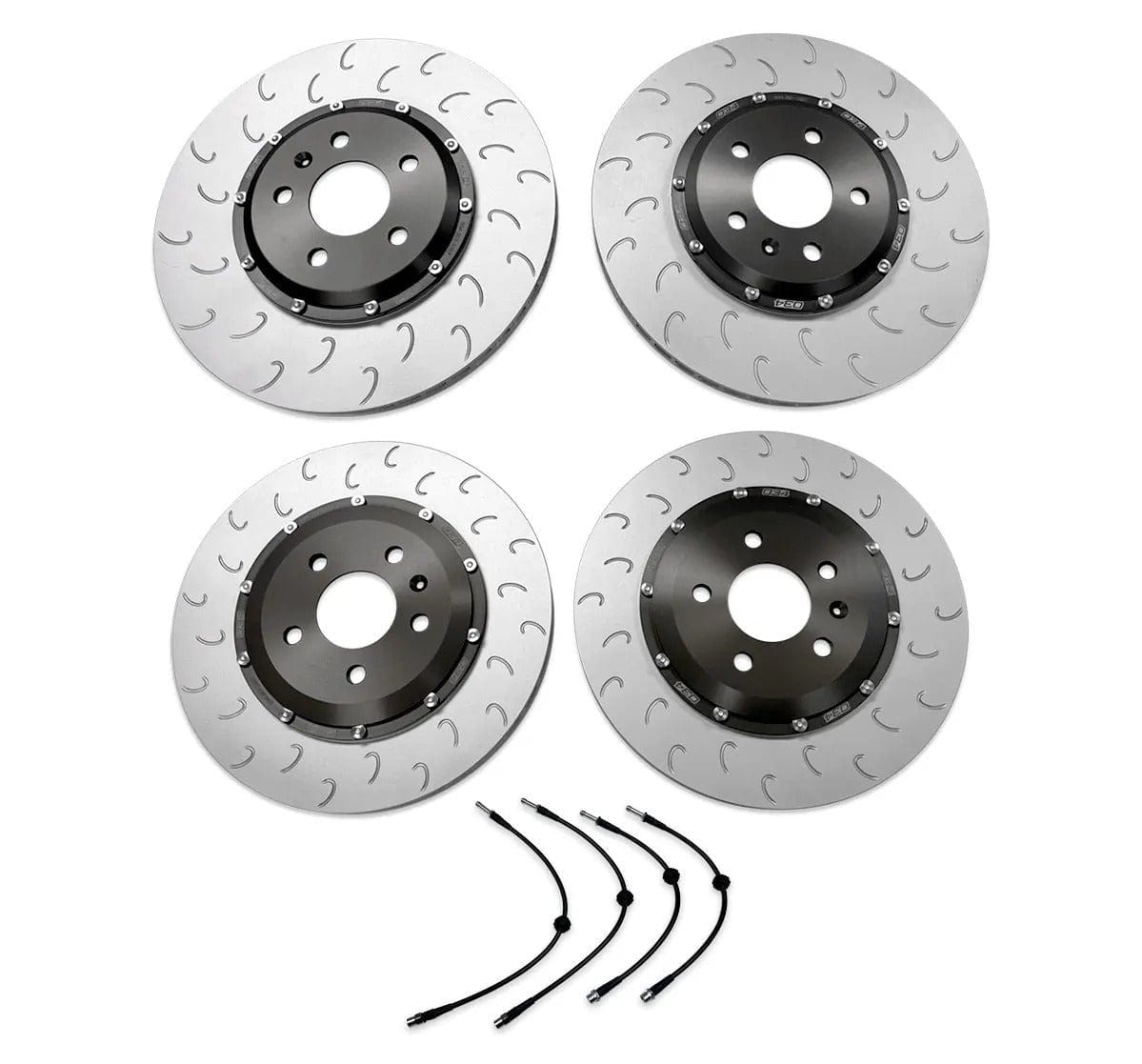

034Motorsport Dynamic+ Braking Package - Audi / B8 / B8.5 / S4 / S5

The 034Motorsport Dynamic+ Braking Package is the new standard for braking performance upgrades on your B8/B8.5 Audi S4/S5. While reducing weight, 034Motorsport 2-Piece Floating Rotors retain proper thermal mass in the rings to adequately capture heat generated during braking events, while 72 directionally curved vanes force cool air through the rotors to efficiently dissipate heat. The Dynamic+ Braking Package includes 034Motorsport 2-Piece Floating Front & Rear Brake Rotors and the Stainless Steel Braided Line Kit.

Unlike the stock rubber brake hoses, the included Stainless Steel Braided Line Kit will not bulge or expand with brake pressure, resulting in an improved pedal feel and more consistent braking performance.

The central hat portion of 034Motorsport rotors are made of 6061-T6 aircraft specification aluminum. The disc is constructed out of a proprietary metal alloy that can withstand immense braking temperatures while holding form. From the factory, the same straight-veined rotor is used on both sides of the S4/S5. The 034Motorsport rotors utilize 72 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat and are unique to the left and right axle to provide a substantial increase in cooling efficiency over the factory rotor design.

The face of the rotor utilizes J-Slot slots to clean the pad and surface of contaminants and allows hot pad outgassing, all while reducing overall braking noise compared to a traditional slotted rotor. The rotor and hat have a floating mount system that utilizes high strength alloy steel bobbins. The pins take the load from braking events while maintaining the axial and radial float between the hat and disc, allowing for safe expansion and contraction from heat.

CONTENTS:

• 2-Piece Floating Front Brake Rotor Upgrade Kit for Audi B8/B8.5 S4/S5
• 2-Piece Floating Rear Brake Rotor Upgrade Kit for Audi B8/B8.5 S4/S5
• Stainless Steel Braided Brake Line Kit, B8/B8.5 Audi S4/S5

034MOTORSPORT 2-PIECE FLOATING ROTORS FEATURES:

• Lightweight Construction
  • Front: 19.00lb 034Motorsport Rotor vs 24.10lb OE Rotor
  • Rear: 12.15lb 034Motorsport Rotor vs 16.65lb OE Rotor
• Floating, 2-Piece Design
• Aerospace Grade Aluminum Hats
• CM-250 Special Alloy Rotor Rings
• J-slotted Friction Face
• OEM Fitment & Functionality
• 72 Curved Vanes Force Cooling Air through Brake Disc
• Floating Bobbins Mounting System
• Replaceable Rotor Rings
• Lower Long-term Maintenance Cost

034MOTORSPORT STAINLESS STEEL BRAIDED BRAKE LINE KIT FEATURES:

• Replaces Front & Rear Brake Hoses
• Teflon Lined, Stainless Steel Braided Hose
• Application-Specific Fittings and Lengths
• DOT Approved
• Simple Installation

**PLEASE NOTE: Type III hard anodizing of aluminum is considered as a functional surface coating process. While we always aim for color consistency, color variations may exist from batch to batch due to the nature and variables in the anodizing process.
