Description
Description
034Motorsport is pleased to present their X34 Carbon Fiber Closed-Top Cold Air Intake System for the 2.5 TFSI EVO engine found in the 8S Audi TTRS and 8V.5 Audi RS3!
034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TTRS and RS3 that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured Carbon Fiber Cold Air Intake System.
MAXIMIZING AIRFLOW

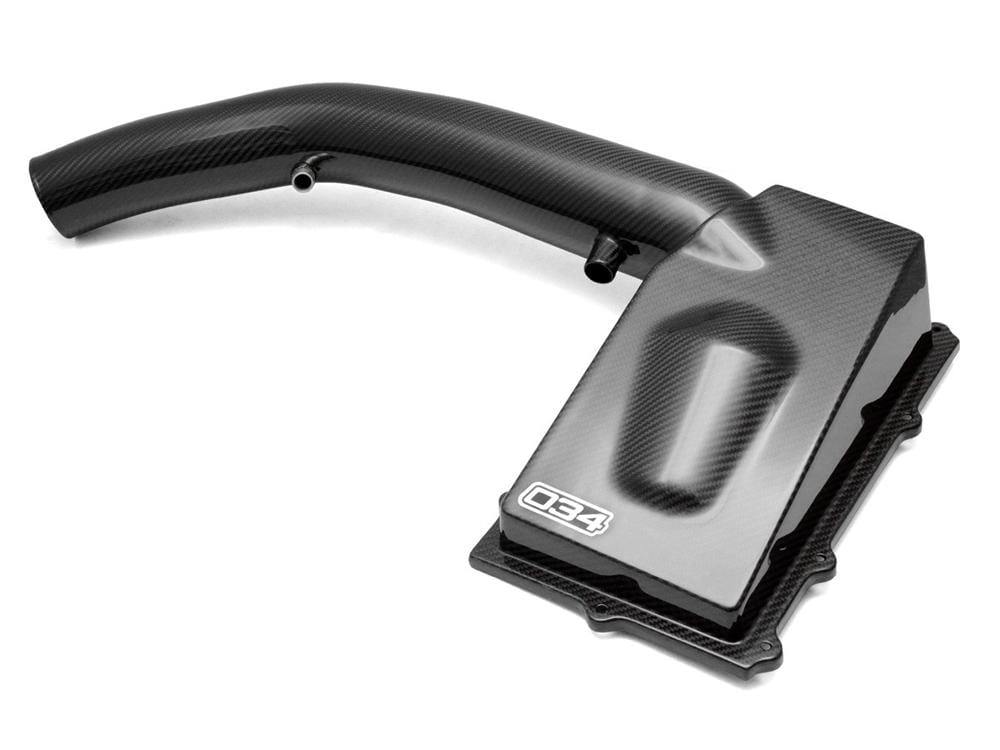

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.
MINIMIZING INTAKE AIR TEMPERATURE

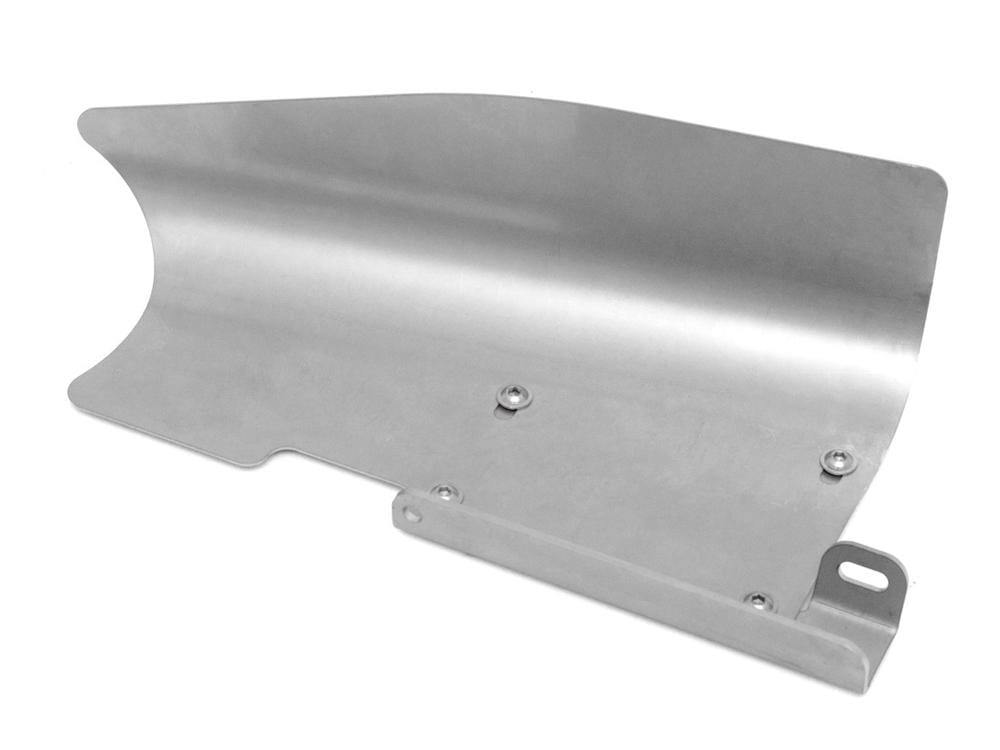

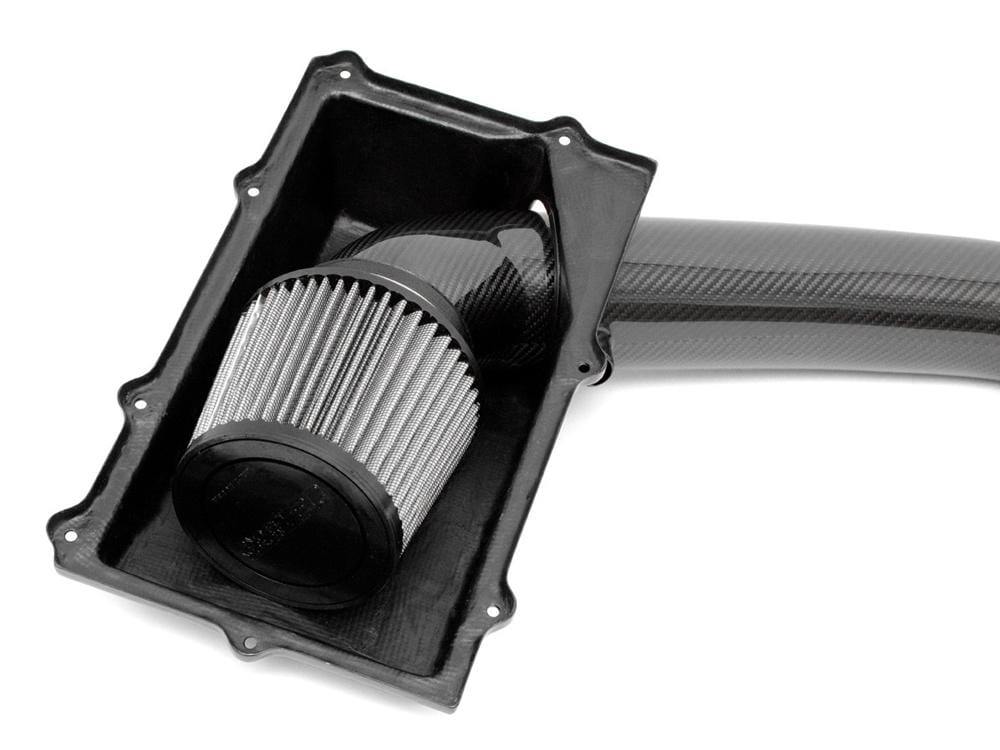

To ensure that the 034Motorsport X34 Closed-Top Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber upper airbox, to replace the factory part, and also a stainless steel heat shield to block direct radiant heat from saturating the intake tube. The upper carbon fiber airbox bolts to the factory lower airbox, allowing the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. The stainless steel heat shield bolts to the stock intake tube mounting point and to the back of the head, preventing the high temperatures from the exhaust header and turbo from radiating directly at the intake tube. Both parts work together to minimize pre-turbo intake air temperature.
PERFORMANCE AIR FILTER

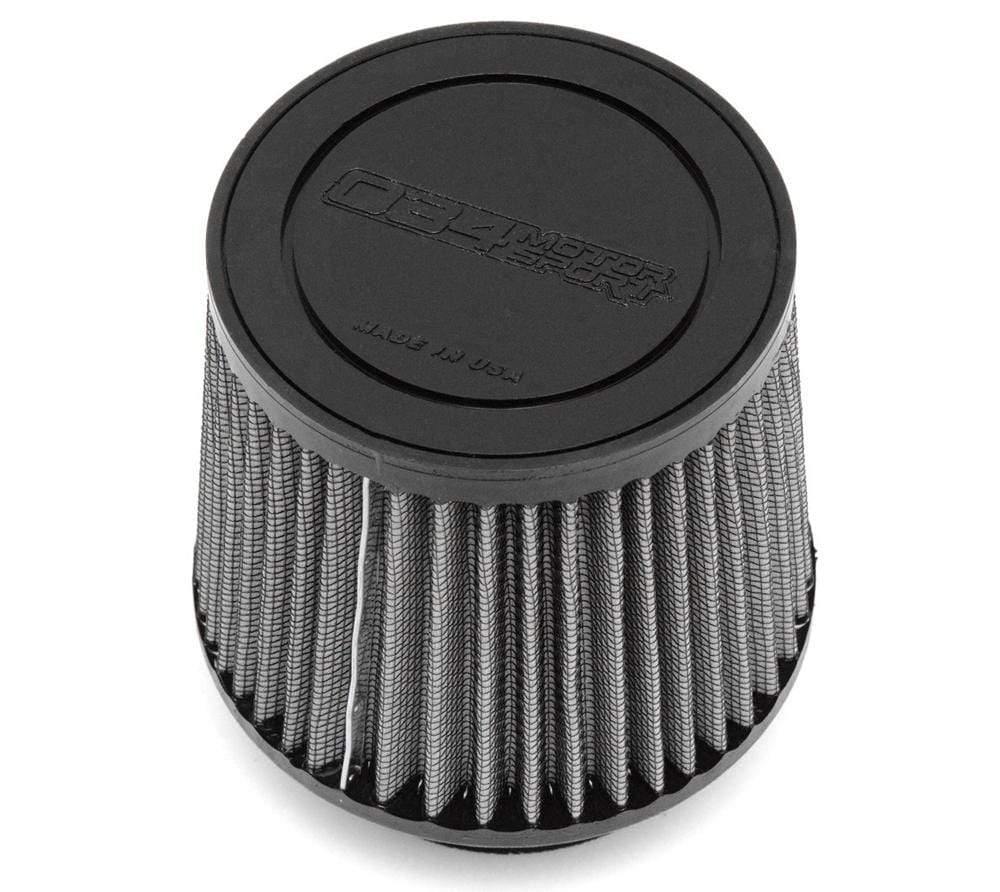

The 034Motorsport Carbon Fiber Closed-Top Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.
OEM+ FIT & FINISH

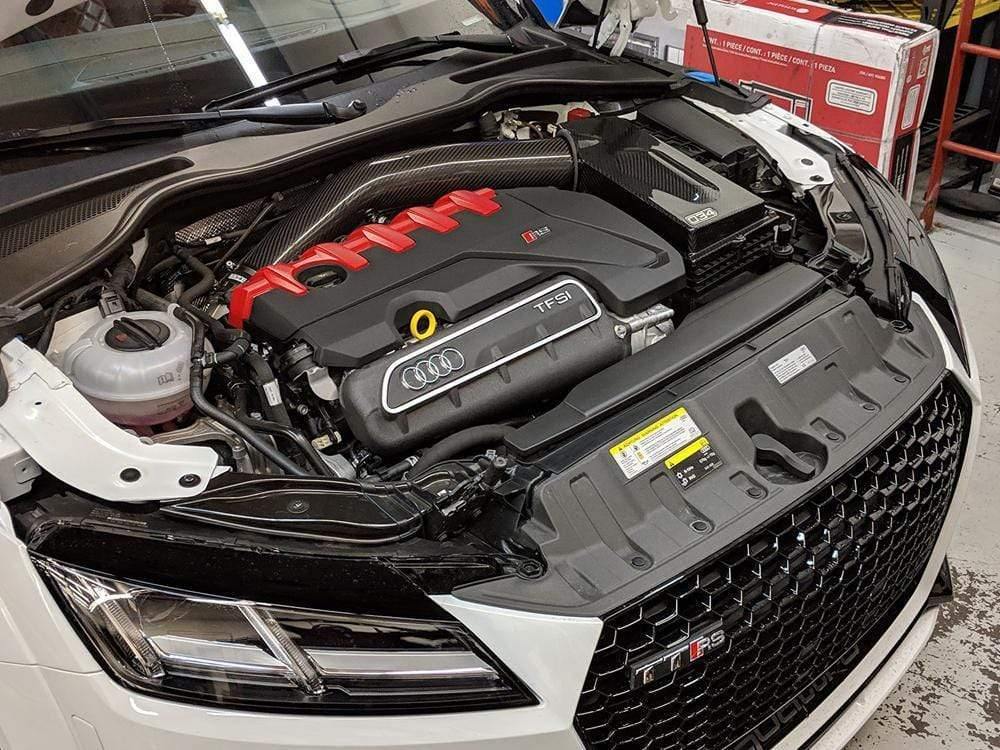

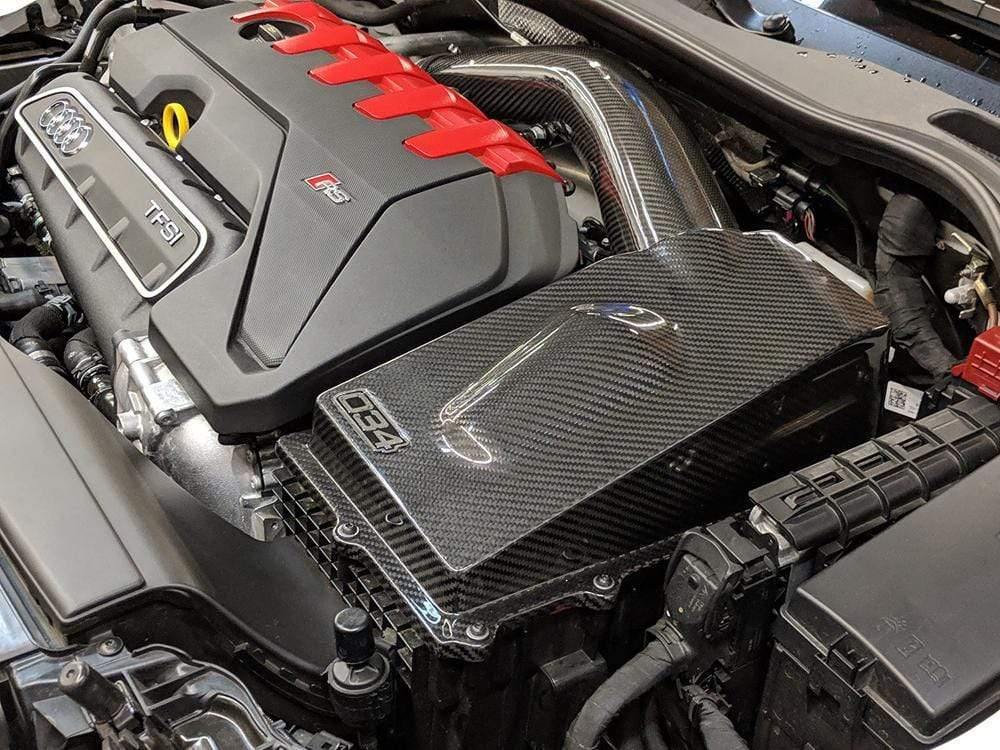

034Motorsport carefully selected the carbon fiber weave of the intake tube and upper airbox to match the factory carbon fiber engine trim found in the Audi TTRS & RS3 2.5 TFSI engine bay. The 034Motorsport Audi TTRS & RS3 Closed-Top Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.
DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS
034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.
PEAK WHEEL HORSEPOWER & TORQUE WITH STAGE 2 E85
- Stock Intake: 456 WHP / 430 WTQ
- 034 X34 Intake: 466 WHP / 441 WTQ
- Peak Gains: 12 WHP @6,780 RPM / 11 WTQ @4,125 RPM
PRODUCT FEATURES & DETAILS
- Fits both right hand drive and left hand drive configurations
- Meets regulations in countries that do not allow exposed air filters
- High-quality carbon fiber construction
- Carbon fiber airbox top blister provides clearance for air filter without engine bay bulk
- High gloss epoxy finish
- OEM+ fit a appearance
- Dyno-proven horsepower and torque gains
- Increased engine and induction sounds
- Quieter than similar open-top intakes
- Improved throttle response
- Large-diameter CFD-optimized one piece air intake tube
- Improved airflow over factory airbox and intake tube
- Reduced Intake Air Temperature
- High performance pleated cotton air filter

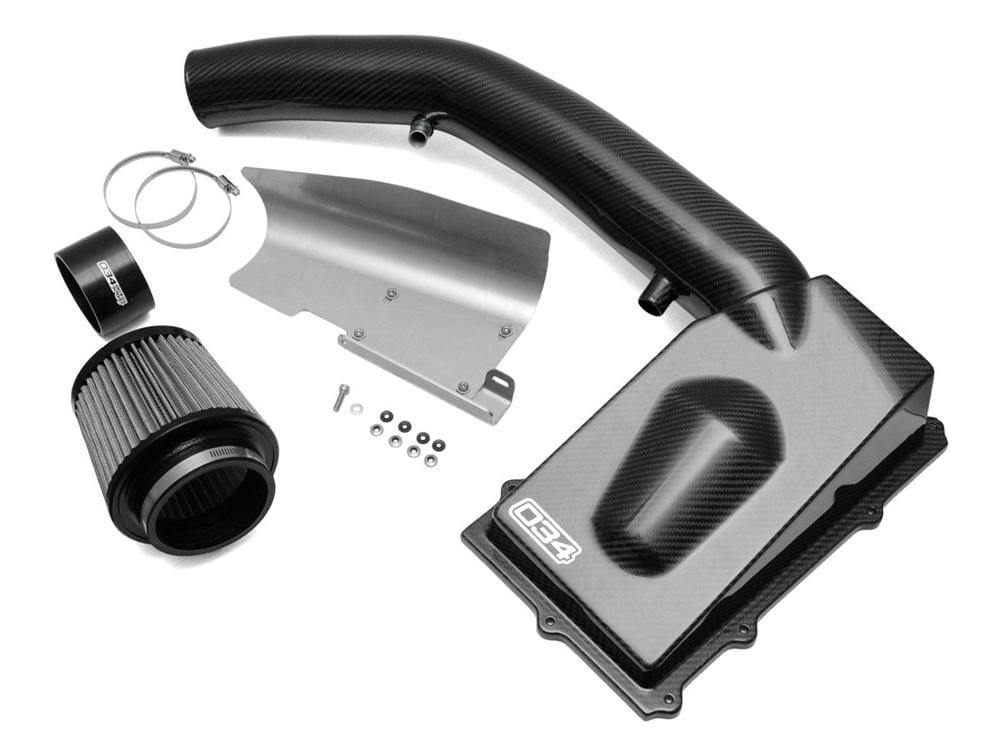

WHAT'S INCLUDED:
- 034Motorsport Carbon Fiber Audi TT RS & RS3 Air Intake Tube
- 034Motorsport Carbon Fiber Audi TT RS & RS3 Upper Airbox
- 034Motorsport Double-Layer Pleated Air Filter
- 034Motorsport Stainless Steel Heat Shield
- 034Motorsport Silicone Coupler
- Installation Hardware
- Xacto X75300 Precision Razor Saw Set
Founded in 2005, 034 Motorsport is driven by the passion to bring motorsport-quality performance products and tuning to your Audi and Volkswagen vehicles.
