Description
Description
Product Description:
Significant effort went into developing this comprehensive performance-improving throttle body upgrade solution for the supercharged 3.0 TFSI engine found in the B8 and B8.5 generation of Q5 and SQ5. The 034Motorsport SüperDüper Charger 84mm Throttle Body System offers an easy bolt-on solution to those looking to maximize performance and flow!

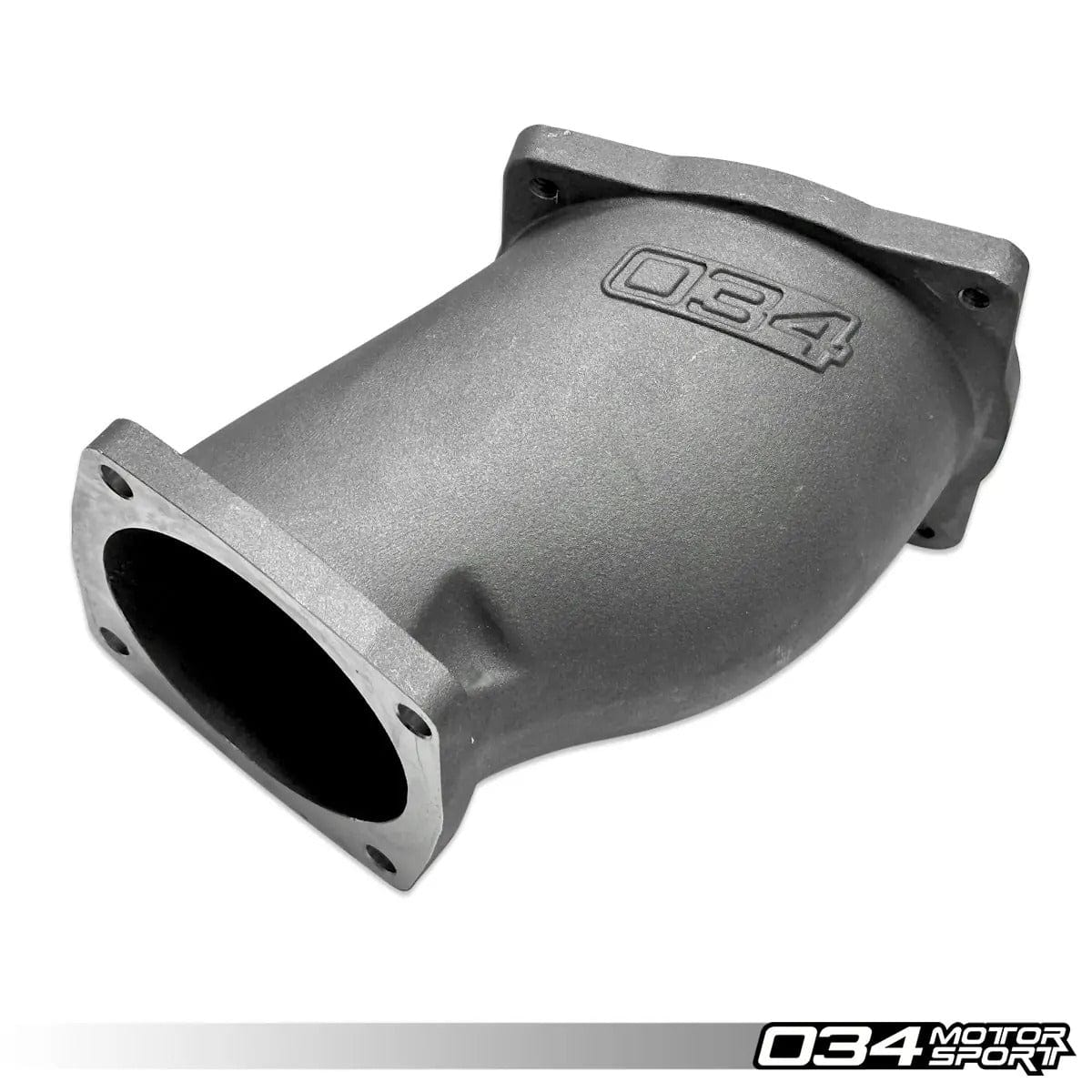

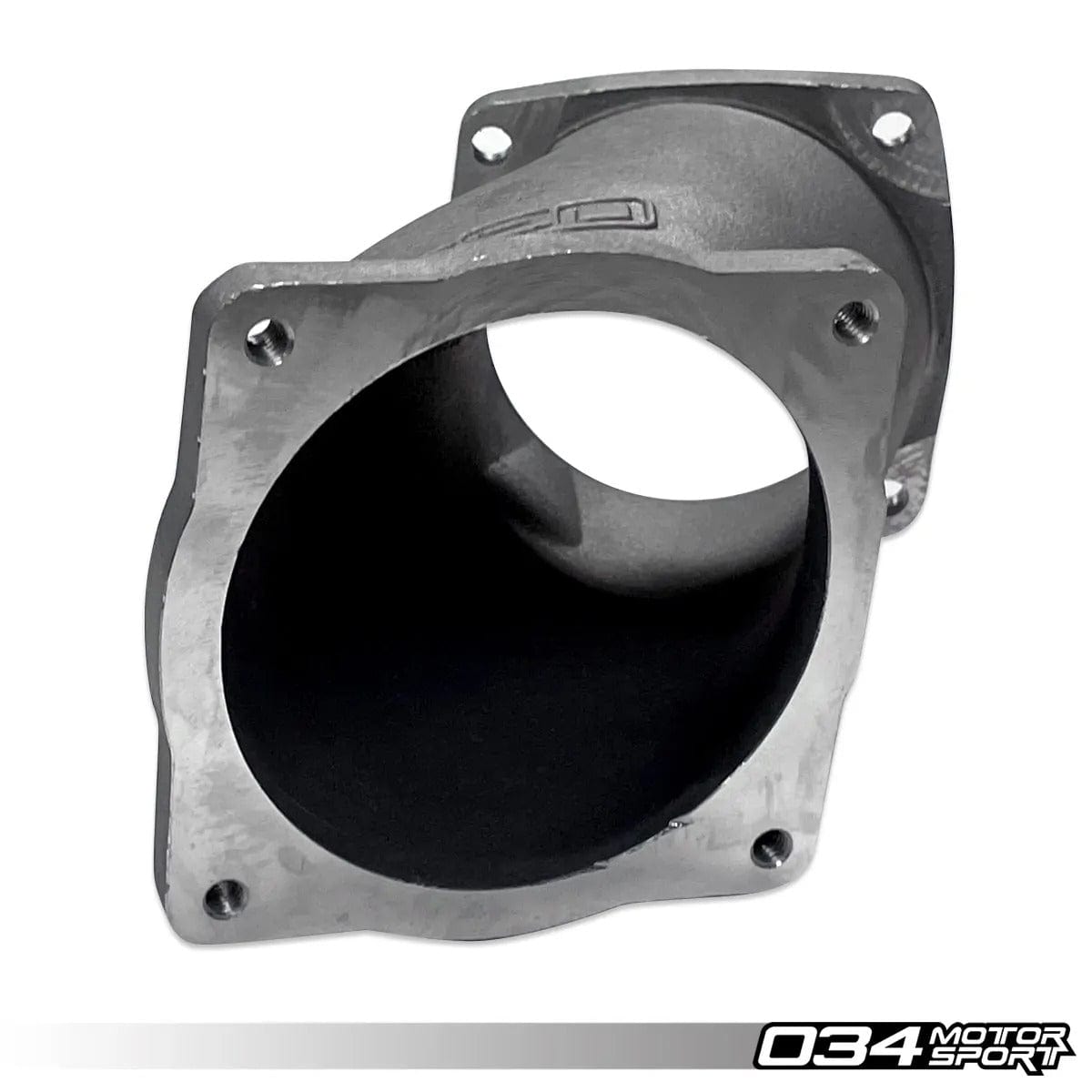

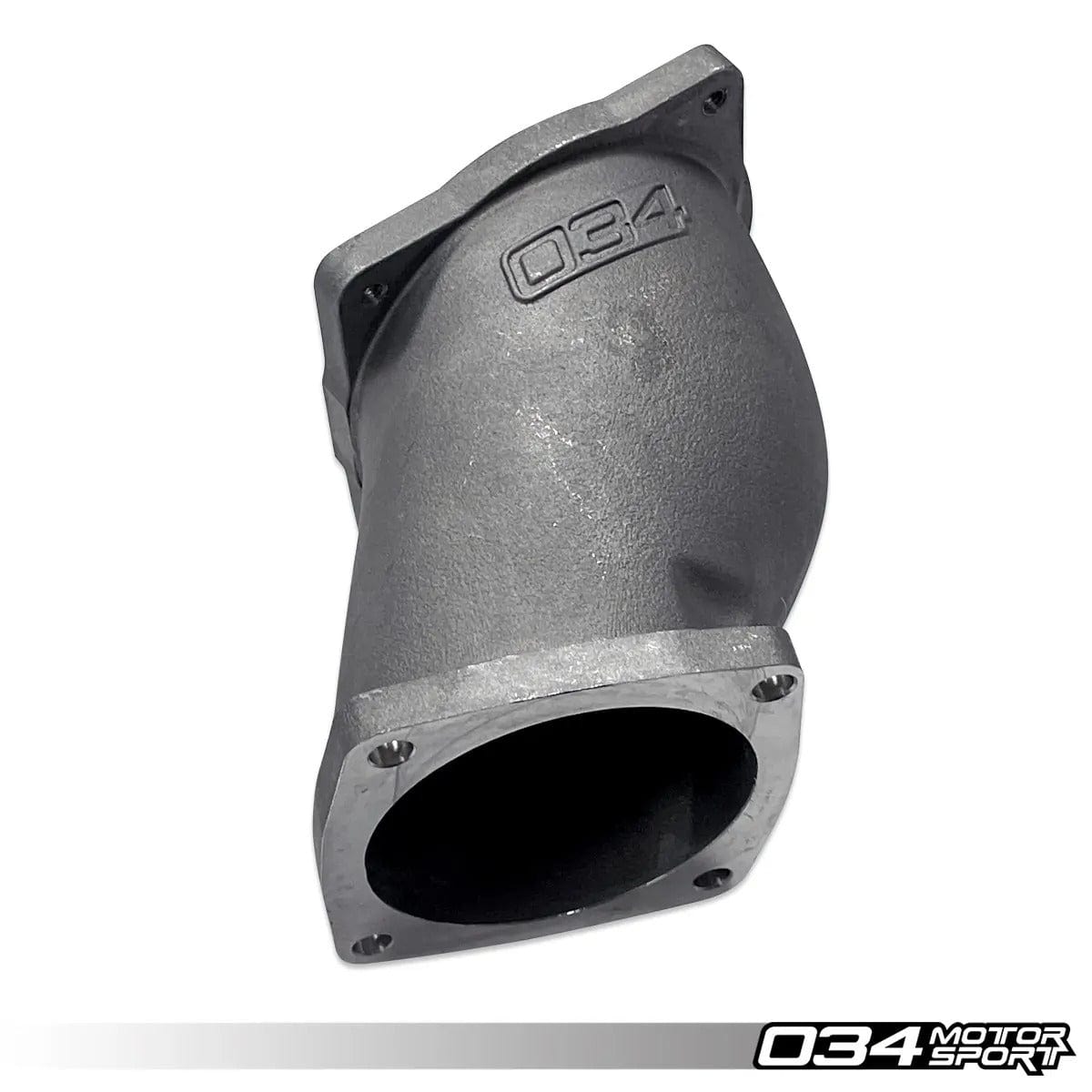

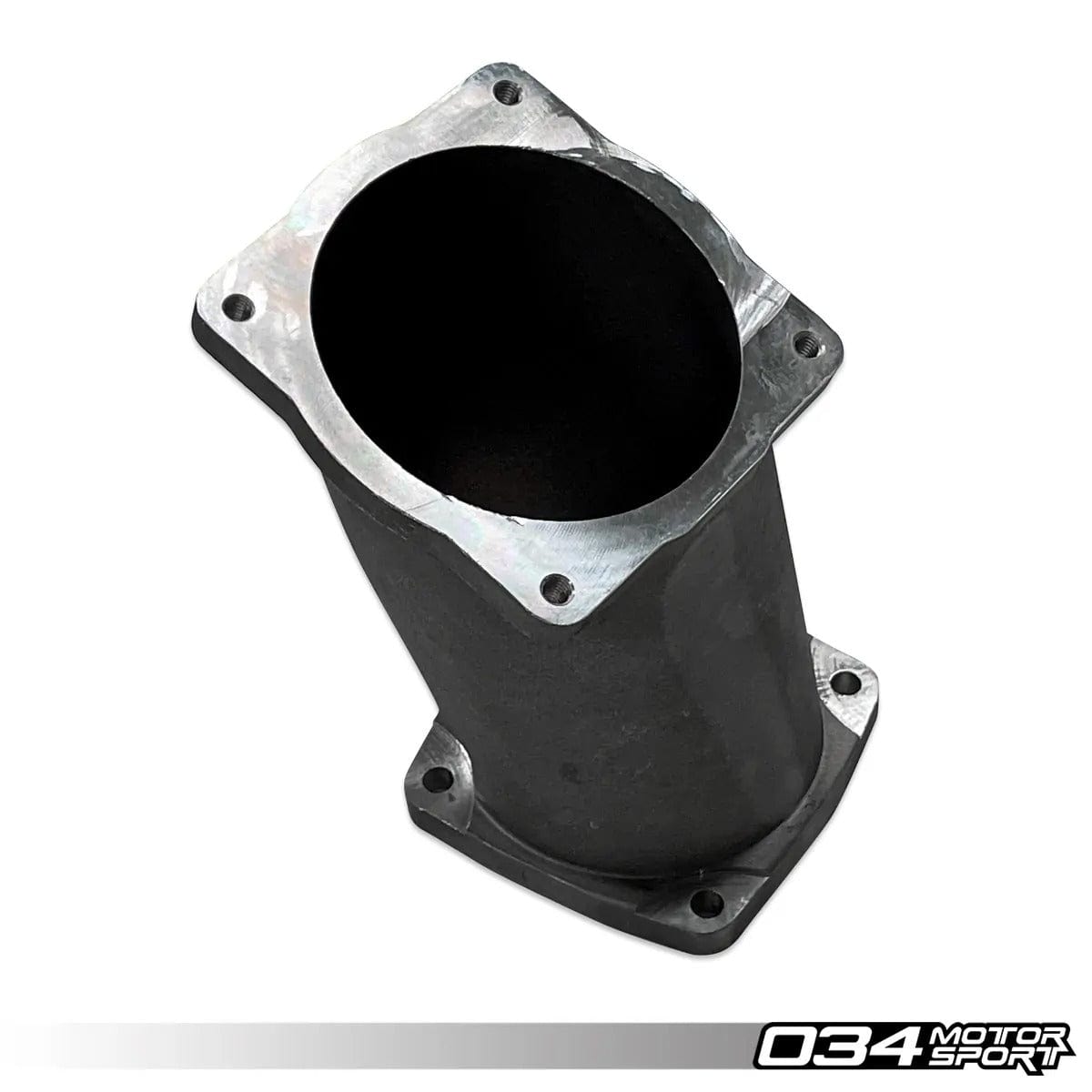

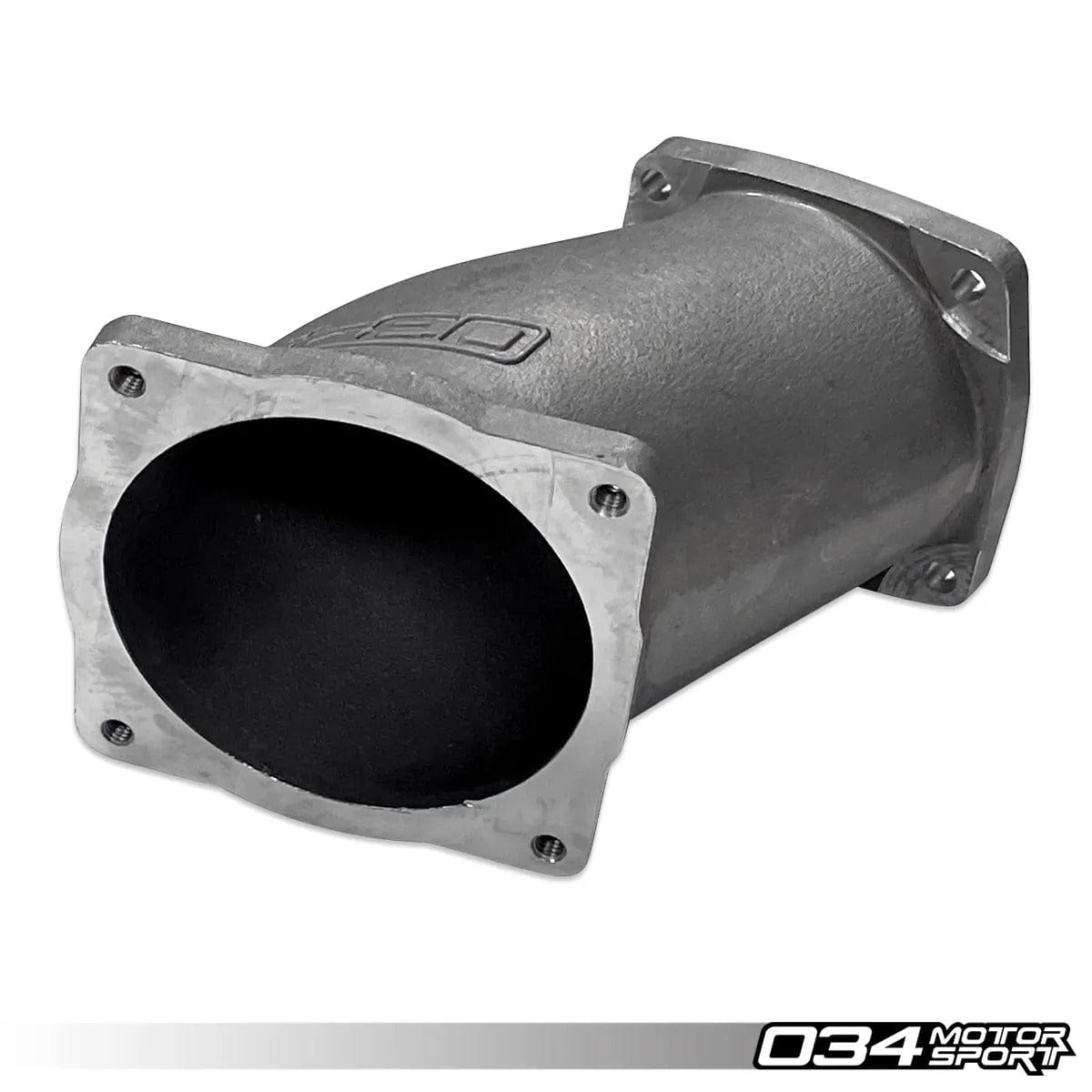

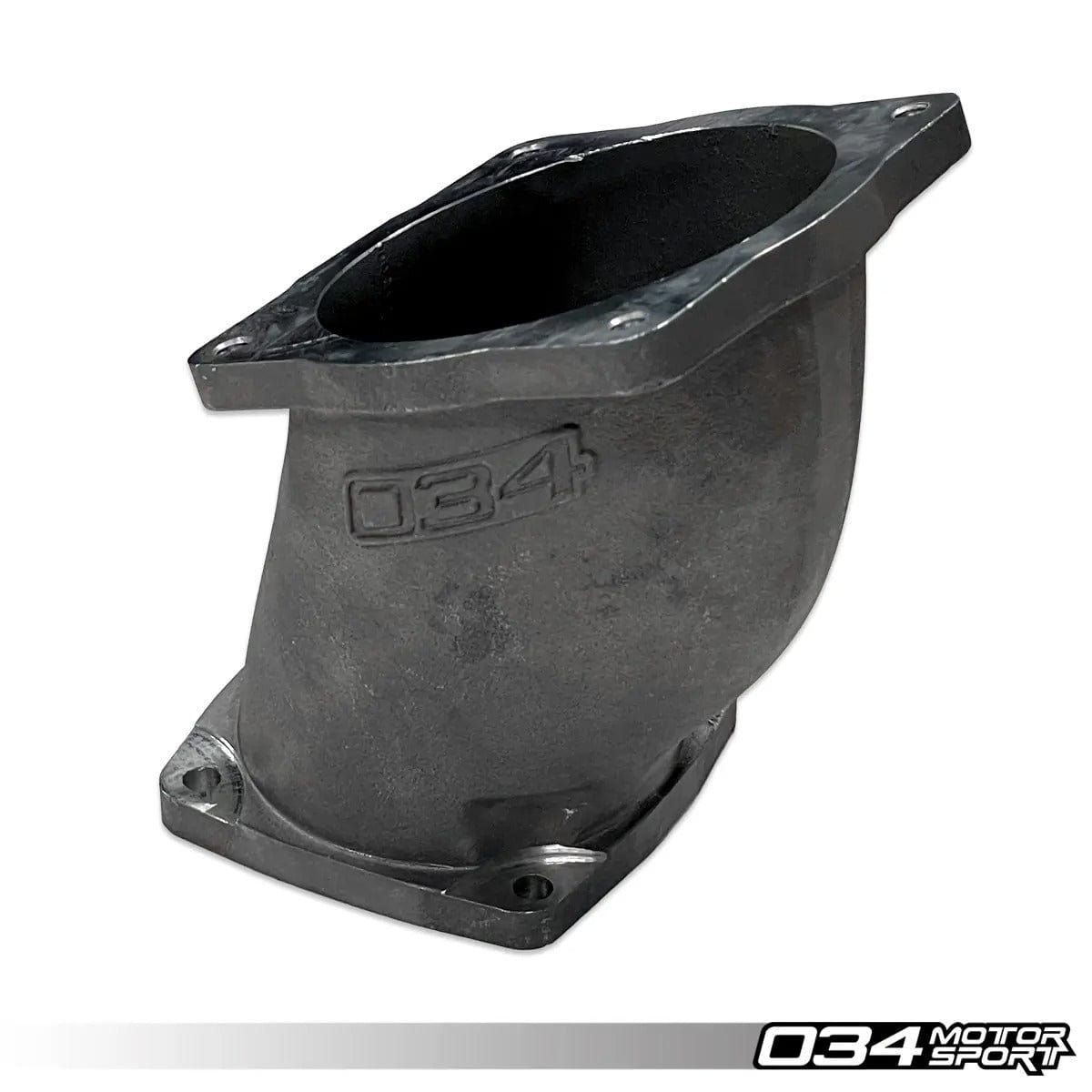

The 034Motorsport SüperDüper Charger utilizes a VDO 84mm throttle body mated to a cast and machined aluminum throttle body adapter, offering a smooth transition between the larger throttle body to the supercharger inlet. This results in a 20% increase in flow over the OE throttle body right out of the box. Additionally, the throttle body adapter and gasket can be port matched to the supercharger during supercharger porting, allowing for increased airflow.
The SuperDuper Charger 84mm Throttle Body System is designed to be used with the S34 Carbon Fiber Intake to complete the SüperDüper Throttle Body System for B8/B8.5 Q5/SQ5 3.0T.
034Motorsport Dynamic+ Tuning is required to safely run this SüperDüper Charger 84mm Throttle Body System. Files to support this upgraded hardware are included with our Stage 2+ 91, 93, 100, 104, & E40 octane options free of charge. Simply select the file designated with SüperDüper and you’re good to go! NOTE: This is only for Stage 2+ files. We do not have Stage 1 or Stage 2 files for the SüperDüper Charger.
Features:
- Cast and Machined A356 Aluminum Throttle Body Adapter
- Upgrades to a VDO 84mm Throttle Body
- Improved Flow Where the Stock Throttle Body Becomes Restrictive
- 20% Increase in Flow Over the OE Throttle Body
-
- Stock 70mm Throttle Body & Intake : 293 CFM
- 034Motorsport 84mm SüperDüper S34 Insuction Bundle: 452 CFM
- OEM BMW V8 Throttle Body for Reliability and Long Lasting Performance
- Smooth Transition from the Large Throttle Body to the Supercharger Inlet
- Throttle Body Adapter and Gasket Can be Port Matched to the Supercharger During Supercharger Porting, Allowing Even More Flow

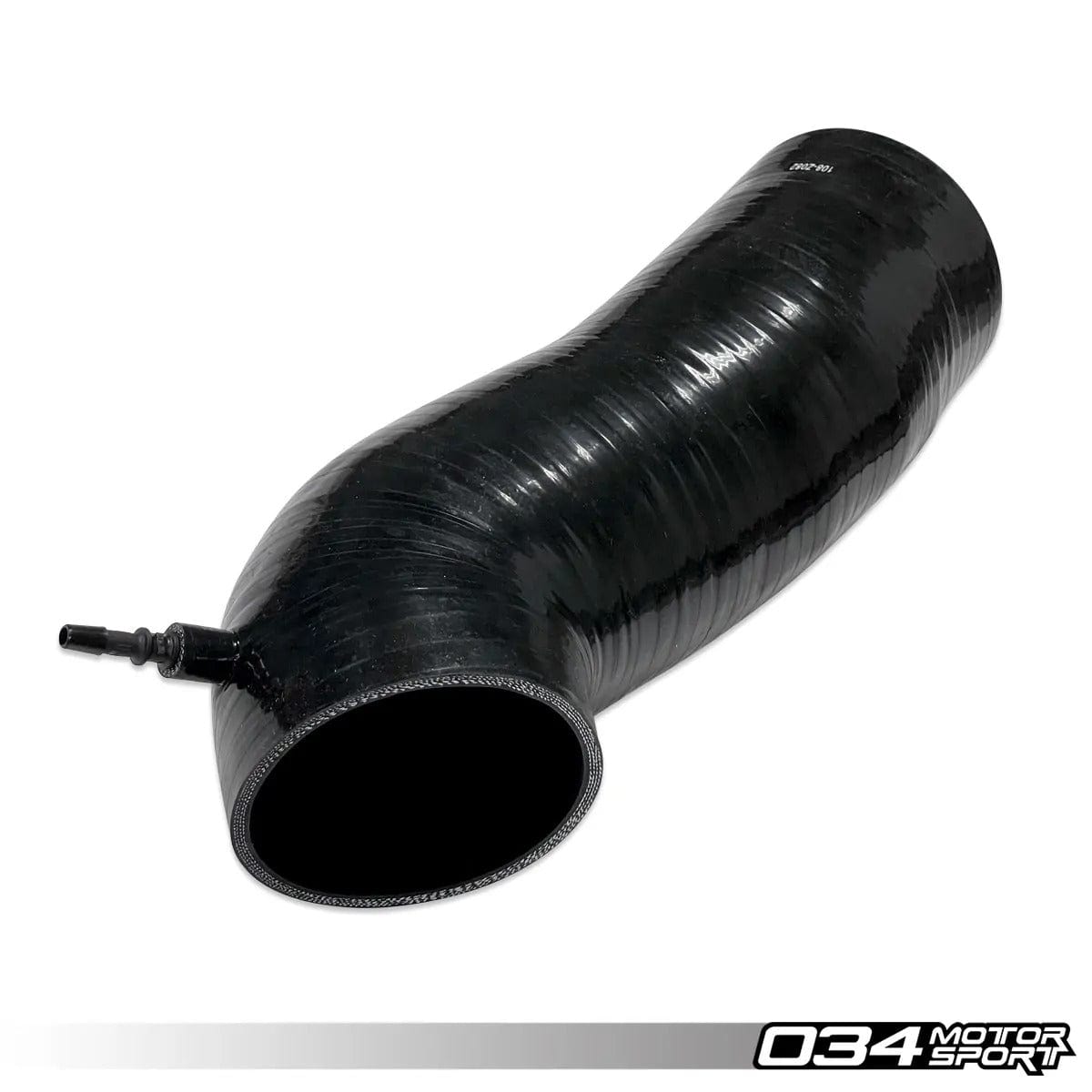

- Wire-Reinforced Multi-Ply Silicone Hose
-
- Maintains Smooth Inside Surface for Optimum Flow
- Nylon Breather Tube Connection Nipple
034Motorsport SüperDüper Charger 84mm Throttle Body System, B8/B8.5 Audi Q5/SQ5 3.0TFSI DYNO CHARTS
Select Dyno Chart:

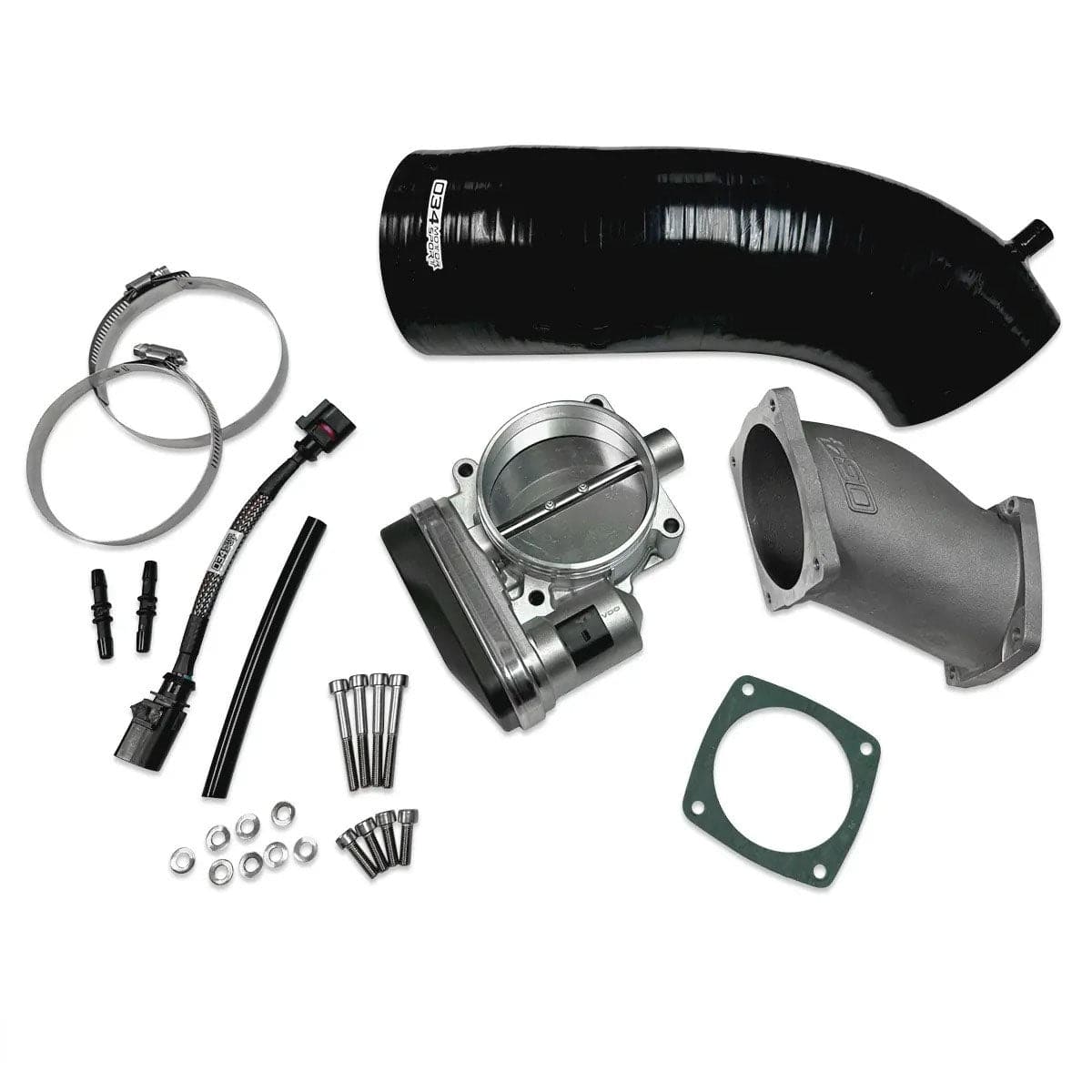

What’s Included:
- 84mm VDO Throttle Body
- Throttle Body Adapter
- Silicone Hose

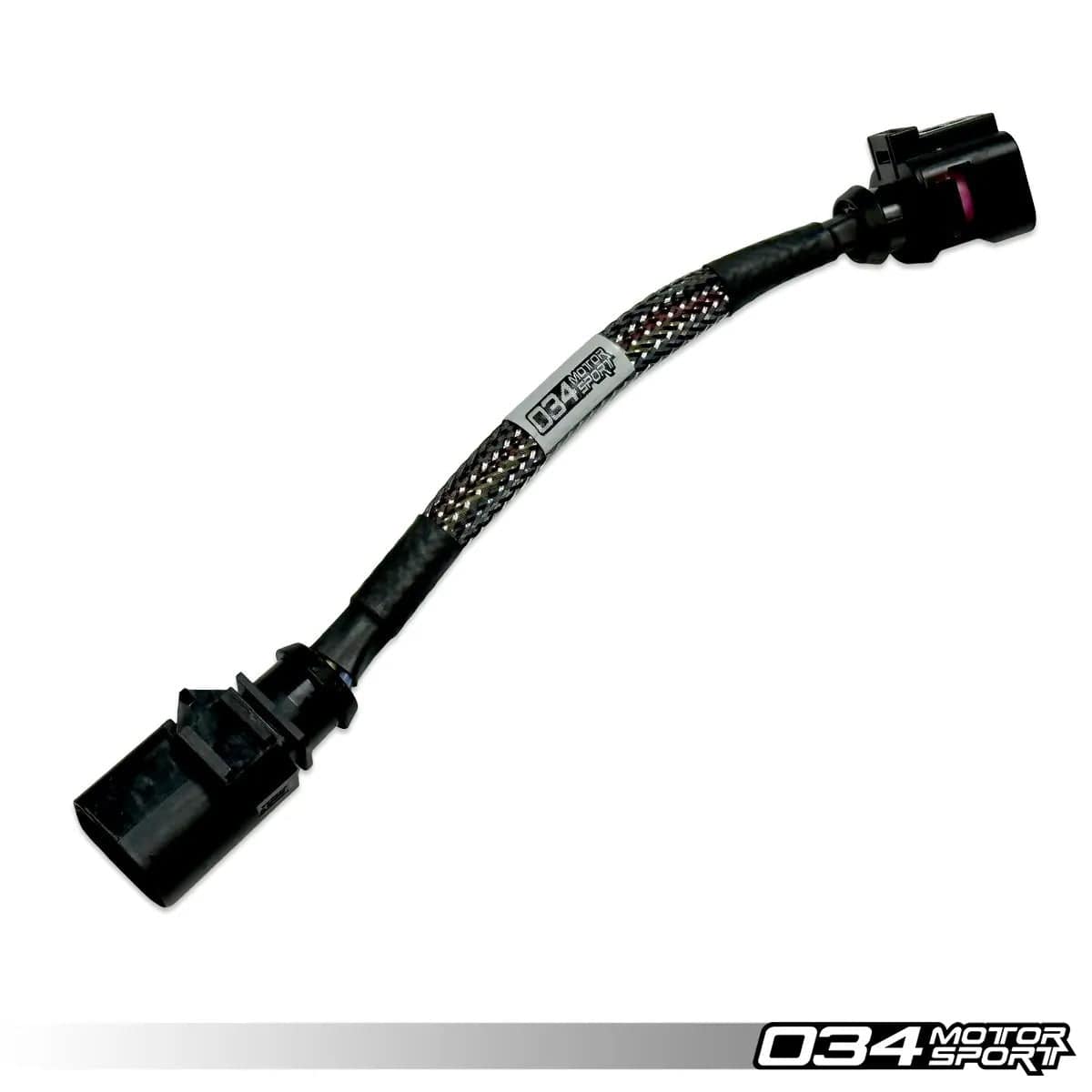

- Wiring Harness Adapter
- Adapter to Supercharger Gasket
- All Necessary Hardware
Replaces OE Part Numbers:
- 06E 133 062 H
- 06E 133 062 G
- 06E 133 062 C
Notes:
Included with the SüperDüper Charger 84mm Throttle Body System is our wire-reinforced multi-ply silicone hose. This hose is designed to be mated with S34 Carbon Fiber Intake if you already have our intake system. If you do not have our S34 Carbon Fiber Intake, you can purchase the full SüperDüper Insuction Bundle (COMING SOON).
This kit will not work with stock intake
Modifications may be necessary to make the system work with other aftermarket intakes, or stock intake.
EMISSIONS DISCLAIMER:
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
