034 Motorsport Dynamic+ Sway Bar Bundle Package - Audi / B9 / B9.5 / Q5 / SQ5

PRODUCT DESCRIPTION:

The 034Motorsport Dynamic+ Sway Bar Bundle Package is available for B9/B9.5 Audi Q5/SQ5. The 034Motorsport Dynamic+ Sway Bar Bundle Package features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability, and Dynamic+ Front and Rear Billet Adjustable End Links to allow for instant transfer of suspension movement to the sway bars.

Designed to reduce body roll, improve turn-in, reduce understeer, and enhance steering feel, 034Motorsport's Dynamic+ Sway Bar Bundle Package is the ideal upgrade for those in search of confidence-inspiring handling and maximum performance on the street and track.

TRACK-PROVEN HANDLING PERFORMANCE:

The Dynamic+ Sway Bar Bundle Package was thoroughly evaluated on the street and track with the 034Motorsport B9 Audi SQ5 before release.

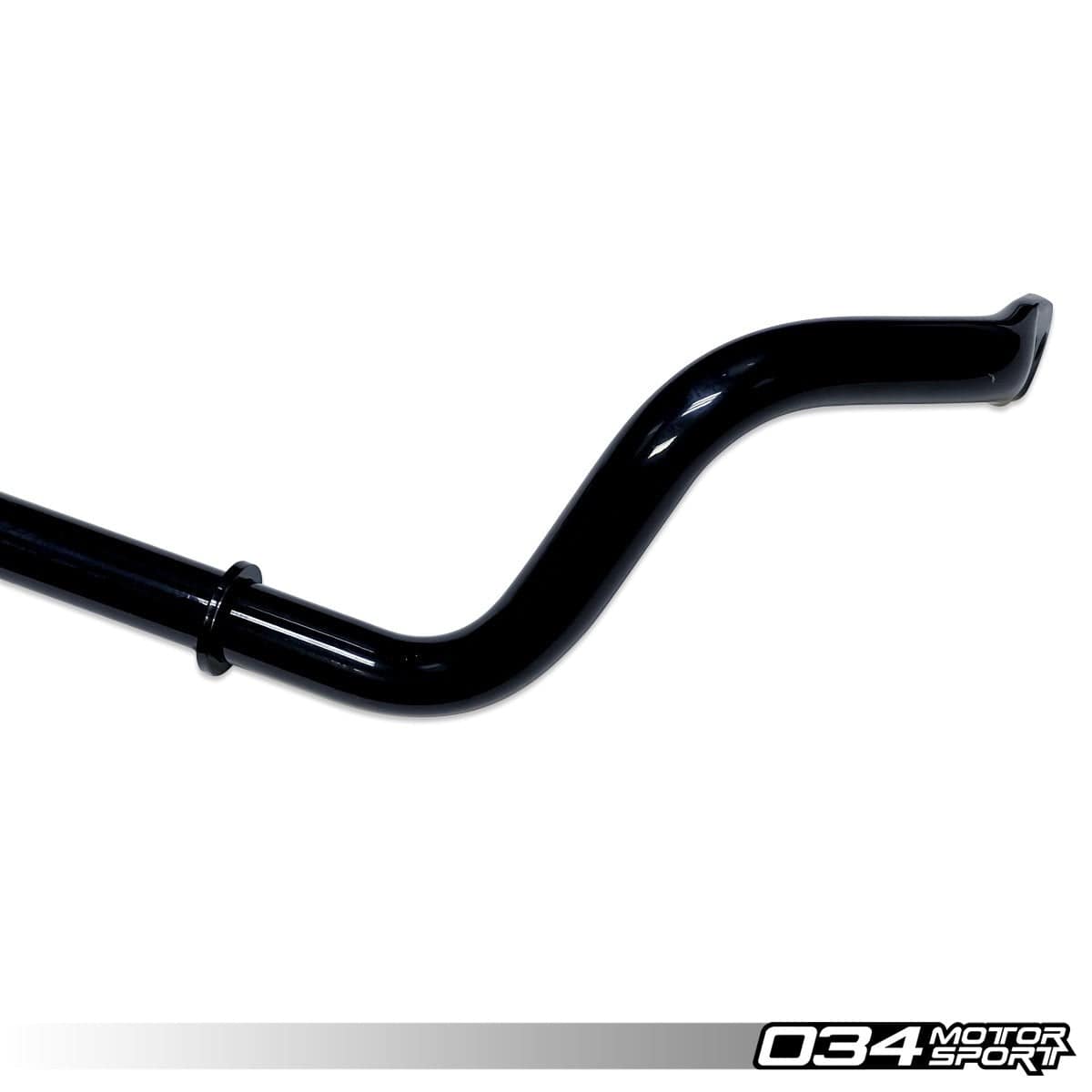

FRONT SWAY BAR FEATURES:

• 2-Way Adjustable
  • Soft Setting - 21.3% Increased Sway Bar Rate
  • Firm Setting - 39% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 32mm Hollow Front Sway Bar, 3.7mm Wall Thickness)
• 32mm Diameter
• Hollow Design with Thicker Walls Compared to Factory Bar
• Black Powder Coating for Durability and Stealthy Appearance

REAR SWAY BAR FEATURES:

• 2-Way Adjustable
  • Soft Setting - 130% Increased Sway Bar Rate
  • Firm Setting - 158% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 24.6mm Hollow Rear Sway Bar, 3.8mm Wall Thickness)
• 30mm Diameter
• One-Piece Design with Solid Spring Steel Construction
• Black Powder Coating for Durability and Stealthy Appearance

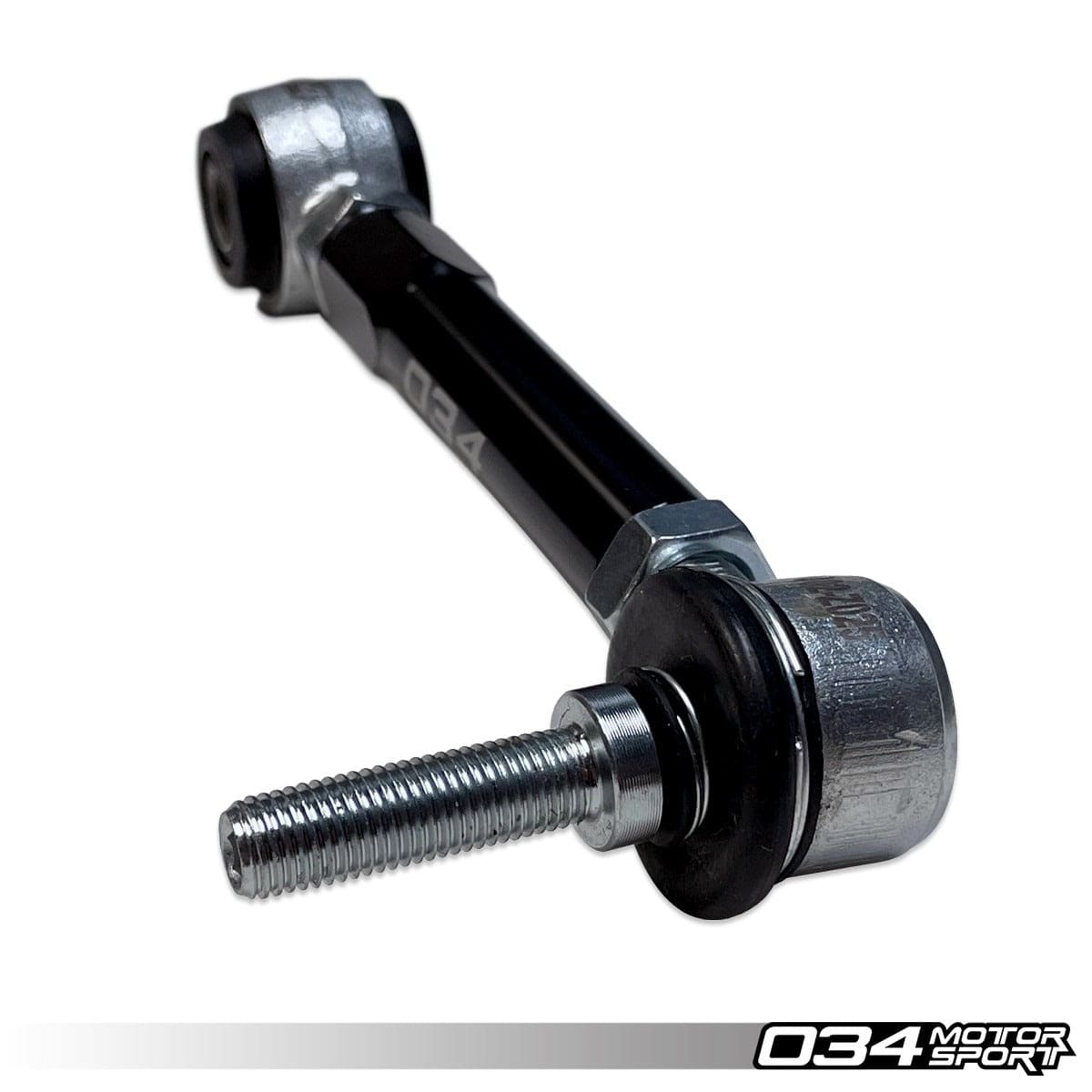

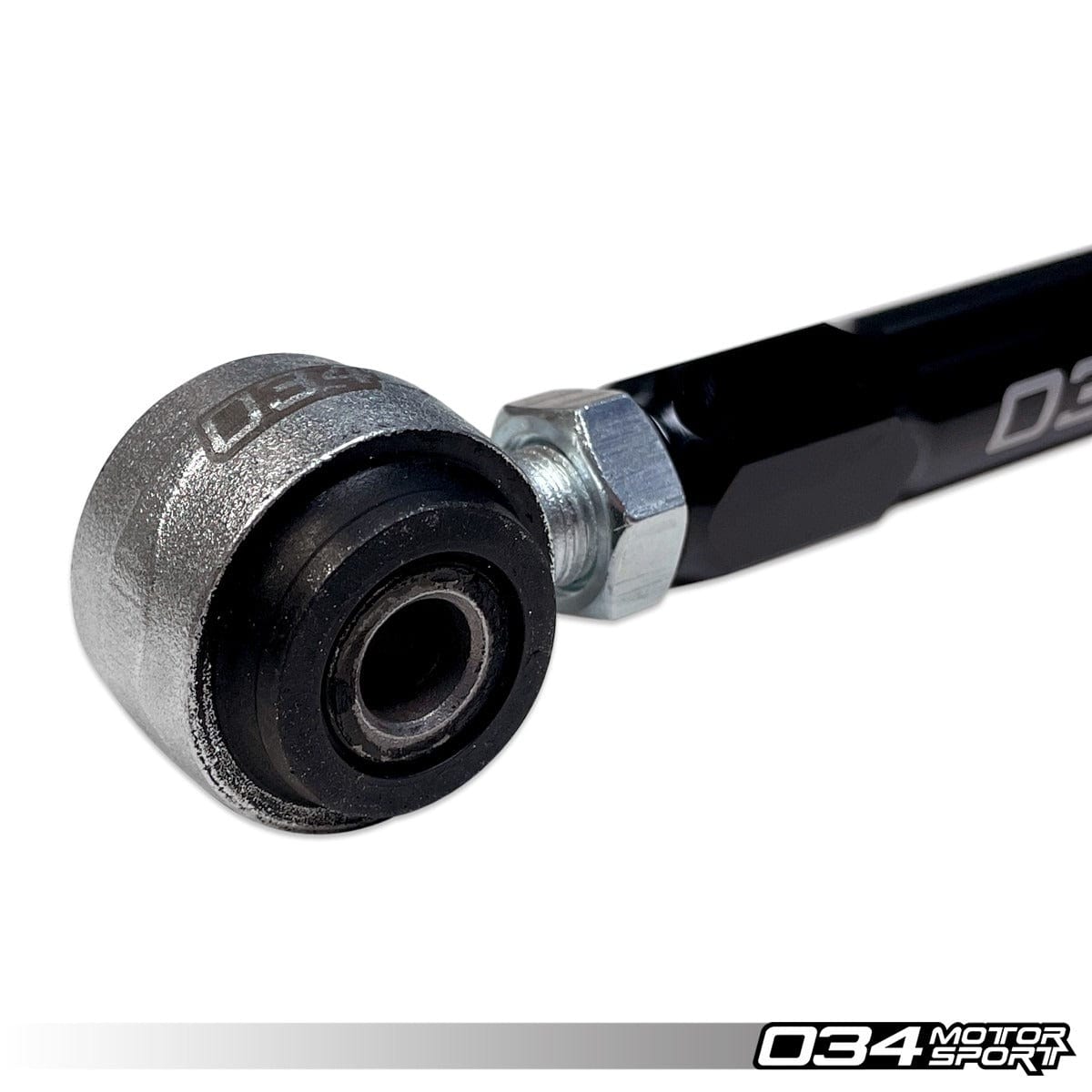

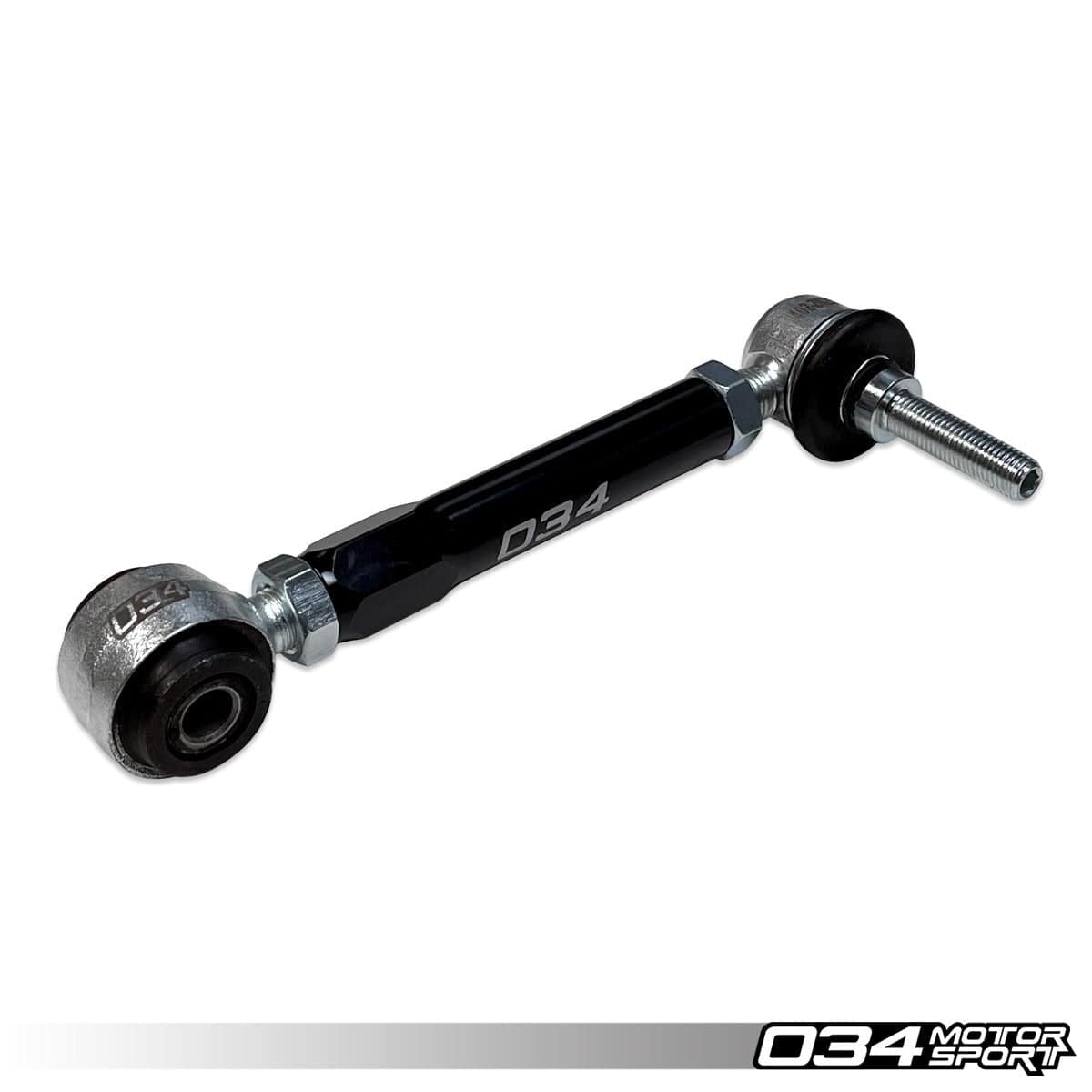

DYNAMIC+ FRONT AND REAR END LINKS:

These end links allow for uncompromised transfer of suspension movement to the sway bar, and are adjustable in length, allowing you to eliminate preload on the sway bar. 034Motorsport Dynamic+ Billet Adjustable Sway Bar End Links use high-misalignment ball joints, ensuring that the end links do not bind as the suspension articulates.

In addition, adjustable sway bar end links allow you to adjust preload on the sway bar, as well as alleviate potential sway bar clearance issues caused by lowering your car.

WHAT IS SWAY BAR PRELOAD?:

When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behavior and the car will favor tuning one way versus the other.

Preload is detectable when the car is at ride height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.

By utilizing our 034Motorsport adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns.

FEATURES:

• CNC Machined 6061-T6 Aluminum Bodies (Anodized Black for Durability)
• Zinc Plated Steel Ball Joints
• Rubber is Vulcanized to the Steel for Extra Strength and Durability
• Maximized Diameter of Threads into End Link Shaft for Increased Strength
• OEM+ Quality with Adjustability
• Quieter with Less Maintenance than Spherical Motorsport End Links
• +/- 0.75" of Adjustability (1.5" Total Adjustment Range)
• Direct Drop-In Replacement for Factory End Links

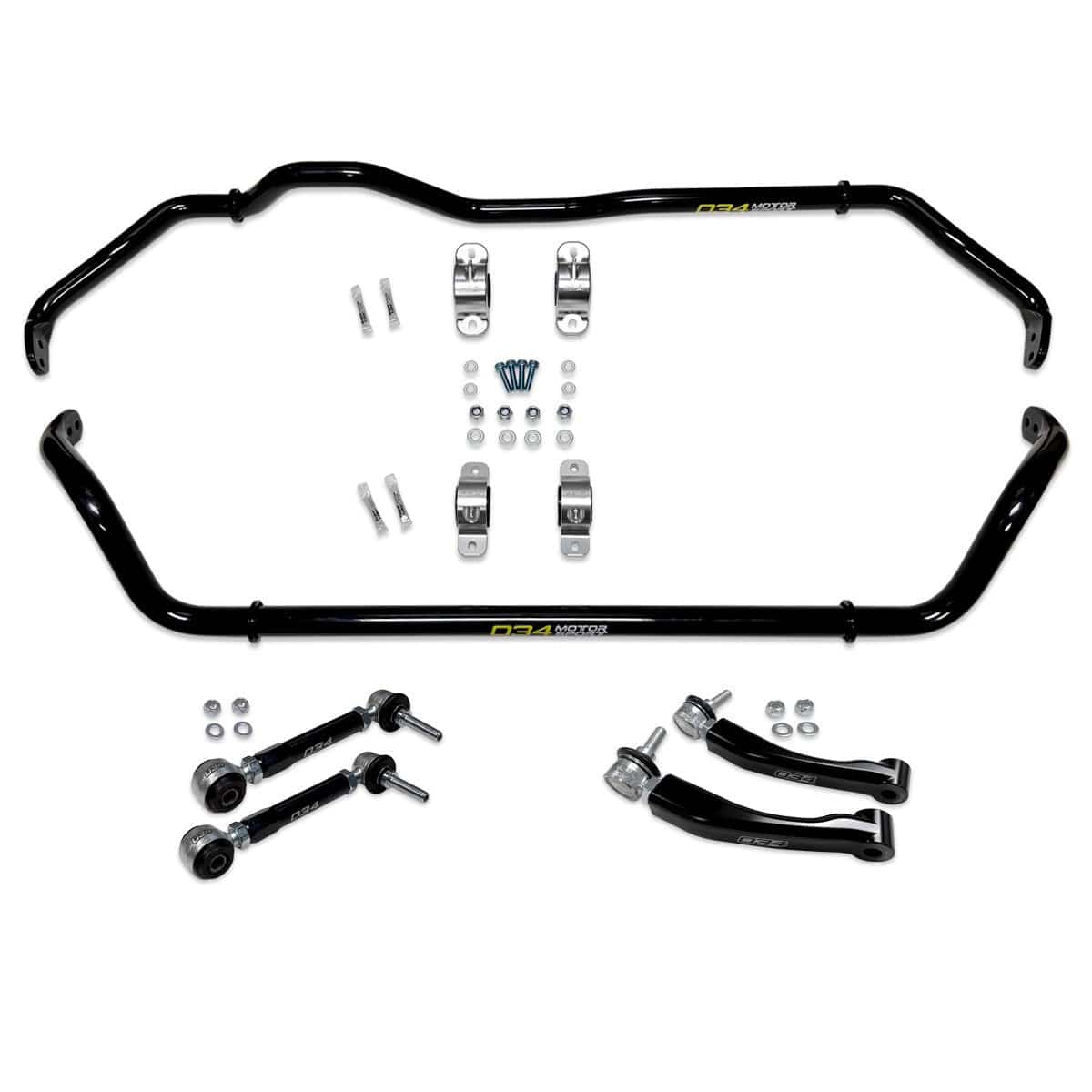

WHAT’S INCLUDED:

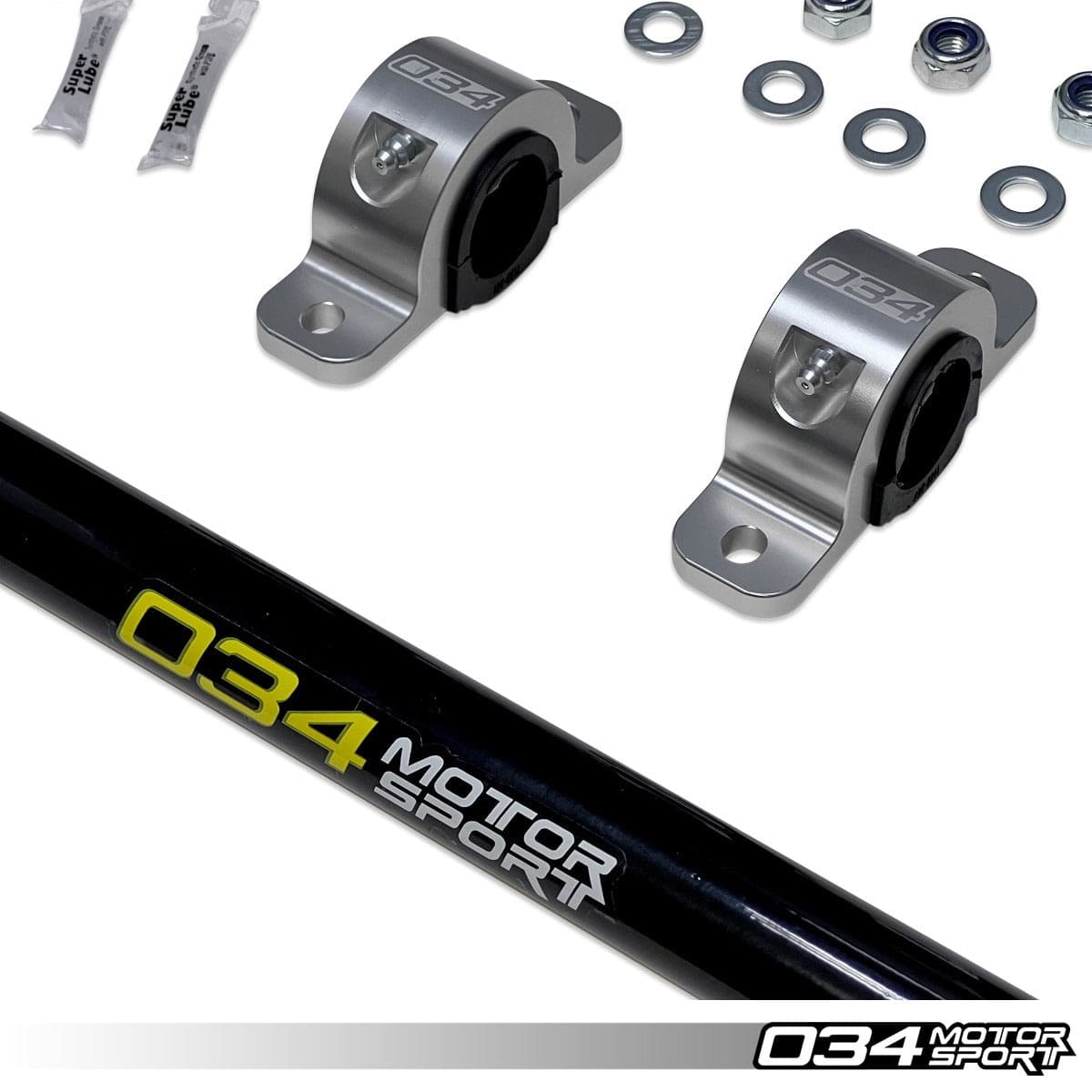

• 034Motorsport Dynamic+ Sway Bar Kit for B9/B9.5 Audi Q5/SQ5

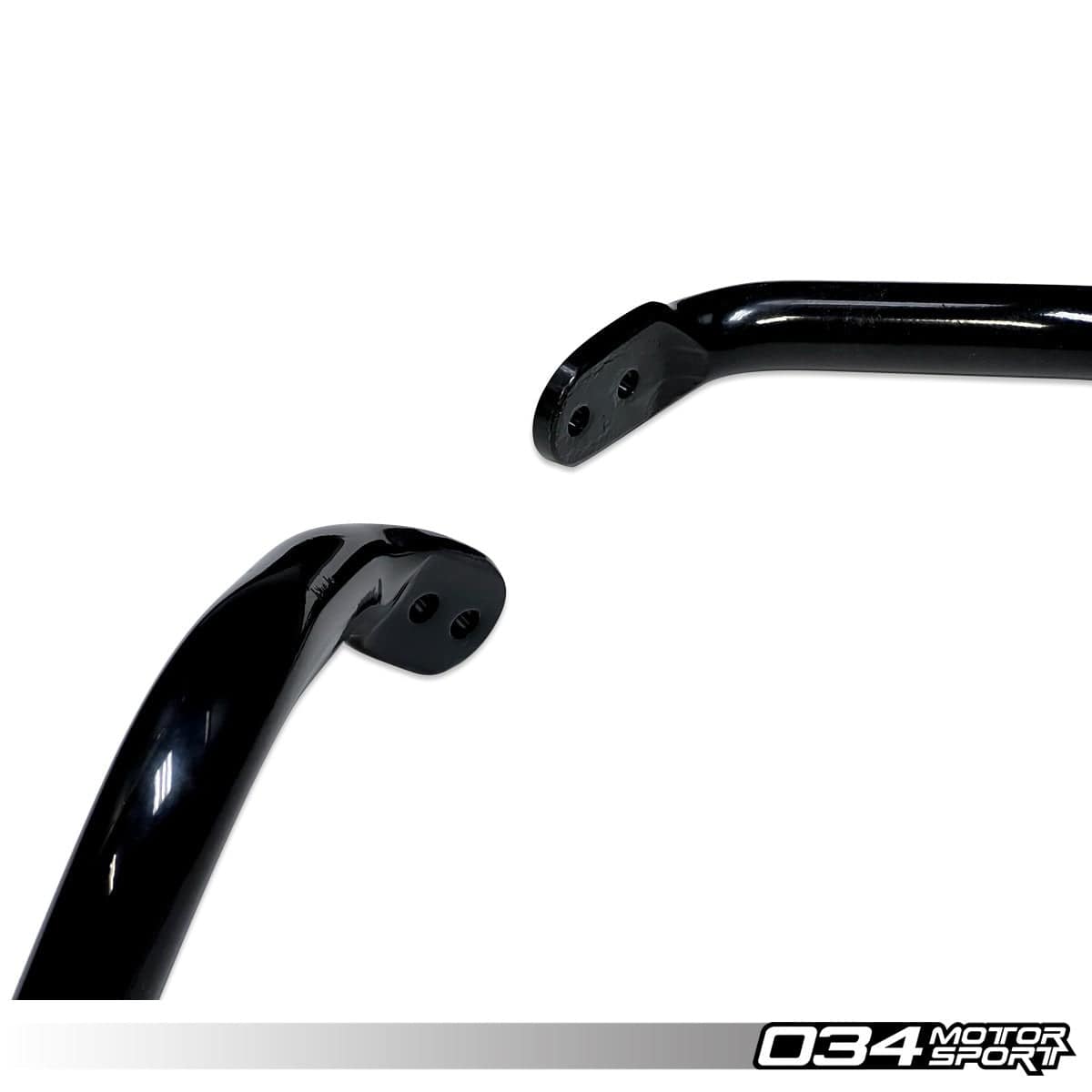

  • 034Motorsport 32mm Adjustable Front Sway Bar Upgrade
  • 034Motorsport 30mm Solid Adjustable Rear Sway Bar Upgrade

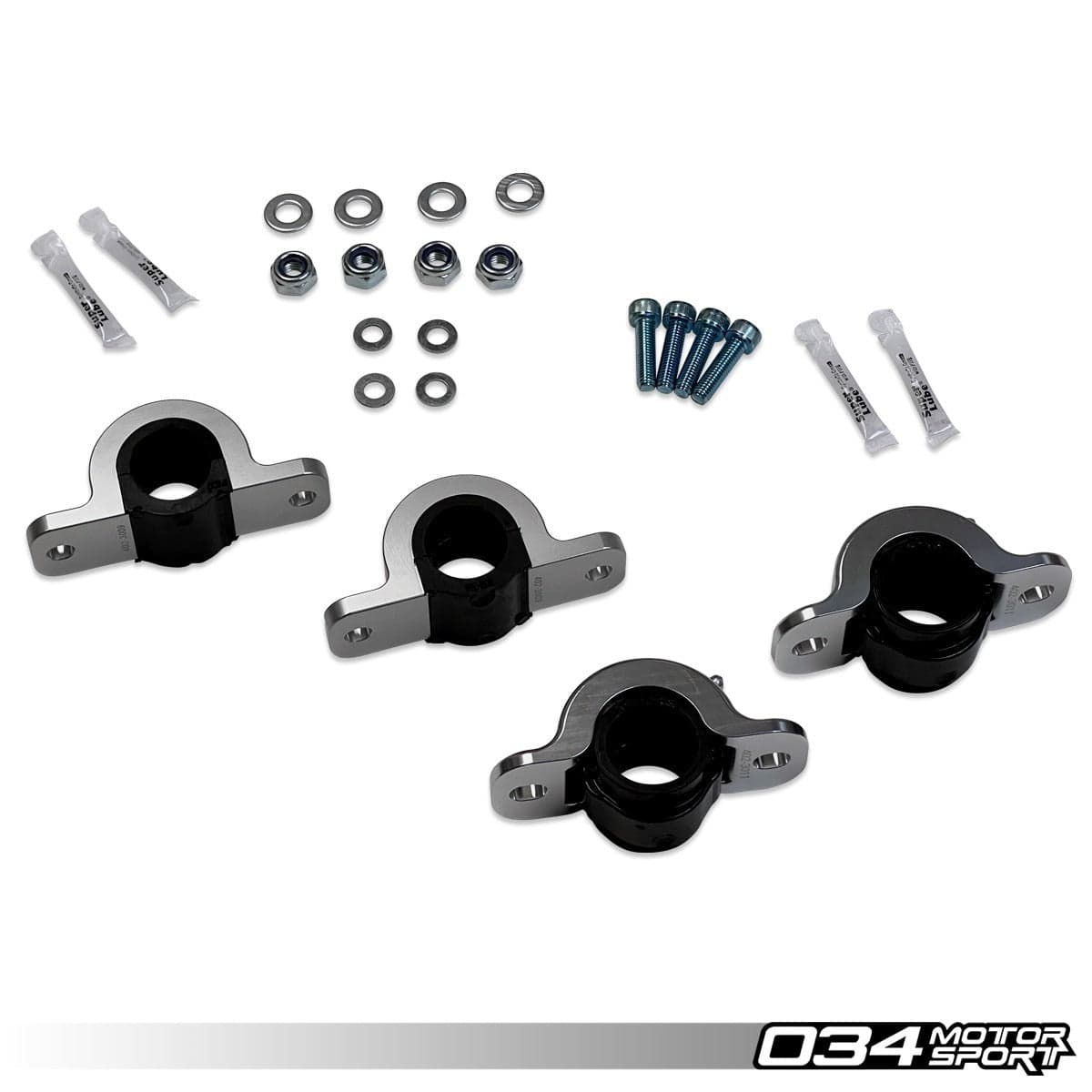

  • Polyurethane Sway Bar Bushings

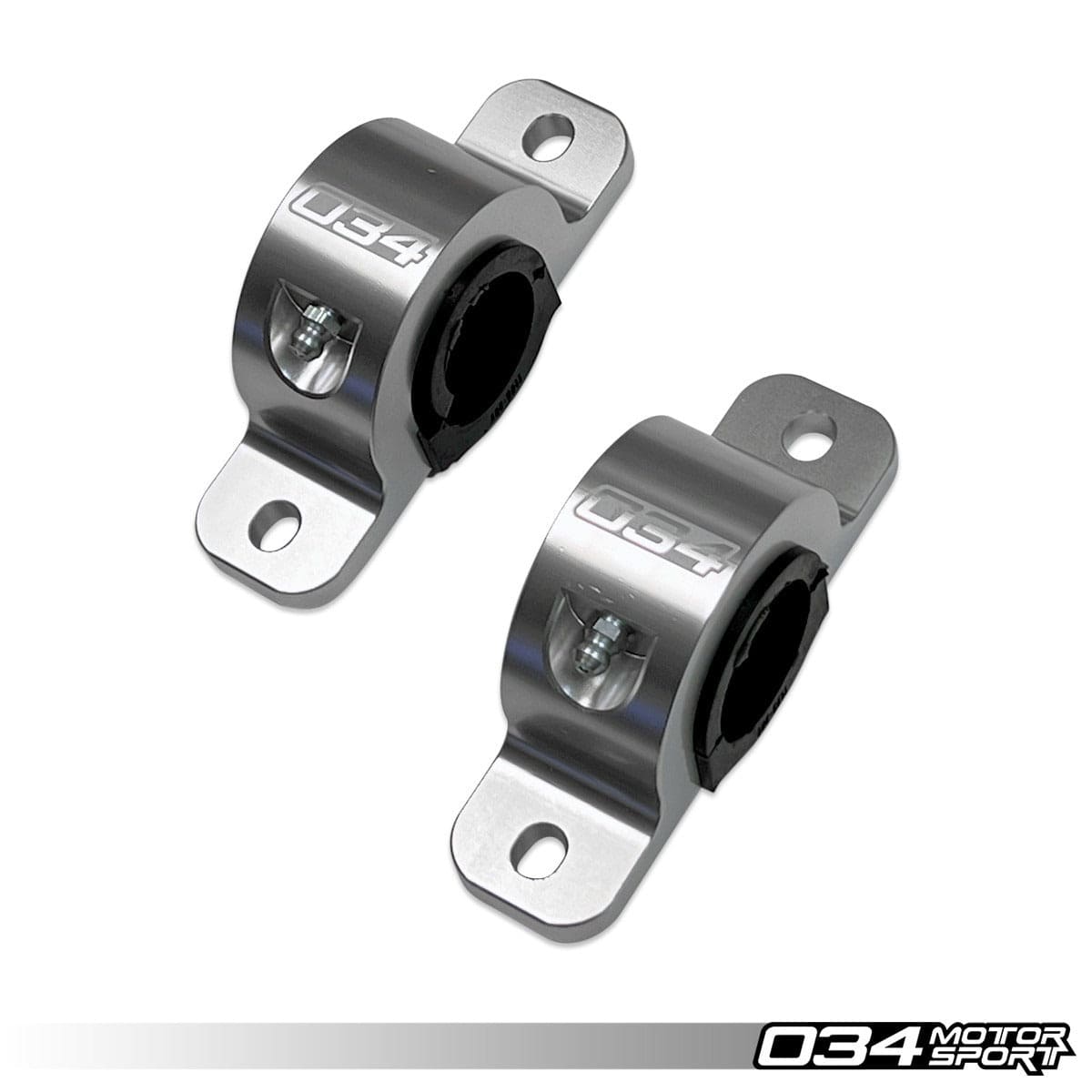

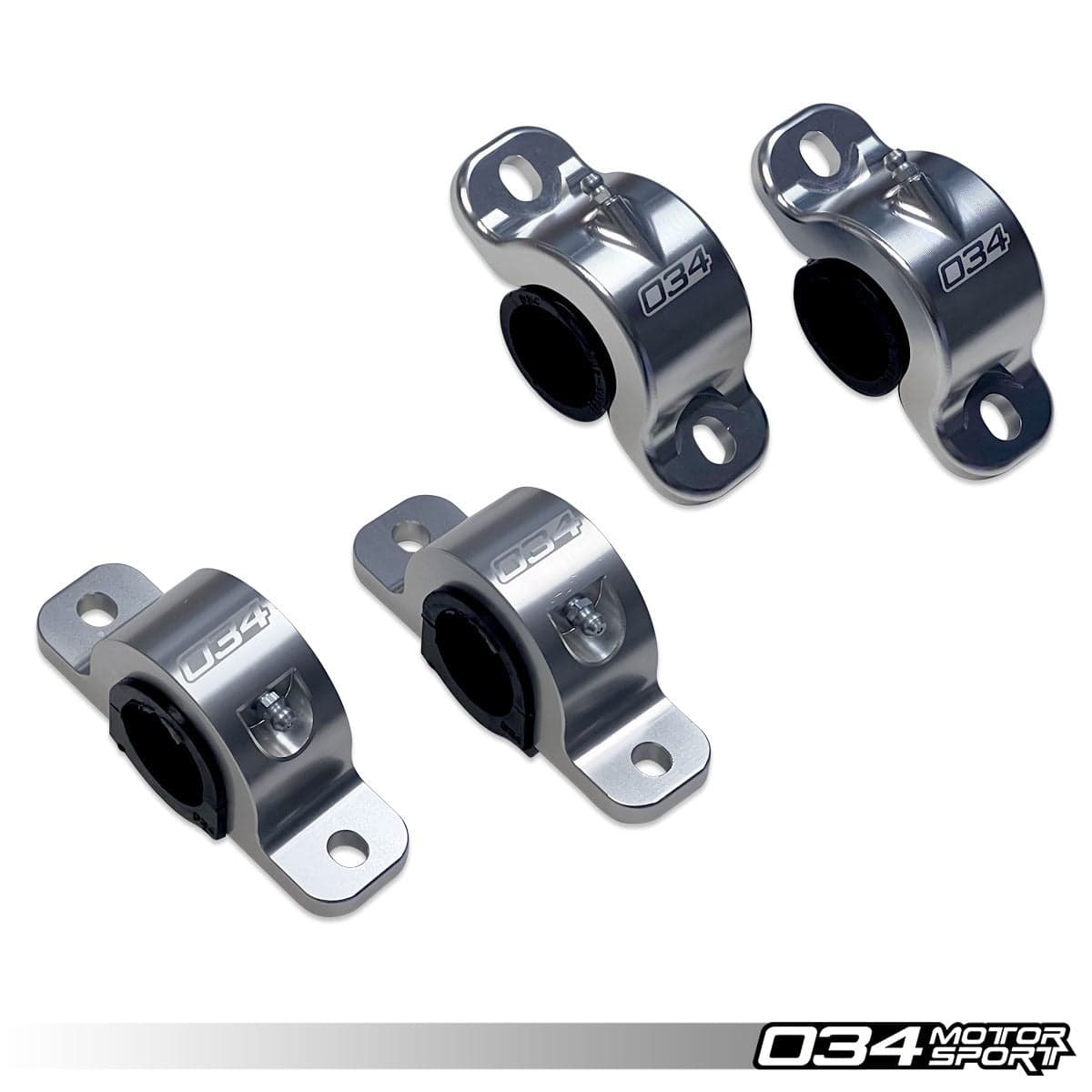

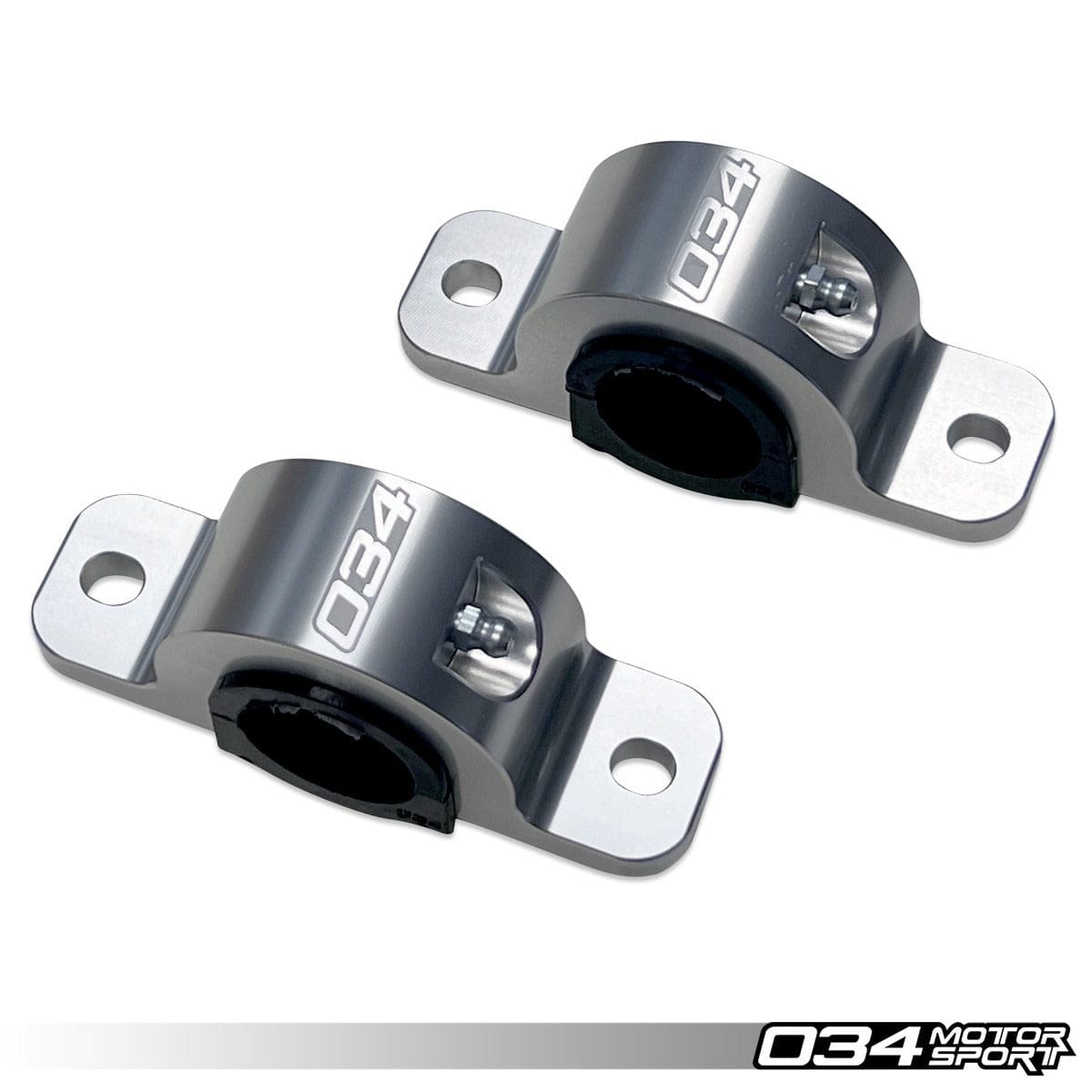

  • Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
  • Installation Hardware Kit

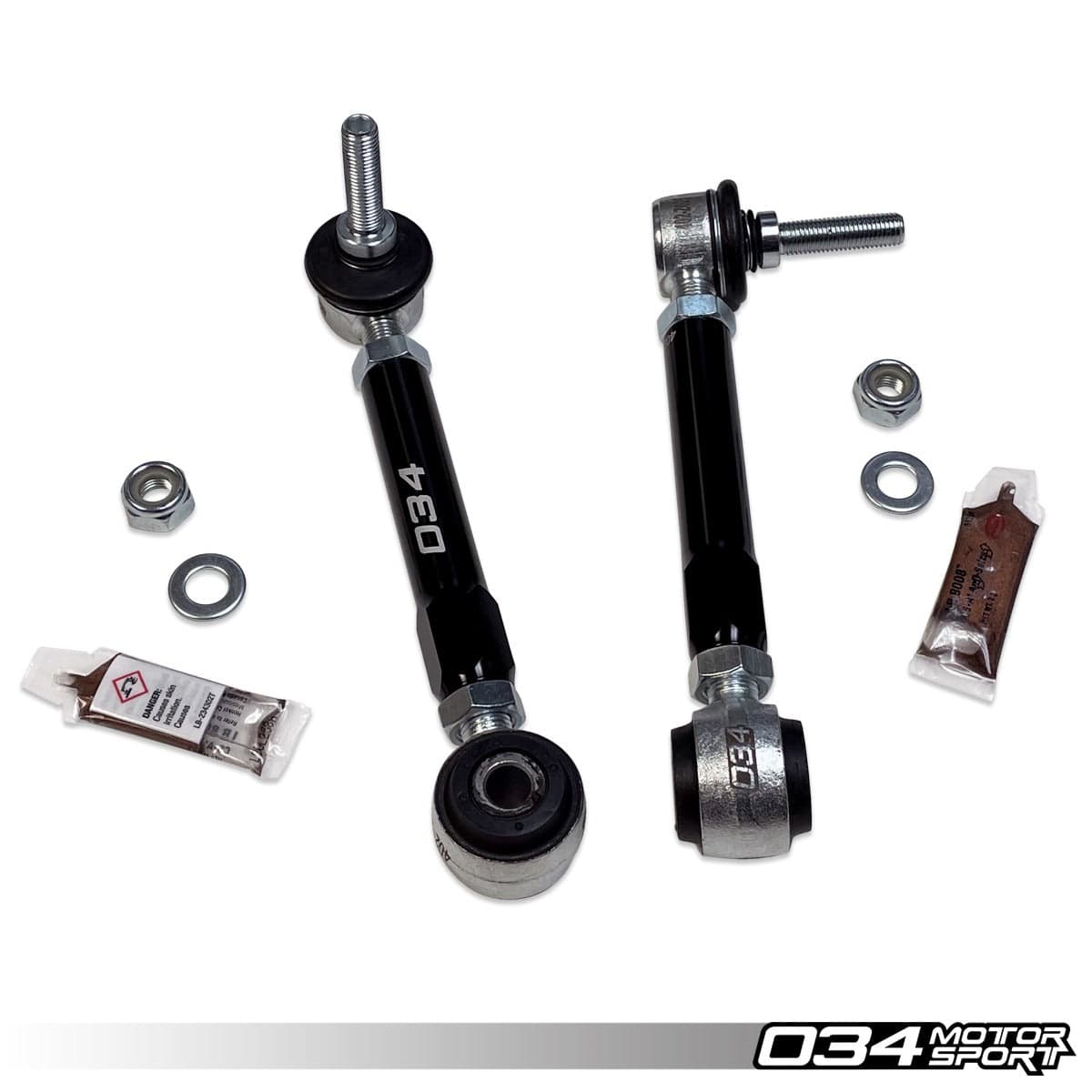

• Dynamic+ Billet Adjustable Front Sway Bar End Links


  • 2x Ball Joint Rod Ends
  • 2x Rod End Bushings
  • 2x Billet Adjusting Rods
  • 2x Right-Hand Jam Nuts
  • 2x Left-Hand Jam Nuts
  • 2x Packages of Anti-Seize
  • Misc. Hardware

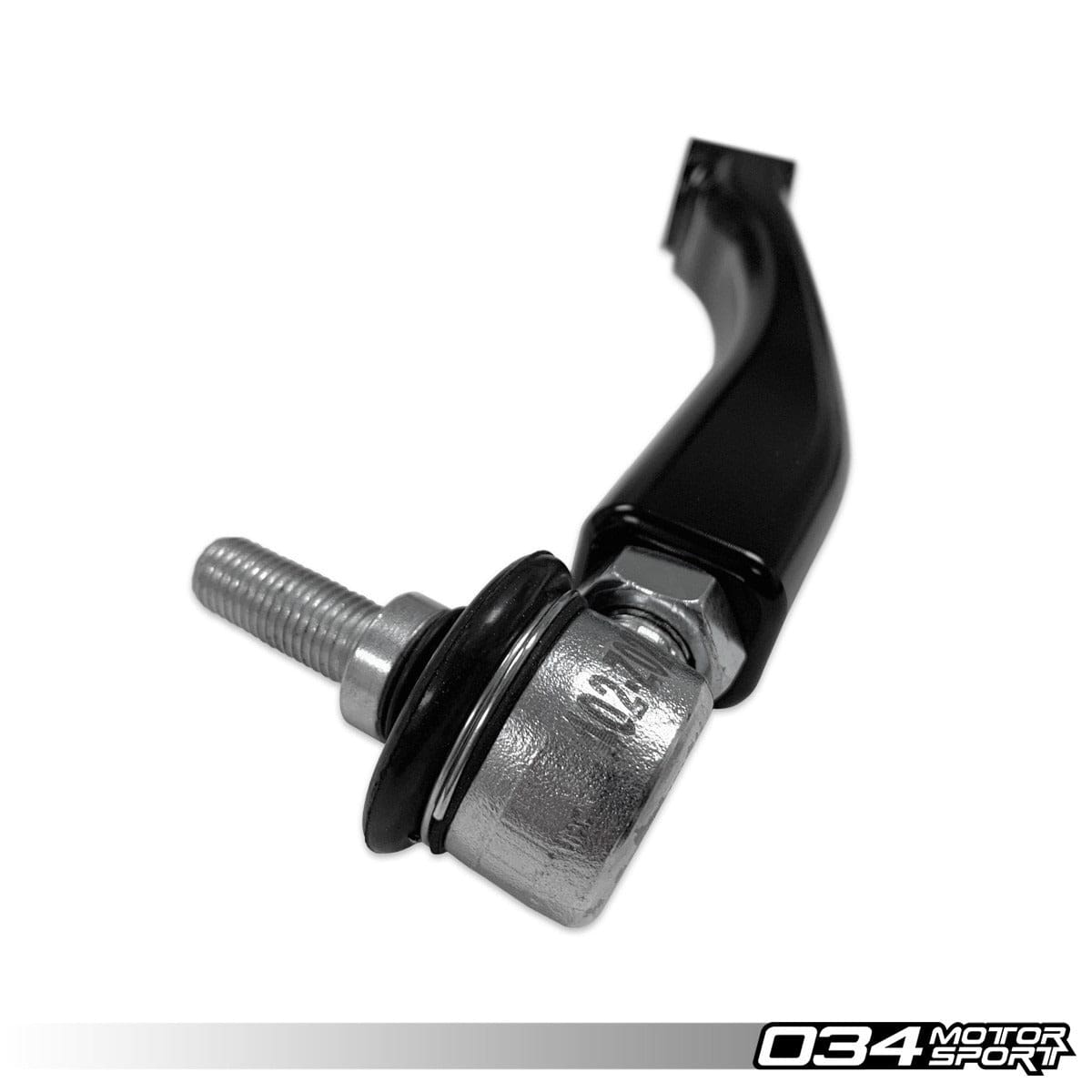

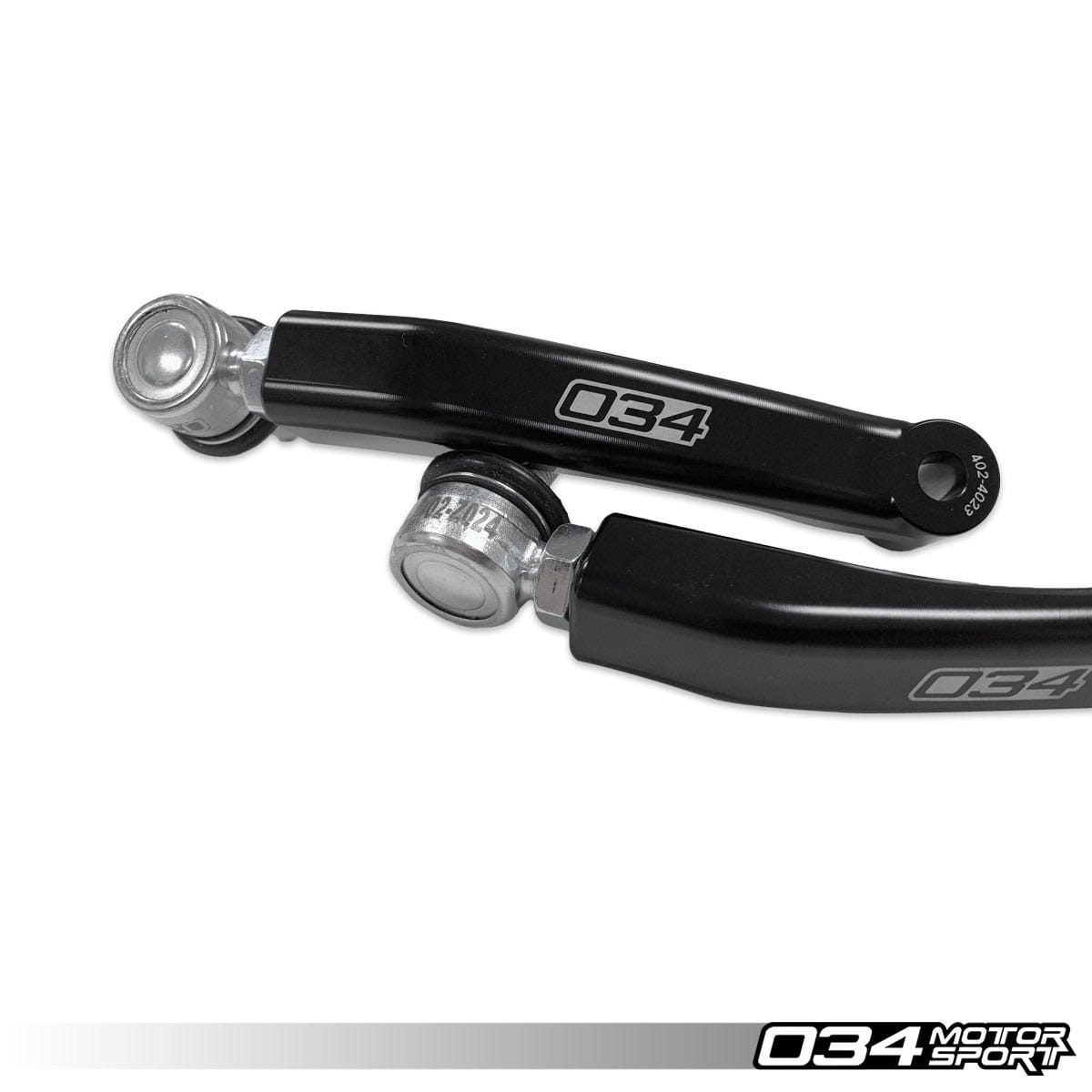

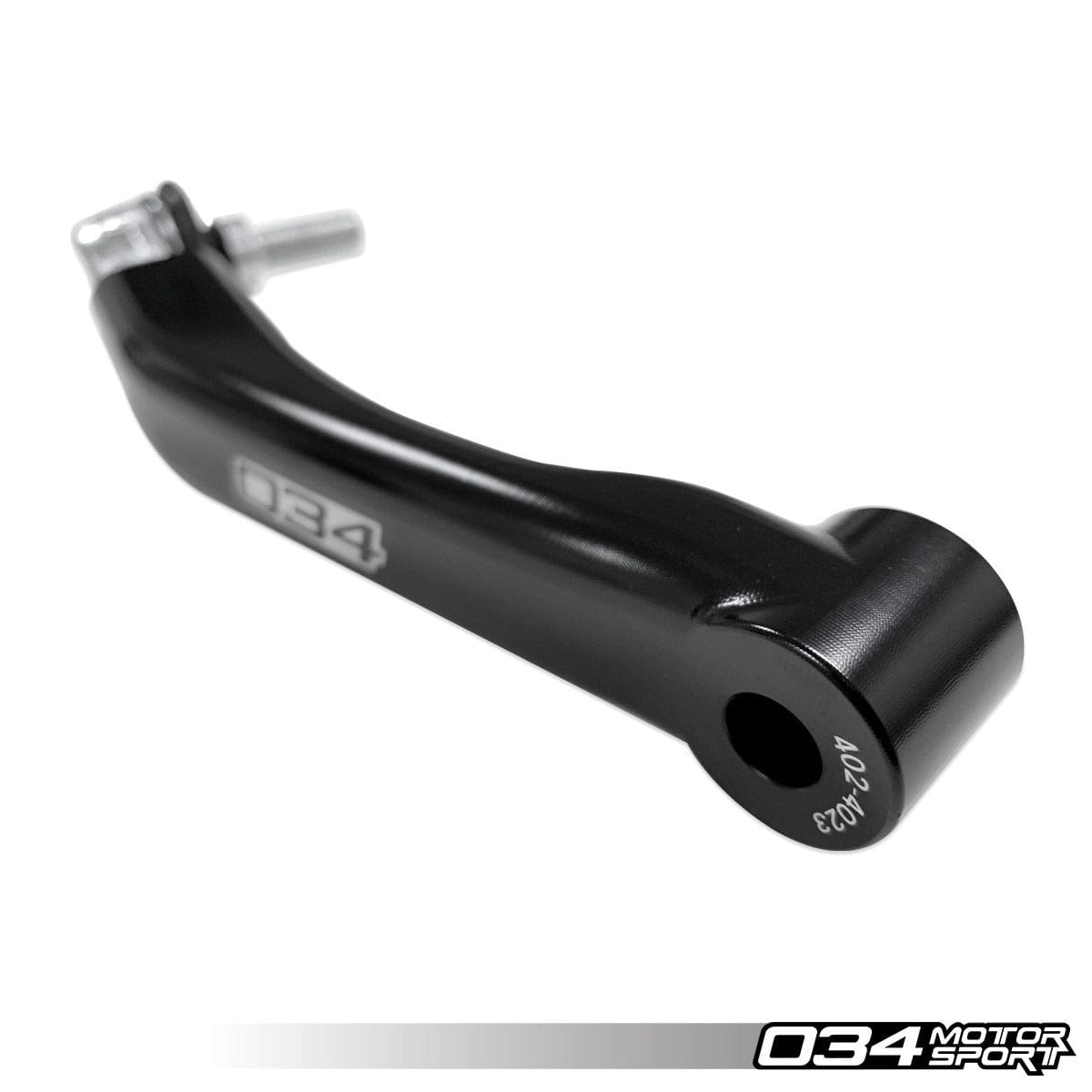

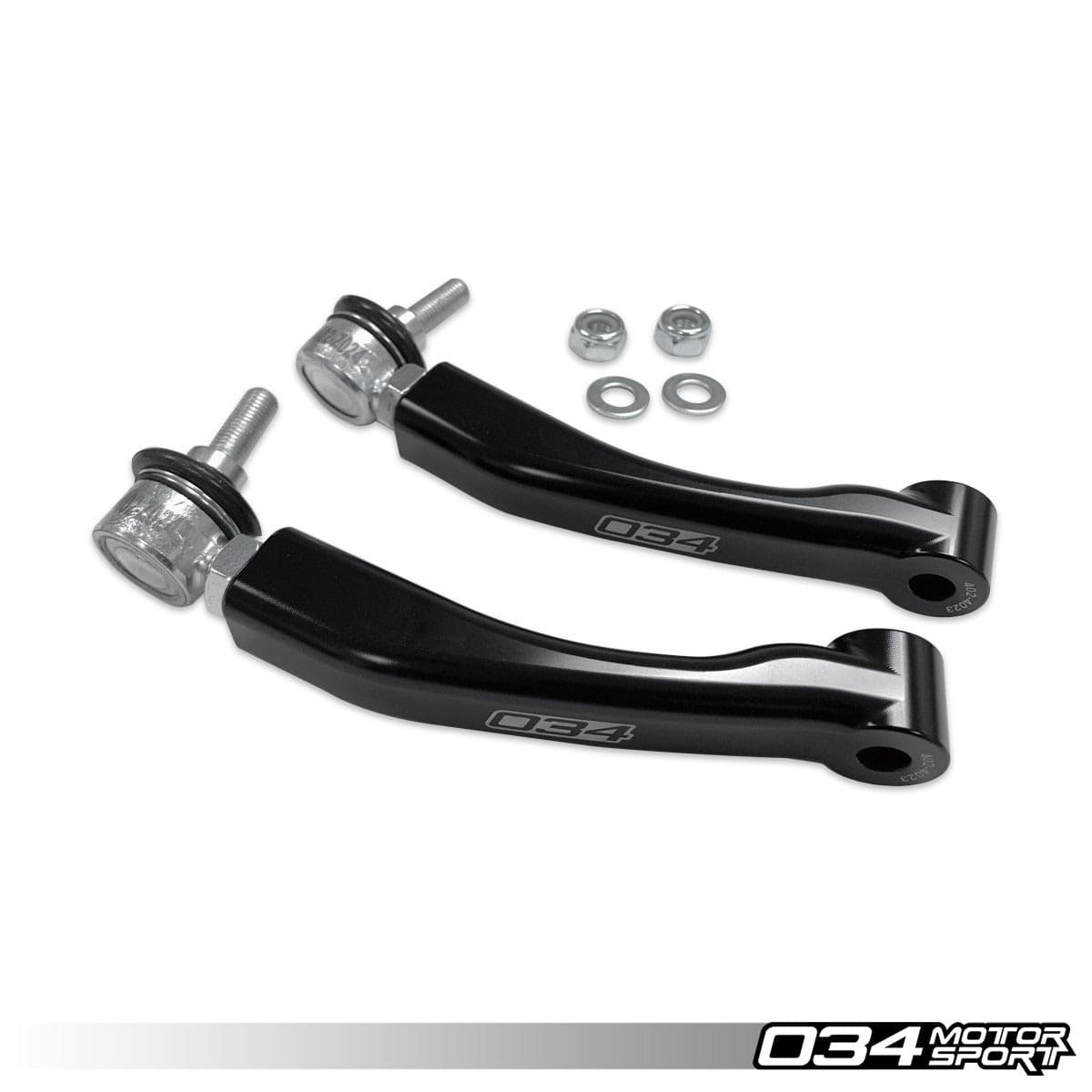

• Dynamic+ Billet Adjustable Rear Sway Bar End Links


  • 2x Ball Joint Rod Ends
  • 2x Billet End Link Bodies
  • 2x Right-Hand Jam Nuts
  • 1x Package of Anti-Seize
  • Misc Hardware

OE PART INTERCHANGE:

• OE Front Bar: 80A 411 305 B (32mm)
• OE Rear Bar: 80A 511 305 S
• OE Front End Link: 4M0 411 317
• OE Rear End Link: 8W0 505 465B
