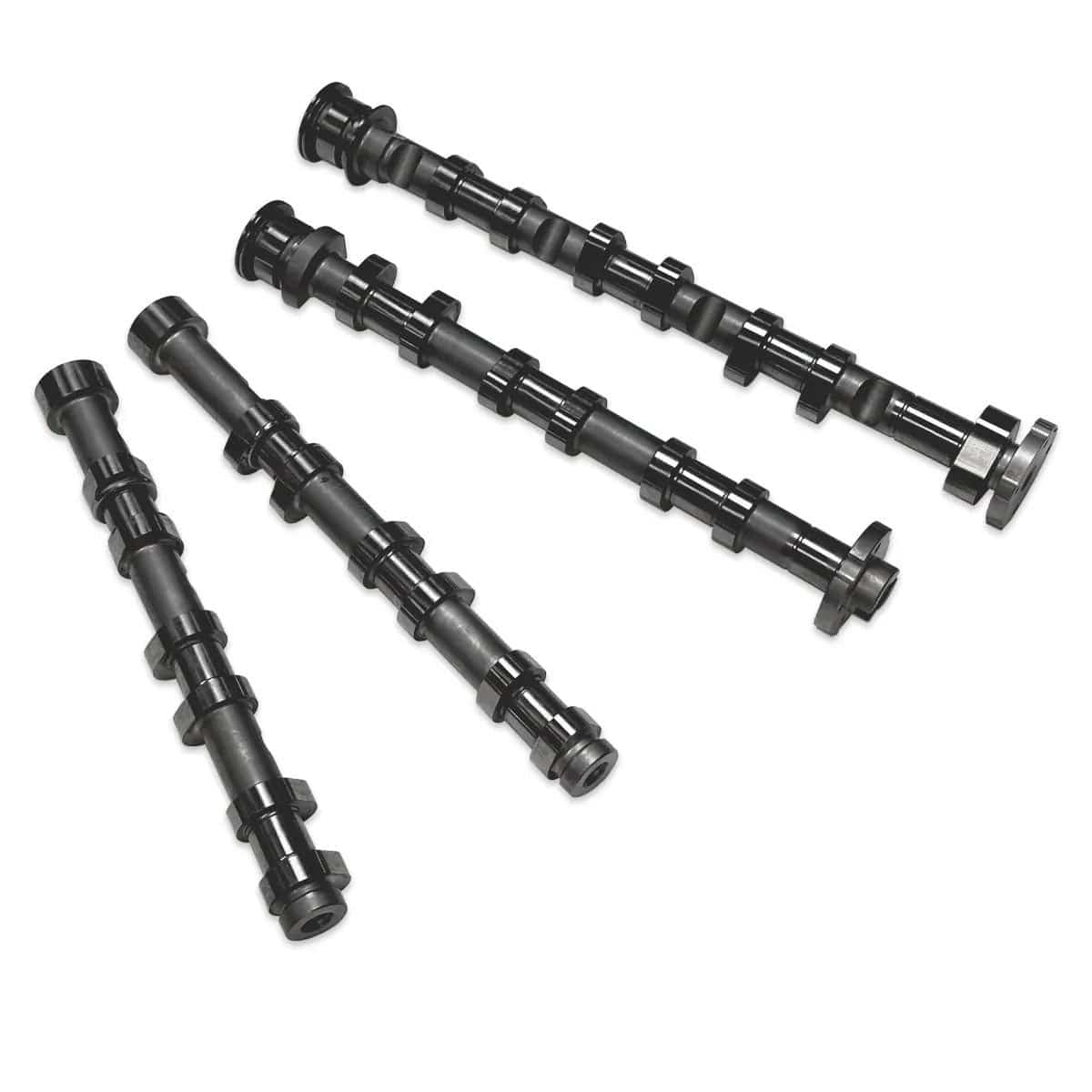

034 Motorsport Camshaft Kit - Audi / B8 / B8.5 / S4 / S5 / Q5 / SQ5 / C7 / A6 / A7
Shipping & Returns
Shipping & Returns
How is shipping calculated?
Shipping cost is based on weight and size. Just add products to your cart and use the shipping estimate tool before checkout to see an accurate shipping cost to your address!
What is your return policy?
We do accept returns. Please email us at info@broxtuning.ca to submit your request. Items sent to us without submitting a request will not be accepted.
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Customer service is at the top of our values here at Brox Tuning and we try our best to make the return process painless for our customers. If you need more info please click here for our detailed return policy.
When will my order ship?
Once an order is placed, if the item is in stock we will have it shipped out within 1 business day. Out of stock items usually ship within 1-2 weeks. Please email us if you have any questions regarding inventory at sales@broxtuning.ca.
Do you ship worldwide?
We only ship to Canada & USA.
Price Match
Price Match
If you're shopping for parts and want to make sure you get the best price before you order, give Brox Tuning the opportunity to earn your business. Call us at (416) 798-BROX or email us at sales@broxtuning.ca with the required info below:
- Link to competitor's site:
Local Pick Up
Local Pick Up
If you are local to our physical location you have the ability to choose the "local pick up" option at checkout! This means you can come and get your items once they are available for pick up avoiding shipping costs. In stock items are usually ready within 1-3 hours. Out of stock items will need 1-2 weeks. Get in touch with us if you have questions about stock levels at sales@broxtuning.ca or call us at (416) 798-BROX
Ask about inventory:
Description
Description
PRODUCT DESCRIPTION:
The 034Motorsport Camshaft Kit for the 3.0 TFSI Supercharged Engine is designed to be a direct drop-in replacement for the factory camshafts, valve springs, and retainers. The 034Motorsport Camshaft Kit is designed to improve the powerband of the 3.0 TFSI engine to redline by lengthening the time the intake valves are open, while still retaining the bottom-end torque.
The factory camshafts in the 3.0 TFSI Supercharged Engine are designed to be paired with the factory supercharger. The 034Motorsport Camshaft Kit comes with all four camshafts, new valve springs, and new valve spring retainers. The 034Motorsport Camshaft Kit is only recommended for vehicles with a dual pulley ratio on 034Motorsport Dynamic+ Stage 2+ ECU Tuning. The Camshaft Kit does not require a custom tune.
WHEN ARE CAMSHAFTS NEEDED?
To generate more power in an engine, the air and fuel entering the combustion chamber need to be increased. The 034Motorsport Camshafts allow the intake valve to open more, allowing more air into the combustion chamber. The 034Motorsport Camshafts allow for increased peak power while retaining drivability and efficiency.
FEATURES:
- Manufactured by One of the Premier Performance Cam Manufacturers, Cat Cams, Exclusively with 034Motorsport Engineering and Tuning Calibration Departments
- Single-Piece Steel Billets to Improve Stiffness and Strength, Allowing Higher Acceleration Cam Profiles.
- Increased Lift and Duration, Resulting in Additional Power and Torque
- ~30 Peak Wheel Horsepower*
- ~10-15 Peak Wheel Torque*
- Includes Valve Springs and Retainers to Reduce Valve Train Mass.
- Stock-Like Driveability.
* Measured Power Gains on a 034Motorsport Stage 2+ E40 Tune, Stock Throttle Body, Stock Blower, Stock Cats.
034MOTORSPORT CAMSHAFT SPECIFICATIONS:
| Duration @ 0.1mm | Duration @ 1.0mm | Valve Lift | Cam Lift | Lobe Angle | Timing @ 1.0mm | Valve Lift @ TDC | ||||||||
| Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | |
| OE Audi Camshafts | 252° | 257° | 201° | 210° | 10.05mm | 10.00mm | 6.00mm | 5.95mm | 128° (88°) | 114° | -28° / 49° | 39° / -9° | 0.00mm (2.42mm) | 0.40mm |
| 034Motorsport Camshaft Kit | 262° | 271° | 215° | 225° | 11.25mm | 11.00mm | 6.65mm | 6.55mm | 128° (88°) | 114° | -21° / 56° | 46° / -1° | 0.00mm (3.35mm) | 0.90mm |
VERIFIED GAINS:

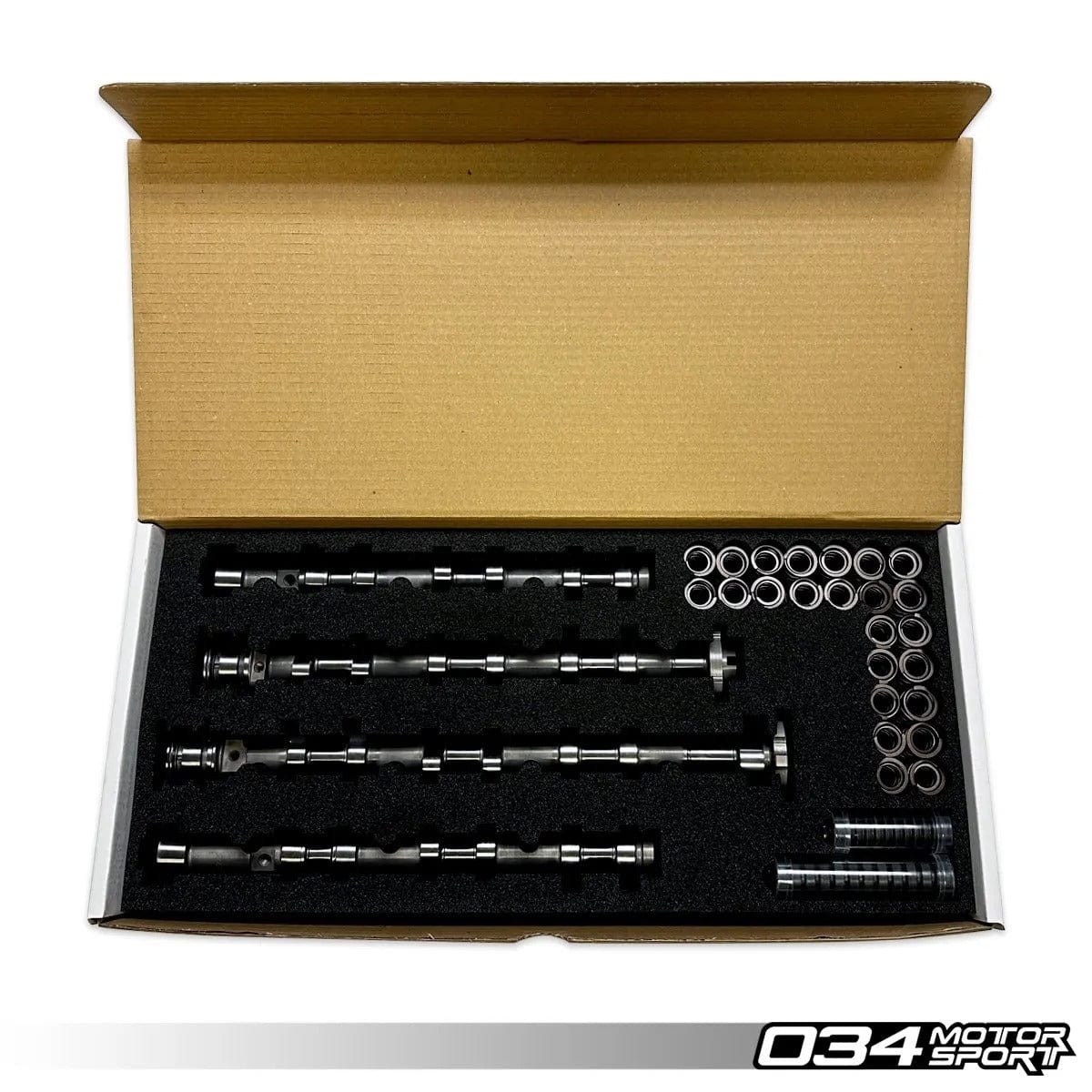

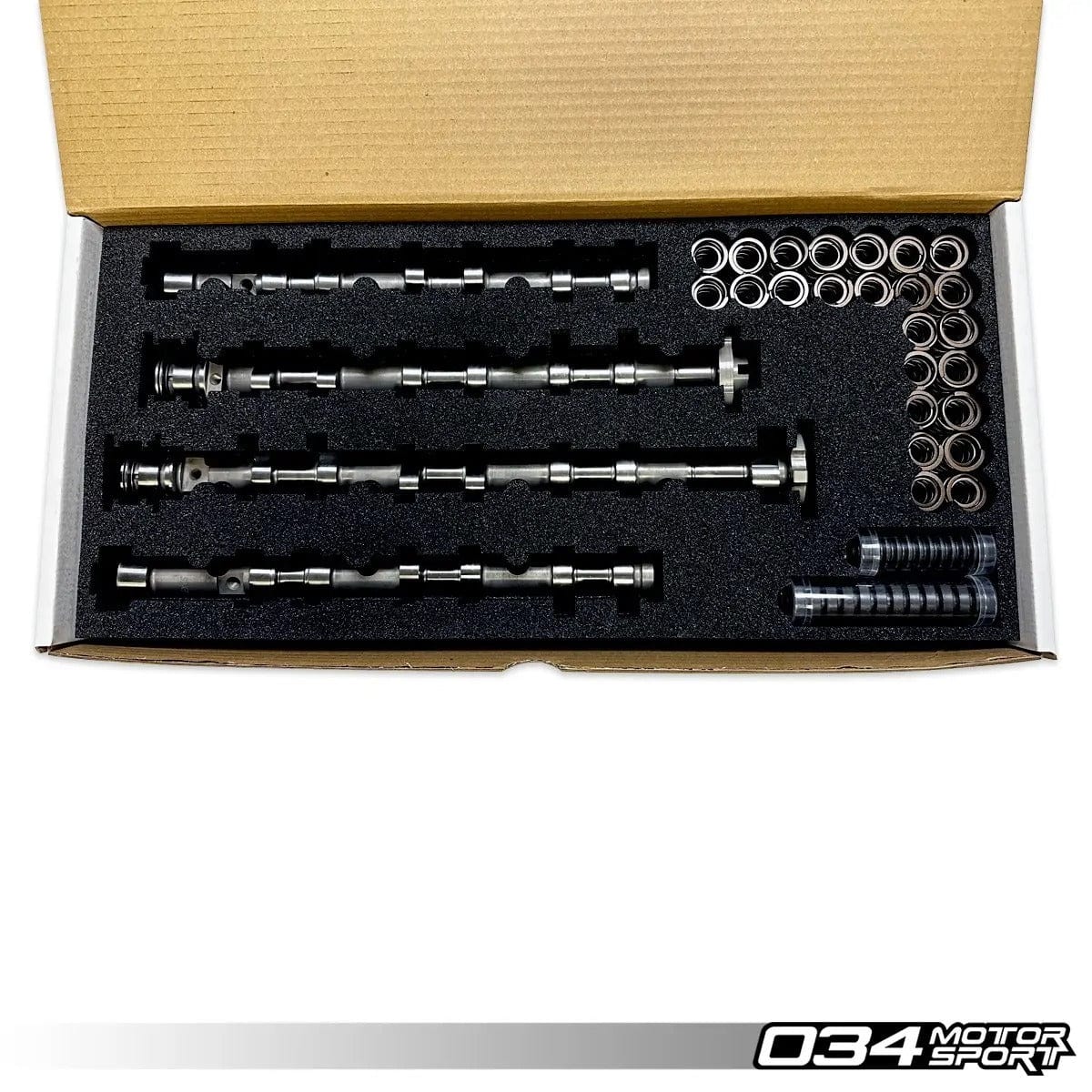

WHAT’S INCLUDED:
- (2x) Intake Cams
- (2x) Exhaust Cams

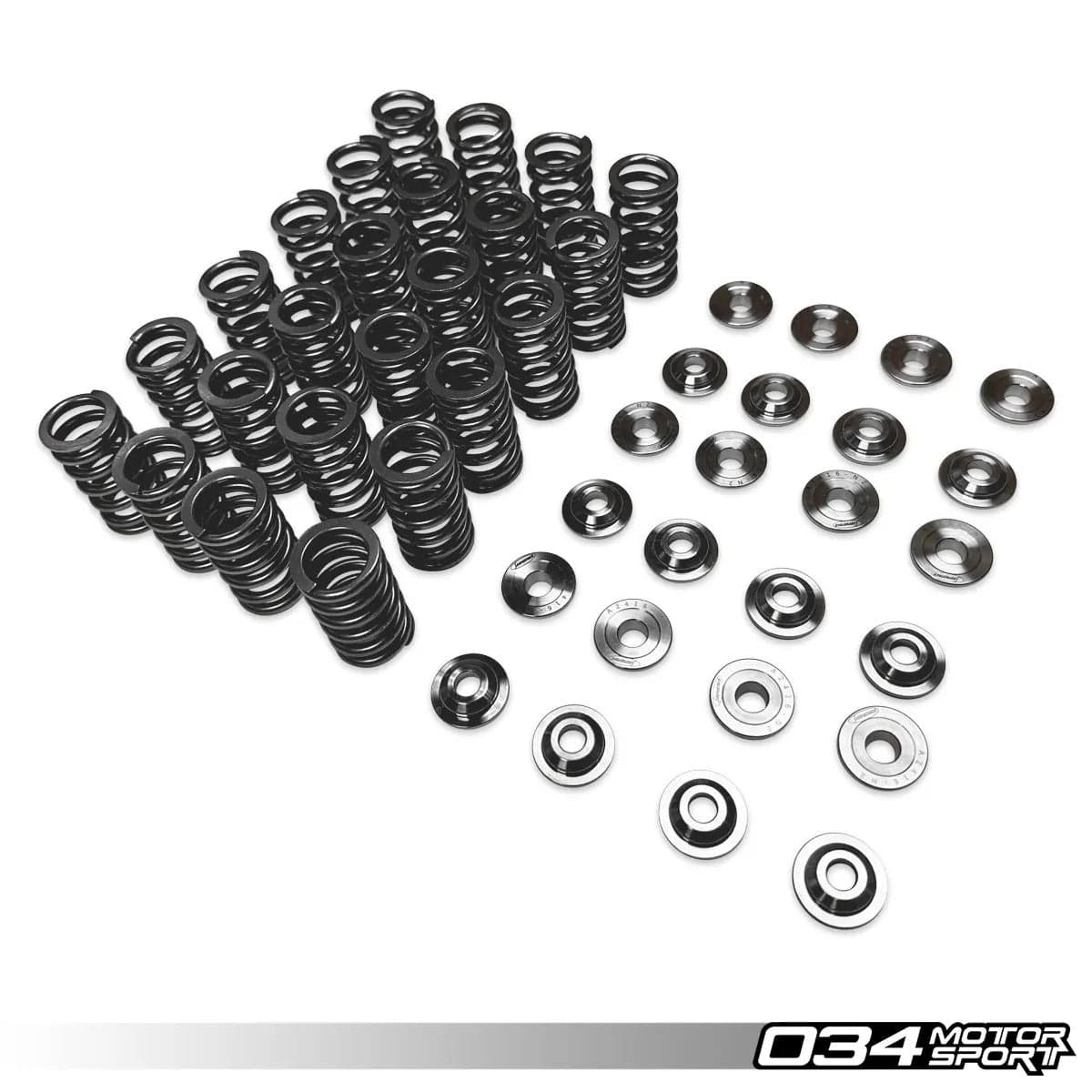

- (24x) valve Springs
- (24x) Valve Spring Retainers (Top)
- (24x) Valve Spring Retainers (Bottom)
EMISSIONS DISCLAIMER
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
