Description
Description
34Motorsport is proud to unveil an all-new line of Performance Software for 8J Audi TTS & MkVI Volkswagen Golf R models equipped with the EA113 2.0T FSI engine and K04 turbocharger!
Flashed directly through your vehicle's OBD-II port, 034Motorsport’s proprietary calibrations for the Bosch MED9 ECU safely and effectively increase the power output of the 2.0T FSI engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.
034Motorsport's EA113 2.0T FSI Performance Software was developed entirely in-house on 034Motorsport's Development 8P Audi A3. The calibrations were then refined on multiple enthusiast-owned MkV Volkswagen 2.0T FSI and 8J/8P Audi A3/TT 2.0T FSI vehicles before release.
Software Features
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
034MOTORSPORT EA113 2.0T FSI K04 MED9 ECU PERFORMANCE SOFTWARE COMPARISON
| Stage | Fuel | Max HP | Max TQ | Max HP Gain | Max TQ Gain | Rev Limiter | Speed Limiter |
|---|---|---|---|---|---|---|---|
| Stock | 91 Oct | 263 HP | 258 TQ | NA | NA | 6,800 RPM | 205kph |

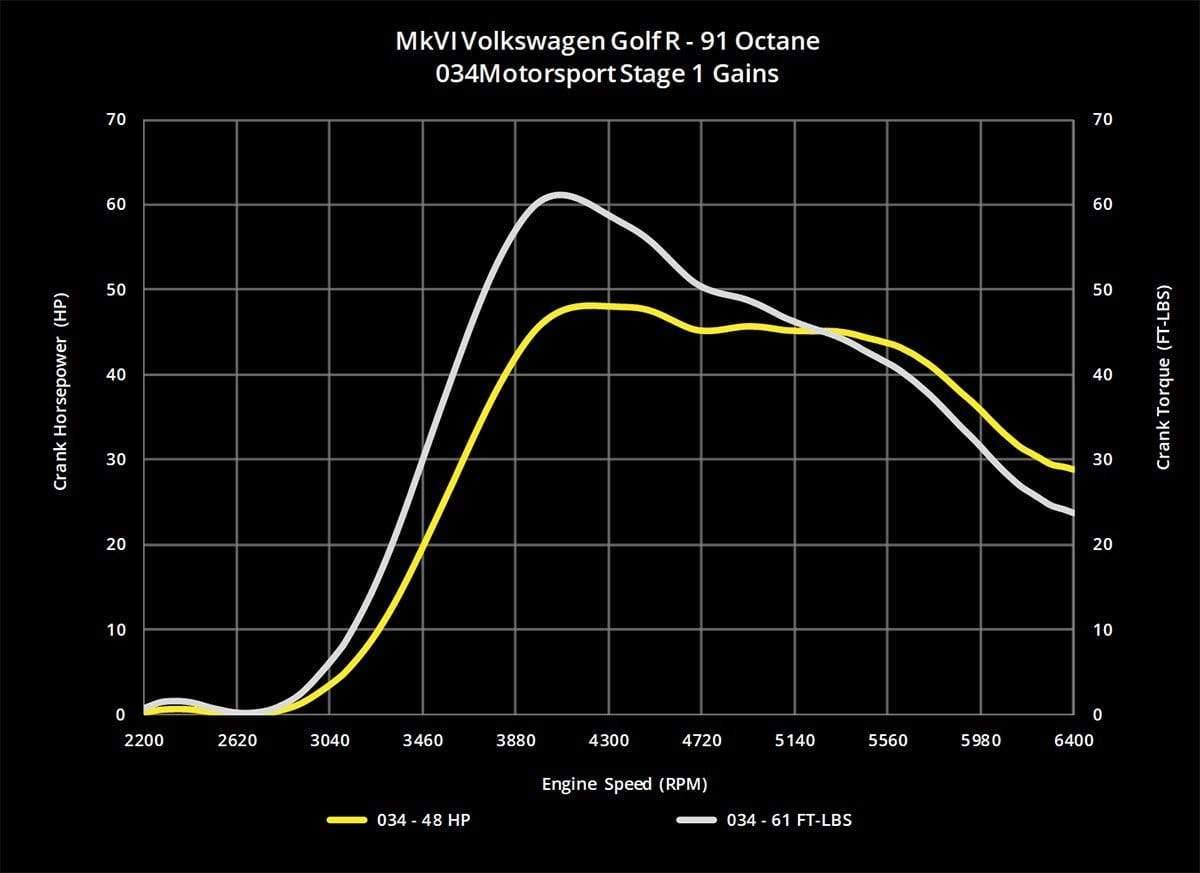

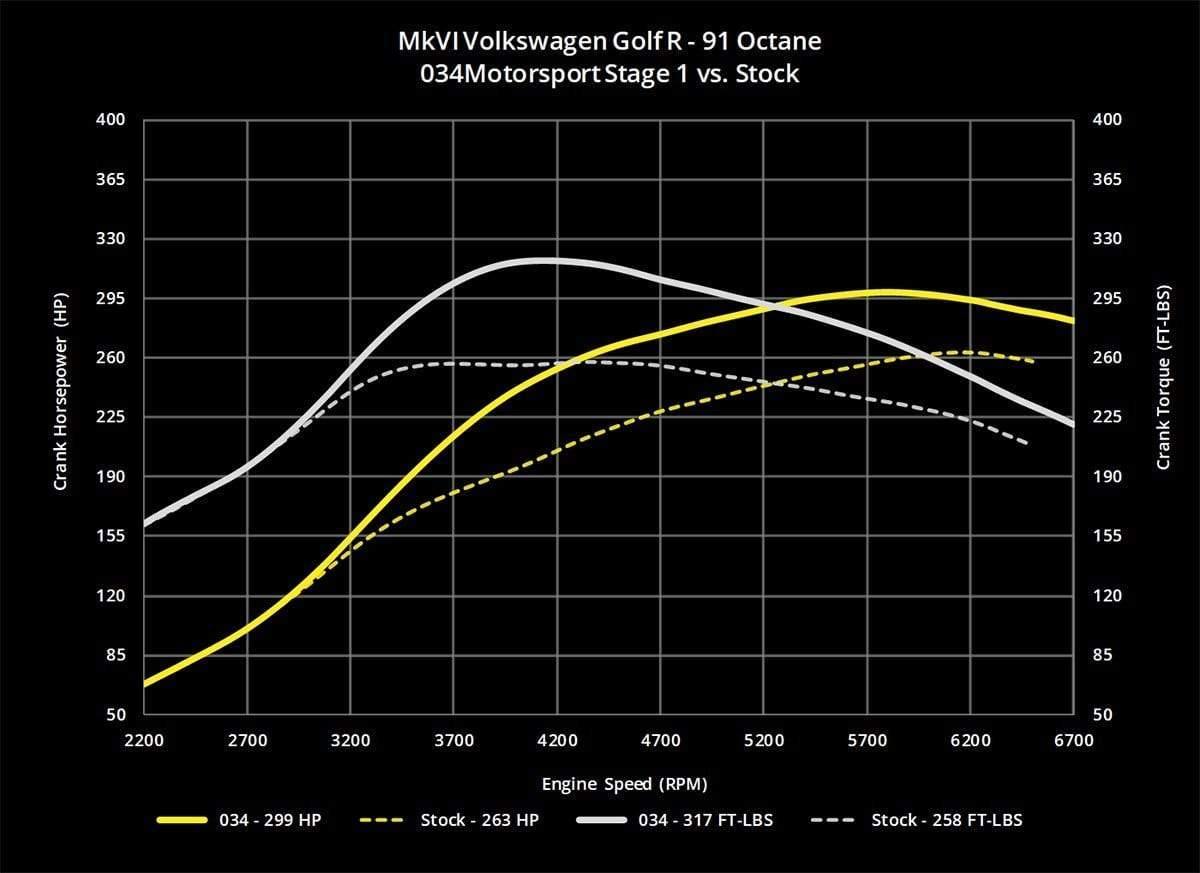

| Stage 1 | 91 Oct | 299 HP | 317 TQ | 48 HP @ 4,200 RPM | 61 TQ @ 4,000 RPM | 7,100 RPM | ∞ |

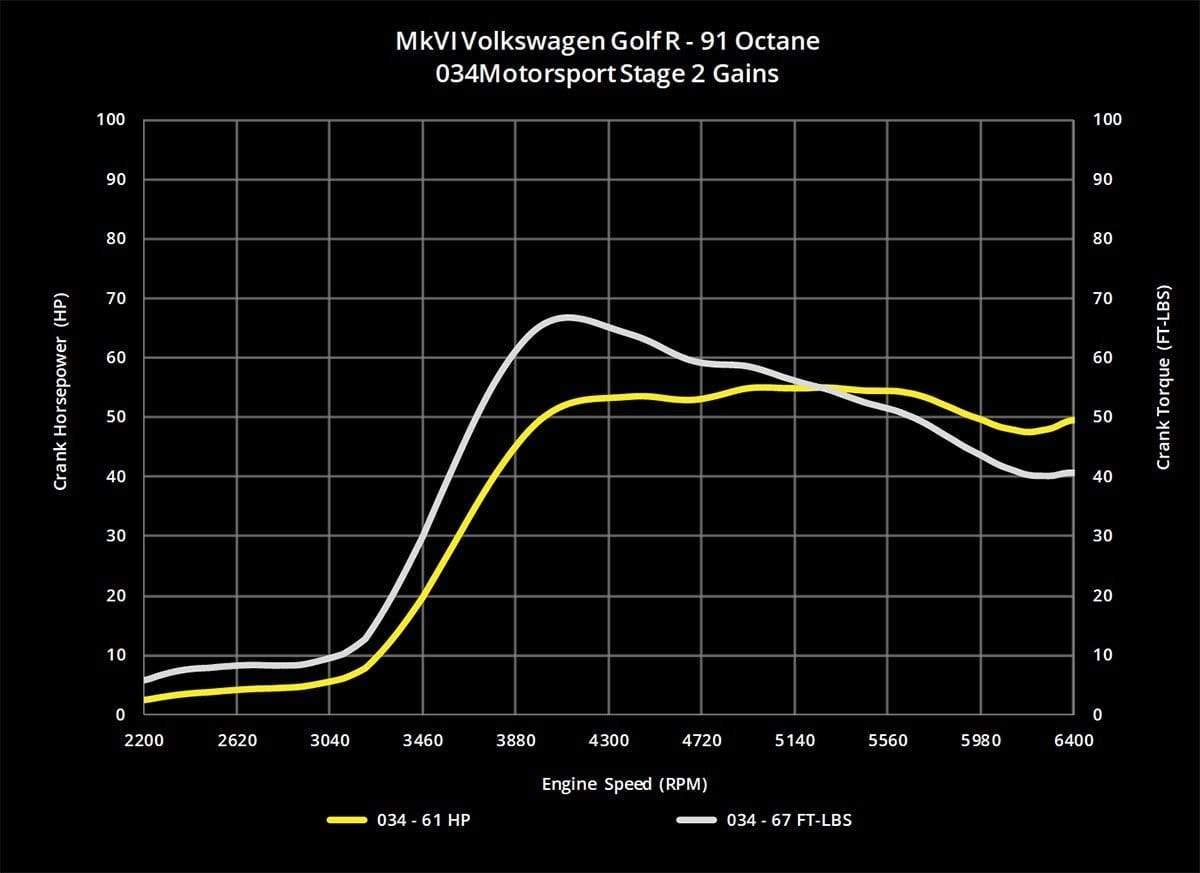

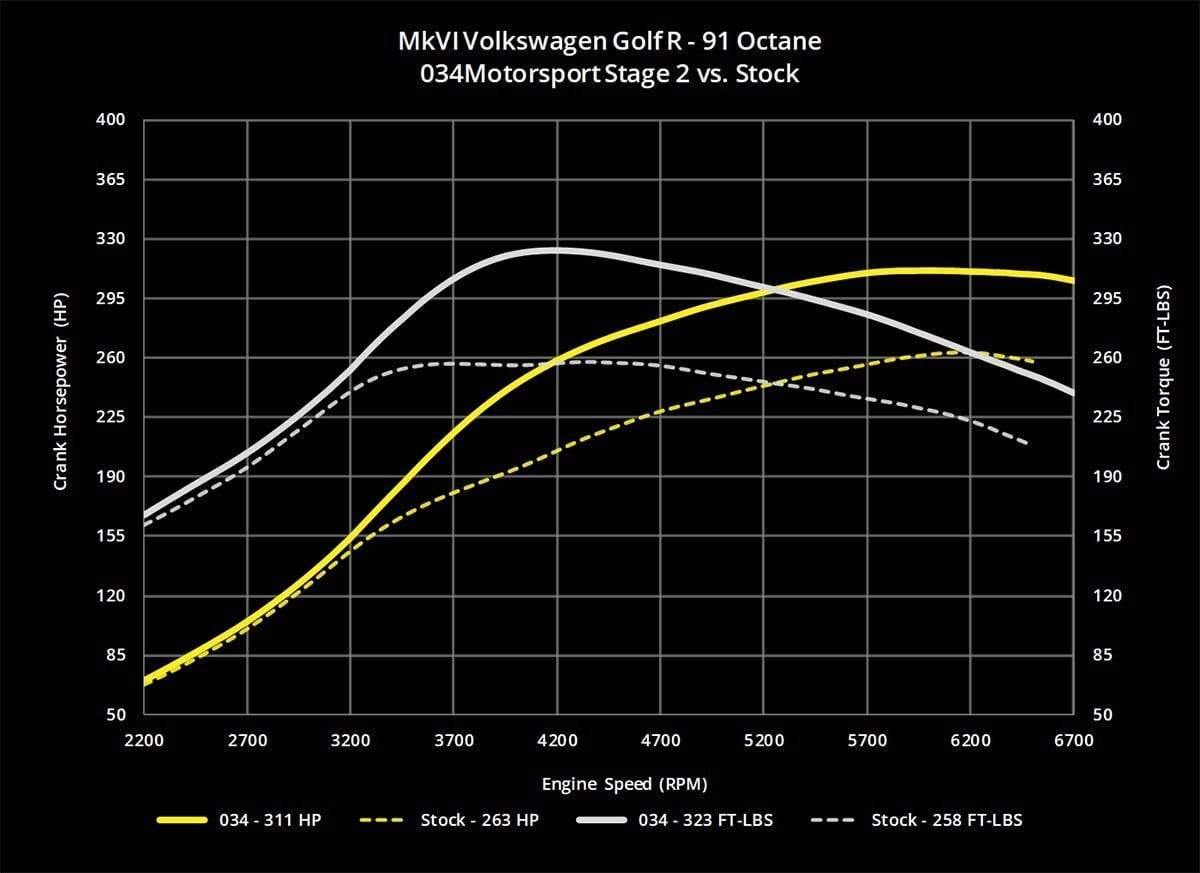

| Stage 2 | 91 Oct | 311 HP | 323 TQ | 61 HP @ 5,200 RPM | 67 TQ @ 4,100 RPM | 7,100 RPM | ∞ |

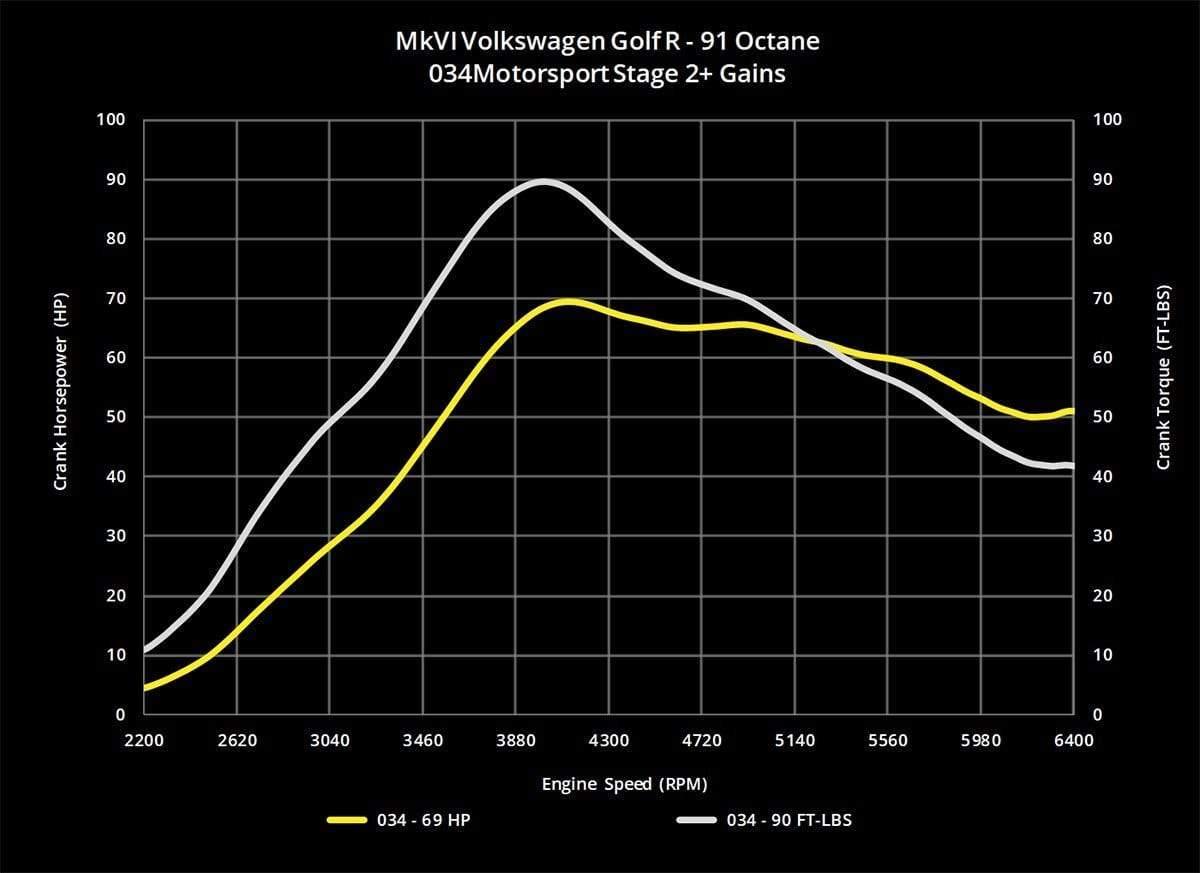

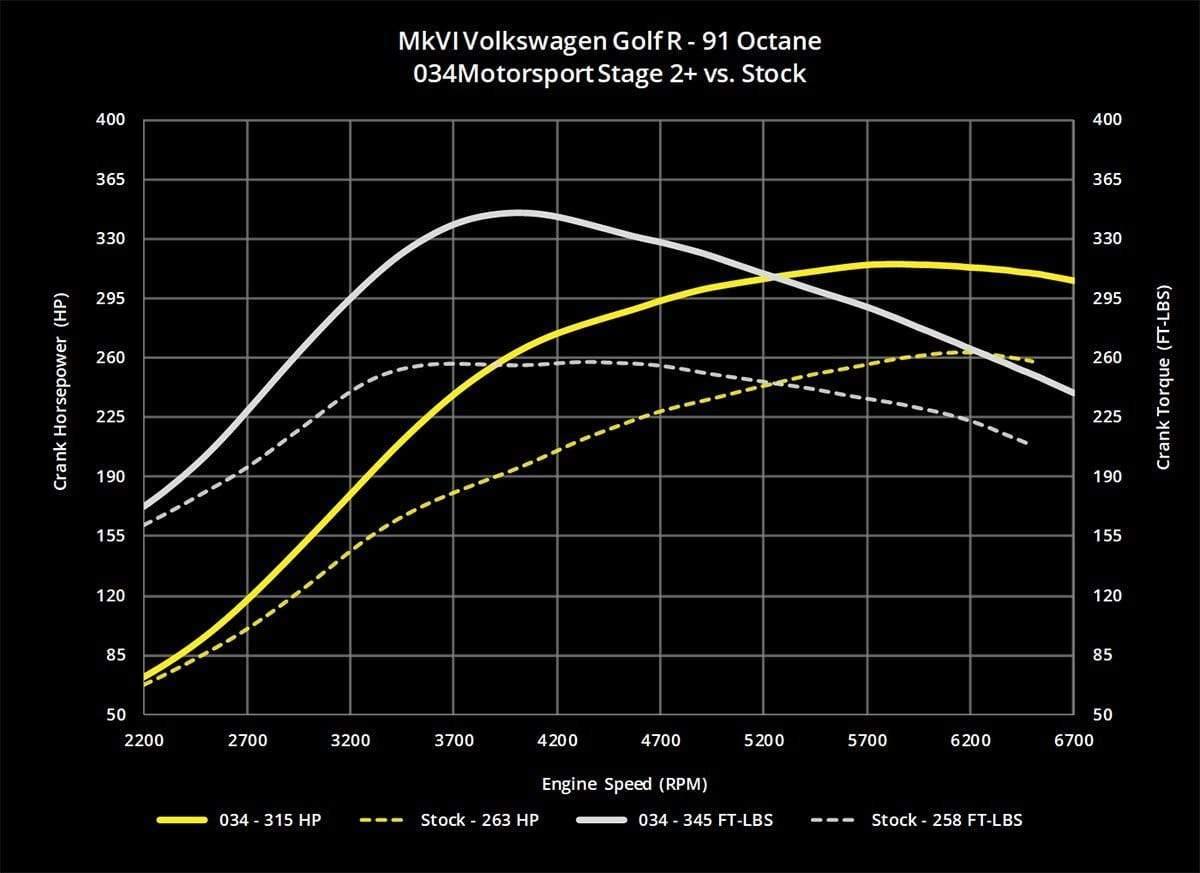

| Stage 2+ | 91 Oct | 315 HP | 345 TQ | 69 HP @ 4,100 RPM | 90 TQ @ 4,000 RPM | 7,100 RPM | ∞ |
034MOTORSPORT EA113 2.0T FSI K04 MED9 ECU PERFORMANCE SOFTWARE STAGE DESCRIPTIONS
STAGE 1
034Motorsport Stage 1 Performance Software for the 2.0T FSI engine is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0T engine.
Stage 1 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.
STAGE 2
034Motorsport Stage 2 Performance Software for the 2.0T FSI engine is engineered to further increase horsepower and torque with the addition of a high-flow downpipe upgrade and performance air intake. 034Motorsport's calibrations optimize the factory ECU for these hardware modifications in order to extract additional power from the 2.0T engine.
Stage 2 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and allow for further control of the vehicle when driving on track.
STAGE 2+
034Motorsport Stage 2+ Performance Software for the 2.0T FSI engine is engineered to further increase horsepower and torque with the addition of a high-pressure fuel pump upgrade, high-flow downpipe upgrade, and performance air intake. 034Motorsport's calibrations optimize the factory ECU for these hardware modifications in order to extract additional power from the 2.0T engine.
Stage 2+ Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and allow for further control of the vehicle when driving on track.
034MOTORSPORT EA113 2.0T FSI K04 MED9 ECU PERFORMANCE SOFTWARE HARDWARE REQUIREMENTS
| Stage | Required Modifications | Recommended Modifications |
|---|---|---|
| Stage 1 |
|
|
| Stage 2 |
|
|
| Stage 2+ |
034Motorsport Dynamic+ End User Flashing Kit
034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.
Requirements for End User Flashing:
- Windows 7 or Windows 10 Laptop with Available USB Port
- Power Supply for Laptop
- Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
- CTEK Trickle Charger (Or Similar)
- Available Electrical Outlets
034Motorsport End User Flashing Kit Contents:
- 034Motorsport OBD-II Adapter
- USB-A to USB-B Cable
- Carrying Case
- User Credentials (Provided Via Email)
EMISSIONS DISCLAIMER
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
