Description
Description
VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

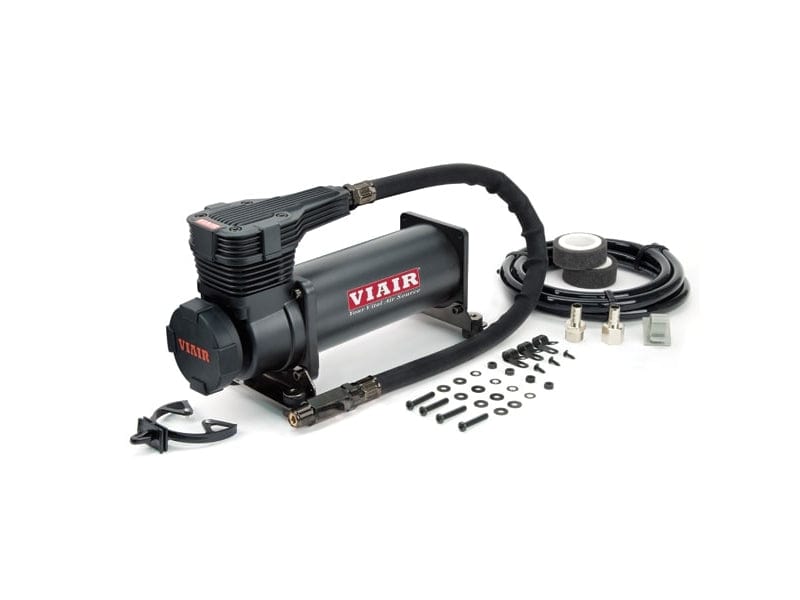

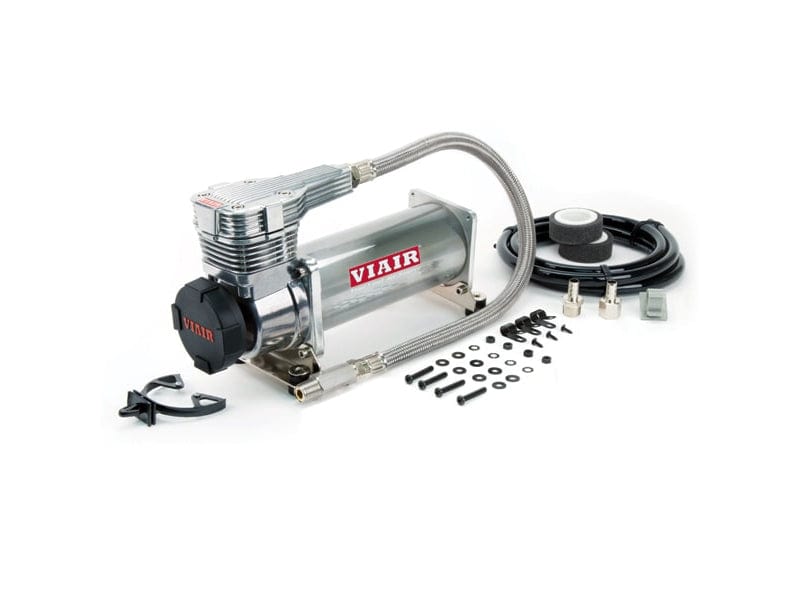

The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.
| FEATURES |
|---|
| – Thermal Overload Protector |
| – 485C (Platinum or Stealth Black) Compressor |
| – Air Filter Assembly |
| – VIAIR Removable Filter Cover |
| – Replacement Air Filter Elements |
| – Remote Mount Filter Assembly |
| – Leader Hose Clip |
| – Air Line Clip with Included Hardware |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Combined Max. Amp Draw: 23-Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 2.5 Gallon Tank (P/N 91028) | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 25 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
