Forge Diverter Valve Kit | BMW N54 Engine (135 | 335 | 535)

Developed specifically for BMW's all-new N54 twin turbo motor, as found in the BMW 135,335 and 535 models, Forge Motorsport adds another replacement valve application to our already extensive vehicle specific and universal valve lineup. While virtually identical in operation to the Bosch style valves as used from the factory on many other turbocharged applications, primarily Volkswagen and Audi, BMW has utilized a very different type of valve connection mechanism that makes their product and our replacement components very unique.

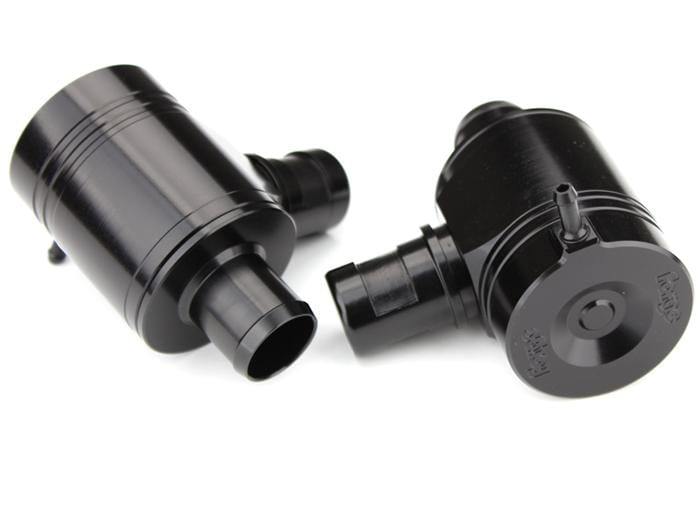

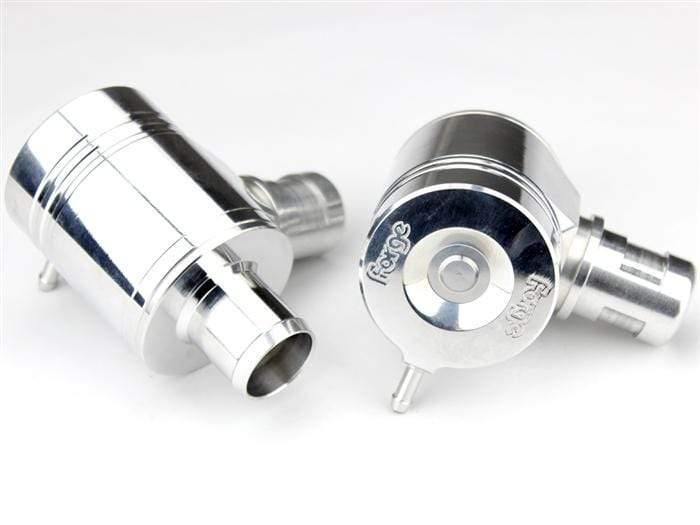

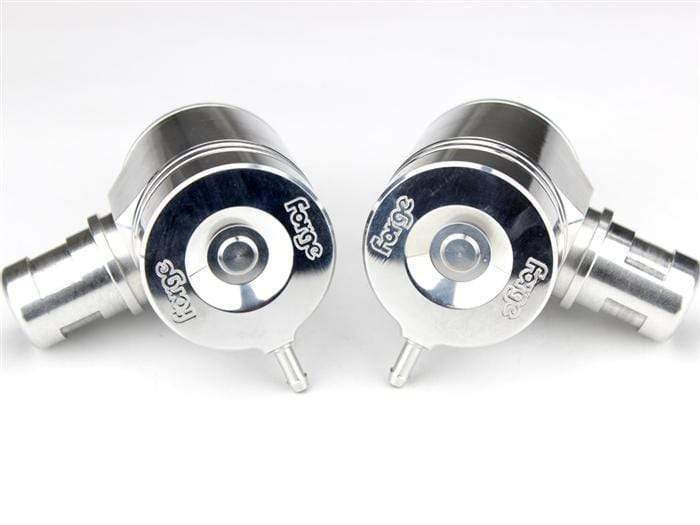

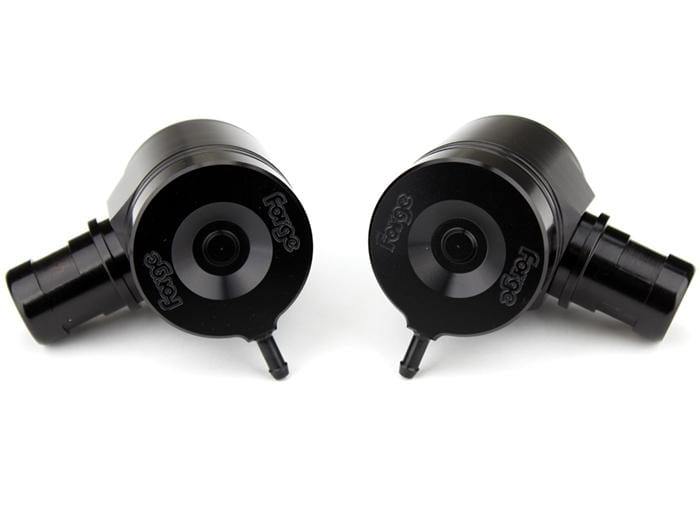

Starting with the world's best selling direct replacement Bosch style valve, our own 007P piston-based design, we have revised virtually every single component of the valve body, (except the internal piston), in order to retain BMW's unique connection mechanism yet offer improved functionality in every other possible way. The entire valve assembly is precision CNC machined from T6-6061 billet aluminum alloy on our very own Mazak CNC milling machines. Again, the valve is an aluminum piston based design, offering significantly improved reliability over the failure prone OEM diaphragm valves, yet with no change to valve response time. We utilize ultra high temperature Viton brand silicone o-rings for sealing and Mobil1 fully synthetic bearing grease for lubrication.

The valves are fully tunable for both boost holding capacity and response by way of proprietary interchangeable springs and shims (washers to marginally adjust preload). By utilizing this method of valve tuning with multiple custom spring rates, the valves will retain the maximum range of piston travel and flow volume regardless of which spring rate is used. Valves with a singular spring requiring that adjustments be made by continually adding preload will suffer from decreased piston or diaphragm travel as the spring tension is increased. Though these types of valves may hold high boost levels under load, they will actually suffer from limited flow volume at throttle lift when the valve vents.

The hoses included in the kit are a custom made multi-layer fabric reinforced flexible silicone hose that are designed to allow compatibility with the stock airbox and charge piping setup without any permanent modification being required to adapt our replacement valves. Even the included hose clamps are overkill. They are specifically designed for use with silicone hoses, utilizing a beveled band edge and a pressed in drive mechanism rather than perforated. They are even approved by NATO for international military use.

All told, this direct replacement valve kit will be suitable for a bone stock car to one that is heavily modified. They can be installed on the car right on the showroom floor and they will last well past having upgraded your intake, exhaust, and ECU software. They are capable of handling an infinitely wider range of boost pressure, more reliably, than the OEM valves, and they carry an unlimited lifetime warranty and money back guarantee.

To download fitting instructions for this product click here

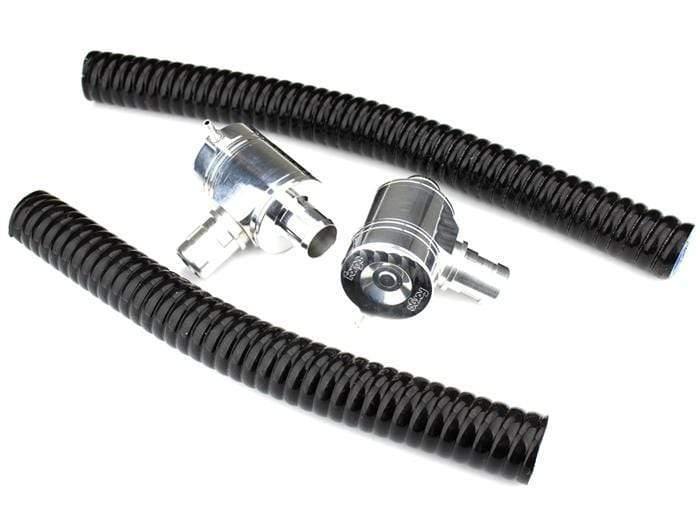

What's Included:

• 2 x FMDVBM35 Valve (Left and Right)
• 1 x 25mm x 400mm Mega Flex Hose
• 1 x 25mm x 330mm Mega Flex Hose

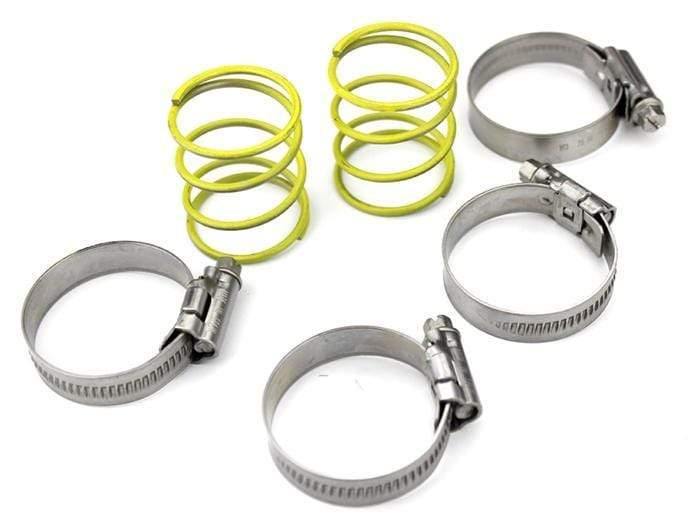

• 4 x 40mm Hose Clamps
• 2 x Uprated Yellow Spring
• 1 x Forge Sticker

Founded in 1996, Forge Motorsport is a performance parts manufacturer that prides itself on the ideals of innovation, clever design, customer care, and making products of only the highest build quality.
